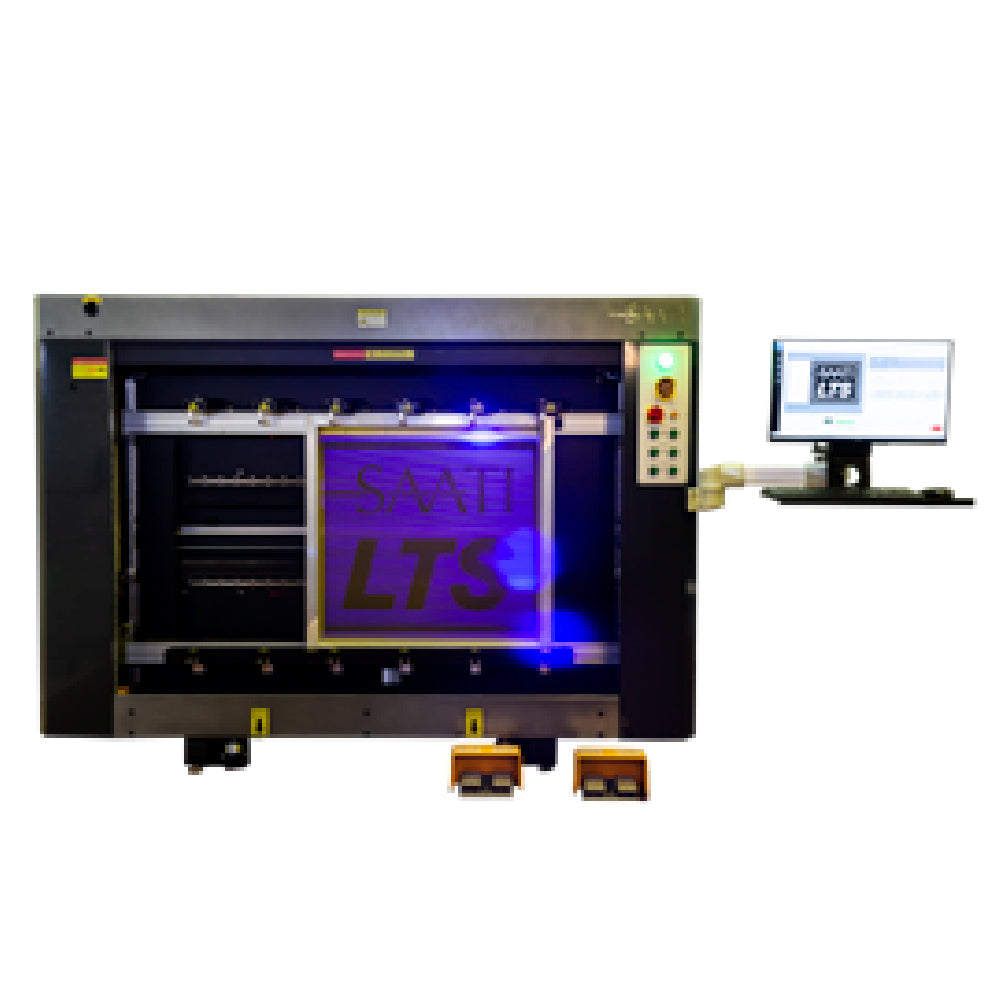

Saati LTS 8012 (Direct Laser Image & Exposure Unit)

Saati LTS 8012 (Direct Laser Image & Exposure Unit) - 41.3" x 63"

SKU:

Financing Options

The Saati LTS 8012 is a super high-efficiency direct laser computer-to-screen (CtS) imaging and exposure unit, engineered for maximum productivity and precision. With a vertical, glass-free design and safety shutter, the LTS 8012 eliminates the need for film positives or vacuum frames, streamlining the prepress process while reducing consumable costs.



Equipped with a 128-laser array and multiple resolution options (847–2540 DPI), the LTS 8012 delivers exceptionally sharp detail across even the most demanding image types. Designed to handle one screen up to 1050 × 1600 mm (41.3" × 63") or two screens up to 635 × 915 mm (25" × 36") simultaneously, it significantly increases throughput. Easy-to-use PC software, RIP compatibility, and advanced workflow tools further enhance shop efficiency, making this unit ideal for mid- to high-volume production environments.

Screen Size

Product Resources

View full details

Often Purchased With

Saati LTS Imaging & Exposure Machines

Direct Laser Diode, Simultaneous Imaging and Exposure Units

Additional Information

  • Dual-screen capability — image and expose two screens at once

  • High-resolution CtS imaging — 847, 1016, 1270, 1693, or 2540 DPI

  • 128-laser array ensures precise pixel placement and superior detail

  • Vertical, glassless design with safety shutter for clean and efficient exposures

  • No film positives required — digital workflow directly from PC/Mac

  • Powerful workflow software allows multiple image placements across one or two screens

  • Supports all emulsions and stencil films

  • Low operating cost — no consumables, low power consumption, and easy maintenance

  • Long laser life — 10,000+ hours for reliable, long-term use

Specification Detail
Maximum Image Size 800 × 1200 mm (31" × 47")
Maximum Frame Size 1 screen up to 1700 × 1100 mm (66.9" × 43.3")
2 screens up to 635 × 915 mm (25" × 36")
Resolution 847, 1016, 1270, 1693, or 2540 DPI
Laser Array 128-laser system
Machine Dimensions 2650 × 730 × 1690 mm (104.3 × 28.7 × 66.5")
+ 23" minimum space for monitor stand
Weight 878 kg (1935.6 lb)
Power Requirements 110V or 220V input
Compressed Air 90 PSI (6.2 Bar), less than 1 cfm (for clamps)
Laser Life 10,000+ hours
Warranty One Year
