GTX - T-Lock Cap Platen Complete Kit

GTX - T-Lock Cap Platen Complete Kit - Default Title


Regular price $730.00 CAD
Regular price Sale price $730.00 CAD
Sale Sold out
Shipping calculated at checkout.

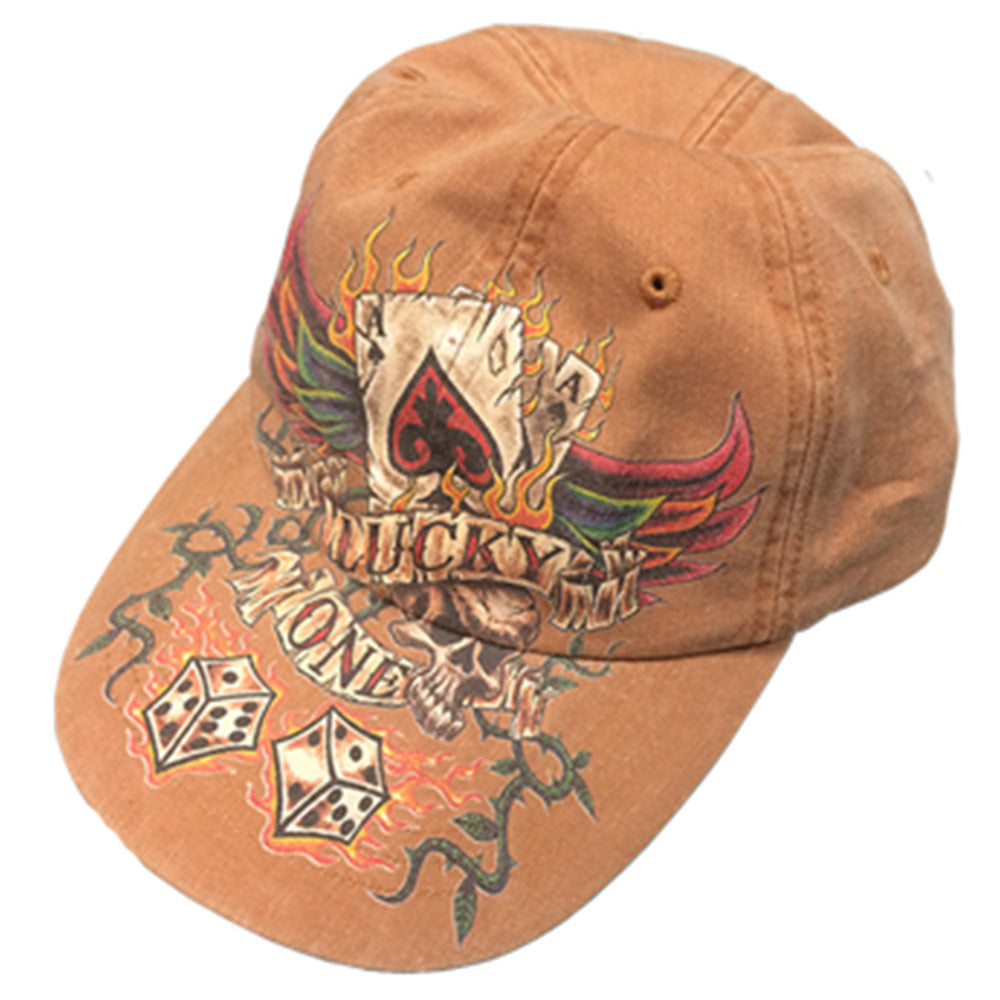

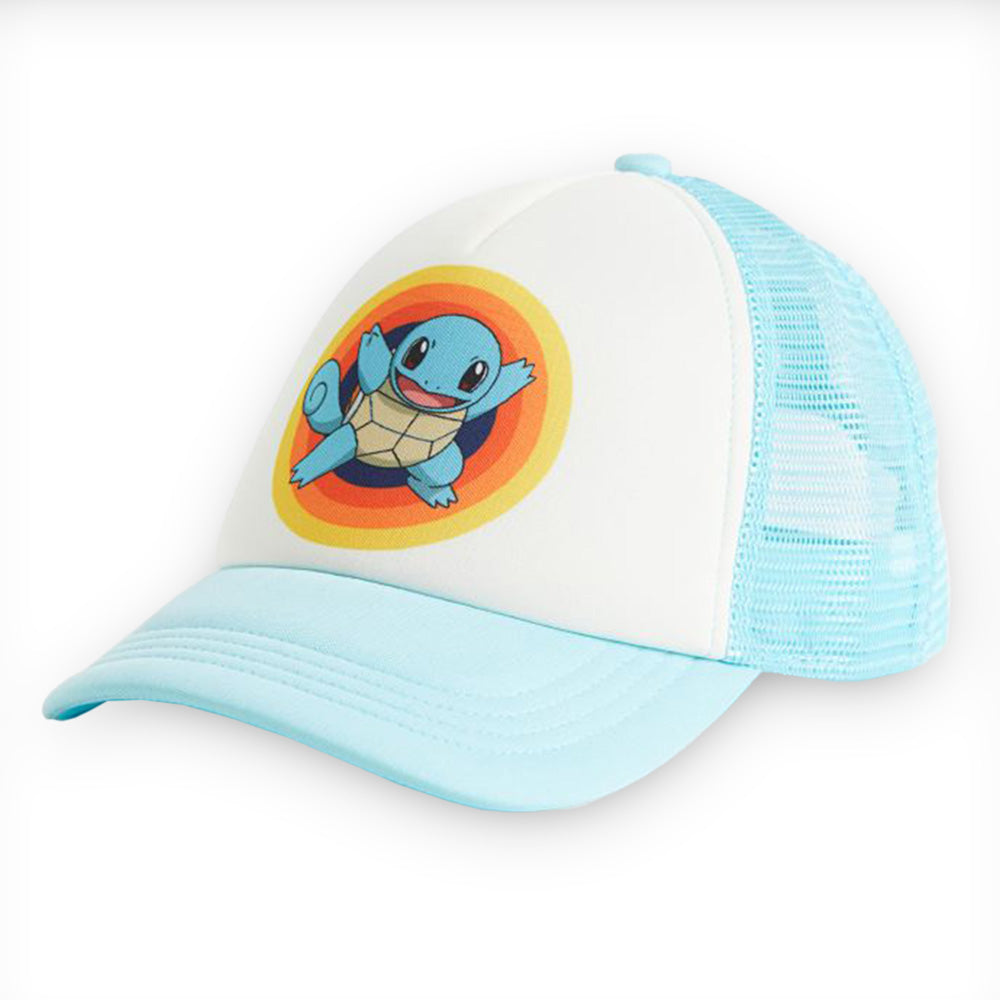

Printing t-shirts is a great way to build a foundation for your business, but why stop there? With the cap platen kit, you now have the ability to create customized headwear helping to expand your product offering and increase your sales. Brother GTX DTG printers have a large print head-to-substrate gap that allows them to print from the top of the crown down to the bill on most types of hats – including going over the seam.

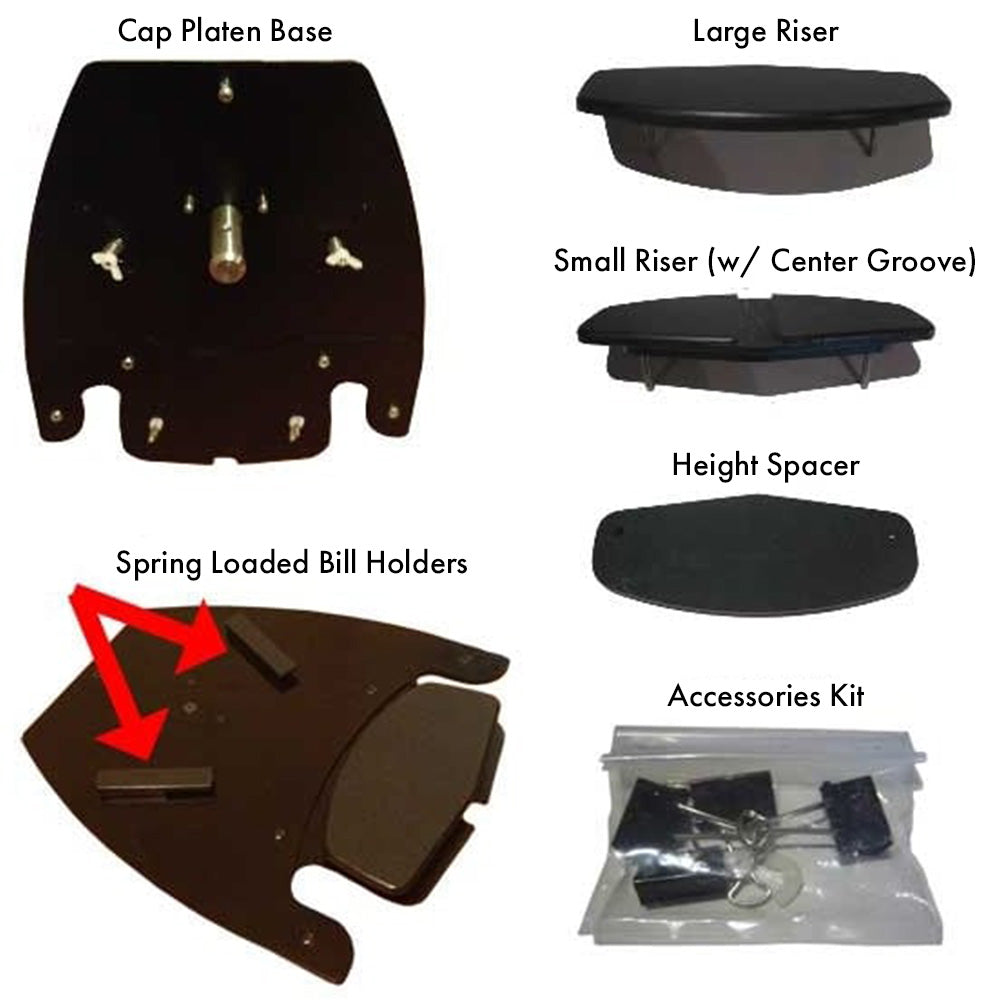

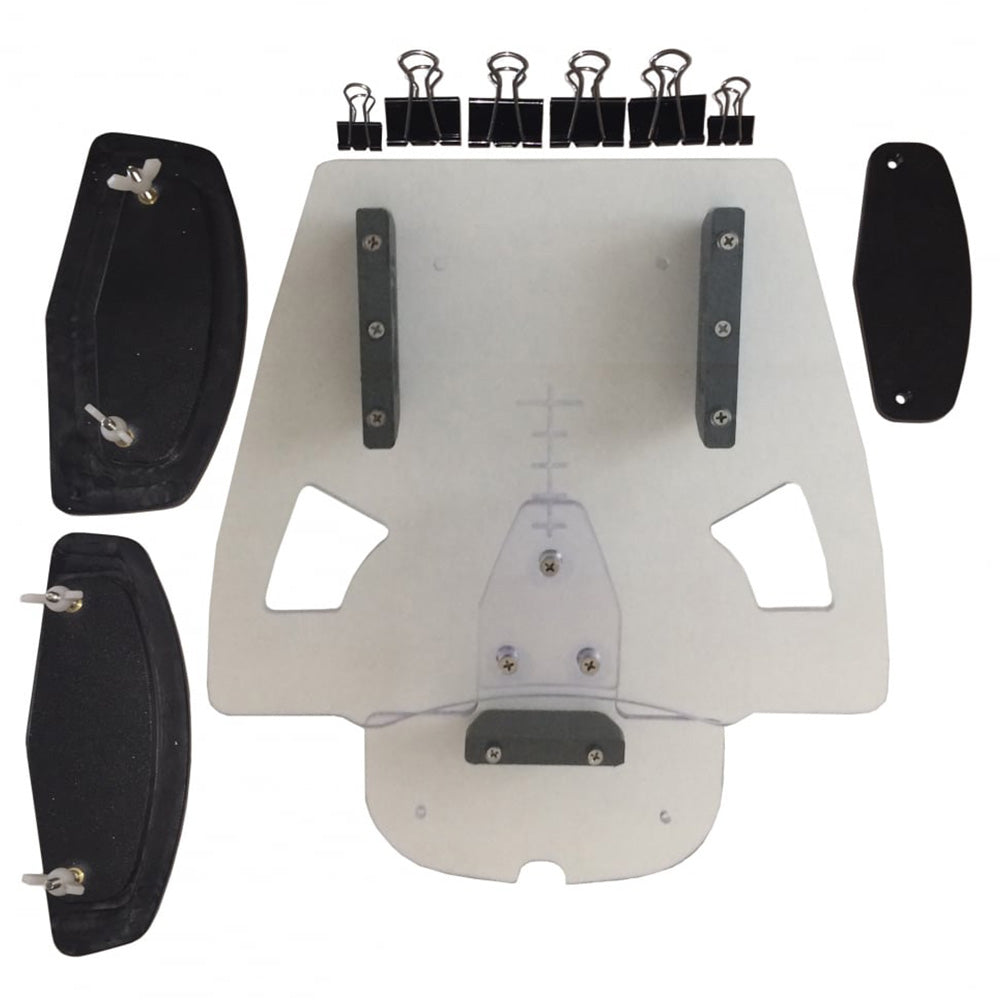

The Cap Platen Complete Kit comes with the following inserts:

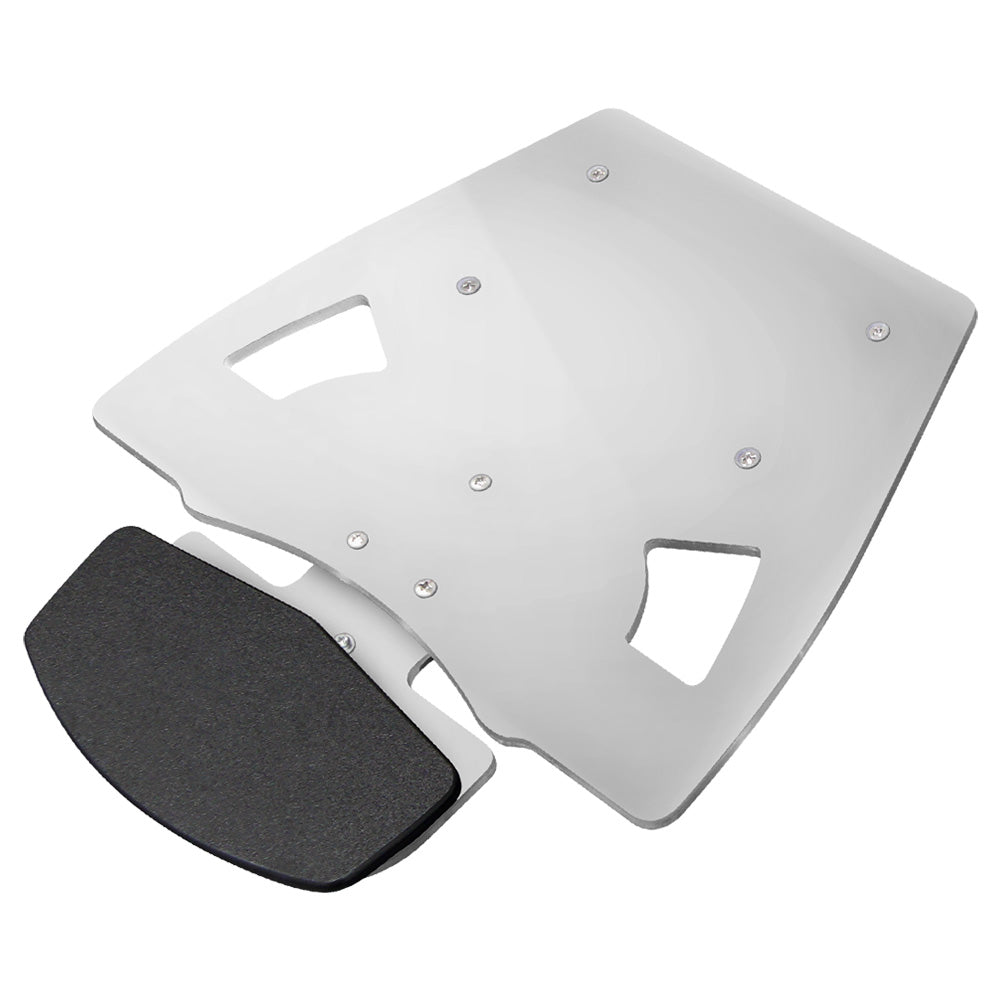

  • Cap Platen Base
  • 2 Risers
  • 1 Spacer
  • 1 Accessory Kit

    In stock


    Product Resources

    View full details


    Additional Information

    1. Pretreat the cap with the appropriate type of pretreat. Use polyester pretreat for printing CMYK only ink on light garments or use Brother DTG pretreat for printing with white ink on dark-colored caps.

    2. Cure the pretreat using a heat gun or conveyor dryer/oven.

    3. Load the Cap Platen on the Brother GT Printer with the appropriate riser based on the type of cap being printed. It is recommended for structured caps to use the Small Riser and the Large Riser for unstructured caps.

    4. Load the blank cap on the Cap Platen by flipping the sweat band down and sliding it under the front lip of the riser.

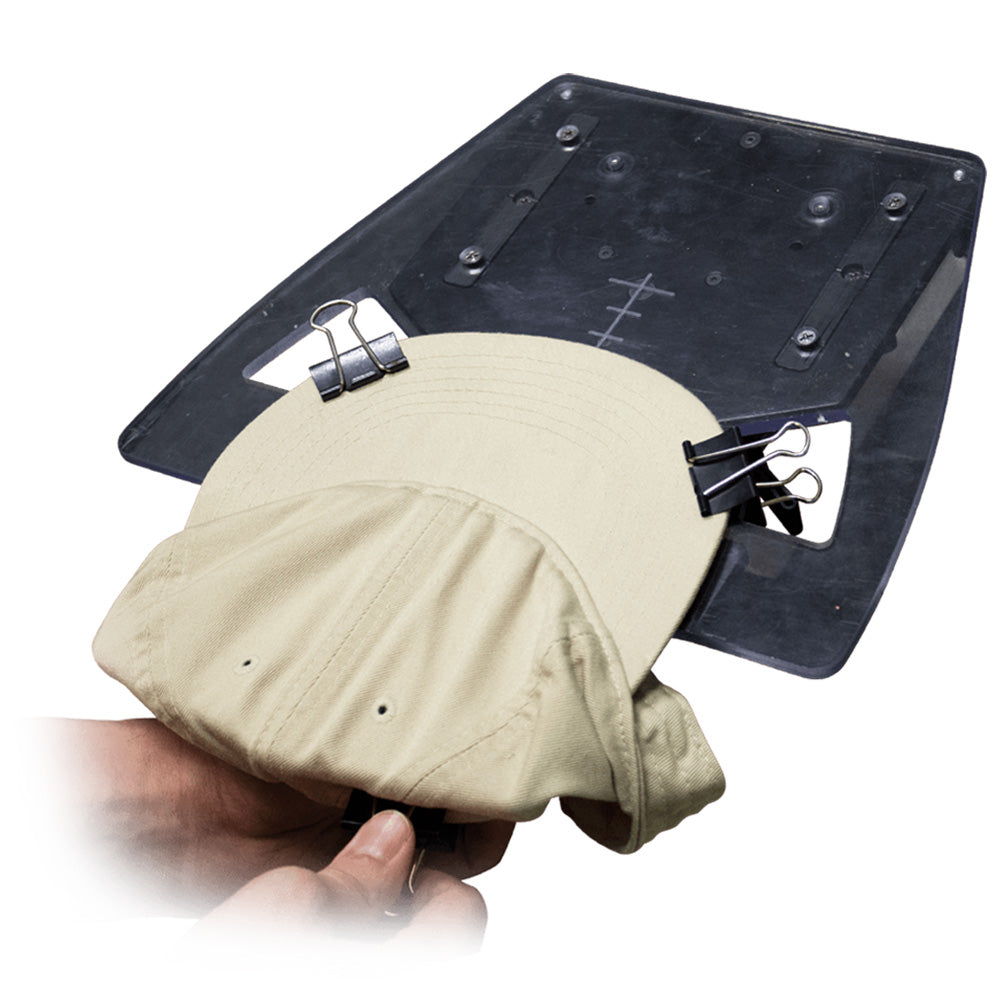

    5. Use the vertical line on the Cap Platen to align the cap straight prior to securing the bill of the cap using the included black clips.

    6. Pull the crown of the cap over the riser and secure it to the back of the Cap Platen. Try to make the crown of the cap as flat as possible across the riser.

    7. Using the included artwork template for the Cap Platen or AccuLine Camera System, determine the appropriate position of the artwork.

    8. Select the desired print settings and send the print file to the Brother DTG printer. For printing on the crown and bill of the cap, create the print file for uni-directional print mode. Print the blank cap by pressing the green button.

    9. Carefully remove the printed cap from the Cap Platen.

    10. Cure the printed cap using a heat gun or a conveyor dryer/oven.
