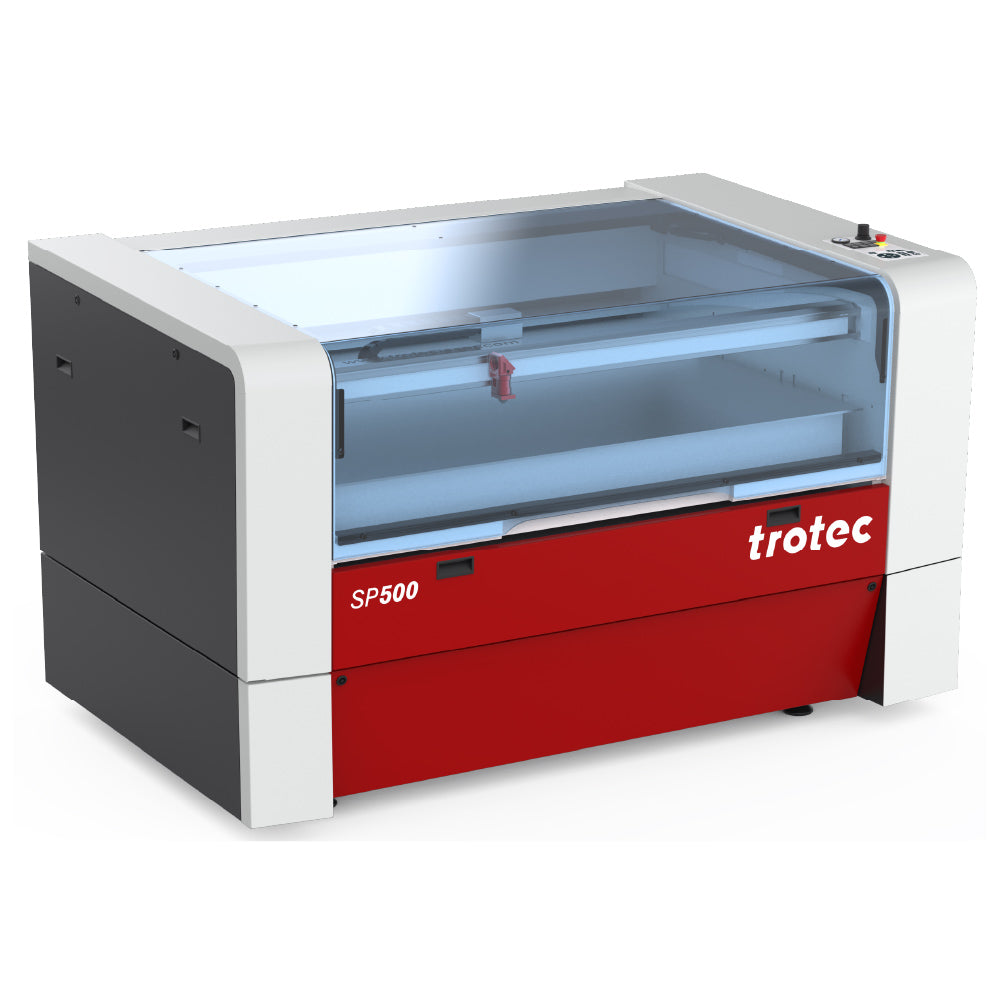

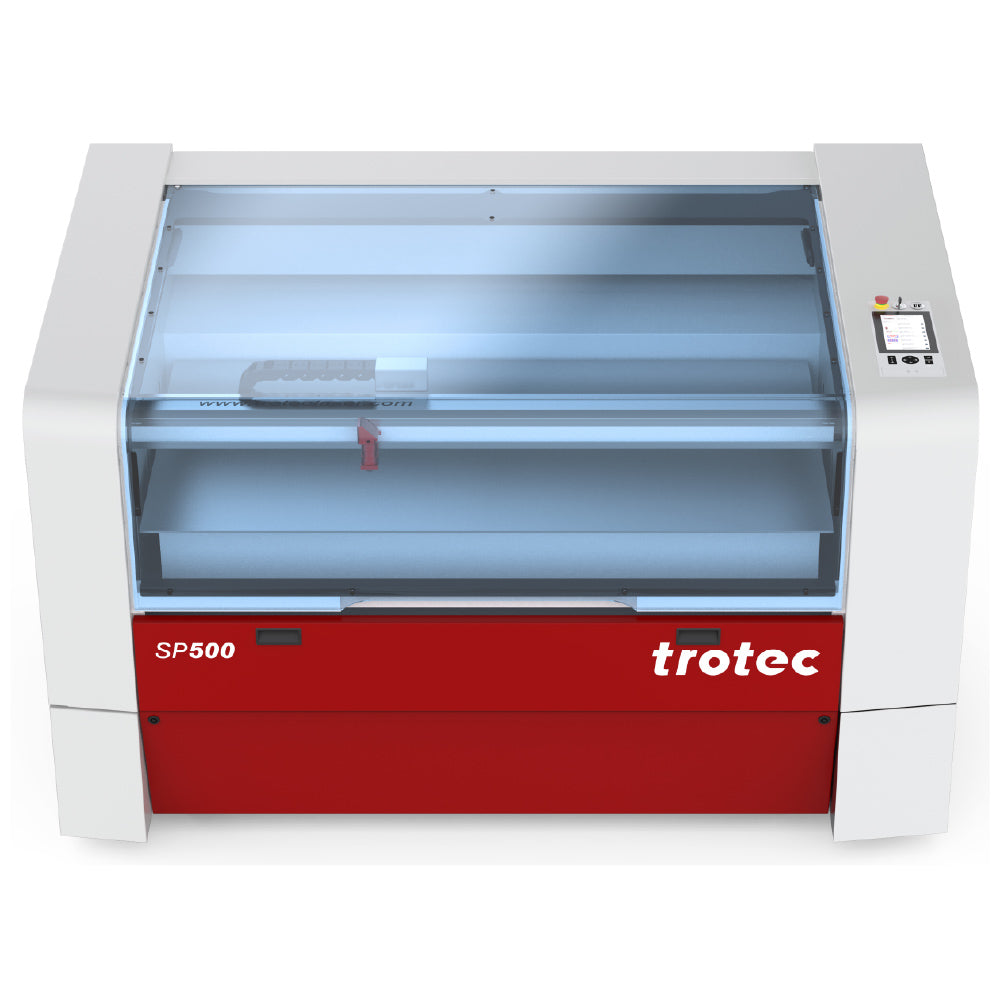

Trotec Speedy 500 Laser Cutting and Engraving Machine

Trotec Speedy 500 Laser Cutting and Engraving Machine - 49 × 28 in / 120W CO₂

SKU:

Financing Options

The Trotec Speedy 500 (SP500) is a high-precision laser cutting and engraving system designed for large-format applications. With a generous working area of 1245 × 710 mm (49 × 28 in), it provides ample space to process standard material sizes efficiently, making it ideal for businesses that require fast turnaround on large volumes or oversized materials.



Despite its expansive format, the SP500 is engineered for user-friendly operation—every corner of the working area is easily accessible for quick setup and smooth material handling. Combining Trotec’s industry-leading laser technology with durable construction and intuitive software integration, the Speedy 500 delivers exceptional quality, speed, and reliability for demanding production environments.

Bed Size
Laser Power

Product Resources

View full details

Often Purchased With

Maximum Productivity and Flexibility



  • Speedy 500 Work Area

  • Technical data

    Marking area (W x D) 1245 x 710 mm | 49 x 28 in
    Laser power CO 2 120 – 200 W
    Max. engraving speed 2.54 m/s | 100 ips
    Max. workpiece height 95 mm | 3.7 in





Specification Speedy 400 Speedy 360 Speedy 300 Speedy 100 Speedy 50 SP500
Working area (W x D) 1016 × 610 mm (40 × 24 in) 813 × 508 mm (32 × 20 in) 726 × 432 mm (29 × 17 in) 610 × 305 mm (24 × 12 in) 457 × 305 mm (18 × 12 in) 1245 × 710 mm (49 × 28 in)

  • Rotary Attachment
    ROTARY ENGRAVING

    Rotary attachment for engraving on cylindrical objects

  • Pass-Through
    PASS-THROUGH

    Effortlessly engrave or cut long materials

  • Lens protection
    AIR ASSIST

    Integrated pump protects the lens from dust

  • Temperature Control
    TEMPERATURE SENSOR

    Temperature sensor with warning alert for safe operation

  • lenses
    DIFFERENT FOCUS LENSES

    Choose from a variety of focus lenses

  • CE Certified
    CE CERTIFICATE

    Certified for safe operation



  • 8x Faster Cutting




  • 8x Faster Cutting


    The name of the Speedy series says it all. Fast cutting and engraving is what the Speedy series was built for. Glide effortlessly along curves with OptiMotion™. It adjusts cutting speed automatically, ensuring precise contour accuracy and high productivity, ideal for cutting thin materials like foils and vector marking



  • For Many Materials


    Our patented Flexx Technology™ combines CO2 and fiber lasers, offering endless possibilities for material processing such as wood, glass, plastic and more. Our Speedy 100 cross diode laser is a cost-effective all-rounder for processing metals and many other materials.

  • For Many Materials

  • Durability meets quality




  • Durability Meets Quality


    Achieve uniform engraving and create even complex details with superior power stability and a fine laser spot. Our patented CeramiCore® laser source ensures impressive durability.

Application Ideas



  • Wood
    Wood

  • Twill
    Twill Cutting

  • Metal
    Metal

  • Leather
    Leather

  • Glass
    Glass

  • MDF
    MDF Boards

  • Cardboard
    Cardboard Packages

  • Foam Inserts
    Foam Inserts

Additional Information

  • Large-format 49" × 28" (1245 × 710 mm) working area for oversized materials

  • Designed for high-volume cutting and engraving with fast processing speeds

  • Precision laser quality across the entire work area

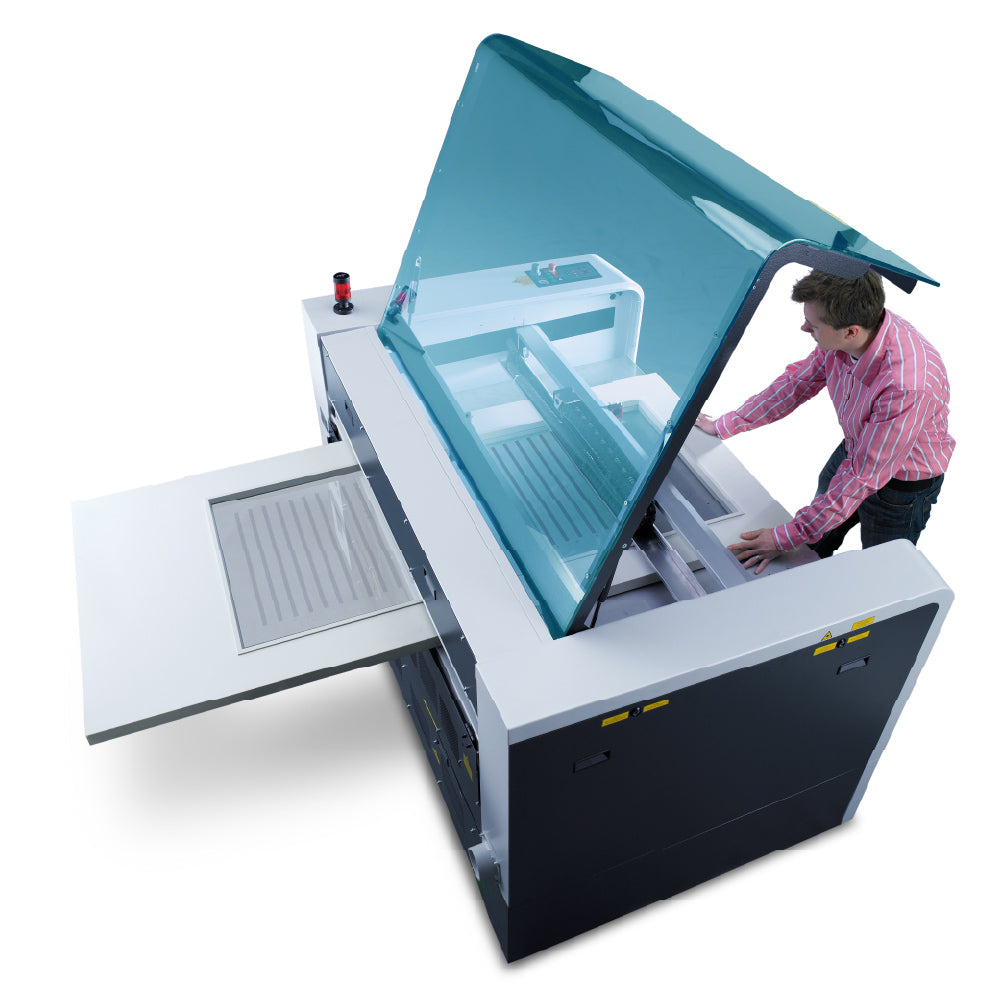

  • Easy access to every corner of the interior for smooth material handling

  • InPack-Technology™ protects components from dust and debris for long-term reliability

  • Powered by Ruby® laser software for streamlined design-to-production workflow

  • Supports a wide range of materials including wood, acrylic, plastics, textiles, and more

  • Built for industrial-scale productivity with robust, durable construction

Specification Speedy 400 Speedy 360 Speedy 300 Speedy 100 Speedy 50 SP500
Working area (W x D) 1016 × 610 mm (40 × 24 in) 813 × 508 mm (32 × 20 in) 726 × 432 mm (29 × 17 in) 610 × 305 mm (24 × 12 in) 457 × 305 mm (18 × 12 in) 1245 × 710 mm (49 × 28 in)
Max. height of workpiece 305 mm (12 in) 210 mm (8 in) 200 mm (7.8 in) 170 mm (6.7 in) 141 mm (5.5 in) 95 mm (3.7 in)
Loading area (W x D) 1096 × 698 mm (43 × 27 in) 890 × 600 mm (35 × 23 in) 795 × 440 mm (31 × 17 in) 690 × 305 mm (27 × 12 in) 510 × 380 mm (20 × 15 in) 1420 × 820 mm (56 × 32 in)
Overall dimensions (W x D x H) 1428 × 952 × 1073 mm (56 × 39 × 42 in) 1221 × 790–830 × 1066 mm (48 × 31–33 × 42 in) 1130 × 943 × 1054 mm (45 × 37 × 42 in) 1018 × 784 × 467 mm (40 × 31 × 18 in) 726 × 672 × 447 mm (29 × 18 × 27 in) 1920 × 1240 × 780–1140 mm (75 × 48 × 31–45 in)
Max. processing speed 4.32 m/s (170 ips) 3.55 m/s (140 ips) 3.55 m/s (140 ips) 2.8 m/s (110 ips) 1.5 m/s (60 ips) 2.54 m/s (100 ips)
Max. acceleration 50 m/s² (1969 ips²) 50 m/s² (1969 ips²) 50 m/s² (1969 ips²) 40 m/s² (1575 ips²) 35 m/s² (1378 ips²) 19 m/s² (748 ips²)
Technology motion system Brushless DC servo motors Brushless DC servo motors Brushless DC servo motors Brushless DC servo motors Brushless DC servo motors (X axis) Brushless DC servo motors
Laser power CO₂ 80 – 120 W 80 – 120 W 50 – 120 W 30 – 80 W 30 W 120 – 200 W
Laser power fiber 30 W 30 W 30 W n.a. n.a. n.a.
Laser power diode – – – 40 W – –
Laser class 2 2 2 2 2 2
Weight Approx. 335–350 kg (739–772 lbs) Approx. 270–285 kg (595–628 lbs) Approx. 215 kg (474 lbs) Approx. 95 kg (209 lbs) Approx. 53 kg (117 lbs) Approx. 500 kg (1102 lbs)
Power consumption 1~230V / 50/60Hz / 10.2 A
1~115V / 50/60Hz / 15.3 A		 1~230V / 50/60Hz / 9.6 A
1~115V / 50/60Hz / 14.2 A		 1~AC 110–230V 50/60Hz, max. 1.4 kW
1~AC 230V 50/60Hz, max. 1.8 kW (100–120 W)		 1~AC 110–230V 50/60Hz, 1.3 kW (60 W) 1~AC 110–240V 50/60Hz, 800 W 208–230 V, 50/60 Hz, 16 A
380–400 V 3 Ph., 50/60 Hz, 3×16 A
380–400 V 3 Ph., 50/60 Hz, 3×20 A

  • All-in-one laser software that combines design, editing, and job preparation in one intuitive interface—no switching between programs required

  • Web-based, platform-independent architecture that runs on Windows, Mac, Linux, and even tablets—perfect for networked workflows

  • Seamless multi-user and multi-machine support—prepare jobs remotely, distribute across devices, and monitor progress without needing a dedicated PC

  • Cloud-integrated material database with selectable material and effect presets (e.g., deep engraving, kiss cut) to ensure consistent results

  • Over 25 powerful automation enhancements in recent updates, including vector editing, AI-powered background removal, barcode generation, kerf correction, and smart camera positioning

  • Built-in user and group management tools simplify admin control—assign roles, permissions, and material access with ease

  • REST API (beta) support for workflow automation and integration with external systems, with secure access via personal tokens

  • Web app interface with full Ruby® functionality, allowing operation with a browser—no internet required for local use, and data remains stored securely on your system
