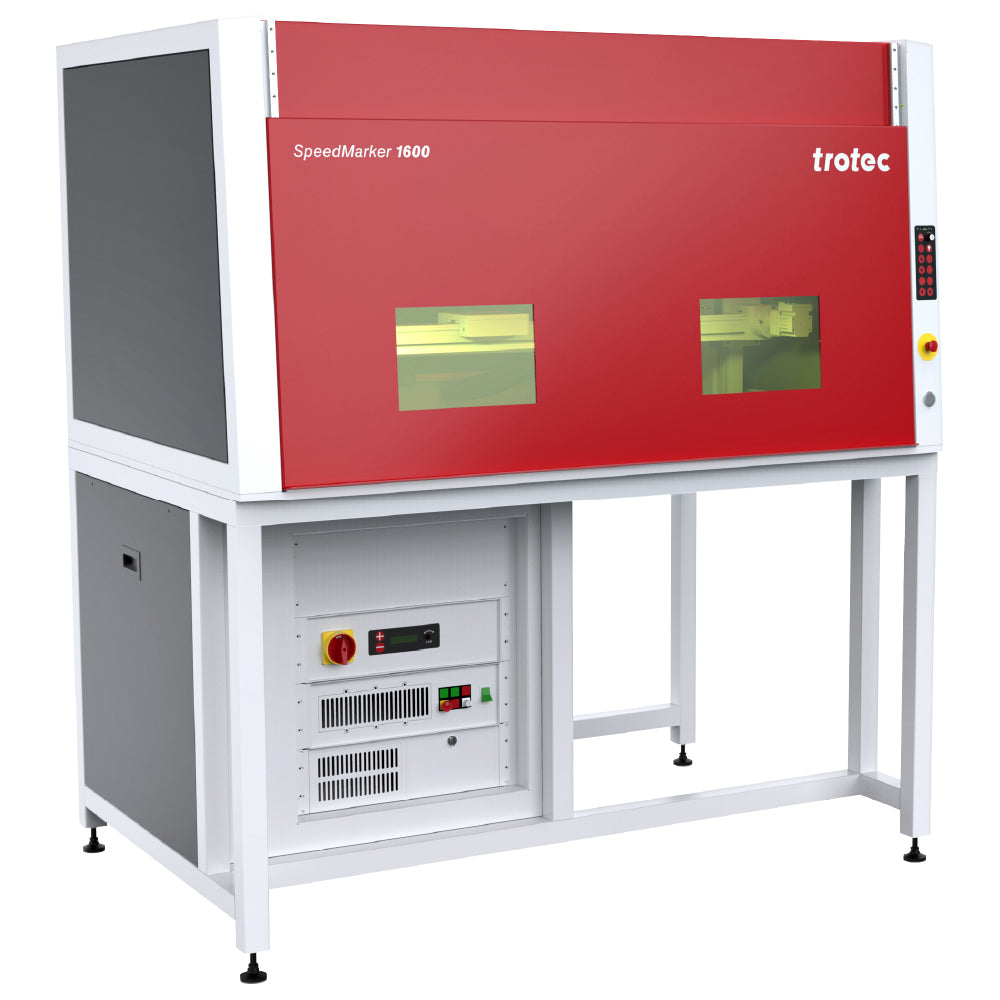

Trotec SpeedMarker 1600 (Fiber + MOPA Laser Marking Machine)

Trotec SpeedMarker 1600 (Fiber + MOPA Laser Marking Machine) - 51.1 x 17.7in

SKU:

Financing Options

The Trotec SpeedMarker 1600 is a powerful galvo laser marking system engineered for industrial-scale production, offering both speed and precision for large and complex marking jobs. With its expansive working area and high-performance laser technology, the SpeedMarker 1600 is ideal for manufacturers who need to process oversized parts, batch trays, or multiple components in a single cycle.

Equipped with fiber or MOPA laser options, it delivers permanent, high-contrast markings on metals, plastics, coated materials, and more. Integration with ERP, SAP, and database systems enables full automation, making it the perfect solution for traceability, serialization, and compliance labeling.

The system runs on SpeedMark® laser software, which provides workflow automation, dynamic data handling, and powerful customization for a seamless production process. Built with industrial-grade reliability and designed for continuous operation, the SpeedMarker 1600 ensures accuracy, productivity, and long-term durability in demanding environments.

Bed Size

Product Resources

View full details

Maximum Productivity and Flexibility





  • SpeedMarker 1600 Work Area

  • Technnical data

    Maximum marking area  1300 x 450 mm
    Max. workpiece height (F160)  424 mm
    Laser power fiber  20 – 50 W
    Laser power MOPA  20 – 100 W
    Laser class   2





Specification SpeedMarker 50 SpeedMarker 300 SpeedMarker 700RT SpeedMarker 700 SpeedMarker 1300 SpeedMarker 1350 SpeedMarker 1600
Working area (W x D) 310 × 310 mm (12.2 × 12.2 in) 190 × 190 mm (7.5 × 7.5 in) 310 × 310 mm (12.2 × 12.2 in) 580 × 400 mm (22.8 × 15.7 in) 1000 × 450 mm (39.9 × 17.7 in) 1000 × 500 mm (39.9 × 19.6 in) 1300 × 450 mm (51.1 × 17.7 in)

Trotec SpeedMarker

Made for Automation

  • Mark 100x Faster




  • Mark 100x Faster


    Mark inclined planes, spheres, bowls, cylinders and pipes up to 100x faster with virtual rotary engraving. Instead of rotating the 3D object mechanically, the focus is constantly guided over the object by a software-controlled lens system. This makes time-consuming tasks like complex clamping, slow mechanical rotating and the set-up of the mechanical rotary engraving attachment a problem of the past.



  • Programmed by you


    Program your laser processes yourself. You can easily put together complex sequence programs, interactions with third-party systems or your own operator screens by using predefined programming modules. In this way, system operators can set up new production processes quickly and without the help of manufacturer support. Additionally changes due to changed requirements can be implemented quickly and independently.

  • Programmed by you

  • Automated Marking




  • Automated Marking with Dynamic Data


    Each of these ties directly to the idea that the SpeedMarker can pull data from Excel, SAP, or e-commerce systems and handle everything from one-off jobs to 350 parts per hour.

A comparison of the work areas of our laser marking machines.

Trotec offers different laser machines that require different sizes of work areas. Below you can find a graphical description of the differences between the machines:

Additional Information

  • Extra-large marking area for oversized parts and batch production

  • High-speed galvo laser for industrial-scale marking

  • Compatible with metals, plastics, coated materials, and composites

  • ERP/SAP/database integration for automated, data-driven workflows

  • Powered by SpeedMark® software with workflow automation and customization

  • Fiber and MOPA laser options for maximum material versatility

  • Permanent marking for serials, barcodes, logos, and compliance codes

  • Built for continuous operation in demanding industrial environments

  • Laser Class 2 system for safe, user-friendly operation

Technical Data SpeedMarker 1600 SpeedMarker 1350 SpeedMarker 1300 SpeedMarker 700 Fiber SpeedMarker 700RT SpeedMarker 700 CO₂ SpeedMarker 300 SpeedMarker 50
Maximum Marking Area 1300 x 450 mm 1000 x 500 mm 1000 x 450 mm 580 x 495 mm 310 x 310 mm 1000 x 500 mm 190 x 190 mm 310 x 310 mm
Max. Workpiece Height (F = 160) 424 mm 684 mm 450 mm 490 mm 195 mm - 168 mm -
Max. Workpiece Height (F = 254) 317 mm 577 mm 343 mm 383 mm 195 mm - 61 mm -
Overall Dimensions (W x D x H) 1600 x 1030 x 1790 mm 1300 x 1327 x 2040 mm 1300 x 1030 x 1800 mm 780 x 981 x 1802 mm 780 x 1144 x 1804 mm 780 x 1188 x 1802 mm 572 x 851 x 653 mm 375 x 800 x 666 mm
Max. Marking Speed 12 m/s (depending on F lens)
Max. Positioning Speed 12 m/s (depending on F lens)
Laser Power (Fiber) 20, 30, 50 W 20, 30, 50 W 20, 30, 50 W 20, 30, 50 W 20, 30, 50 W - 20, 30, 50 W 20, 30, 50 W
Laser Power (MOPA) 20, 100 W 20, 100 W 20, 100 W 20, 100 W 20 W - 20, 100 W 20, 100 W
Laser Power (CO₂) - - - - - 60, 120 W - -
Laser Class 2 2 2 2 2 2 2 4
Weight 500 kg 580 kg 400 kg 260 kg 300 kg 260 kg 77 kg 62 kg
Max. Loading 50 kg 50 kg 50 kg 50 kg (y-axis 30 kg) 20 kg 50 kg 25 kg -
X-Axis Standard Standard Standard Optional - - Standard Optional
Y-Axis Standard Standard Optional Optional - - Optional Optional
Z-Axis Standard
