Toyoda

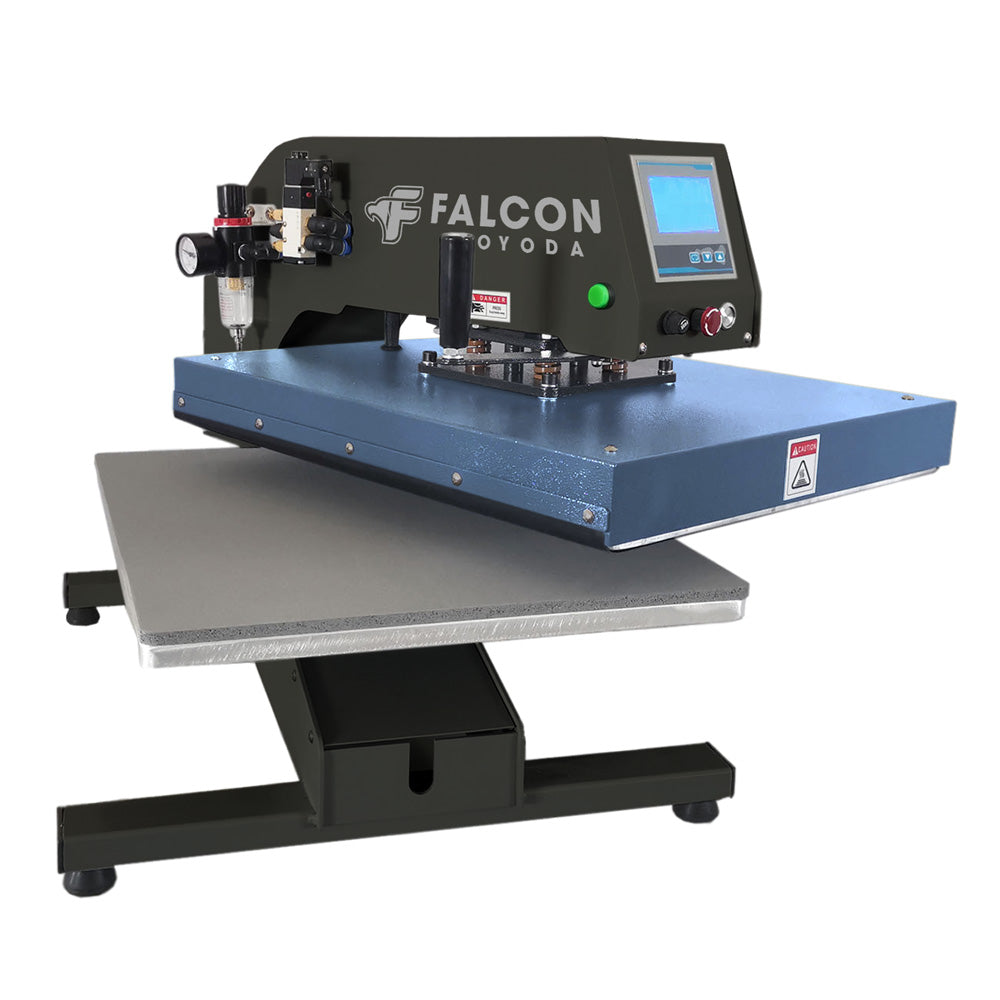

Toyoda Falcon Pneumatic Swing Away Semi-Auto 16” X 20” Heat Press

Toyoda Falcon Pneumatic Swing Away Semi-Auto 16” X 20” Heat Press - Default Title

SKU:

Regular price $2,700.00 CAD
Regular price Sale price $2,700.00 CAD
Sale Sold out
The cost of shipping will be determined after you complete your purchase.

PLEASE NOTE THAT THIS IS A PRE-ORDER ITEM. ESTIMATED SHIP DATE IS END OF NOVEMBER.



The design of the Toyoda Falcon Pneumatic Swing Away Semi-Auto 16” X 20” Heat Press combines a heavy-duty solid steel industrial grade pressing framework with accurate and easy to use electronics. Utilize it's semi-auto feature as the press will automatically open within your desired time. This provides the operator with the best possible features and equipment needed for today’s various heat transfer applications.



By using the TF-1620PSS heat press, you'll be able to achieve all common heat transfer processes to the highest standard and productivity (sublimation, direct-to-film, direct-to-garment, screen print transfers, vinyl etc.) Your desired settings can be set easily with the easy to read oversized-digital LCD temperature controller and the pneumatic pressure can be regulated smoothly with the air reducing valve. With the restriction valve on the solenoid valve, the press and lift speed could be easily adjusted as well.

Special Order
disabled
This product is typically ready for pickup or shipping within one week, subject to lead times provided by manufacturers.
The Toyoda Falcon Pneumatic Swing Away Semi-Auto 16” X 20” Heat Press is a made-to-order product that is only assembled and prepared for shipment after you place your order. Please note that freight costs are not included in the purchase price. After your purchase, we will contact you to confirm shipping details, provide a shipping quote, and give you the lead times from the manufacturer. Upon payment of the shipping invoice, we will arrange delivery as per your preferences. For additional information, connect with a RB Digital sales specialist today.

Product Resources

View full details


  •       Feature Diagram


              A. Solenoid valve
              B. Handle
              C. Two hand control press buttons
              D. Temperature controller
              E. Power button
              F. Emergency stop button
              G. Fuse
              H. Air reducing valve (not shown)
              I. Heat plate
              J. Bottom platen
  • TF-1620PSS-Diagram

Precise & High Quality Temperature Controller With Even Pressure


  • By customizing professional heat press ASIC chips, Toyoda Falcon heat presses control temperature accurately and provide stable temperature during intense work.


    Toyoda-Falcon-Smart-Temperature-Control-System-2
  • Toyoda-Falcon-Smart-Temperature-Control-System
    Precise temperature distribution with our high-quality thick heat plate ensures an exact temperature distribution over the entire heating surface.


    Even Pressure


  • Controller


    With the temperature controller, not only can you adjust the temperature of the press (°C and °F) but also the press time. Toyoda Falcon heat presses allow you to display both the set value and the temperature of the press all on the same screen. Utilize the in-press counter (reset after power off) function to count the number of transfers that have been made during the current session.
  • Controller

Additional Information

  • Self-pressure balancing system
  • Pressure balancing system on heat plate and bottom plate
  • Industrial grade heavy duty heat press machine 16” x 20”
  • Thick cast aluminum heat plate for evenly distributed temperature
  • Flexibly adjustable air pressure by air reducing valve with water separator
  • Two-hand operation for safety use
  • 5CE & ROHS approved
  • 0.8MPa (120 PSI) for heavy pressure application
  • Powered by an air compressor (Not Included)
  • Includes teflon sheet on the heat plate
  • Model: TF-1620PSS
  • Electrical: 110V, 15amps, 1800w
  • Max Temp: 260°C (500°F)
  • Time Range: 0-999sec
  • Platen: 16” x 20”
  • 0.8MPa (120 PSI) for heavy pressure application
  • Dimensions: 30” x 17” x 21”
  • Weight: 135 lbs
  • Crate Size: 33” x 22” x 22”
  • Crate Weight: 145 lbs
  • 1 year including all parts
  • All heat presses must be delivered to an RB Digital location for repairs or customer can work remotely with a technician
  • It's recommended to keep crates and packaging to ship back if needed
  • We herewith declare that the product meets the provisions of the following EC Directives and Harmonized Standards:

    Certificate Number: M.2020.206.C9752
    • 2006/42/EC Machinery Directive
    • 2014/35/EU Low Voltage Directive
    • Related Standards: EN ISO 12100:2010, EN 60204-1:2018

    We herewith declare that the product conforms to RoHS Directive 2011/65/EU Annex II amending Annex (EU) 2015/863 and amending Annex (EU) 2017/2102.

    Report No.: B-R2203A0560


  • Certifications
