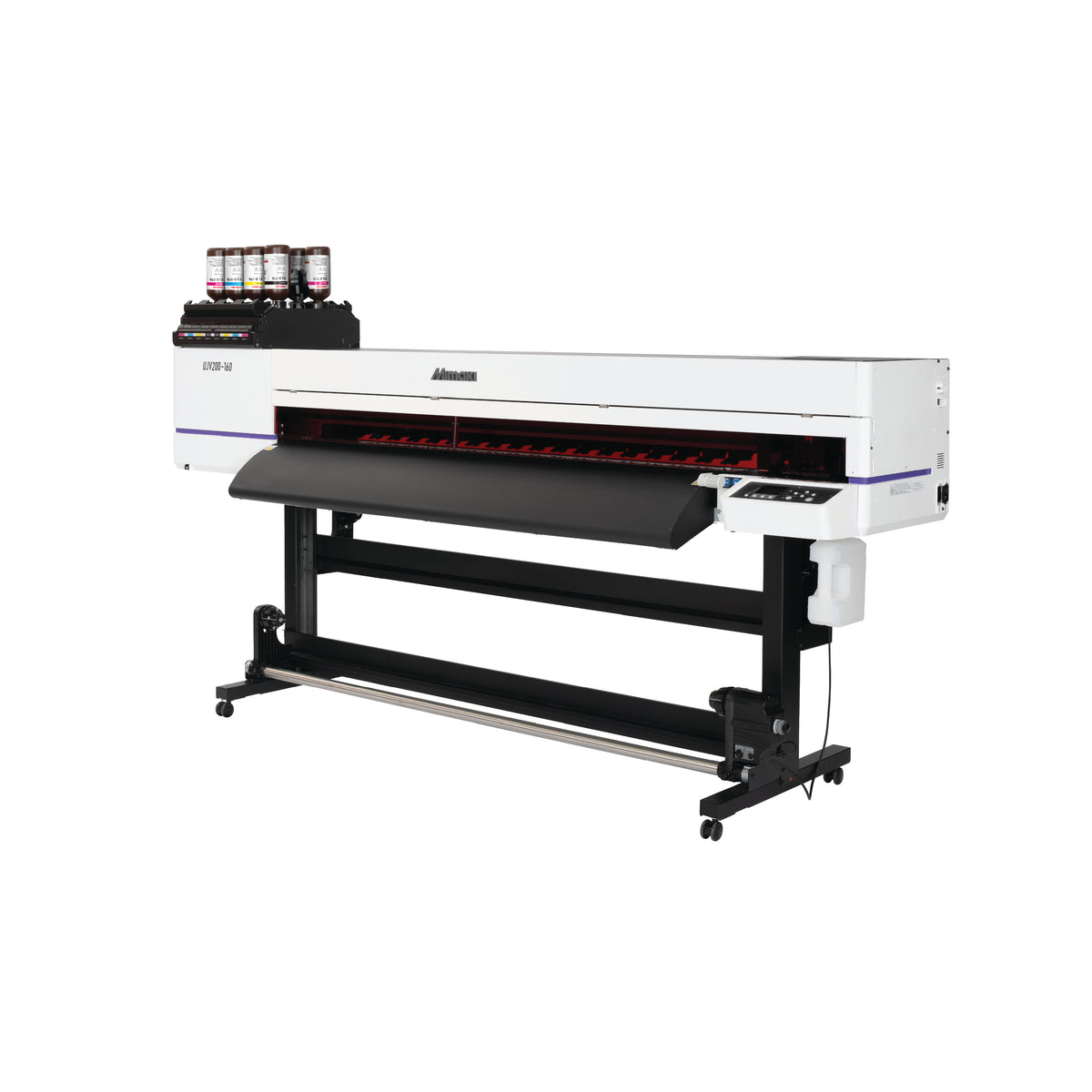

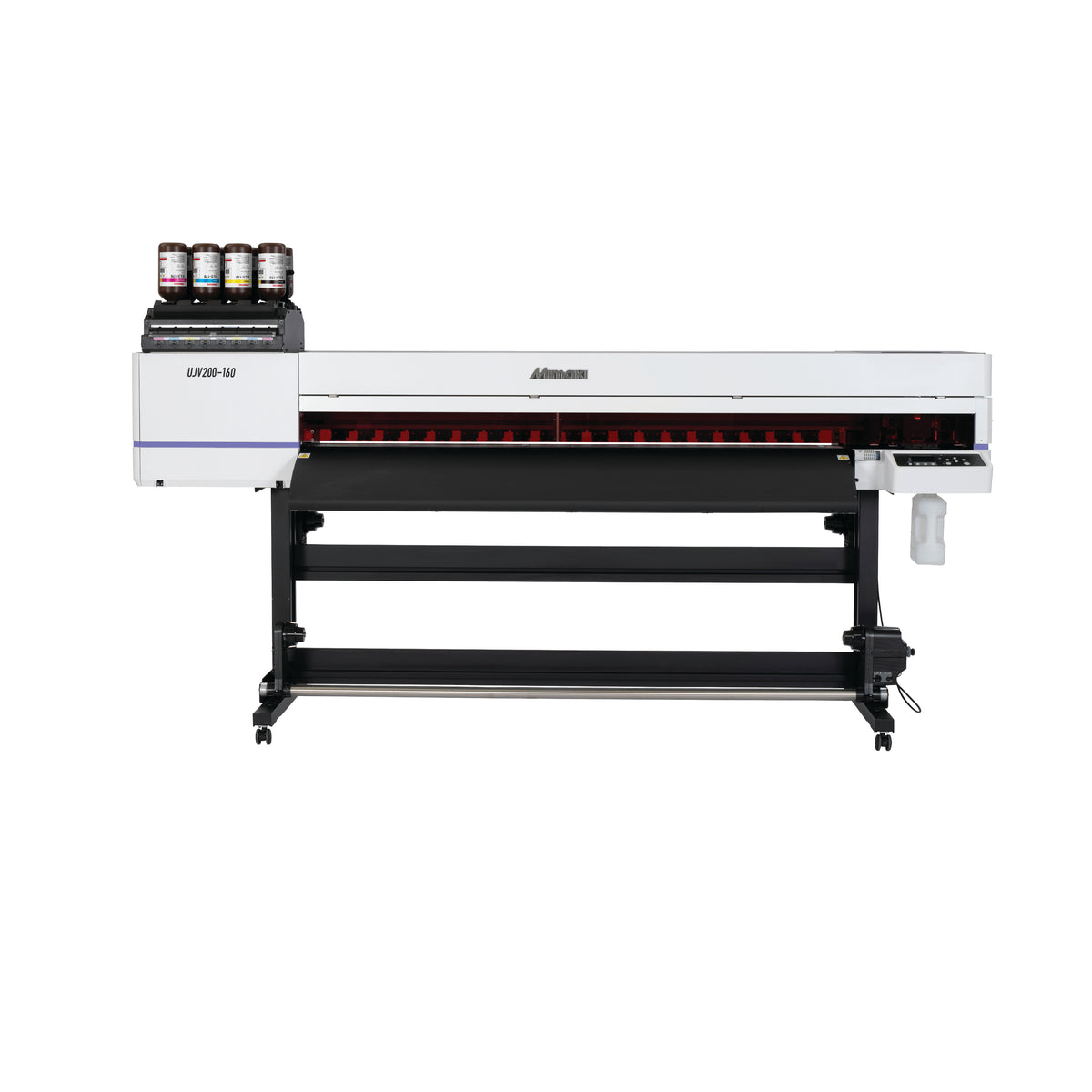

Mimaki UJV200-160 UV-LED Series Roll-to-Roll Printer

Mimaki UJV200-160 UV-LED Series Roll-to-Roll Printer - UJV200-130 (54" Wide)

SKU:

Financing Options

The Mimaki UJV200 Series UV-LED Roll-to-Roll Printer delivers exceptional print quality, versatile applications, and reliable performance in an easy-to-use system. Available in 54" and 64" models, the UJV200 combines Mimaki's proven 330 Series printhead technology with UV-LED curing to produce vibrant, detailed graphics with minimal drying time.



Designed for signage, window graphics, wall coverings, floor graphics, and more, the UJV200 supports white and clear ink options for printing on transparent and coloured media. Advanced features such as automatic dot adjustment, multi-layer printing, and Mimaki's low-odour UV inks make it easy to produce professional-quality graphics while streamlining production.



Whether you're entering the UV printing market or expanding your capabilities, the UJV200 offers an efficient and versatile solution for growing your business.

Model

Product Resources

View full details

Often Purchased With

  • 54" & 64" Models
    54" & 64" MODELS

    Two sizes to suit your business

  • 330 Series printhead
    330 SERIES PRINTHEAD

    Exceptional detail and vibrant colour

  • UV-LED curing
    UV-LED CURING

    Faster finishing with minimal drying time

  • White & clear inks
    WHITE &
    CLEAR INKS

    Print on transparent and coloured media

  • Multi-layer printing
    MULTI-LAYER PRINTING

    Create up to three layers in one workflow

  • Mimaki cloud monitoring
    MIMAKI CLOUD MONITORING

    Monitor printer status and ink usage remotely



  • Exceptional quality. Effortless operation.




  • Exceptional Quality. Effortless Operation.


    Produce sharp details, smooth gradations, and vibrant graphics with Mimaki's proven 330 Series printhead technology. Automatic dot adjustment simplifies setup and helps maintain consistent print quality, reducing manual adjustments and making professional results easier to achieve.




  • More Applications. Faster Turnaround.


    Expand your capabilities with UV-LED printing, white and clear ink options, and up to three-layer printing. Create everything from window graphics and backlit signage to wall coverings and promotional displays, with UV curing that eliminates lengthy drying times.

  • More applications. Faster turnaround.

Additional Information

  • Available in Two Sizes: Choose between the 54" UJV200-130 and 64" UJV200-160 to match your production requirements.
  • Proven 330 Series Printhead: Delivers precise ink placement, sharp details, and smooth colour gradations.
  • UV-LED Printing Technology: Cures ink during printing, reducing drying time and allowing faster finishing.
  • White and Clear Ink Options: Expand your applications with transparent, coloured, and specialty media.
  • Up to Three-Layer Printing: Produce multi-layer graphics without pulling back the media between layers.
  • DAS2 Automatic Dot Adjustment: Automatically adjusts print settings to help maintain image quality with less operator intervention.
  • Low-Odour UV Inks: ELS-170 and ELS-175 inks are designed for reduced odour and have GREENGUARD Gold certification.
  • High-Speed Production: Print up to 269.1 sq. ft./hr in four-colour draft mode on the UJV200-160.
  • Versatile Applications: Ideal for signage, window graphics, backlit displays, wall coverings, and floor graphics.

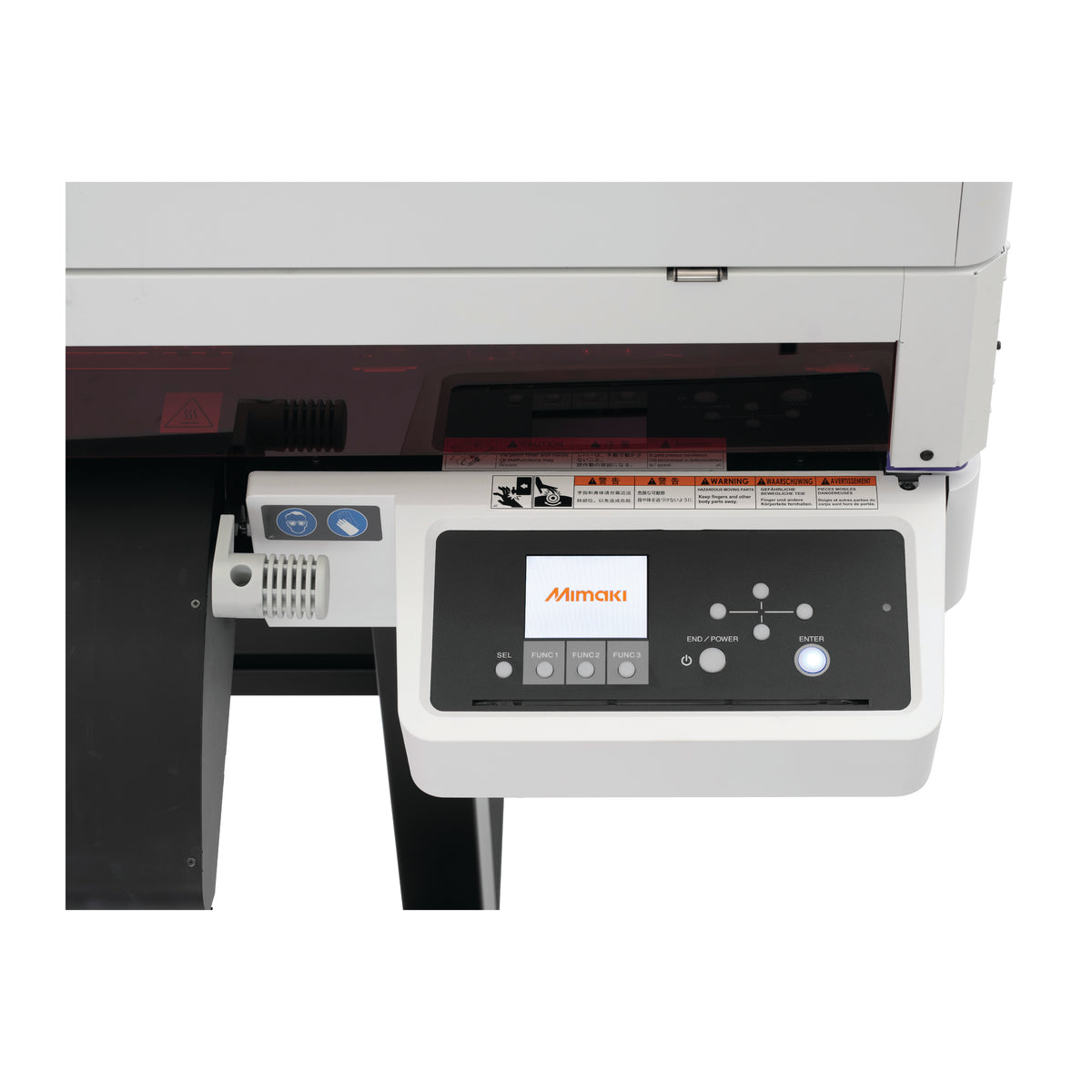

  • Simplified Maintenance: Single-printhead design, wide-opening cover, and convenient controls make routine maintenance easier.
  • RasterLink7 RIP Software: Included RIP software supports efficient print management and production workflows.
  • Mimaki PICT Cloud Monitoring: Provides remote access to printer status, ink usage, and error information to help manage production.



























Specification UJV200-130 (54") UJV200-160 (64")
Printing Technology Roll-to-Roll UV-LED Inkjet
Printhead Single On-Demand Piezo Printhead
Print Resolution Up to 1200 × 1200 dpi
Maximum Print Width 53.5" (1,360 mm) 63.4" (1,610 mm)
Supported Media Width 8.3"–53.9" (210–1,370 mm) 8.3"–63.8" (210–1,620 mm)
Standard Print Speed (4-Colour) 139.9 sq. ft./hr (13 m²/hr) 150.7 sq. ft./hr (14 m²/hr)
Draft Print Speed (4-Colour) 236.8 sq. ft./hr (22 m²/hr) 269.1 sq. ft./hr (25 m²/hr)

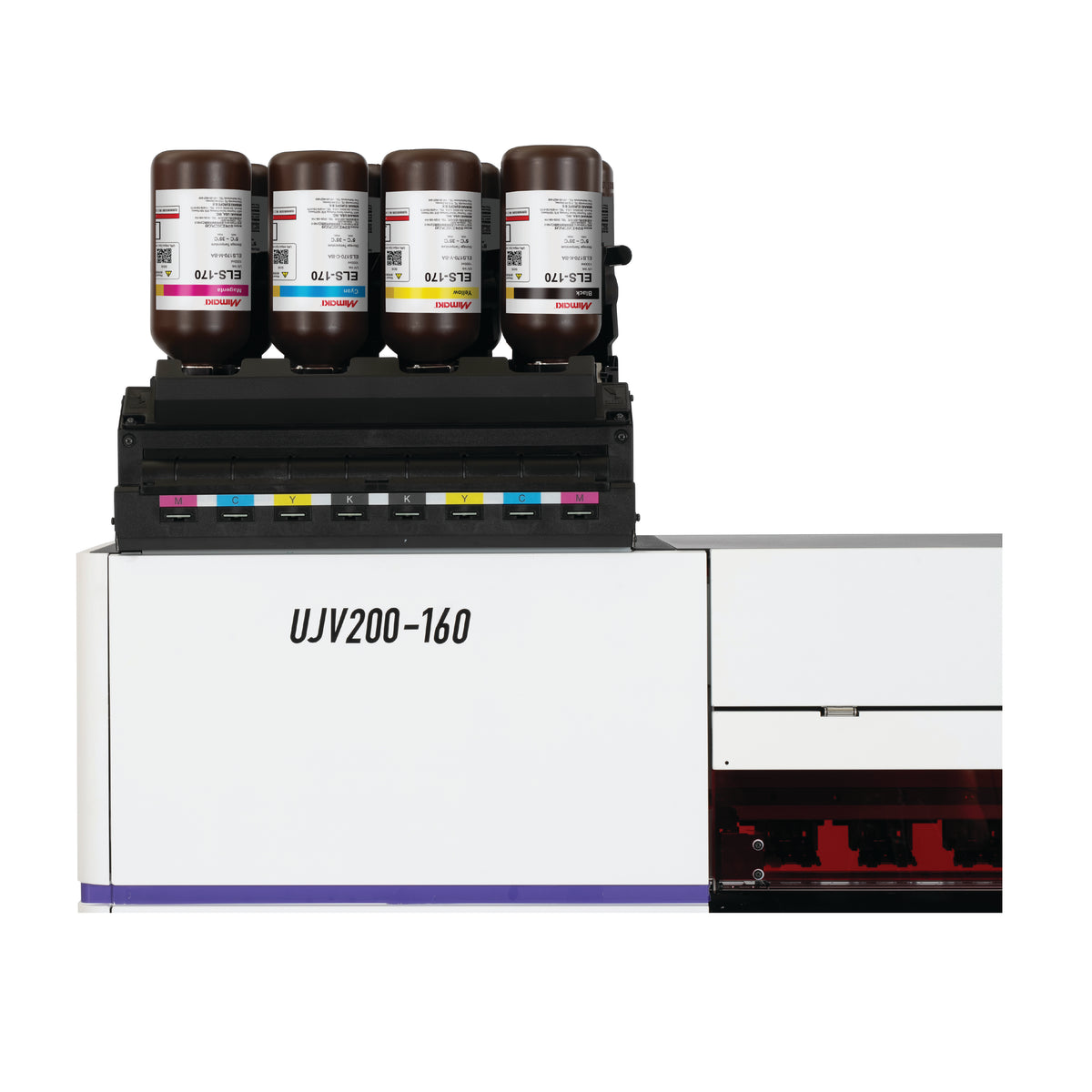

Ink Type Mimaki ELS-170 / ELS-175 UV Ink
Ink Colours Cyan, Magenta, Yellow, Black, White, Clear (Configuration Dependent)
Ink Package Size 1 L Bottles
Multi-Layer Printing Up to 3 Layers
Maximum Media Thickness 2 mm
Printhead Gap Manual, 1.5 mm / 2.0 mm
Maximum Roll Weight 55 lbs (25 kg)
Maximum Roll Diameter 7.1" (180 mm)
Media Core Diameter 2" / 3"
Connectivity Gigabit Ethernet, USB 2.0 Hi-Speed
Power Requirements AC 100–120V (11A) or AC 200–240V (5.5A), 50/60 Hz
Maximum Power Consumption 1,320W
Standard Power Consumption 550W
Minimum Power Consumption 4.5W
Operating Temperature 68°F–86°F (20°C–30°C)
Recommended Temperature 68°F–77°F (20°C–25°C)
Operating Humidity 35%–65% RH (Non-Condensing)
Dimensions (W × D × H) 99.2" × 29.4" × 55.3" 109.1" × 29.4" × 55.3"
Dimensions (Metric) 2,520 × 748 × 1,405 mm 2,770 × 748 × 1,405 mm
Weight (Uncrated) 342 lbs (155 kg) 352 lbs (160 kg)
RIP Software Mimaki RasterLink7
Optional Accessories Nozzle Check Unit, Levelling Foot, Ionizer and Connection Kit
