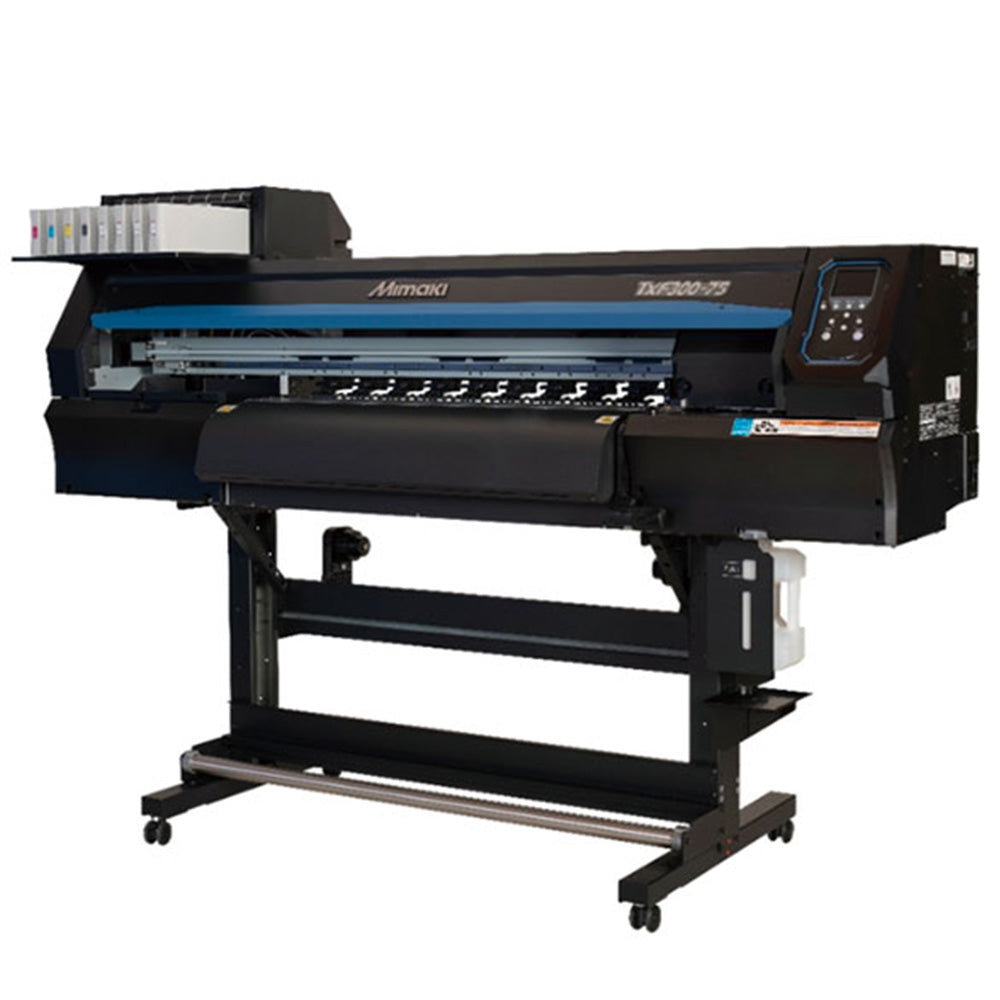

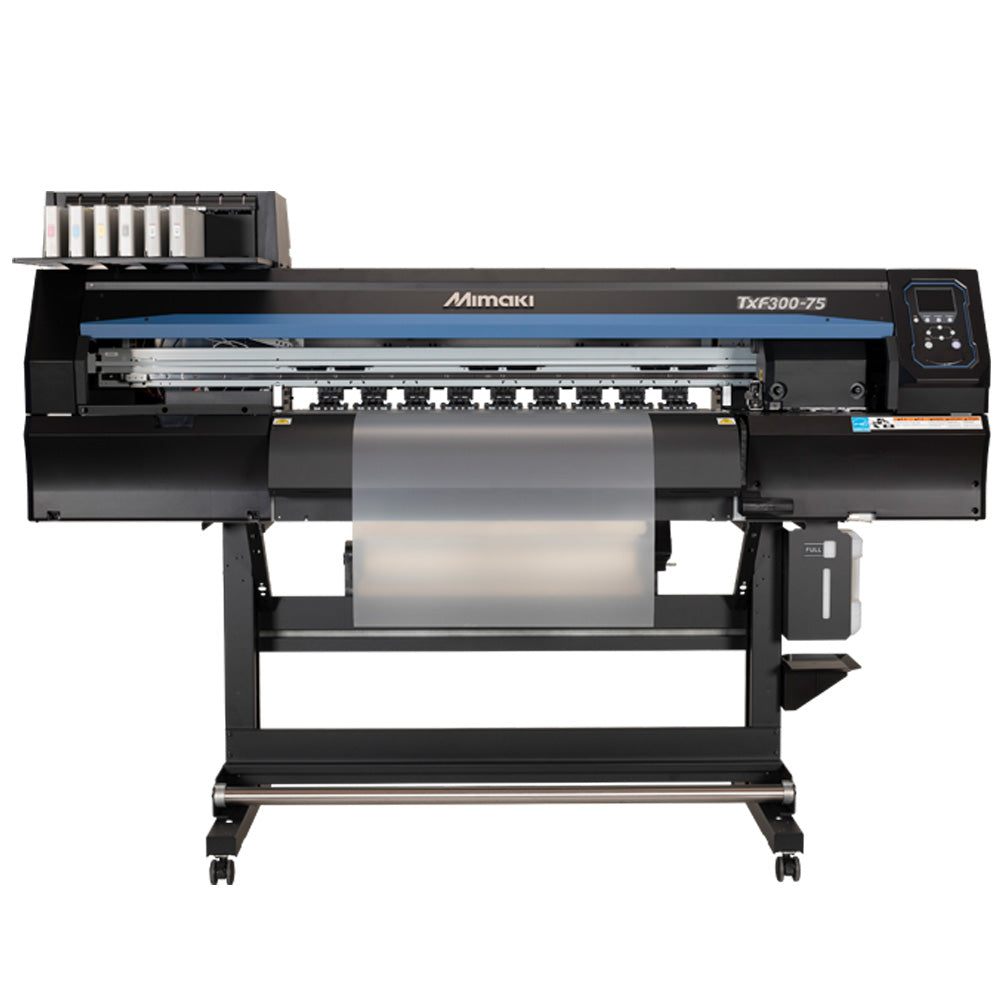

Mimaki Pro DTF Bundle (Mimaki TxF300-75 DTF Printer & Toyoda Tunnel Powder Applicator and Dryer)
Mimaki Pro DTF Bundle (Mimaki TxF300-75 DTF Printer & Toyoda Tunnel Powder Applicator and Dryer) - Default Title
A safe and stable machine packed with Mimaki's technology
We're thrilled to unveil the latest addition to the Mimaki DTF lineup: the new Mimaki TxF300-75. This 2-head version builds upon the TxF150-75, delivering enhanced printing speeds of up to 300%, all while maintaining the same exceptional reliability. Experience unparalleled efficiency and cost savings with its innovative ink technology flowing seamlessly through the damper. Unlike its competitors, the Mimaki TxF300-75 boasts superior nozzle detection and ink consistency, establishing its dominance in the DTF market.
TxF300-75 is a Mimaki's second DTF (direct-to-film) printer with a maximum printing width of 31.5 inches for producing DTF print transfer sheets. "PHT50" heat transfer pigment ink for DTF, consisting of five colors (CMYK and white), has acquired the ECO PASSPORT certification which is essential for obtaining the international safety standard for textile products “OEKO-TEX®”.
The DTF printers have been plagued by ink ejection defects and white ink clogging. To overcome these issues, Mimaki has adopted a degassing ink design that uses aluminum packs as the printer's ink packaging form, as well as a white ink circulation function MCT (Mimaki Circulation Technology)*1. The new printer also features Mimaki's NCU (Nozzle Check Unit)*2 and NRS (Nozzle Recovery System)*3 technologies that support stable operation. They ensure continuous printing without stopping the operation to support customers' productions.
- Brochure & Specifications
- Manual - Printer
- Maintenance - Printer
- Manual & Maintenance - Tunnel Shaker
- Safety Precautions
Often Purchased With
Features And Highlights
- Mimaki Circulation Technology: White ink circulation function
- Nozzle Check Unit: Missing nozzle detection function
- Nozzle Recovery System: A function to substitute missing nozzles with other nozzles.
- Better ink consistency than other brands and models
- 31.5” Printing Width
Pro-Model VS. Entry-Model
2 models are available for customers to choose according to the productivity and investment amount. *Print condition：H 280 mm x W 360 mm print graphics are printed on W 800 mm DTF film side by side
Mimaki's Core Technologies for Stable Operation
Mimaki Circulation Technology Version 2 (MCT)
Circulation through out ink route including damper*, supports stable white ink ejection for reducing frequent nozzle cleaning and ink waste.
Nozzle Check Unit (NCU)
A sensor detects nozzle defect and nozzle cleaning performed automatically to reduce the material waste.
Nozzle Recovery System (NRS)
Supports continous production without waiting for service personnel, when nozzle defect is unrecovereble by nozzle cleaning.
- Reliable ink system design to reduce clogging and downtime
- Better ink consistency than other brands and models
- Groundbreaking ink technology circulating through the damper
- Nozzle detection
- 31.5” printing width - the first on the market
- Onsite certified Mimaki technician setup and training
- One-year complete warranty, including printheads
- Max Resolution: 1440 dpi
- Simple Operation
- Staggered Head
- Variable Dot
- 3 Way Heater
- Nozzle Drop-out Detection
- Nozzle Recovery Function
- Event Notification
|Print head||On-demand piezo head|
|Printing resolution||720dpi, 1,440dpi|
|Ink||Type/Color||Heat transfer pigment ink PHT50 (C, M, Y, K, W)|
|Capacity||600ml ink pack (500ml for white only)|
|Circulation function||Available only for white ink|
|Maximum print width||800mm (31.5 in)|
|Media||Maximum width||810mm (31.9 in)|
|Thickness||1.0mm or less|
|Roll weight||45 kg (99.2 lb) or less|
|Interface||Ethernet 1000 BASE-T / USB2.0 Hi-speed|
|Power specifications||Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1|
|Power consumption||100V system: 0.9kW or less, 200V system: 1.2kW or less|
|Certifications||VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC|
|Dimensions (W×D×H)||1,965 x 700 x 1,392 mm (77.4 (W) x 27.6 (L) x 54.8 in (H))|
|Weight||126kg (277.8 lb)|
*Note: Printer does not come with USB to printer cable. Also purchase a kitchen scale for weighing ink set for eco case cartridge.
The Toyoda Tunnel DTF Powder Applicator and Dryer is the first 32" shaker/dryer on the market with the capability of curing DTF film rolls up to 32 inches wide. It is compatible with all roll-to-roll direct-to-film printers but pairs best with the Mimaki TxF150-75 as a production solution. The built in fume extractor allows for safe operation.
- Advanced built-in HEPA 2 Layer Air Filters
- Advanced film detector to turn off and on heating elements
- Air vacuum conveyor system to prevent film from slipping
- LCD touch screen for easy use
- 31.5” cure width
- One-year complete warranty
|Shaking Powder||Motor vibration, automatic powder return-free|
|Heating Method||Back baking and front baking, fast constant temperature heating|
|Take-up and Feed Film||Constant tension automatic induction system|
|Operation Mode||Manual control / Auto control|
|Mesh Belt||Drum suction operation mesh belt|
|Automatic Deceleration of Film Cutting||Prevent deformation of heating film|
|Method of Dusting||Constant weight automatic sensing|
|Feeding Size||32 in|
|Machine Weight||782 lbs|
|Package Weight||848 lbs|
|Machine Size||71 (L) x 51 (W) x 36 in (H)|
|Crate Size||76x53x43 in|
|Configuration||With all in one smoke purifier|
|Power Specifications||Single-phase / 220v / 30 Amps|
