Toyoda

Falcon Vortex Industrial Portable Fume Extractor

Falcon Vortex Industrial Portable Fume Extractor - Default Title

SKU:

$2,800.00 CAD
$2,800.00 CAD
Sale Sold out
The cost of shipping will be determined after you complete your purchase.

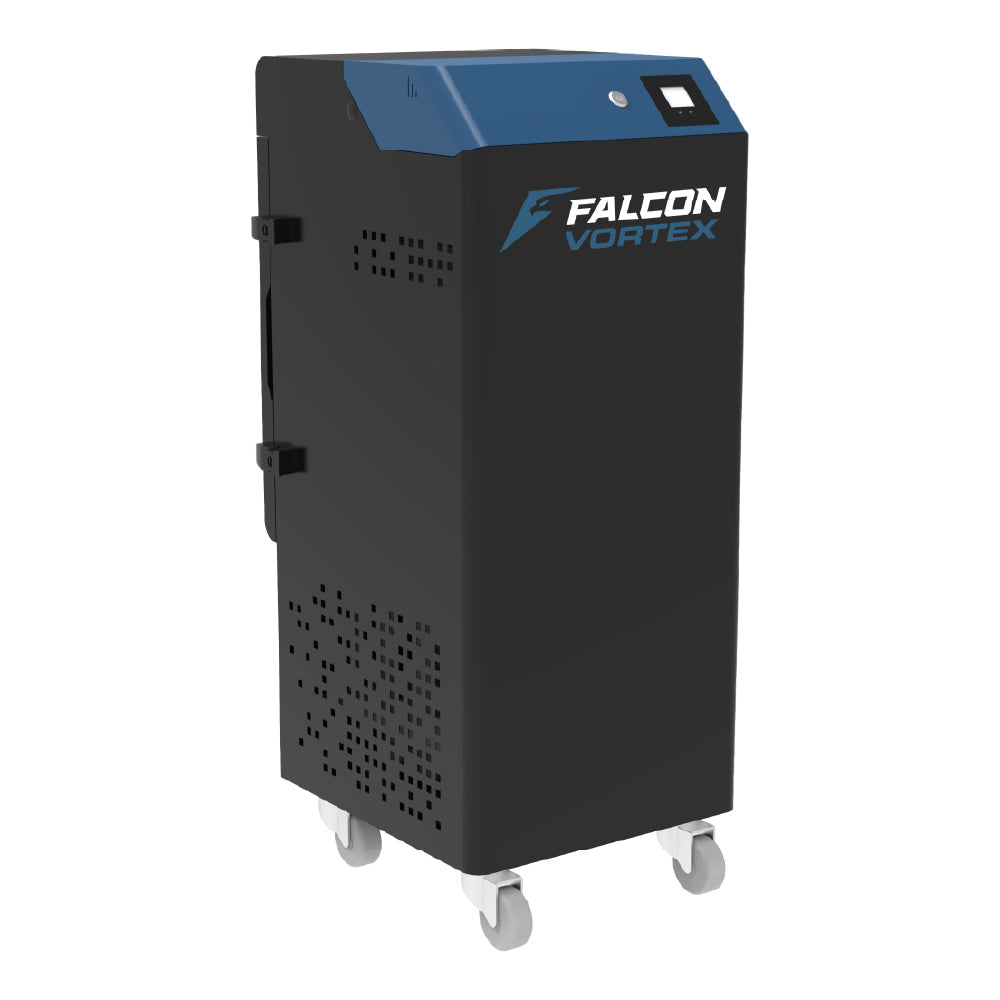

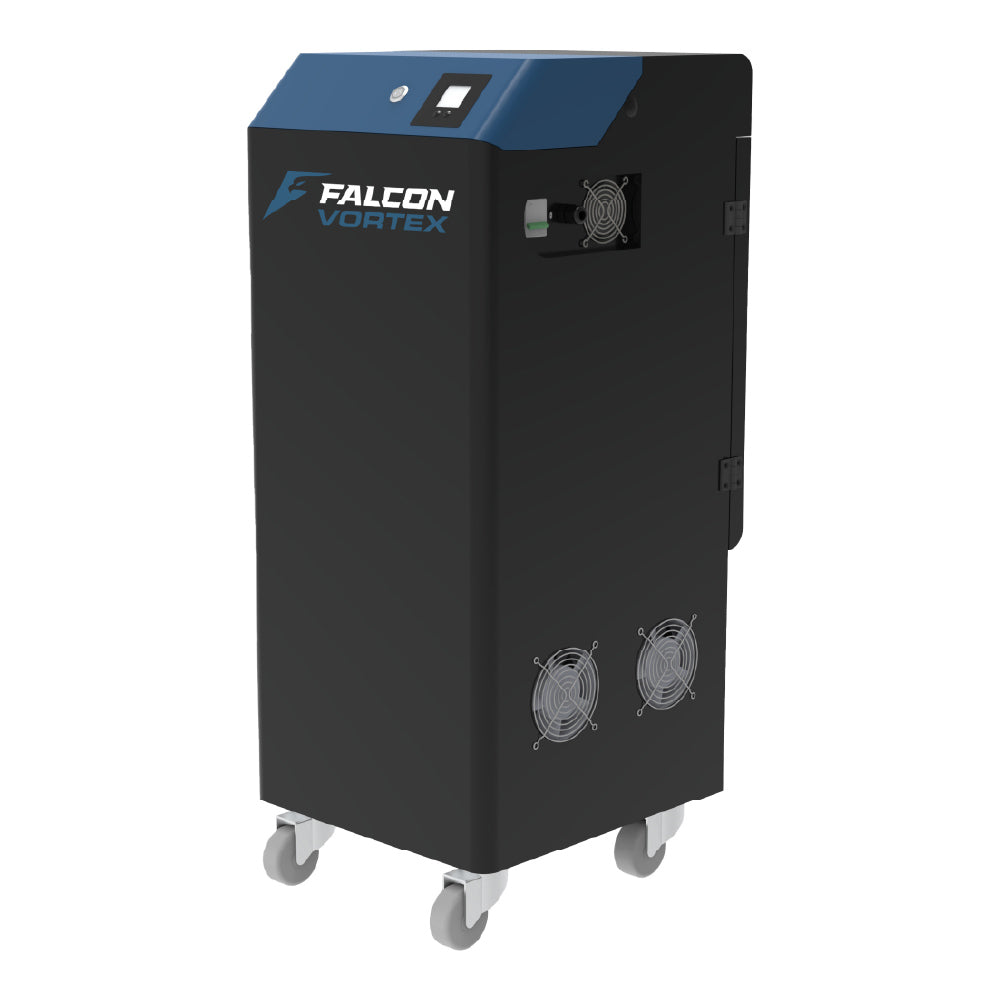

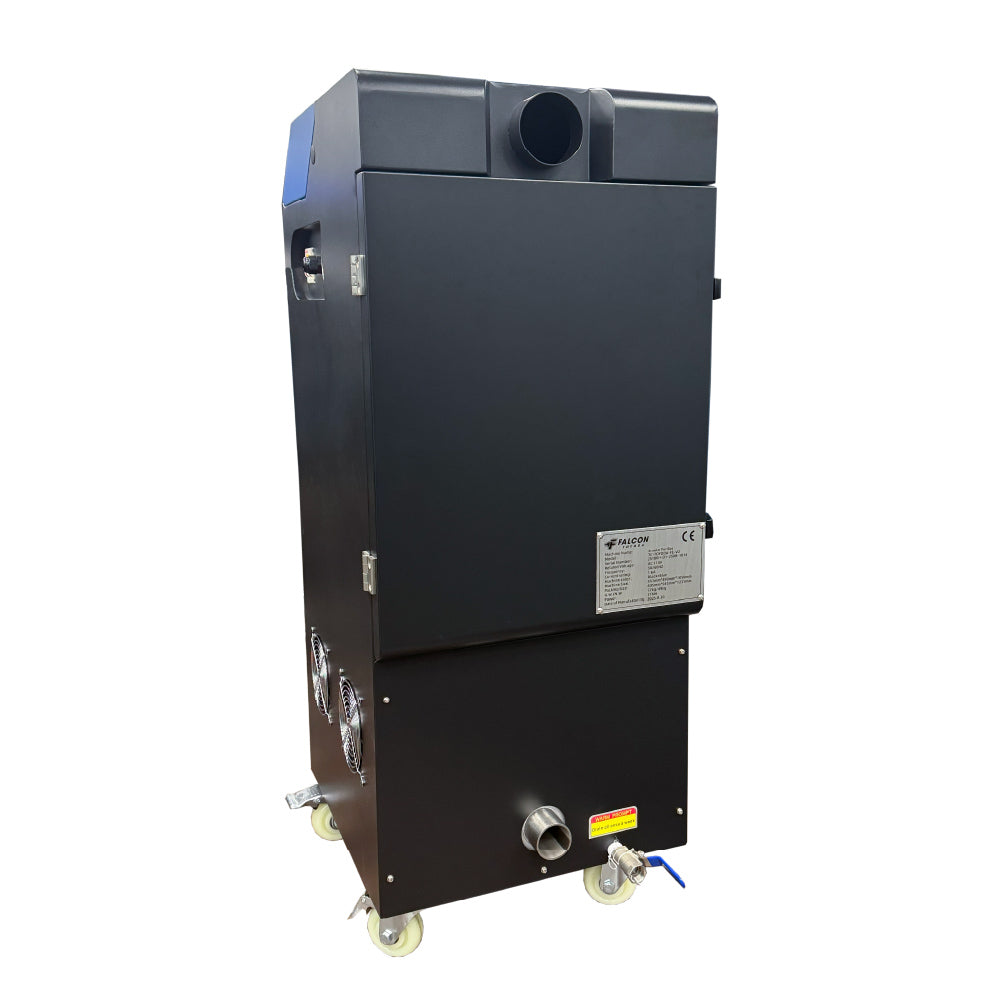

The Falcon Vortex Industrial Portable Fume Extractor is a compact, high-performance air filtration solution designed to capture and remove fumes, smoke, and airborne contaminants generated during DTF powder curing and production processes. Built specifically for industrial print environments, the Falcon Vortex helps improve air quality, create a cleaner workspace, and support a safer production environment.



Its portable design allows the unit to be positioned wherever extraction is needed, while the integrated filtration system helps remove smoke, oil particles, and odors before exhausting air from the system. Equipped with adjustable airflow controls, a digital control panel, and heavy-duty casters, the Falcon Vortex is ideal for shops looking to improve ventilation around DTF shakers and curing equipment.

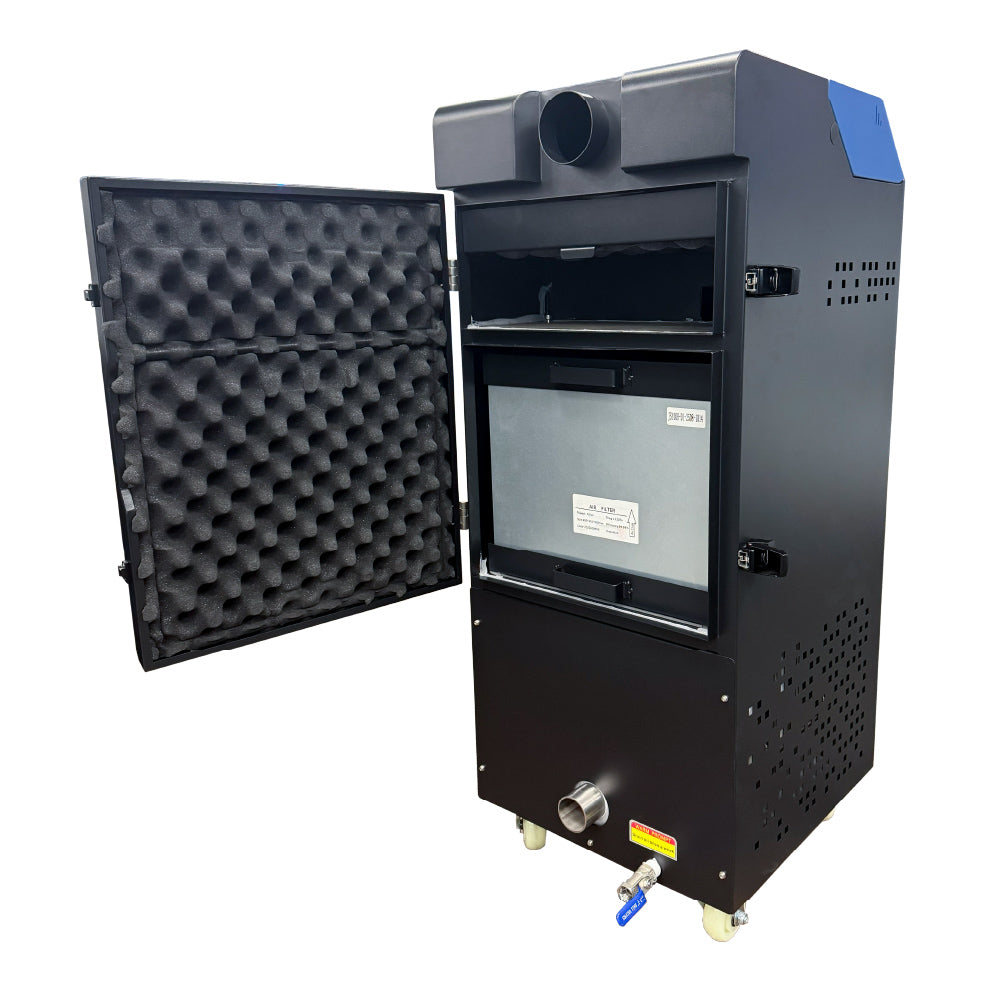

Designed for reliability and easy maintenance, the unit features serviceable HEPA and activated carbon filtration components and a convenient oil drainage system to help maintain optimal performance.

• Special Order
disabled
This product is typically ready for pickup or shipping within one week, subject to lead times provided by manufacturers.
The Falcon Vortex Industrial Portable Fume Extractor is a made-to-order product that is only assembled and prepared for shipment after you place your order. Please note that freight costs are not included in the purchase price. After your purchase, we will contact you to confirm shipping details, provide a shipping quote, and give you the lead times from the manufacturer. Upon payment of the shipping invoice, we will arrange delivery as per your preferences. For additional information, connect with a RB Digital sales specialist today.

Product Resources

View full details

Often Purchased With

Additional Information

  • High effect filter: This smoke extractor continuously pulls in your dtf powder shaker's fumes and oil, running them progressively through its filter element and inner activated carbon filters to absorb all harmful gases and unpleasant odors.
  • Highly mobile: The 4 quality caster wheels move this small but dependable smoke purifier easily between your devices when needed and then lock smartly in place once you're ready to go.
  • Independent design, open it you can use it.
  • Adopts the full-scale design, inner oil gas, smoke room are large, have good filter effect.
  • Can satisfy dtf powder shaker or sublimation color system's filter requirement.
  • 1 x Fume Extractor
  • 2 x Extraction pipes
  • 1 x Activated carbon filter (Installed in the machine)
  • 1 x Power cord
  • 1 x Filter element (Installed in the machine)
  • 1 set screws
  • 1 x User manual
Specification Details
Model Falcon Vortex Industrial Portable Fume Extractor (TC-TOYODA-FE-V2)
Rated Voltage 110V AC
Rated Current 1.6A
Rated Power 176W
Energy Consumption 0.18 kWh
Airflow Capacity 36 m³/h – 202 m³/h
Maximum Noise Level 65 dB
Machine Weight 49 kg (108 lbs)
Shipping Weight 72 kg (159 lbs)
Machine Dimensions (L × W × H) 451 × 490 × 1056 mm (18" × 19" × 42")
Shipping Dimensions (L × W × H) 605 × 545 × 1231 mm (24" × 21" × 48")
Mobility Heavy-Duty Casters
Control System Digital Touch Control Interface

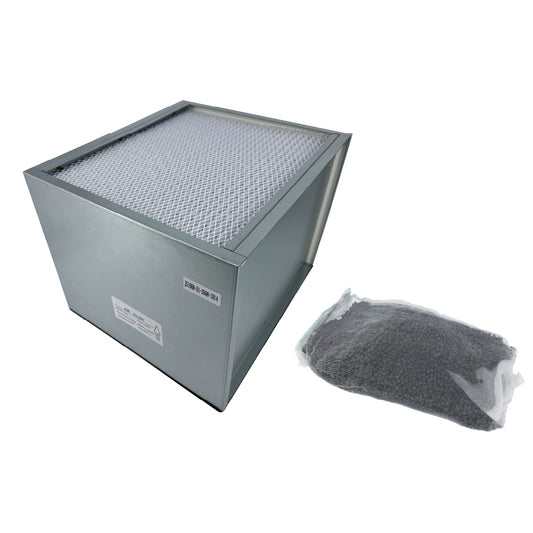

Filtration System HEPA Filter & Activated Carbon Filter
Maintenance Features Oil Drain Port, Replaceable Filters
Recommended Application DTF Powder Shakers & Industrial Fume Extraction
