Duplo

Duplo UD 310 Rotary Die Cutter

Duplo UD 310 Rotary Die Cutter - Default Title

SKU:

Financing Options

The high-speed UD-310 Rotary Die Cutter delivers print marketing applications in distinctive shapes and sizes to help you stand out from the competition. Processing up to 4,000 sheets per hour, the UD-310 utilizes a magnetic cylinder and interchangeable flexible dies that affix to it to process paper, laminates, adhesives and synthetic stocks. Suitable for mid to longer runs, the UD-310 provides high productivity and faster turnarounds.

Features

  • Easy die set up and changeover
  • High feed capacity for non-stop productivity
  • Separation station that deflects skeletons into waste bin
  • X and Y sensors to read registration marks and compensate for image shifting

Product Resources

View full details

See It In Action



  • Rotary Die Technology
    MAGNETIC ROTARY DIE TECHNOLOGY

    Uses flexible magnetic dies for fast, repeatable die cutting

  • Precision Registration System
    PRECISION REGISTRATION SYSTEM

    Optical sensor ensures accurate alignment for clean cuts

  • Roll-to-Sheet Processing
    ROLL-TO-SHEET PROCESSING

    Feeds roll media and converts it into precisely cut sheets

  • High-Speed Operation
    HIGH-SPEED OPERATION

    Designed for efficient label and packaging production

  • Compact Inline Design
    COMPACT INLINE DESIGN

    Fits easily into digital print finishing environments

  • Fast, Repeatable Rotary Die Cutting




  • Fast, Repeatable Rotary Die Cutting


    The UD-310 uses magnetic flexible dies to deliver precise, consistent die cuts at production speeds. Ideal for labels, packaging components, and specialty print pieces, it provides reliable results with minimal setup time.



  • Designed for Digital Label & Packaging Workflows


    Built to integrate with digital print environments, the UD-310 streamlines short-run and custom jobs. Its roll-fed design and accurate registration system make it a powerful solution for high-value, on-demand finishing applications.

  • Designed for Digital Label & Packaging Workflows

Features



  • Handles Laminated & UV Stocks:
    Processes coated, laminated, and synthetic media with ease.
  • Adjustable Die Pressure:
    Fine-tune cutting depth for different materials.
  • Variable Speed Control:
    Optimize production speed based on job complexity.
  • Multiple Up Layout Support:
    Maximize sheet efficiency with repeat patterns.

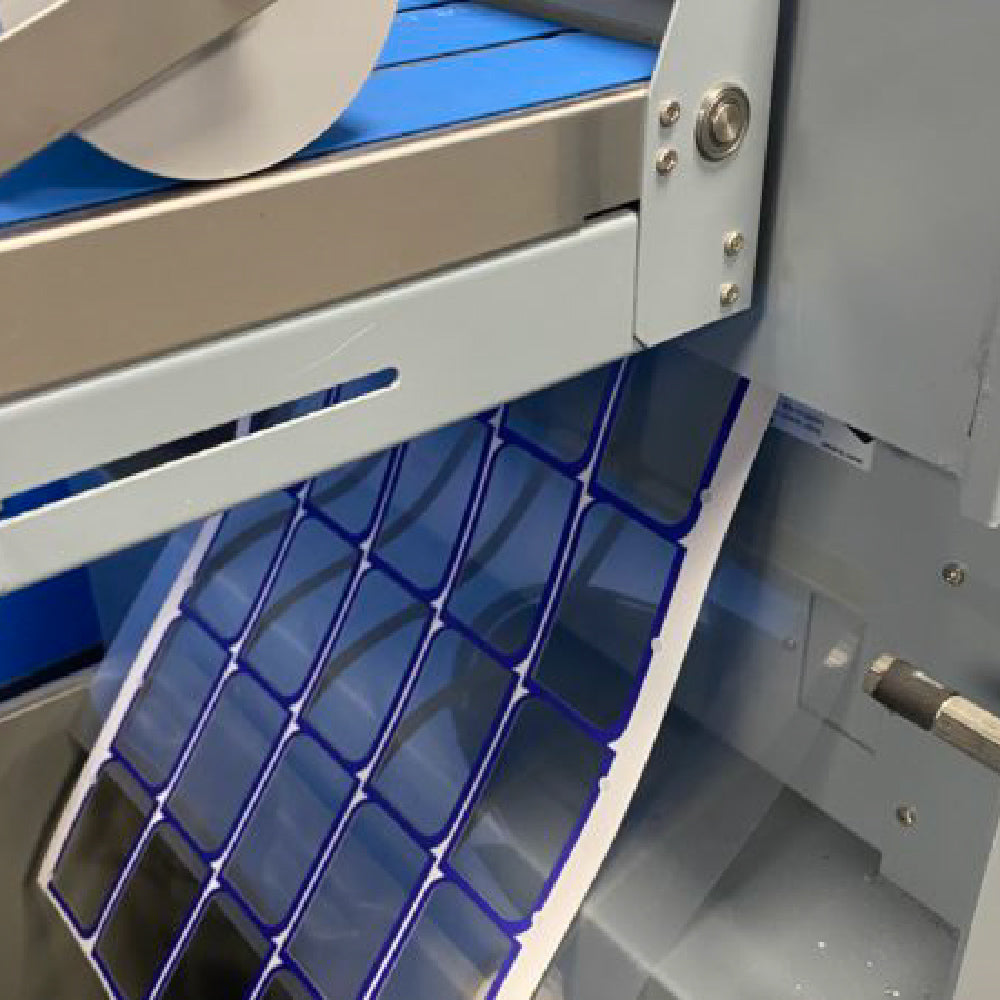

  • Waste Matrix Removal:
    Clean separation of cut shapes from surrounding material.
  • User-Friendly Operation:
    Simple controls for quick setup and job adjustments.

Additional Information

Paper Size Minimum: 8.267” x 11.693” (219 mm x 297 mm)
Maximum: 15.35” x 20.47” (390 mm x 520 mm)
Paper Weight Minimum: 106 gsm / 28 lb bond / 6 pt / 0.0058” / 0.15 mm
Maximum: 400 gsm / 130 lb cover / 18 pt / 0.015” / 0.4 mm
With Separator: Minimum 200 gsm
Speed (3-Step Adjustment) High: 8,000 rotations – up to 4,000 sheets/hr
Medium: 5,400 rotations – up to 2,700 sheets/hr
Low: 2,700 rotations – up to 1,350 sheets/hr
Tolerance ±0.2 mm
Feed System Air Suction, Top Belt Feeder
Feeder Capacity Up to 8.7” (220 mm)
Substrates Paper, laminates, adhesives, and synthetic stocks up to 400 gsm
Power AC 110–115V, 50/60 Hz, 5 Amps
Dimensions (L x W x H) 81.10” x 27.17” x 46.85” (2,060 mm x 690 mm x 1,190 mm)
With conveyor: 127” x 27.17” x 46.85” (3,226 mm x 690 mm x 1,190 mm)
Weight 882 lb (400 kg)
