Econo Red II Production Infrared Dryer
Econo Red II Production Infrared Dryer - 30 Inch Belt / 240V / 1 Phase
SKU:
Cure screen-printed plastisols, water-based inks, discharge and/or DTF adhesives at high rates.
Econo Red II dryers in 30 and 54 in. (76 and 137 cm) belt widths cure garments screen-printed with plastisol, water-based inks and discharge, and/or DTF adhesives at high rates. The modular design allows for expandability to easily add chambers and conveyor length as production needs increase.
A top-mounted ventilation system filters exhaust air, cools the enclosure's outer skin, and evacuates moisture and fumes from the heating chamber. It also makes ER-II dryers over 20 percent quieter and 5 in. (13 cm) narrower, and allows the control box to be positioned the right side (standard) or left side of the enclosure to suit shop layouts.
All heaters feature closely spaced coils that provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing, and come with a 15-year warranty.
The Vastex Infrared Focusing System allows heater adjustment to any height from 2 to 7 in. (5.1 to 17.8 cm) above the belt, allowing the operator to compensate for bulky garments or hats, and can be customized to provide additional heater clearance.

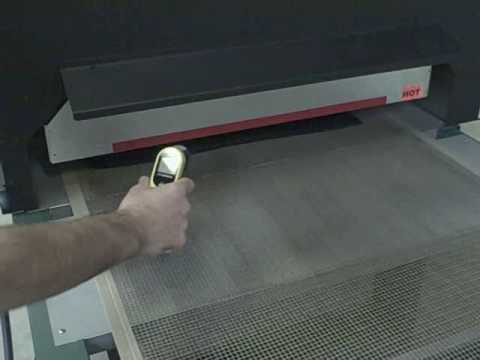

All models include a digital belt speed display and a belt tracking system for increased belt life. The digital PID temperature controller is accurate to +/- 1°F (+/-0.5°C), allowing the operator to fine-tune or accurately repeat drying results at any future time.
Product Resources
Features And Highlights
-
ADVANCED
Top-mounted, Focused Exhaust Air System evacuates fumes and moisture quickly
-
QUIET
20% quieter than earlier models
-
HEAVY DUTY
"X-Series" Conveyor Belt Tracking System
-
PRECISE
Infrared Focusing System allows 2 - 7 in. (5 - 17.7 cm) belt-to-heater height adjustment to accommodate bulky garments or hats, and can be customized to provide additional heater clearance
-
BELT WIDTH
(Maximum garment width)
30" (76 cm) or 54" (137 cm) -
HEATER WIDTH
24" (61 cm) or 48" (122 cm)
-
MAXIMUM IMAGE WIDTH
18 in. (46 cm) or 42 in. (107 cm)
(Heater width minus 6 in. [15 cm]) -
ACCURATE
Temperature controller accurate to +/-1°F (+/-0.5°C)
Digital PID with fuzzy logic — industry's most advanced -
CONSISTENT
Heavy duty DC belt speed motor with digital voltage display
-
INNOVATIVE
Shorter, slimmer and quieter with high heat and production
-
EXPANDABLE
Add heat chambers at 36 in. (91 cm) long each, and 18 in. (46 cm) belt extensions, front or rear
Add On Options
To add additional options, our service team will contact you after purchase to assist in fully customizing your dryer.
• Heating chambers @ 36 in. (91 cm) long
• Belt extensions, front or rear @ 18 in. (46 cm) long
• Control box on left side (right side standard)
• 3 Phase and 208, 380, 480 voltages
• Exhaust hood for extra fume extraction
• Hat support rail
• Locking casters for mobility
• Reversing belt/HD Drive
• Donut probe
• Additional heater clearance
Modular Expandability Allows Your Dryer to Grow With You
The capacity (belt speed) of all Vastex floor standing conveyor dryers can be doubled or tripled as new or when needs increase by simply adding one or two modular heating chambers and extending the conveyor belt. This eliminates the need to invest in a larger dryer than you need at the onset, and avoids the high cost of purchasing a new dryer when your needs increase.
Additional Information
-
ER-II-30 1 Row Plastisol @ 25 secs.** 300+/hr Water Based/Discharge @ 70 secs. ** 100+/hr -
ER-II-54 2 Rows Plastisol @ 25 secs.** 600+/hr Water Based/Discharge @ 70 secs. ** 200+/hr
*Production speeds are estimates are based on 16” centers and will vary depending on ink manufacturer, humidity of shop, and other variables.

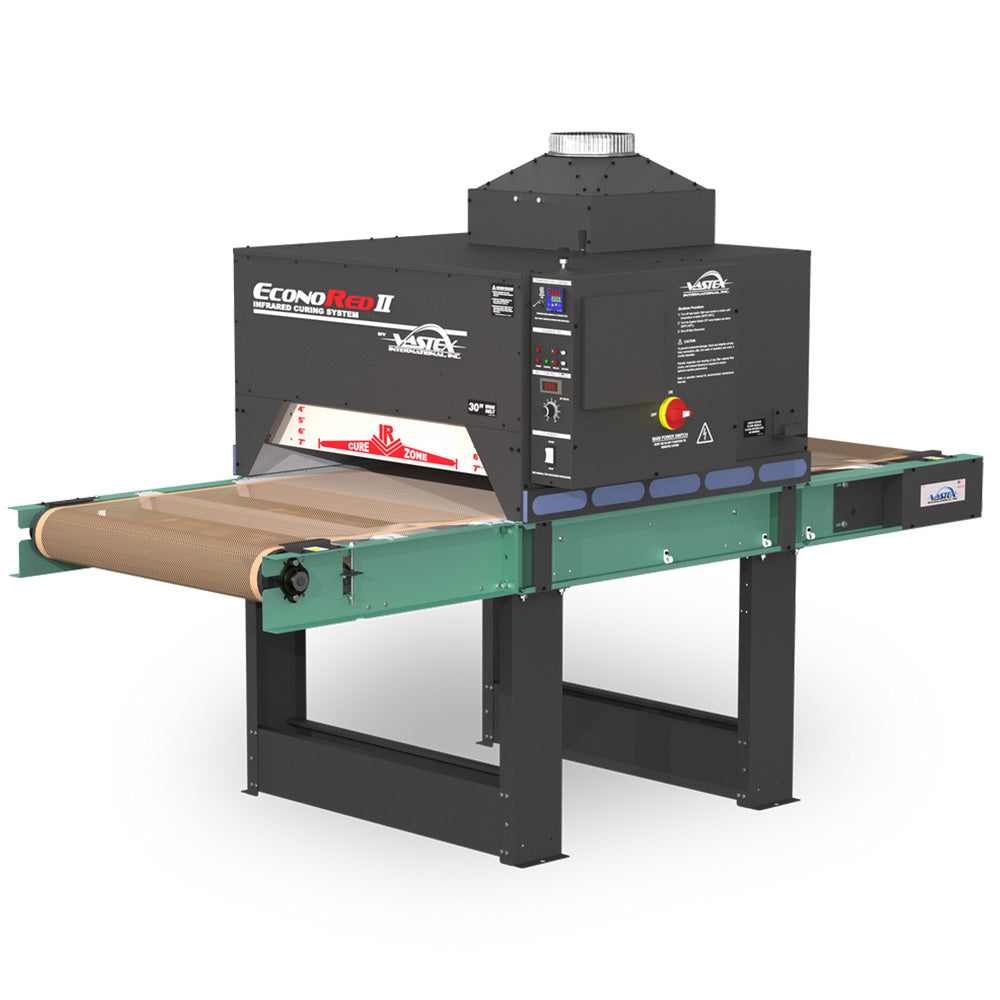

Model ER-II-30 with 30 in. (76 cm) wide belt and two 24 in. (61 cm) wide heaters (total 7,200 watts) cures up to 300 plastisol-printed garments/h, or 100 garments/h screen-printed with water-based ink or discharge.*

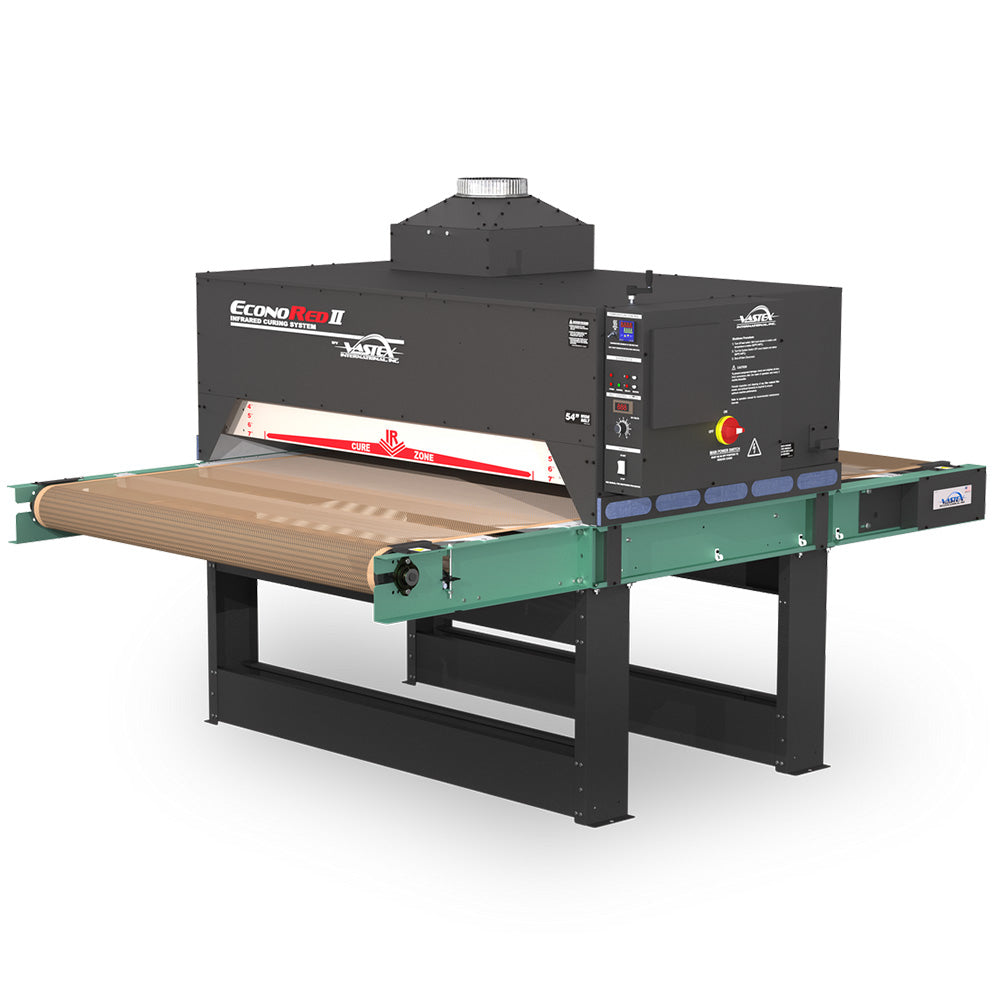

Model ER-II-54 with 54 in. (137 cm) wide belt and two 48 in. (122 cm) heaters (total 14,400 watts) cures up to 600 plastisol-printed garments/h, or 200 garments/h screen-printed with water-based ink or discharge.*
| ER-II-30 | ER-II-54 | ER-III-30 | ER-III-54 | ER-III-78 | ER-VI-30 | ER-VI-54 | ER-VI-78 | |
| Heater Warranty | 15 Year | 15 Year | 15 Year | 15 Year | 15 Year | 15 Year | 15 Year | 15 Year |
| Defect Warranty | 3 Year | 3 Year | 3 Year | 3 Year | 3 Year | 3 Year | 3 Year | 3 Year |
| Shirts / Hr* Plastisol @ 25 secs |
300+ | 2 Rows - 600+ | 450+ | 2 Rows - 900+ | 3 Rows - 1,350+ | 900+ | 2 Rows - 1,800+ | 3 Rows - 2,700+ |
| Shirts / Hr* - Waterbased/ Discharge | 100+ @ 70 secs. | 2 Rows - 200+ @ 70 secs. | 150+ @ 70 secs. | 2 Rows - 300+ @ 70 secs. | 3 Rows - 450+ @ 70 secs. | 300+ @ 70 secs. | 2 Rows - 600+ @ 70 secs. | 3 Rows - 900+ @ 70 secs. |
| Shirts/hr* - DTG/digital | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Time in Tunnel Range (mm:ss) | 00:11 - 01:39 | 00:11 - 01:39 | 00:17 - 02:29 | 00:17 - 02:29 | 00:17 - 02:29 | 00:15 - 03:00 | 00:15 - 03:00 | 00:15 - 03:00 |
| Belt Speed | 1.8 - 23 FPM (0.5 - 7 MPM) | 1.8 - 23 FPM (0.5 - 7 MPM) | 1.8 - 23 FPM (0.5 - 7 MPM) | 1.8 - 23 FPM (0.5 - 7 MPM) | 1.8 - 23 FPM (0.5 - 7 MPM) | 3 - 36 FPM (0.9 - 11 MPM) | 3 - 36 FPM (0.9 - 11 MPM) | 3 - 36 FPM (0.9 - 11 MPM) |
| Exhaust (Free Air) | 380 CFM (10.7 CMM) | 380 CFM (10.7 CMM) | 380 CFM (10.7 CMM) | 550 CFM (15.6 CMM) | 700 CFM (19.9 CMM) | 2 @ 380 CFM (10.7 CMM) | 2 @ 550 CFM (15.6 CMM) | 2 @ 700 CFM (19.8 CMM) |
| Exhaust Stack Diameter | 8” (20.32 cm) | 8” (20.32 cm) | 8” (20.32 cm) | 8” (20.32 cm) | 8” (20.32 cm) | 2 @ 8” (20.32 cm) | 2 @ 8” (20.32 cm) | 2 @ 8” (20.32 cm) |
| Overall Length | 87" (221 cm) | 87" (221 cm) | 105” (267 cm) | 105” (267 cm) | 105” (267 cm) | 159” (404 cm) | 159” (404 cm) | 159” (404 cm) |
| Overall Width | 45.2" (114.8 cm) | 69.2" (175.8 cm) | 45.2" (114.8 cm) | 69.2" (175.8 cm) | 93.2” (236.7 cm) | 45.2" (114.8 cm) | 69.2" (175.8 cm) | 93.2” (236.7 cm) |
| Overall Height | 60.9" (154.7 cm) | 60.9" (154.7 cm) | 60.9" (154.7 cm) | 60.9" (154.7 cm) | 60.9" (154.7 cm) | 60.9" (154.7 cm) | 60.9" (154.7 cm) | 60.9" (154.7 cm) |
| Belt Width | 30" (76 cm) | 54" (137 cm) | 30" (76 cm) | 54" (137 cm) | 78" (404 cm) | 30" (76 cm) | 54" (137 cm) | 78" (404 cm) |
| Chamber Length | 36" (91 cm) | 36" (91 cm) | 54” (137cm) | 54” (137cm) | 54” (137cm) | 108” (275cm) | 108” (275cm) | 108” (275cm) |
| Chamber Infeed Width | 34.5" (88 cm) | 58.5" (149 cm) | 34.5" (88 cm) | 58.5" (149 cm) | 82.5” (209cm) | 34.5" (88 cm) | 58.5" (149 cm) | 82.5” (209cm) |
| Chamber Infeed Height (adjustable) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) | 2" - 7" (5 - 17.7 cm) |
| Heat Range (@ Heater) | 0-900 F° (0-482 C°) @ 240V | 0-900 F° (0-482 C°) @ 240V | 0-900 F° (0-482 C°) @ 240V | 0-900 F° (0-482 C°) @ 240V | 0-900 F° (0-482 C°) @ 240V | 0-900 F° (0-482 C°) @ 240V | 0-900 F° (0-482 C°) @ 240V | 0-900 F° (0-482 C°) @ 240V |
| Heater Size & Standard Wattage** | 12" x 24" (30 x 61 cm) 2 @ 3,600 = 7,200 Watts @ 240V 12" x 24" (30 x 61 cm) 2 @ 3,000 = 6,000 Watts @ 380V & 480V |
12" x 48" (30 x 122 cm) 2 @ 7,200 = 14,400 Watts @ 240V 2 @ 6,000 = 12,000 Watts @ 380V & 480V |
12" x 24" (30 x 61 cm) 3 @ 3,600 = 10,800 Watts @ 240V 12" x 24" (30 x 61 cm) 3 @ 3,000 = 9,000 Watts @ 380V & 480V |
12" x 48" (30 x 122 cm) 3 @ 7,200 = 21,600 Watts @ 240V 3 @ 6,000 = 18,000 Watts @ 380V & 480V |
12" x 72" (30 x 183 cm) 3 @ 7,800 = 23,400 Watts @ 240V, 380V, & 480V | 12" x 24" (30 x 61 cm) 6 @ 2,600 = 15,600 Watts 240V, 380V, & 480V | 12" x 48" (30 x 122 cm) 6 @ 5,200 = 31,200 Watts 240V, 380V, & 480V | 12" x 72" (30 x 183 cm) 6 @ 7,800 = 46,800 Watts 240V, 380V, & 480V |
| Cost / hour to operate based on 10 cents / kwh |
72 cents @ 240V 60 cents @ 380V & 480V | $1.44 @ 240V $1.20 @ 380V & 480V | $1.08 @ 240V 90 cents @ 380V & 480V | $2.16 @ 240V $1.80 cents @ 380V & 480V | $2.34 @ 240V, 380V, & 480V | $1.56 @ 240V | $3.12 @ 240V | $4.68 @ 240V |
| Standard Wattage | 7,200w | 14,400w | 10,800w | 21,600w | 23,400w | 15,600w | 31,200w | 46,800w |
| Shipping Weight*** | 665 lbs (302 kg) | 1,130 lbs (513 kg) | 900 lbs (409 kg) | 1,375 lbs (624 kg) | Call for details | 1 @ 900 lbs (409 kg) 1 @ 755 lbs (343 kg) |
1 @ 1,375 lbs (624 kg) 1 @ 1,325 lbs (601 kg) |
Call for details |
| Shipping Dimensions*** | 61" x 43" x 65" (155 x 110 x 166 cm) | 78" x 49" x 65" (199 x 125 x 166 cm) | 61" x 61" x 65" (155 x 155 x 166 cm | 93" x 65" x 65" (237 x 166 x 166 cm) | Call for details | 2 @ 61” x 43” x 65” (155 x 110 x 166 cm) | 2 @ 93” x 65” x 65” (237 x 166 x 166 cm) | Call for details |
| Electrical Specs** All amps listed below are +/- 10% |
ER-II-30 | ER-II-54 | ER-III-30 | ER-III-54 | ER-III-78 | ER-VI-30 | ER-VI-54 | ER-VI-78 |
| 240V, 1 Phase 3 wire 50/60 HZ |
FLA = 32A | FLA = 65A | FLA = 50A | FLA = 97A | FLA = 100A | FLA = 68A | N/A | N/A |
| 240V, 3 Phase 4 wire 50/60 HZ |
FLA = 19A | FLA = 37A | FLA = 29A | FLA = 55A | FLA = 60A | FLA = 41A | FLA = 78A | FLA = 117A |
*Production speeds are estimates are based on 16” centers and will vary depending on ink manufacturer, humidity of shop, and other variables.
All amps shown are FLA (Full Load Amps), not recommended line size! Dryers on this page must be hard wired to the power terminal provided. A licensed electrician must be consulted and should refer to articles, 210.20(a), 215.3 and 310 of the NEC code.
This dryer does not come with a plug. A plug will need to be added to the supplied pigtail, or the machine will need to be wired direct. We recommend speaking with an electrician if you have any questions.
