Mimaki TxF150-75 DTF Printing System (Used Machine)

Mimaki TxF150-75 DTF Printing System (Used Machine) - Default Title

SKU:

Financing Options

Located at the Montreal office. Shipping is additional.

Used machine. 1 warranty.

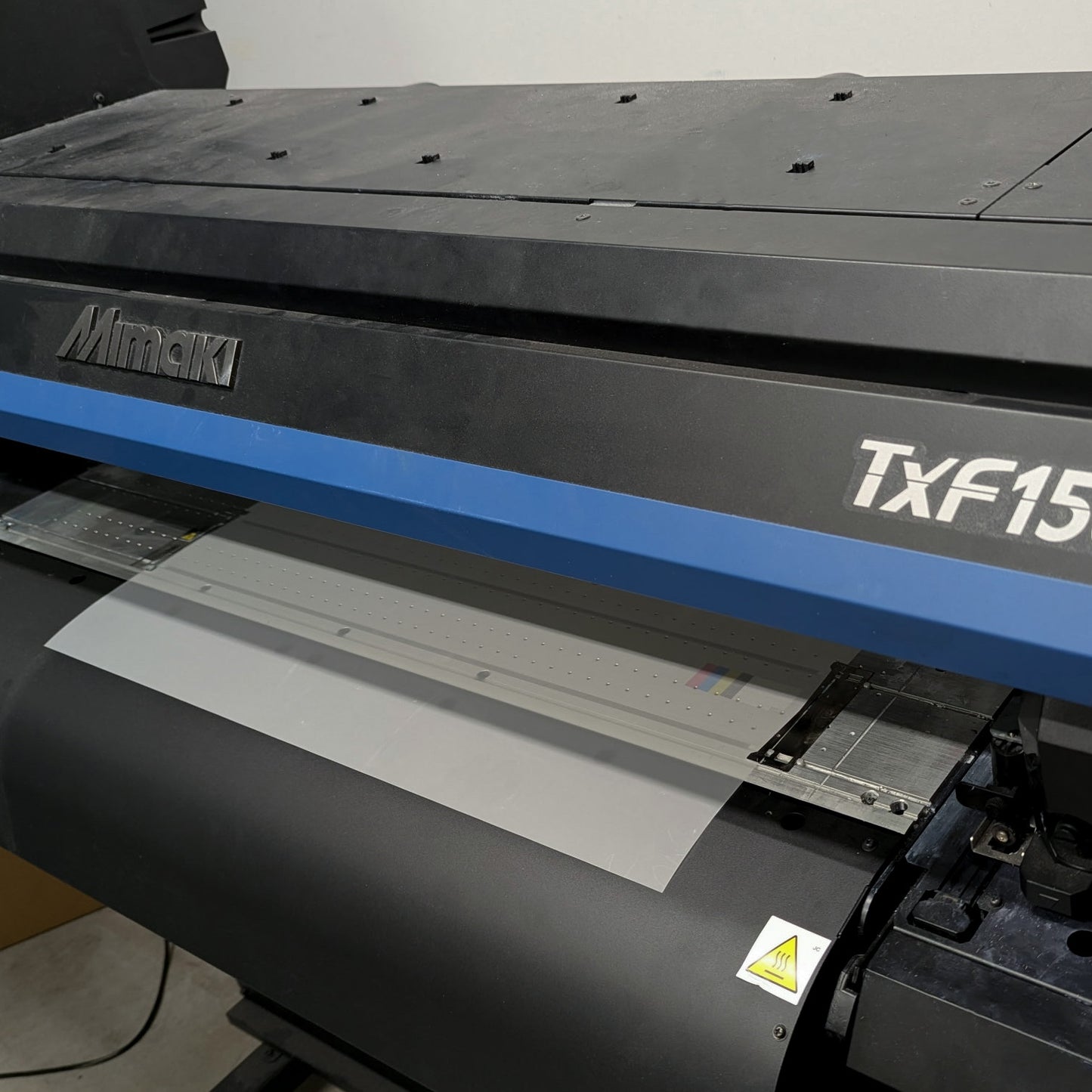

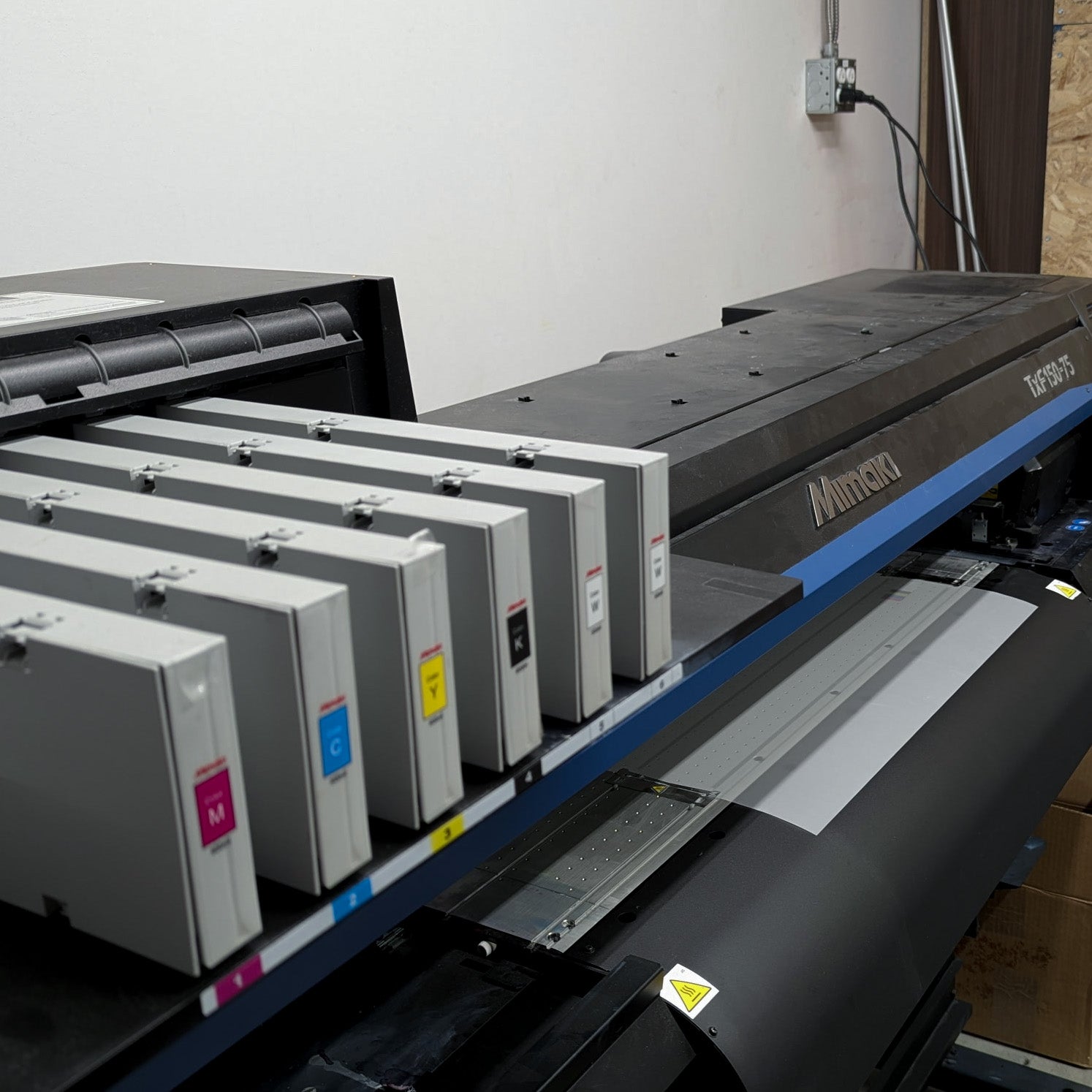

This used Mimaki TxF150-75 DTF Printer from our Montreal showroom is a reliable, production-ready DTF system at a fraction of the cost of new.

With a 32" print width and Mimaki’s trusted technologies like white ink circulation (MCT), nozzle check (NCU), and nozzle recovery (NRS), it delivers consistent, high-quality transfers with minimal downtime.

Product Resources

View full details

Often Purchased With

Features And Highlights



  • Mimaki Circulation Technology: White ink circulation function
  • Nozzle Check Unit: Missing nozzle detection function
  • Nozzle Recovery System: A function to substitute missing nozzles with other nozzles.
  • Self-Cleaning
  • Better ink consistency than other brands and models
  • 32” Printing Width



Mimaki's Core Technologies for Stable Operation





  • Mimaki Circulation Technology Version 2 (MCT)

    Circulation through out ink route including damper*, supports stable white ink ejection for reducing frequent nozzle cleaning and ink waste.

  •   MCT

  • Nozzle Check Unit (NCU)

    A sensor detects nozzle defect and nozzle cleaning performed automatically to reduce the material waste.





    Nozzle Recovery System (NRS)

    Supports continous production without waiting for service personnel, when nozzle defect is unrecovereble by nozzle cleaning.

  •   NCU

  •   TxF150-75


  • TXF-150-75

  •   TXF-150-75



Learn More About The Mimaki DTF Printer On The InkPod Podcast


Additional Information

  • Reliable ink system design to reduce clogging and downtime
  • Better ink consistency than other brands and models
  • Self-Cleaning
  • Groundbreaking ink technology circulating through the damper
  • Nozzle detection
  • 32” printing width
  • Onsite certified Mimaki technician setup and training
  • One-year complete warranty, including printheads
  • Max Resolution: 1440 dpi
  • Simple Operation
  • Variable Dot
  • 3 Way Heater
  • Nozzle Drop-out Detection
  • Nozzle Recovery Function
  • MCT
  • Event Notification



TxF150-75
Print head On-demand piezo head
Printing resolution 720dpi, 1,440dpi
Ink Type/Color Heat transfer pigment ink PHT50 (C, M, Y, K, W)
Capacity 600ml ink pack (500ml for white only)
Circulation function Available only for white ink
Maximum print width 800mm (31.5 in)
Media Maximum width 810mm (31.9 in)
Thickness 1.0mm or less
Roll weight 45 kg (99.2 lb) or less
Interface Ethernet 1000 BASE-T / USB2.0 Hi-speed
Power specifications Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1
Power consumption 100V system: 0.9kW or less, 200V system: 1.2kW or less
Certifications VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC
Dimensions (W×D×H) 1,965 x 700 x 1,392 mm (77.4 (W) x 27.6 (L) x 54.8 in (H))
Weight 126kg (277.8 lb)



*Note: Printer does not come with USB to printer cable. Also purchase a kitchen scale for weighing ink set for eco case cartridge.



For Mimaki TxF series printers, cold weather and low humidity can pose challenges during the winter months. Please ensure your printers are operating in ideal environmental conditions to maintain optimal performance and avoid potential issues. Please pay close attention to proper humidity and temperature.



  • Humidity: 40-65%
  • Temperature: 20-25° Celsius



Note: When the ink level reaches 50%, make sure to fold the ink pack as instructed in the Operation Manual, Section 1-11. This step is crucial to ensure proper ink flow and maintain optimal printing performance.



Mimaki TxF Series - Care and Maintenance.pdf (Read Page 2)

Mimaki TxF Series - Operation Manual.pdf
