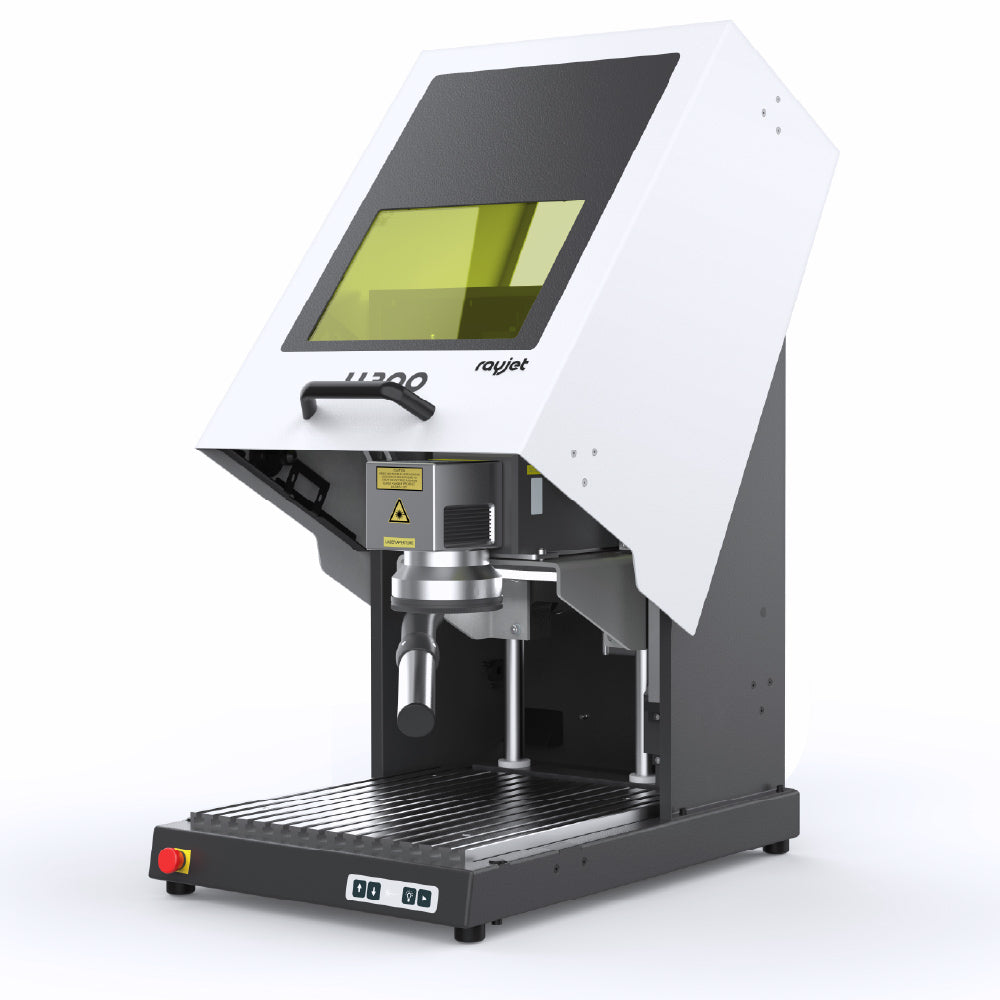

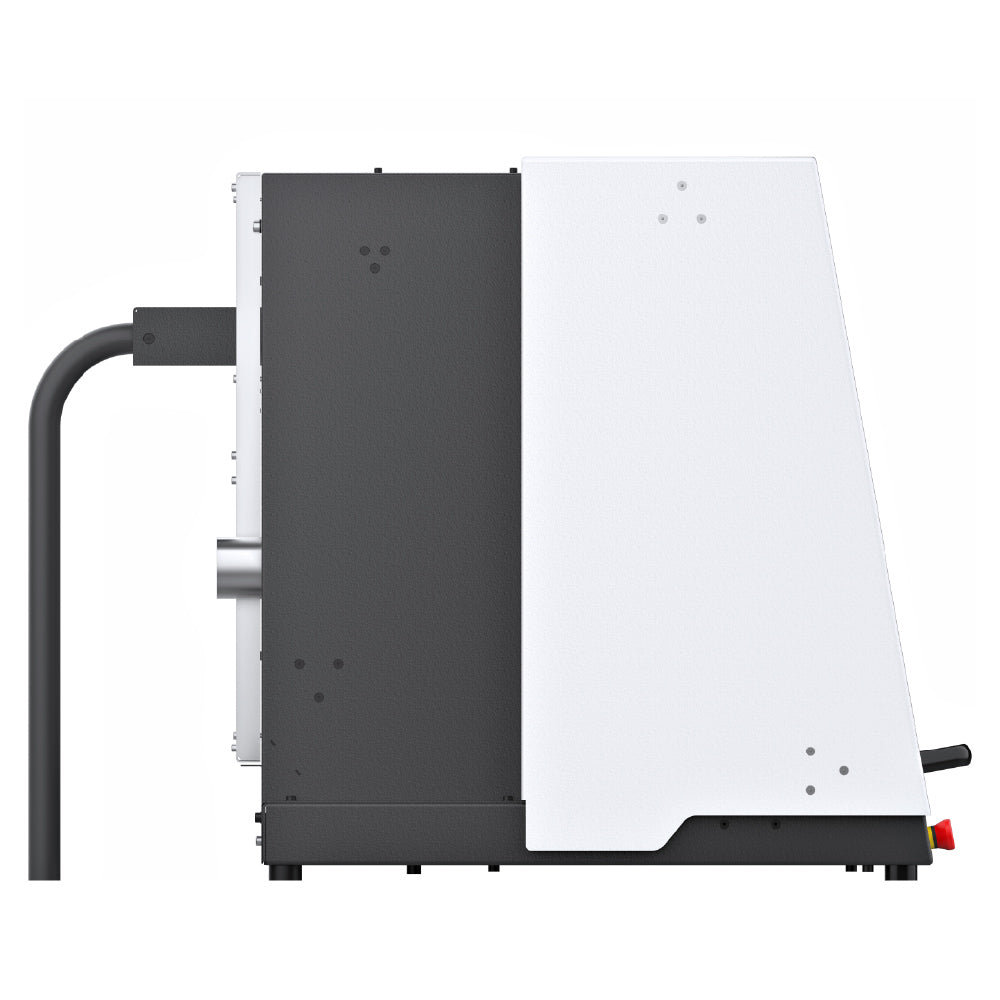

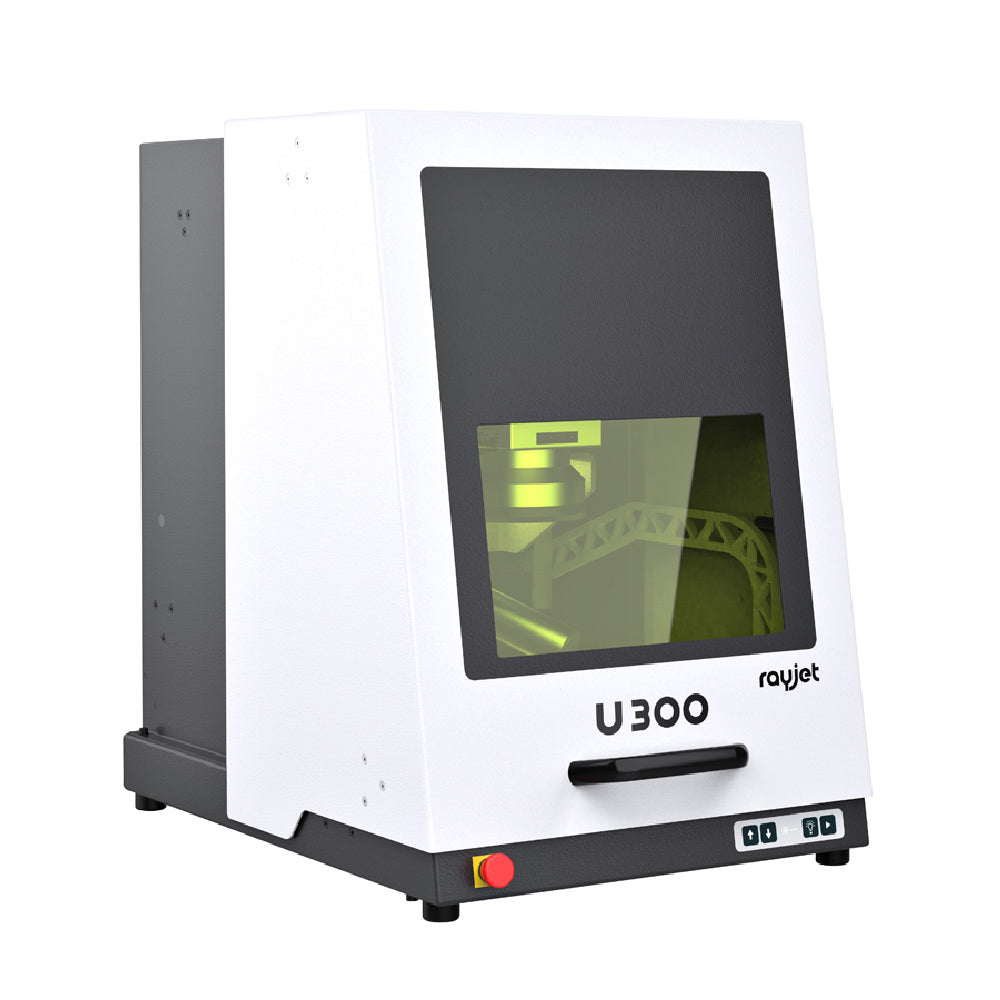

Trotec U300 (Fiber Laser Marking Machine)
Trotec U300 (Fiber Laser Marking Machine) - 7.48 x 7.48in / 20W Fiber
SKU:
The Trotec U300 is a high-performance, compact fiber laser marker designed for fast, precise marking of small batches and individual parts. With its versatile working areas and high-quality optics, the U300 excels in marking metals, plastics, and complex geometries such as nameplates, trophies, watches, and personalized products.
Thanks to the Ruby® laser software interface, dynamic data can be processed effortlessly, making it ideal for jobs with serial numbers, logos, or identifiers directly from CSV or database sources. With its durable, maintenance-free design and Ethernet connectivity, the U300 integrates smoothly into modern production workflows—delivering professional results with minimal setup time.
Trotec U300
Galvo Marking Laser
Key features and options of the U300 laser marker
-
Border Marking -
Effortless data processing -
Ethernet cable simplifies laser control -

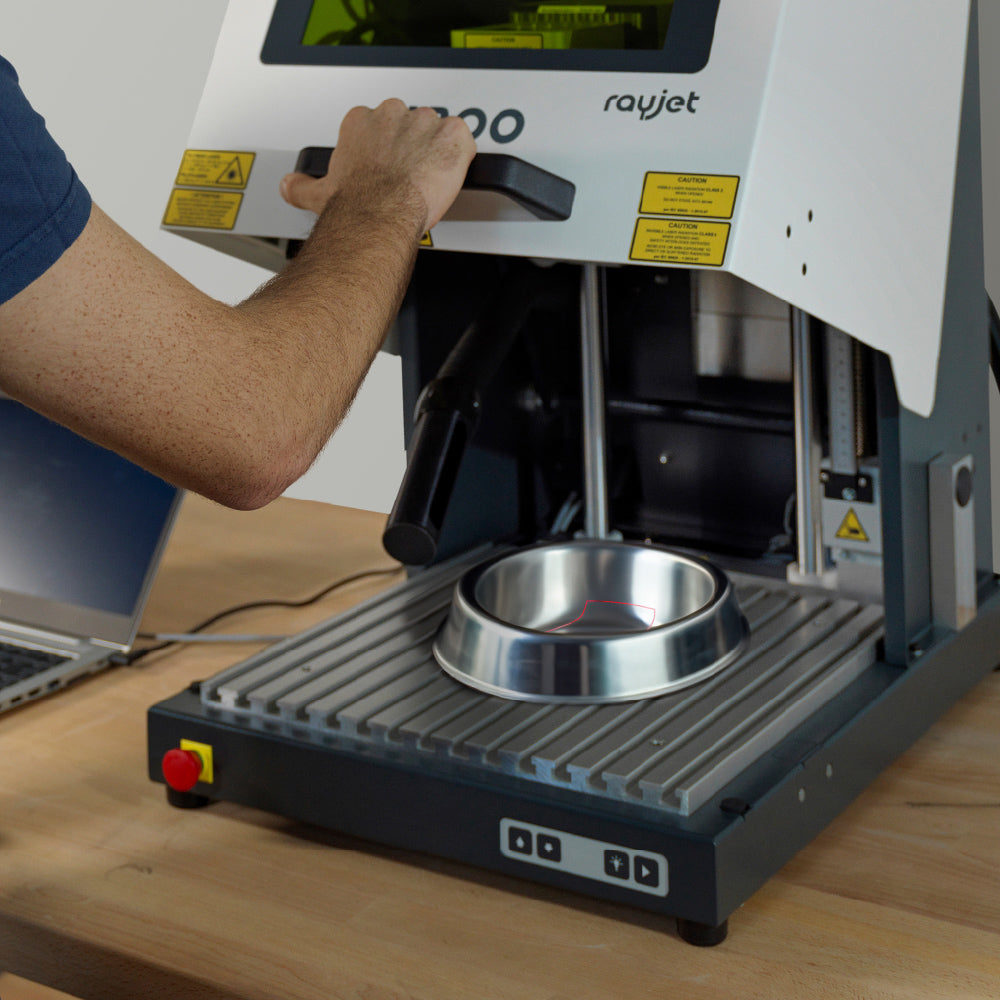

User-friendly focusing
The speed of a galvo meets the simplicity of Ruby
Additional Information
-
Fiber laser technology for permanent marking on metals and plastics
-
Compact working area up to 190 × 190 mm (depending on lens)
-
High marking speed up to 12 m/s for fast throughput
-
Software-controlled Z-axis for varying workpiece heights
-

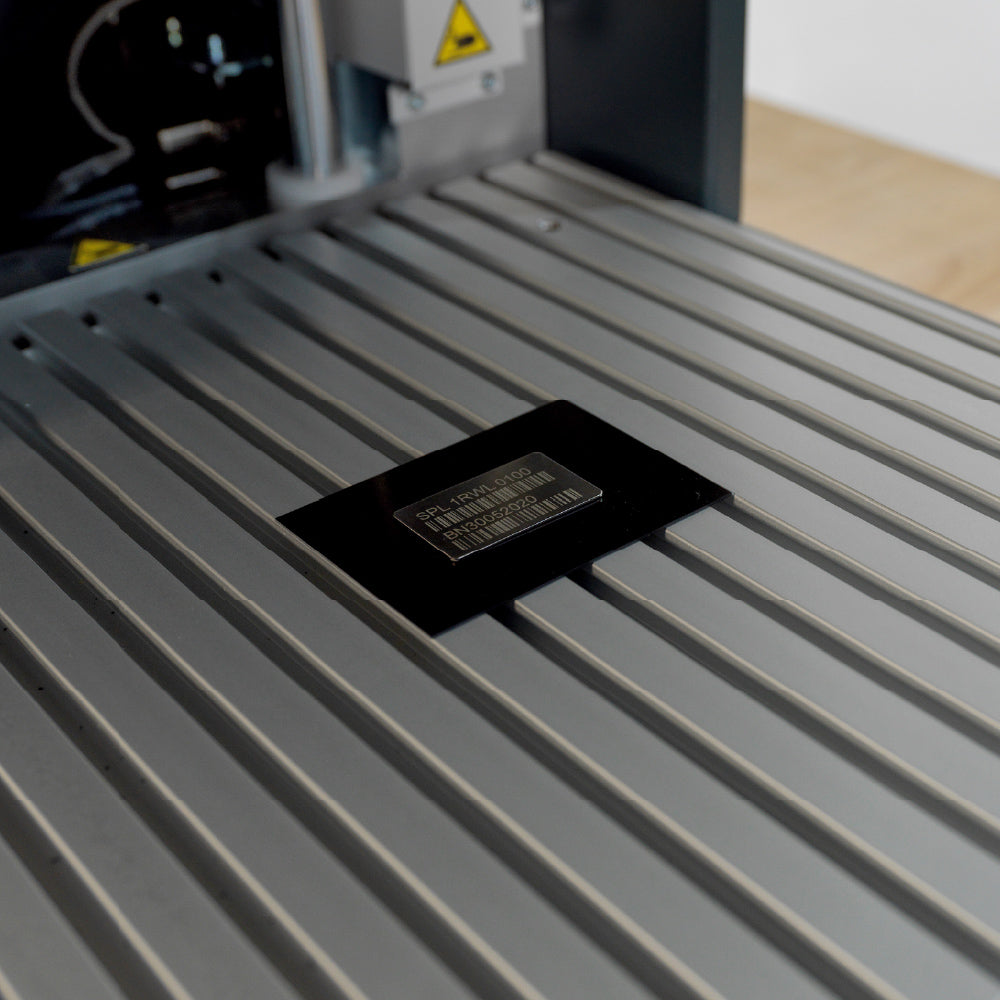

Border marking function for accurate positioning and reduced errors
-
Dynamic data processing with support for CSV import and personalization
-
Ethernet connectivity and Ruby® software compatibility for flexible control
-
Durable, maintenance-free design built for long operational life
| Model Name | U300 02F F254 |
|---|---|
| Marking Field | 190 x 190 mm |
| Laser Power | 20 W Pulsed Yb-fiberlaser |
| Loading Area | 350 x 400 mm |
| Max. Height of Workpiece | 61 mm |
| Max. Loading Weight | 50 kg |
| Max. Marking Speed | 12 m/s |
| Z-axis | Software-controlled servo axis |
| Door | Manual |
| Software | Ruby® (standard), UMark, DirectMark printer driver (optional) |
| System Requirements | See technical software datasheet |
| Supported Fonts | All installed TrueType Fonts |
| Supported 1D Barcodes* | Australian Post, Codebar, Code 11, Code 128, Code 39, Code 93, DAFT, Deutsche Post, DPD, EAN-13, EAN-14, EAN-8, GS1, HIBC, ISBN, Pharmacode |
| Supported 2D Codes* | Datamatrix, QR-Code, Aztec, Codeblock-F, GS1 Databar, HIBC, Maxi Code, PDF 417 |
| Supported Image Formats | .pdf, .svg, .ai, .png, .jpg, .jpeg, .bmp, .tsf, .tld, .tlj, .zip, .cdr, .dxf |
| Interfaces | Ethernet; Laser-Interlock; Marking-Start (24 VDC) |
| Safety | CDRH Laser Safety, Laser Class 2 (EN 60825-1) |
| Dimensions (L x D x H) | 445 x 653 x 851 mm (U300), 449 x 559 x 117 mm (laser rack) |
| Weight | 56 kg |
| Weight (Laser Rack) | 20 kg |
- 2 Year Warranty Parts - does not cover lens or table
- Extended Warranty available through TroCare
