Vastex

Washout Booth (36" x 27")

Washout Booth (36" x 27") - Washout Booth Only

SKU:

$1,735.00 CAD
$1,735.00 CAD
Sale Sold out
Shipping calculated at checkout.

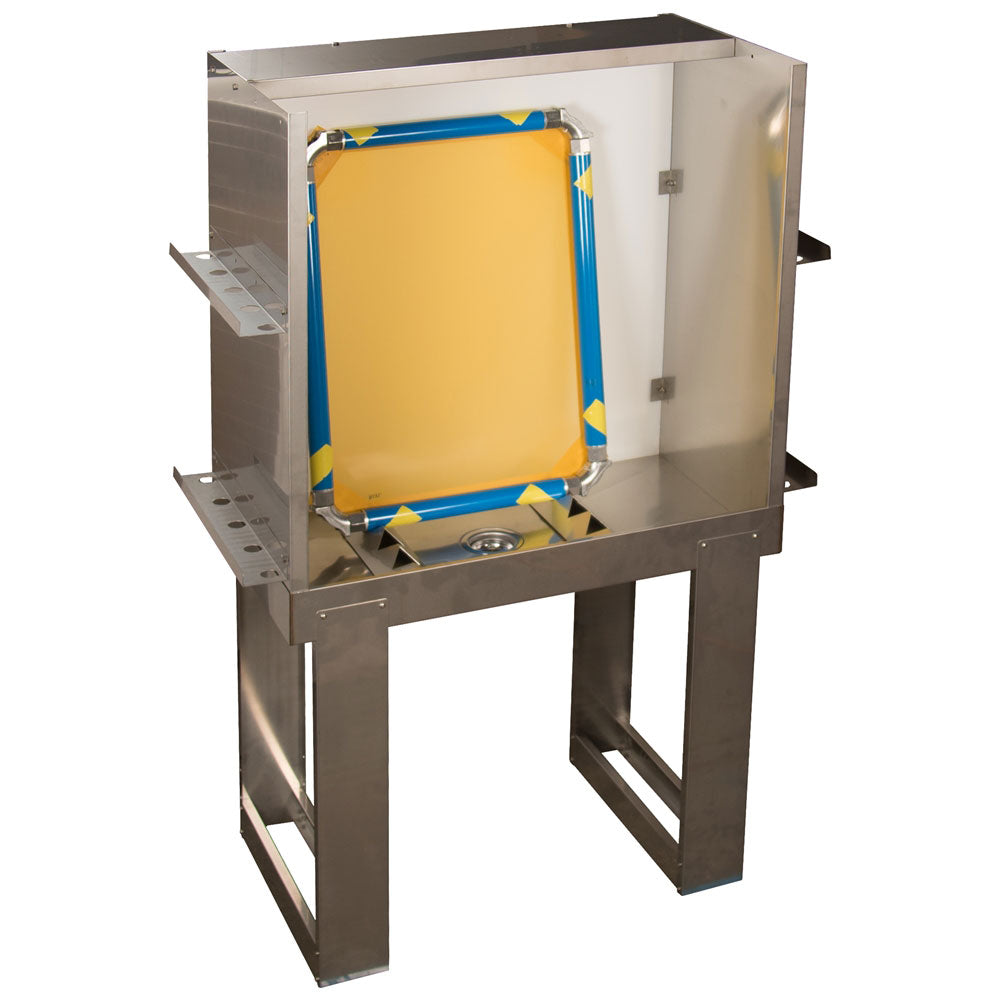

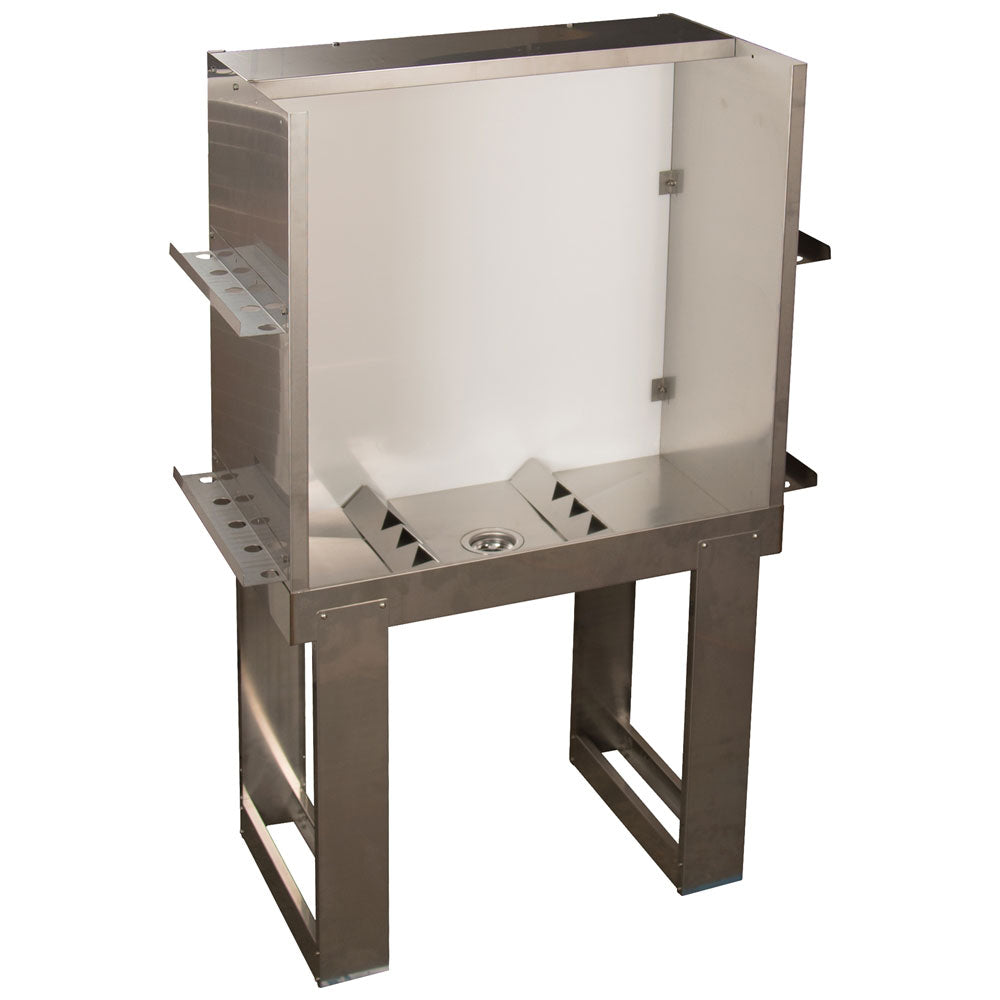

Vastex Washout Booths are constructed of high-quality stainless steel. This model is 36" wide by 27" deep, and can comfortably fit up to a 23" x 31" screen. All Vastex washout booths include an acrylic back panel so you can easily add your own backlighting, and they come standard with 4 squeegee shelves and 2 screen standoffs for maximum versatility. They also have a flat top large enough to fit your most popular screen chemicals so they're always right where you need them.

Options
• Special Order
disabled
This product is typically ready for pickup or shipping within one week, subject to lead times provided by manufacturers.
The Washout Booth (36" x 27") is a special order product that is sourced specifically for you after you place your order. Please note that it may take up to one week for the product to be ready for pickup or shipment, depending on the lead times provided by the manufacturer. After your purchase, we will contact you to confirm the estimated lead times.

Product Resources

View full details

Often Purchased With

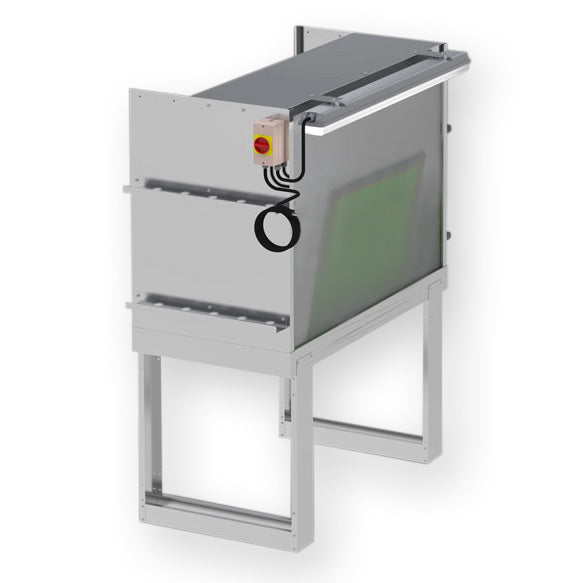

Light Kit (Deluxe Kit) Specifications

  •

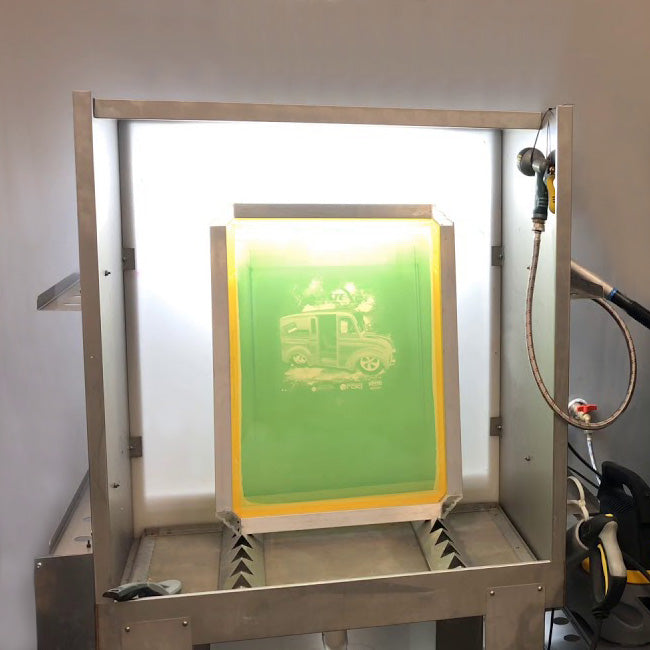

    • Illuminates the translucent acrylic back panel of screen washout booths, improving visual inspection of the screen surface being reclaimed
    • Optional on new equipment and can be retrofit to all existing Vastex washout booths and certain other makes
    • Light and switch are IP65 rated as dust- and water-tight
    • Mounting brackets supplied
    • 120V or 240V
    • Measures 24 x 2 in. (610 x 51 mm) for booth chambers ≤ 4 ft (1219 mm) wide



  • Light Kit

Additional Information

  • Stainless steel construction
  • Frosted acrylic back panel
  • Squeegee shelves, 3" (7.6cm) wide
  • Screen standoff
  • Fits up to 25" x 36" screens
  • 36" wide x 27" deep
  VWB-3627-AC VWB-5127-AC
Screen Compatibility Fits up to 1 25” x 36” screen • Fits (1) 47” x 31” screen or
• (2) 25” x 36” screens
Overall Dimensions (H x W x D) 69” x 42” x 27” (175 x 107 x 69 cm) 69” x 58” x 27” (175 x 148 x 69 cm)
Inside Dimensions (H x W x D) 41” x 36” x 27” (104 x 91 x 69 cm) 41” x 51” x 27” (104 x 129 x 69 cm)
Distance of drain to floor 26” (66 cm) 26” (66 cm)
Optional Light Kit 24” (61cm) long - VWB-LK2 (120v or 240v) 48” (122cm) long - VWB-LK4 (120v or 240v)
Shipping 39” x 50” x 16” (99 x 127 x 41 cm) @ 170lbs (77.1kg 53” x 33” x 35” (135 x 84 x 89 cm) @ 250lbs (113.4kg)
