Saati Pro Coat 2536 (Automated Coater)

Saati Pro Coat 2536 (Automated Coater) - 20" x 24" (2) up to 25" x 36" (1)

SKU:

Financing Options

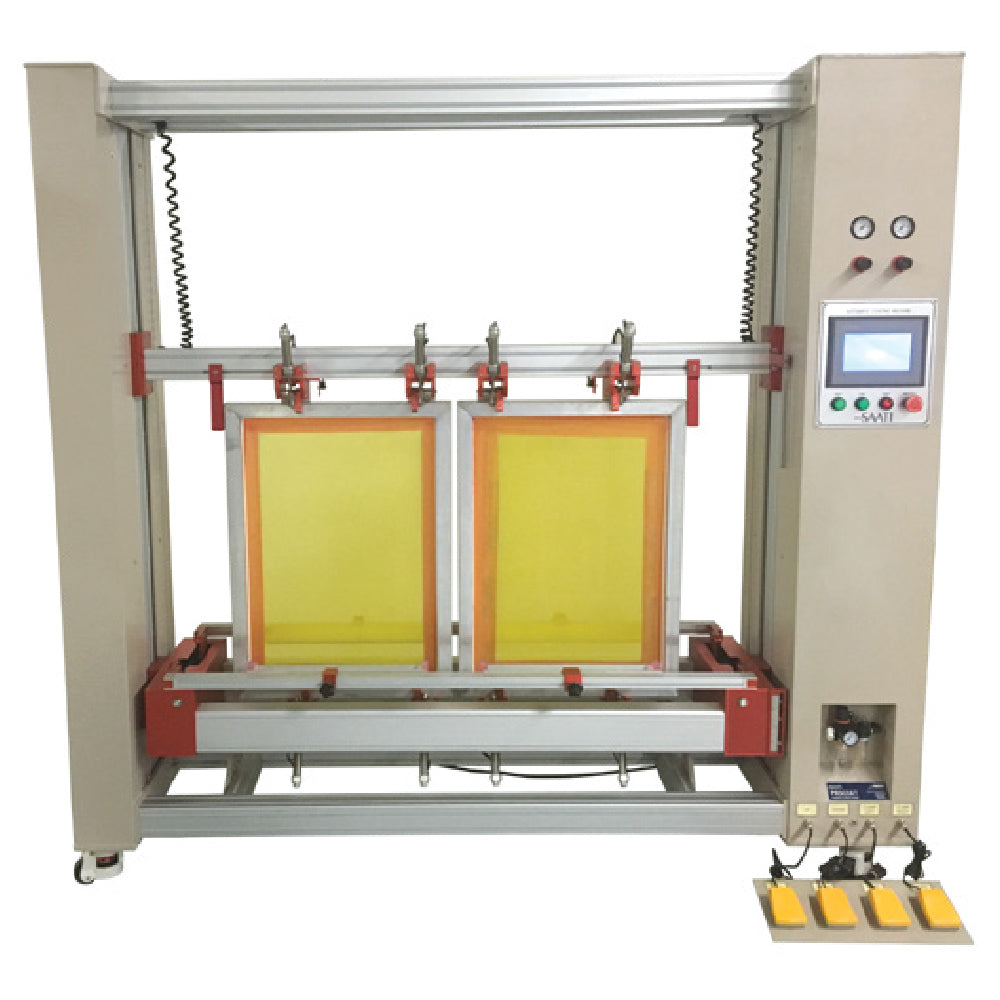

The Saati Pro Coat 25×36 is a professional automatic screen coater built for small to medium shops seeking consistent, repeatable coating quality without the high cost of large-format automation. Engineered for reliability and ease of use, this “plug-and-play” workhorse delivers perfectly coated screens that eliminate many of the common issues that reach the press.



With the ability to coat two screens simultaneously—up to 25" × 36" each—or a single screen up to 53" × 49", the Pro Coat 25×36 doubles your coating output while maintaining consistent emulsion thickness. A motorized upper carriage, touchscreen controls, and foot-pedal operation make setup and handling effortless. Designed for simplicity, this unit installs quickly—just connect air and power—and delivers industrial-level performance in a compact footprint.

Screen Size

Product Resources

View full details

Often Purchased With

Saati ProCoat Series

Take your productivity to the next level with SAATI's ProCoat series of Automated Programmable coaters.

Additional Information

  • Dual-screen capability — coats two screens (front and back) simultaneously

  • Large single-screen capacity — up to 53" × 49" (135 × 125 cm)

  • Fully programmable — set dwell, coats, and speed per side

  • Touchscreen interface — easy to use with single-program control

  • Motorized upper carriage with foot-pedal control for effortless loading/unloading

  • Smooth belt-driven system for maintenance-free operation

  • Safety-enclosed carriage ensures operator protection

  • Quick-attach trough system for fast changeovers

  • Plug-and-play installation — connect air and power; no assembly required

  • Optional leasing available (U.S.) for flexible ownership

Specification Detail
Maximum Screen Capacity 1 or 2 screens up to 25" × 36" (635 × 915 mm)
Single-Screen Capacity Up to 53" × 49" (135 × 125 cm)
Voltage 110 V, 20 A
Air Requirements 90 PSI, less than 1 cfm
Operation Fully programmable touchscreen with dwell, coats, and speed control
Drive System Belt-driven carriage for smooth, maintenance-free operation
Frame Adjustment Motorized upper carriage with manual profile adjustment
Controls Foot-pedal operation for upper carriage and frame clamps
Machine Dimensions 84.25" × 78" × 22.5" (214 × 198 × 57 cm)
Weight Approx. 880 lbs (399 kg)
Warranty 6 months
Installation Customer-installable — connect airline and power; no assembly required
Leasing Available in the United States — please inquire
