Saati LTS E70B (Direct Laser Imaging & Exposure Unit)

Saati LTS E70B (Direct Laser Imaging & Exposure Unit) - 25" x 36"

SKU:

Financing Options

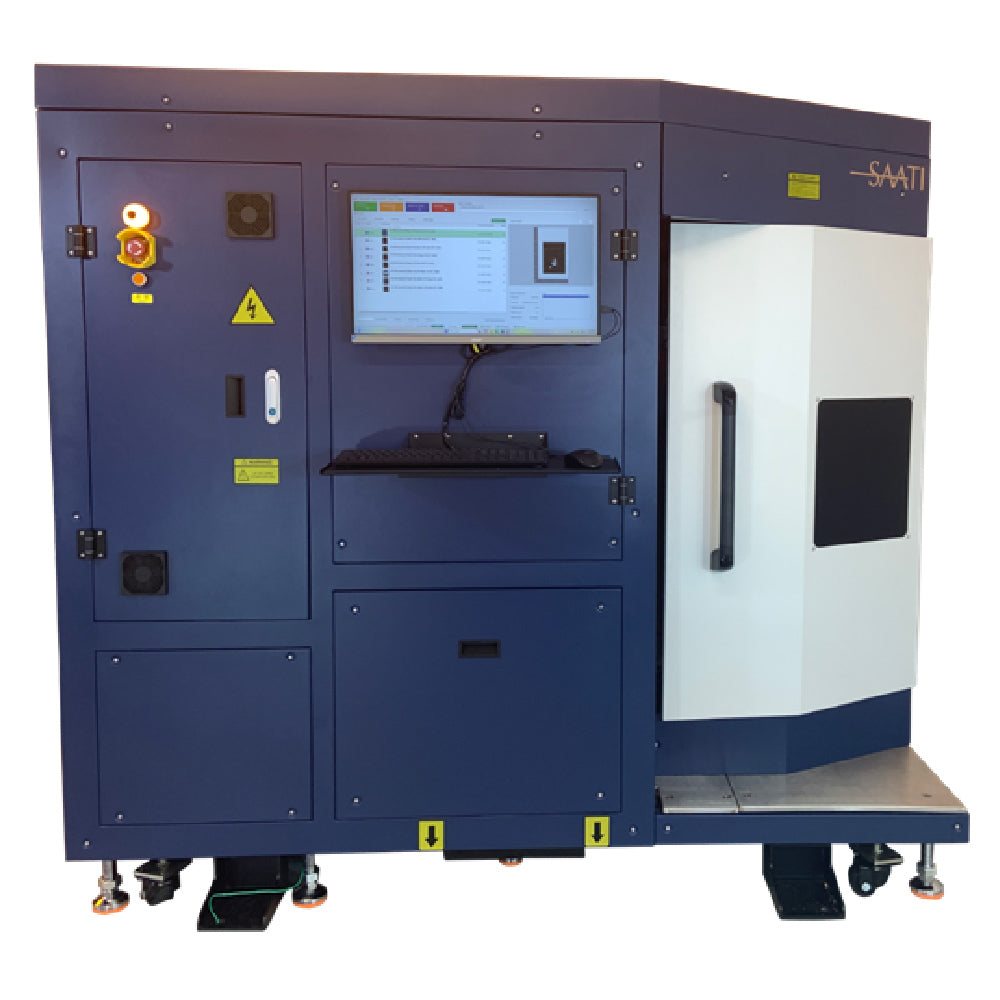

The Saati LTS E70B is a self-contained, high-efficiency direct laser computer-to-screen (CtS) imaging and exposure unit designed for precision, speed, and cost savings. With its vertical design and safe viewing window, this advanced system eliminates the need for film positives, consumables, or vacuum frames, streamlining your prepress workflow.



Equipped with a 64-laser planar array, the LTS E70B offers toggleable resolutions of 1270 or 2540 DPI, delivering exceptionally sharp and detailed stencil imaging. It supports all emulsions and stencil films, integrates easily with major registration systems, and features easy-to-use PC software compatible with most RIP programs. With low power consumption, 10,000+ hour laser life, and simple maintenance, the LTS E70B provides both quality and value in a compact, space-saving unit.

Screen Size

Product Resources

View full details

Often Purchased With

Saati LTS Imaging & Exposure Machines

Direct Laser Diode, Simultaneous Imaging and Exposure Units

Additional Information

  • Direct laser imaging — no film positives, ink, or wax needed

  • High-resolution exposure — 1270 / 2540 DPI for precision detail

  • Vertical design with safe viewing window saves space in the shop

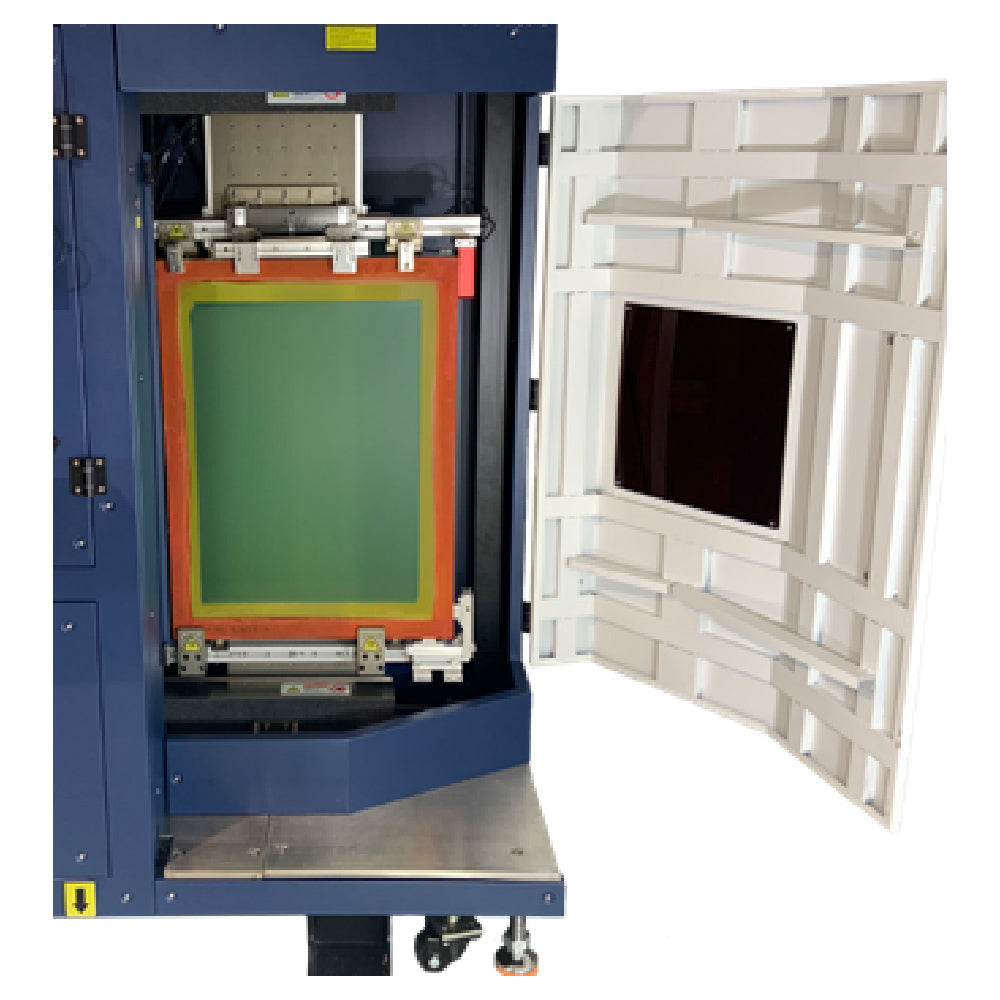

  • Pneumatic frame clamping compatible with MHM, Tri-Lock, and other systems

  • Precise pixel placement with upgraded encoder and drive system

  • Supports all emulsions and stencil films

  • Easy-to-use PC software compatible with leading RIP programs

  • Energy-efficient design with low power consumption

  • Long-lasting laser life — 10,000+ hours with simple, low-cost maintenance

Specification Detail
Maximum Image Size 600 × 800 mm (23.6 × 31.4")
Maximum Frame Size 640 × 920 mm (25 × 36")
Resolution 1270 or 2540 DPI (toggle)
Laser Array Planar array of 64 lasers
Machine Dimensions 2070 × 712 × 1880 mm (81.5 × 28 × 74")
Allow 610 mm (24") right side clearance and 203 mm (8") front clearance for chamber door
Weight 800 kg (1763.7 lb)
Power Requirements 220V (EMEA) or 110V (USA)
Compressed Air 90 PSI (6.2 Bar), less than 1 cfm for pneumatic clamps
Laser Life 10,000+ hours
Warranty One Year
