Saati LTS 6080 (Direct Laser Image & Exposure Unit)

Saati LTS 6080 (Direct Laser Image & Exposure Unit) - 33.5" x 43.3"

SKU:

Financing Options

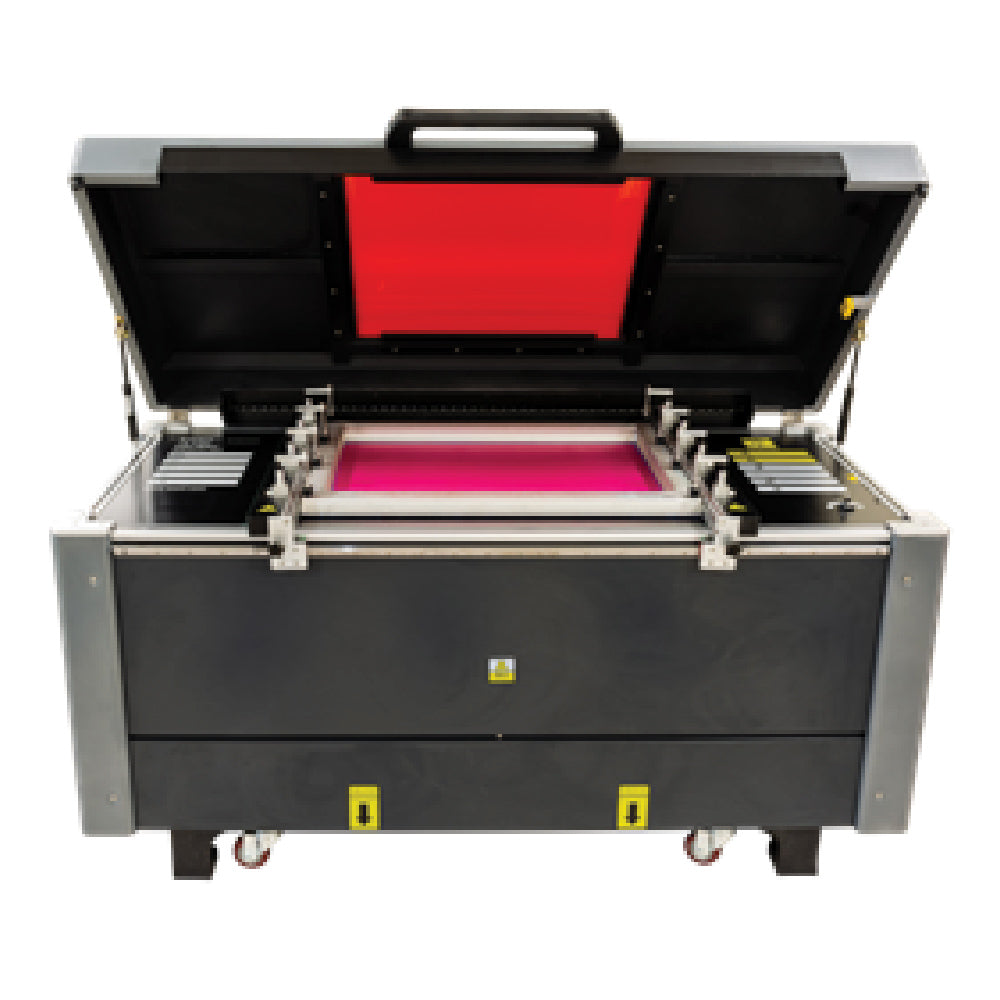

The Saati LTS 6080 is a self-contained, high-efficiency direct laser computer-to-screen (CtS) imaging and exposure unit designed for shops that demand precision, speed, and flexibility. Operating directly from a PC with optional RIP software, the LTS 6080 eliminates the need for film positives or vacuum frames, streamlining prepress and reducing consumable costs.



With its 96-laser array and multiple resolution settings (847, 1270, and 2540 DPI), the LTS 6080 delivers unmatched imaging quality, capable of reproducing the most demanding halftones and fine details. Its facedown glass panel and enclosing lid ensure clean, accurate exposures, while long laser life, low energy consumption, and easy maintenance make it an efficient, long-term investment.

Screen Size

Product Resources

View full details

Often Purchased With

Saati LTS Imaging & Exposure Machines

Direct Laser Diode, Simultaneous Imaging and Exposure Units

Additional Information

  • High-resolution CtS exposure — 847 / 1270 / 2540 DPI for maximum image detail

  • 96-laser array provides superior precision and pixel accuracy

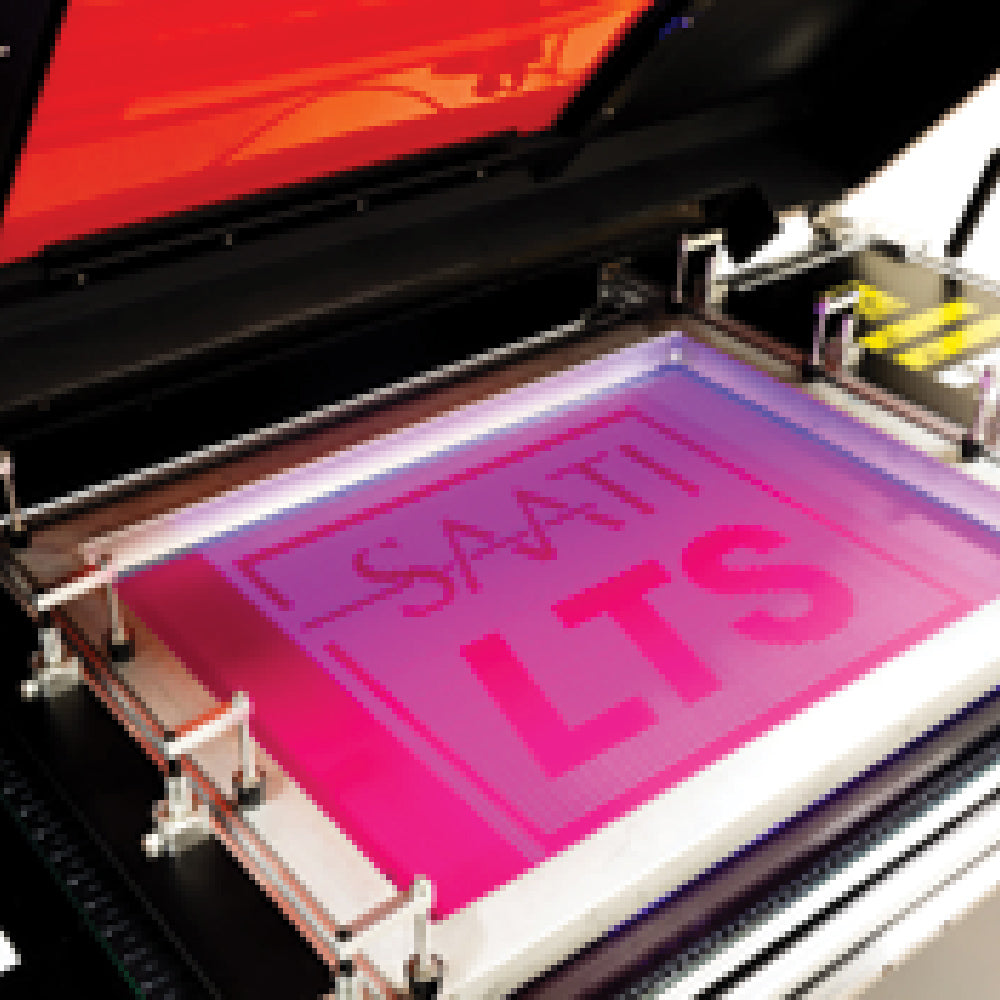

  • Facedown glass panel with enclosing lid for consistent exposures

  • No film positives needed — direct digital workflow from PC or Mac

  • Exposes all emulsions and stencil films

  • Compatible software works with most RIP programs using 1-bit TIFF files

  • Cost-saving design with low power consumption and no consumables

  • Long-lasting laser life — 10,000+ hours with simple maintenance

  • Compact footprint compared to larger CtS units, ideal for mid- to large-size shops

Specification Detail
Maximum Image Size 600 × 800 mm (23.6 × 31.5")
Maximum Frame Size 850 × 1100 mm (33.5 × 43.3")
Resolution 847, 1270, or 2540 DPI
Laser Array 96-laser system
Overall Dimensions 1700 × 950 × 930 mm (66.9 × 37.4 × 36.6")
Weight 525 kg (1157.4 lb)
Power Requirements 110V or 220V input
Compressed Air 90 PSI (6.2 Bar), less than 1 cfm (for clamps)
Laser Life 10,000+ hours
Warranty One Year
