HORNET Automatic Screen Printing Press
HORNET Automatic Screen Printing Press - Default Title
SKU:
The Hornet Automatic Screen Printing Press delivers professional-grade performance, reliability, and ease of use at an accessible price point—making it an ideal solution for growing and established print shops alike. Proudly manufactured in Roselle, Illinois, the Hornet is precision-engineered for consistent results, long-term durability, and efficient production without compromise.
At the heart of the Hornet is a 7.5-inch high-resolution touchscreen, designed for fast learning and intuitive operation. Its clean, modern icon-based interface guides operators through setup and daily use with minimal training, while built-in, multi-language tutorials provide step-by-step instructions directly on the screen—eliminating the need for external manuals and accelerating onboarding.
Designed with operator efficiency in mind, each pallet arm features M&R’s classic toggle-based controls for quick, convenient access. Standard features include front-flip screen holder manual/pneumatic locks, tool-free squeegee and floodbar angle adjustments, screen, squeegee, and floodbar airlocks, and rear micro-registration for precise, repeatable adjustments. The result is a dependable, production-ready automatic press that combines smart technology, proven mechanics, and exceptional value.
Product Resources
-
CAROUSEL / INDEXER SYSTEM
Servo-driven, smooth, quiet, precise indexing
-
CERTIFICATION
CE & UL safety compliant
-
CONTROL CENTRE
Intuitive touchscreen control with smart automation
-
LASER LOCATOR SYSTEM
Fast, precise garment positioning
-
OFF-CONTACT
Quick, independent head adjustment
-
PALLET SYSTEM
Fast, tool-free pallet changes and leveling
-
PRINTHEADS
Smooth, precise, maintenance-free drive system
-
REGISTRATION
Fast, precise micro-registration alignment
-
REVOLVER PRINT PROGRAM
Automated multi-head print sequencing
-
SCREEN CLAMPS & HOLDERS
Fast, secure, versatile screen holding
-
SQUEEGEE / FLOODBAR
Independent, precise, tool-free ink control
-
STROKE LENGTH ADJUSTMENT
Adjustable strokes for faster production
-
-
The HORNET features a 7.5-inch high-resolution touchscreen with an intuitive, icon-based interface for fast learning and easy operation. Built-in, multi-language tutorials provide step-by-step guidance directly on the screen, reducing training time and speeding up onboarding.
Large 7.5" Touchscreen
-

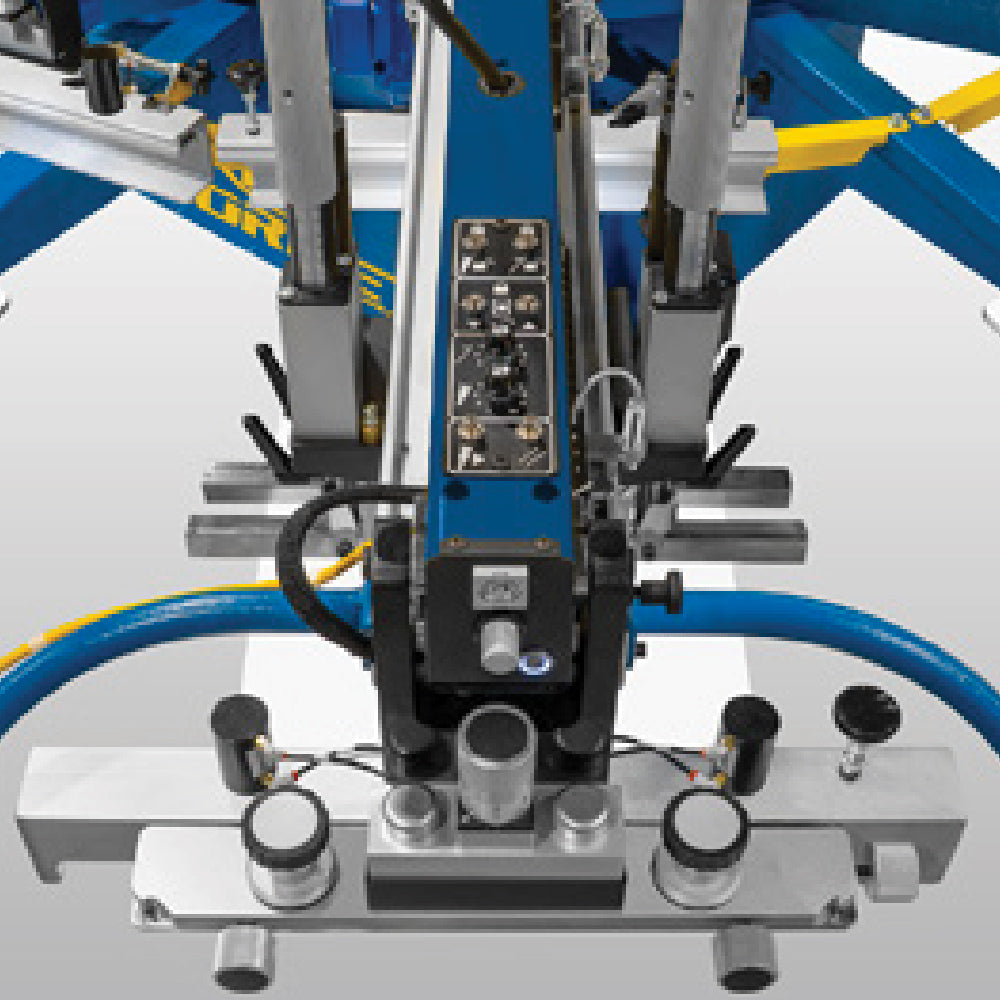

Each pallet arm features M&R’s classic toggle-style controls for quick, easy access during production. Standard features include front-flip screen holder locks, tool-free squeegee and floodbar adjustments, integrated airlocks, and rear micro-registration for precise, repeatable setup.
Easy to Adjust
-
Additional Information
| Specification | HORNET 1618 10/8 | HORNET 1618 12/10 | HORNET 1618 14/12 | HORNET 2020 10/8 | HORNET 2020 12/10 | HORNET 2020 14/12 |
|---|---|---|---|---|---|---|
| Air @ 6.9 bar (100 PSI) | 227 L/min (8 cfm) | 283 L/min (10 cfm) | 340 L/min (12 cfm) | 227 L/min (8 cfm) | 283 L/min (10 cfm) | 340 L/min (12 cfm) |
| Electrical Requirements | 208/230 V, 1 ph, 38 A, 50/60 Hz, 3.9 kVA 208/230 V, 3 ph, 22 A, 50/60 Hz, 3.9 kVA 380/415 V, 3 ph, 11 A, 50 Hz, 3.9 kVA |
208/230 V, 1 ph, 43 A, 50/60 Hz, 4.6 kVA 208/230 V, 3 ph, 28 A, 50/60 Hz, 4.6 kVA 380/415 V, 3 ph, 14 A, 50 Hz, 4.6 kVA |
208/230 V, 1 ph, 48 A, 50/60 Hz, 6 kVA 208/230 V, 3 ph, 34 A, 50/60 Hz, 6 kVA 380/415 V, 3 ph, 17 A, 50 Hz, 6 kVA |
208/230 V, 1 ph, 38 A, 50/60 Hz, 3.9 kVA 208/230 V, 3 ph, 22 A, 50/60 Hz, 3.9 kVA 380/415 V, 3 ph, 11 A, 50 Hz, 3.9 kVA |
208/230 V, 1 ph, 43 A, 50/60 Hz, 4.6 kVA 208/230 V, 3 ph, 28 A, 50/60 Hz, 4.6 kVA 380/415 V, 3 ph, 14 A, 50 Hz, 4.6 kVA |
208/230 V, 1 ph, 48 A, 50/60 Hz, 6 kVA 208/230 V, 3 ph, 34 A, 50/60 Hz, 6 kVA 380/415 V, 3 ph, 17 A, 50 Hz, 6 kVA |
| Diameter | 384 cm (12′ 7″) | 429 cm (14′ 1″) | 470 cm (15′ 5″) | 432 cm (14′ 2″) | 478 cm (15′ 8″) | 521 cm (17′ 1″) |
| Maximum Frame Size | 58 × 84 × 5 cm (23″ × 33″ × 2″) | 58 × 84 × 5 cm (23″ × 33″ × 2″) | 58 × 84 × 5 cm (23″ × 33″ × 2″) | 66 × 91 × 5 cm (26″ × 36″ × 2″) | 66 × 91 × 5 cm (26″ × 36″ × 2″) | 66 × 91 × 5 cm (26″ × 36″ × 2″) |
| Maximum Image Area | 41 × 46 cm (16″ × 18″) | 41 × 46 cm (16″ × 18″) | 41 × 46 cm (16″ × 18″) | 51 × 51 cm (20″ × 20″) | 51 × 51 cm (20″ × 20″) | 51 × 51 cm (20″ × 20″) |
| Shipping Weight | 1928 kg (4250 lb) | 2495 kg (5500 lb) | 2903 kg (6400 lb) | 2260 kg (4980 lb) | 2590 kg (5710 lb) | 3007 kg (6630 lb) |
| Standard Pallet Size | 41 × 56 cm (16″ × 22″) | 41 × 56 cm (16″ × 22″) | 41 × 56 cm (16″ × 22″) | 41 × 56 cm (16″ × 22″) | 56 × 63 cm (22″ × 25″) | 56 × 63 cm (22″ × 25″) |
| Stations / Colors | 10 / 8 | 12 / 10 | 14 / 12 | 10 / 8 | 12 / 10 | 14 / 12 |
If incoming voltage differs from the voltage(s) listed, calculate amperage accordingly. Other electrical configurations are available—contact manufacturer for details.
