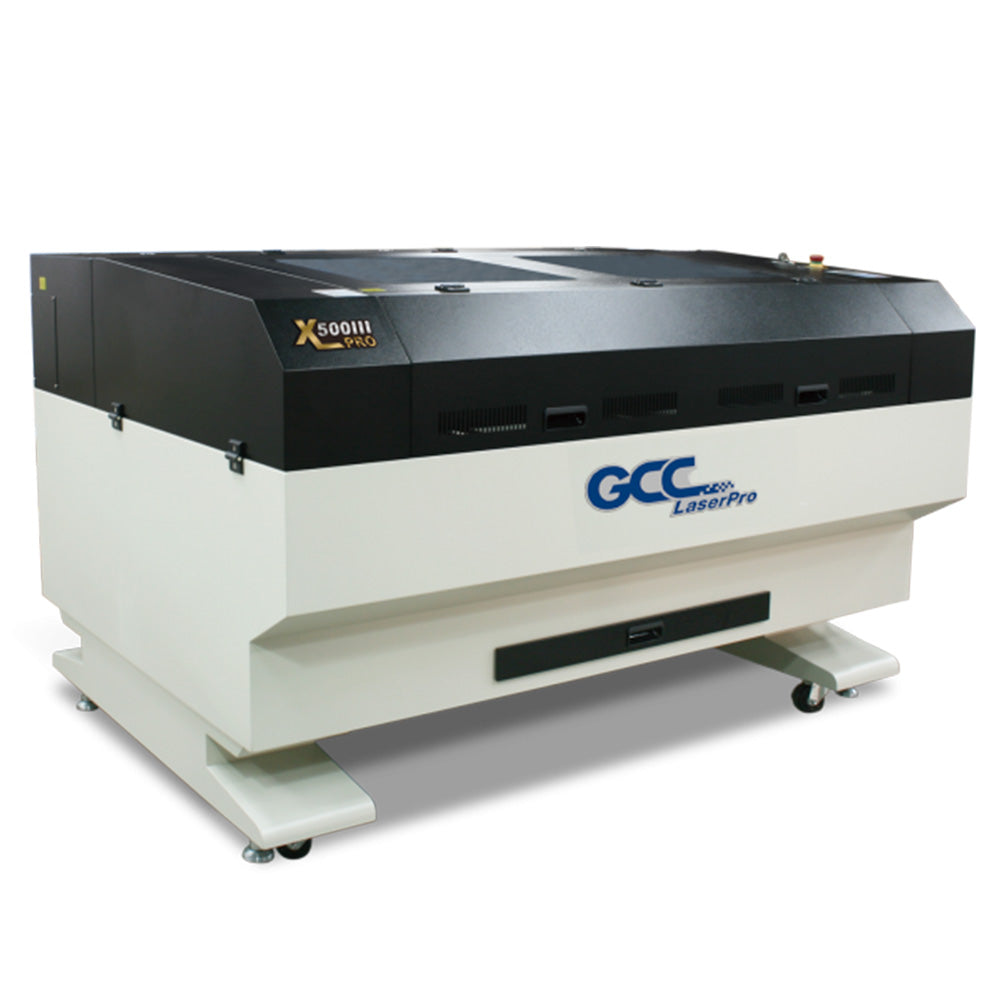

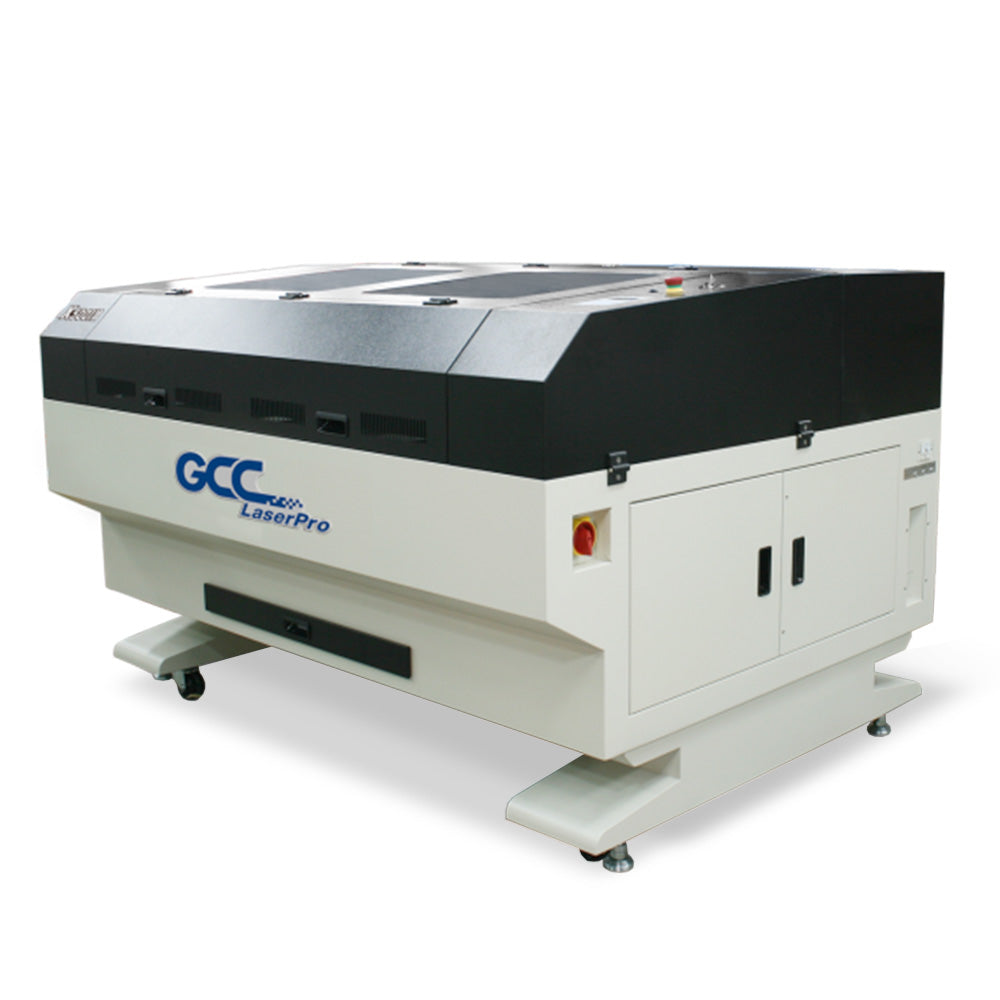

X500III Pro 100-150W CO2 Laser Cutter

Name: X500III Pro 100-150W CO2 Laser Cutter
Brand: RB Digital Dev
SKU: X500III
Availability: InStock

X500III Pro 100-150W CO2 Laser Cutter - Default Title

SKU: X500III

Financing Options

Embrace the laser cutting technology from the GCC LaserPro X500III Pro designed and engineered for professional use. GCC releases X500III Pro version for advanced cutting quality and uniformity of line width by adding one beam expander and red beam combiner. GCC LaserPro X500III Pro offers high product performance.

Product variants

Product Resources

View full details

Features

Beam Expander

X500III Pro co2 laser cutter includes one 1.6X beam expander for uniformity of line width that presents outstanding quality and reliability.
New Design of X500III Pro Carriage

Advanced X500III Pro carriage design to increase the stability of carriage movement, elevate the performance of X500III Pro.
Knife-shaped Cutting Table

Unique cutting table with tipped bars that can be easily adjusted without tools to create different levels of working depths. The cutting table of X500III Pro reduces laser reflections and delivers clear cutting edge.
Intuitive Control Panel Interface

A control panel with coherent hot-key design and graphic icon displays that allows you to directly change the laser parameter setting, set jobs to repeat unlimited times, queue job, delete jobs, and more.
Closed-loop DC Servo Technology

DC servo motor applies a higher quality motor and controller to send command to the motors and utilizes an encoder to feedback location values to the controller, so the motors always verify their positions. This continual link allows the motors to run faster with higher acceleration and speed that the laser engraver can cut or engrave and also you can move the laser carriage to any position and resume working precisely. Adopting the servo control technology, GCC LaserPro high speed closed-loop DC servo motor technology guarantees precise and fast carriage movement with exceptionally accurate outputs.
Key Switch & Emergency Stop

Key switch safeguards the machine from unauthorized use. Prominent emergency button located on the top of the machine allows operators to stop the laser and the motion carriage immediately to provide a safe operating environment
Drag-N-Play

The “Drag-N-Play” feature greatly reduces complex set up procedures and allows users to directly drag the lens carriage to the starting point of a job.
Versatile Engraving and Cutting Capability

X500III Pro delivers high cutting quality with LaserPro’s unique Laser firing control technology. X500III Pro can cut through 20 mm acrylic in a single pass. Better than that, the grayscale technology allows X500III Pro to process 256-level grayscale image with vivid engraving quality.
Innovative Windows Driver

LaserPro Windows based driver provides powerful functions, such as SmartCENTER™, Air Assist by Pen, Dithering Patterns and more to reduce set up time and make easy adjustments to achieve marvelous output quality.
SmartCENTER™ (Patented)

The super user-friendly SmartCENTER™ function helps end users to easily and automatically locate the center point of objects of any shape vastly eliminating tedious setup time.
SmartLIGHT

Built-in LED light module illuminates the working space and makes every engraving detail easy to see.
Pass-through Front to Rear Doors (Optional)

A design with doors on both ends to accommodate extremely long working pieces, front door without the need for a screwdriver.

Application Ideas

Wood
Twill Cutting
Metal
Leather
Glass
MDF Boards
Cardboard Packages
Foam Inserts

Additional Information

Rotary Attachment - X500III

Allows the laser system to perform at another level! By using the rotary attachment, engraving on cylindrical or round objects is now possible. This option uses a fourth axis to rotate your object 360° to allow engraving on cups, wine glasses or even a baseball with two types of conical fixture available. The minimum inner/maximum outer diameter and length of the working object is 7 mm / 120 mm and 1020 mm respectively. Its maximum weight should not exceed 4kgs.
Air Compressor

A specially designed Air Compressor, by using an oil-less diaphragm, helps you eliminate the harmful and damaging side effects of moisture on the laser optics. In addition, it provides the optimal air pressure when laser engraving and cutting to blow away vaporized particles and prevent overheating, keeping lenses and mirrors clean for longer laser life.
SmartGUARD™ Fire Alarm (Patented)

Laser engraving and cutting operation using the SmartGUARD Fire Alarm assures optimum safety. When there is a malfunction, the alarm system will be active and shut-down the operation system immediately.
Honeycomb Table

A clean and better cutting quality is achieved by the honeycomb table when cutting materials into small pieces. It lifts the workpiece off the work table from hitting by laser reflection. The dust and vapor created during processing are then taken away effectively through the honeycomb cell by a down vacuum funnel exhaust. Rather than handling rigid materials, the honeycomb table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting results.
SmartPRINT™

SmartPRINT™ software features powerful functions, an intuitive interface, and built-in GCC LaserPro laser parameter setting for both Mac and Windows users. SmartPRINT™ provides clipart libraries, compatibility for various file formats, and advanced graphic functions such as Auto Trace Image Contour, Convert to Rhinestone, Generate Puzzle, and many more. Also, the additional text justification and sizing options can convert stroke to the path.
Grid Cutting Table

The grid cutting table is an ideal pal for laser cutting. It lifts the work piece off the work table from hitting by laser reflection while supports it with reinforced grid design. The dust and vapor created during laser cutting are then taken away effectively through the grid by down vacuum funnel exhaust. Rather than handling rigid materials, grid cutting table also helps to fix flexible materials with the aid of down vacuum to keep constant focus distance and consistent cutting result.
External Interface Control Board

The External Control Interface Board is an optional item that allows users to set up GCC LaserPro laser engraving and cutting systems for communication with external devices such as odor reduction units, robot arms, and others via a 5V or 12V signal to form an automatic production line. Another useful practice applies in certain working environments when users are required to set up an extra remote interlock control or when laser machines are allowed to be switched off if a security device is triggered.
AAS Contour Cutting Device - X500III (Patented)

Developed by GCC LaserPro, AAS is an exceptionally user-friendly operation which offers accurate and faultless contour cutting by automatically tracking the position of graphics.
Note: Working area and engraving speed will be reduced when AAS module is installed.
Air Extraction System - T500, X500III

To accomplish strong vacuum ventilation requirement for industrial application, GCC LaserPro X500III and T500 are recommended to supply a more powerful air extraction unit with 8” opening to reach the optimum cutting quality. The air extraction system powered by a maintenance-free turbine takes out the fume and dust generated during laser processing efficiently and effectively, leaves a quality cutting edge and clean operation environment.
Supporting Pin Kit

This design can firmly hold up the working object preventing it from falling off; moreover, it can effectively reduce the possibility of the reflected laser hitting the working object.

X500III Pro
Laser Source		100W	130W	150W
Laser Source		Sealed CO2 Laser
Laser Cooling		Water Cooled
Working Area	without Honeycomb or Aluminum Grid Cutting Table	1300 x 916 mm (51 x 36 in.)
	with Aluminum Grid Cutting Table	1265 x 895mm (49.8 x 35.2 in.)
	with Honeycomb Table	1240 x 820mm (48.8 x 32.2 in.)
Max. Part Size (L x W x H)
	without Cutting Table	1355 x 910 x 55 mm (53.3 x 35.8 x 2.2 in.)
	Doors Open	1355 x ∞ x 55 mm ( 53.3 x ∞ x 2.2 in. )
	with Honeycomb or Aluminum Grid Cutting Table	1355 x 910 x 30mm (53.3 x 35.8 x 1.2in.)
Dimensions (W x D x H)		1900 x 1400 x 1200 mm (74.8 x 55.1 x 47.2 in.)
Driver		Closed-loop DC Servo Control
Maximum Motor Speed		40 IPS
Speed Control		Adjustable from 0.1~100% (Up to 16 color-linked speed settings per job)
Power Control		Adjustable from 0~100% (Up to 16 color-linked power settings per job)
Engraving Capability		256-level gray scale image processing capability
Distance Accuracy		0.254 mm or 0.1% of move, whichever is greater
Z-Axis Movement		Manual
Resolution (DPI)		Available 125, 250, 300, 500, 600, 1000
Interface		10 Base-T Ethernet USB Type-A 2.0 – For USB storage (Max. 32GB capacity, FAT file system) USB Type-B 2.0 – For connecting with the computer
Focus Lens		Standard 2",Optional 3"	Standard 3",Optional 2"
Display Panel		4-line LCD panel showing current file name, total working time, laser power, engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus.
Safety		Class I Laser Product Compliant with EN60825 Class II Laser Product Compliant with CDRH 2006/42/EC Machinery Directive Compliance Class 4 Laser Product Compliant with CDRH with the optional pass-through door module
Cutting Table		Knife-shaped cutting bars with down vacuum and scrap collecting funnel
Facility Requirements
Operation Voltage		200-240VAC, 50/60Hz auto switching, Max.10A
Fume Extraction System		External exhaust system with minimum flow rate 2000m³/h (CFM 1177 ft³/min) is required, 3.8kPA negative pressure (Pure-Air PA-2000FS-IQ @ 8" exhaust port)
Speed is not equal to throughput. See dealer or visit www.GCCworld.com for more details. Specifications are subject to change without prior notice. The flow rate is determined by a default fume extraction system; the flow rate may vary due to a di fferent fume extraction system.
