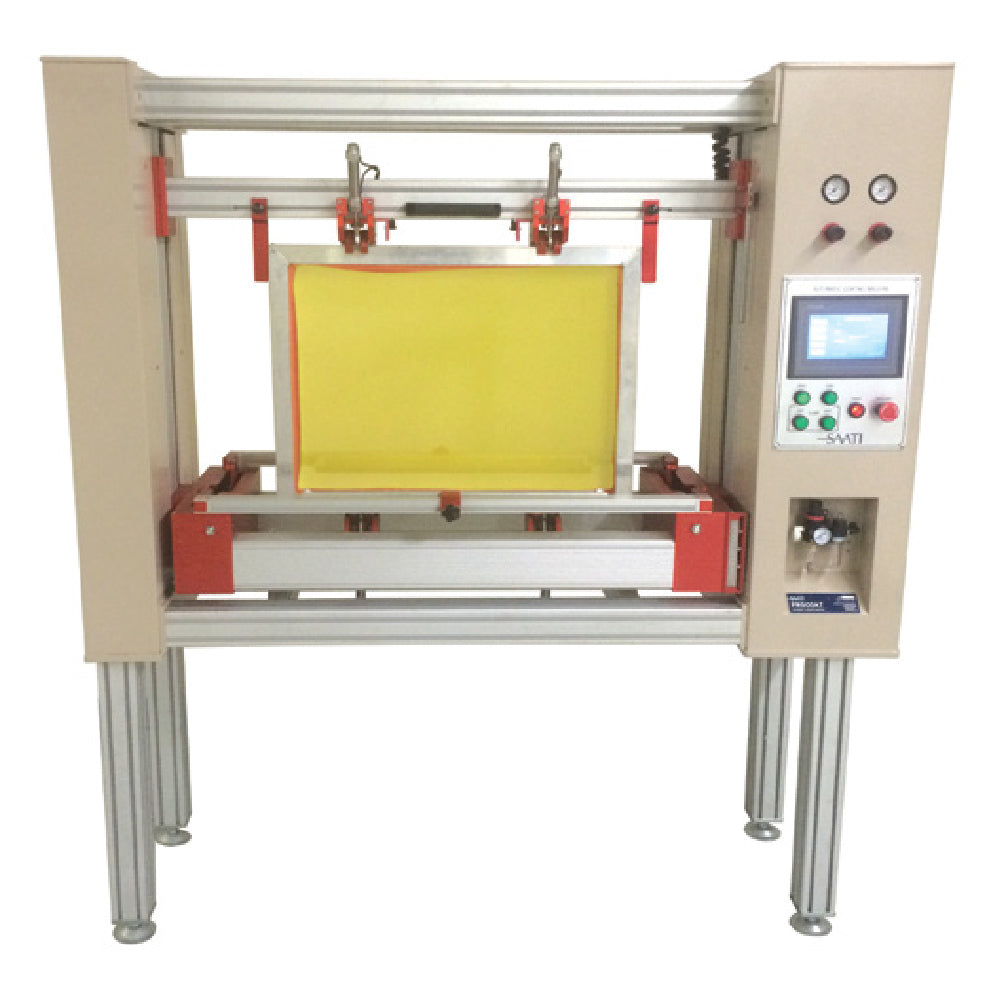

Saati Pro Coat SF-T (Automated Coater)

Saati Pro Coat SF-T (Automated Coater) - 16" x 20" (2) up to 23" x 31" (1)

SKU:

Financing Options

The Saati Pro Coat SF-T brings professional, automatic coating performance to small and medium-sized screen printing shops. Designed for consistency, reliability, and ease of use, this “plug-and-play” unit delivers perfectly coated screens every time — solving many of the everyday quality issues that appear on press.

Capable of coating one large screen or two smaller screens simultaneously, the SF-T features fully programmable controls, a smooth belt-driven carriage, and a touchscreen interface for simple operation. Its compact, enclosed design and quick-connect setup make it a smart, affordable upgrade for any shop looking to improve quality and repeatability.



Screen Size

Product Resources

View full details

Often Purchased With

Saati ProCoat Series

Take your productivity to the next level with SAATI's ProCoat series of Automated Programmable coaters.

Additional Information

  • Automatic coating — coats one large screen (up to 23" × 31") or two smaller screens (up to 16" × 20")

  • Easy to use — one button closes / opens all 4 clamps for the screen

  • Fully programmable — set dwell, coats, and speed per side for consistent results

  • Touchscreen control — intuitive operation with single-program capability

  • Smooth, maintenance-free belt drive for reliable performance

  • Manual upper carriage adjustment fits multiple frame profiles

  • Safety-enclosed carriage for operator protection

  • Quick-attach coating troughs simplify setup and cleanup

  • Included stand provides comfortable working height

  • Plug-and-play setup — connect air and power; no assembly required

Specification Detail
Maximum Screen Size 1 screen up to 23" × 31" (58 × 78 cm)
or 2 screens up to 16" × 20" (40.5 × 51 cm)
Voltage 110V, 20A
Air Requirements 90 PSI, less than 1 cfm
Operation Fully programmable touchscreen with dwell, coats, and speed control
Drive System Belt-driven carriage for smooth, maintenance-free operation
Frame Adjustment Manual upper carriage adjustment for different frame profiles
Machine Dimensions Without legs: 67" × 47" × 20" (170 × 119 × 51 cm)
With legs: 67" × 73" × 20" (170 × 185.5 × 51 cm)
Weight Approx. 620 lbs (281 kg)
Warranty 6 months
Installation Customer-installable — connect airline and power; no assembly required
