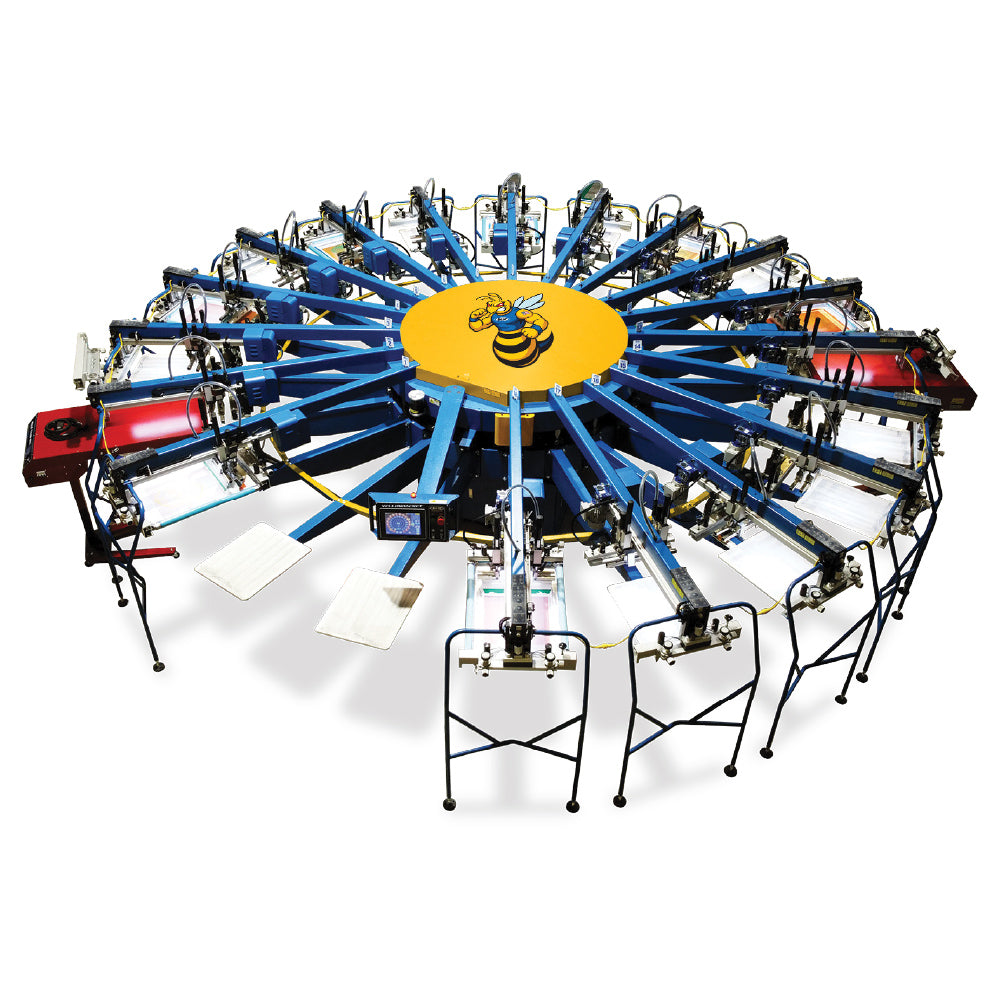

YELLOWJACKET Automatic Screen Printing Press

YELLOWJACKET Automatic Screen Printing Press - Default Title

SKU:

Financing Options

The M&R STINGER™ Series delivers exceptional efficiency without compromising quality at an affordable price. Proudly manufactured in Roselle, Illinois, it offers a cost-effective solution for businesses that demand reliability and performance. Designed with precision engineering, it combines durability, productivity, and value—making it the smart choice for operations that want premium results.



The YELLOWJACKET™ is equipped with a 10-inch high-resolution touchscreen designed for fast learning and intuitive operation. A clean, modern icon system guides operators through setup and daily use with minimal training required. Integrated, multi-language tutorial screens provide step-by-step guidance directly on the display, eliminating the need to reference external manuals. This built-in intelligence streamlines onboarding and helps operators get up to speed quickly and confidently.



Controls on each pallet arm feature M&R’s classic toggle-based inputs for easy access. All YELLOWJACKET presses come standard with front-flip screen holder manual/pneumatic locks, tool-free squeegee and floodbar angle adjustments, screen, squeegee and floodbar airlocks, and rear micro registration for more accurate screen printing adjustments. Additional flash cure communication ports (six on each machine) enhance hybrid printing capabilities.

Product Resources

View full details

  • CAROUSEL / INDEXER SYSTEM

    High-speed, servo-driven, ultra-quiet indexing

  • CERTIFICATION

    CE & UL safety compliant

  • CONTROL CENTRE

    Advanced touchscreen control with smart automation

  • LASER LOCATOR SYSTEM

    Fast, accurate garment positioning

  • OFF-CONTACT

    Quick, independent head adjustment

  • PALLET SYSTEM

    Tool-free, fast pallet changes

  • PRINTHEADS

    Smooth, maintenance-free precision drive system

  • REGISTRATION

    Fast, precise micro-registration alignment

  • REVOLVER PRINT PROGRAM

    Automated multi-head print sequencing

  • SCREEN CLAMPS & HOLDERS

    Fast, secure, versatile screen holding

  • SQUEEGEE / FLOODBAR

    Independent, precise, tool-free ink control

  • STROKE LENGTH ADJUSTMENT

    Adjustable strokes for faster production

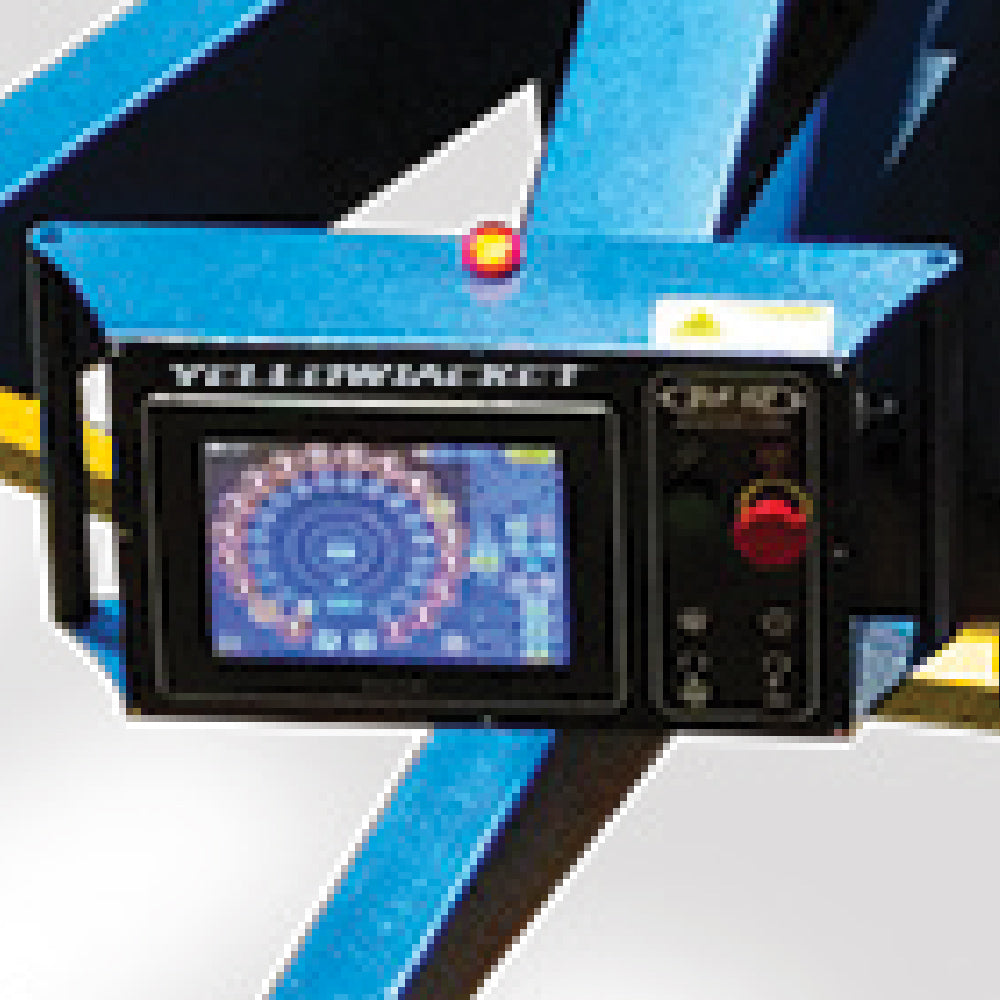

  • Large 10in touchscreen




  • Large 10" Touchscreen


    The YELLOWJACKET features a 10-inch high-resolution touchscreen with an intuitive, icon-based interface for fast learning and easy operation. Built-in, multi-language tutorials provide on-screen guidance, reducing training time and speeding up onboarding.

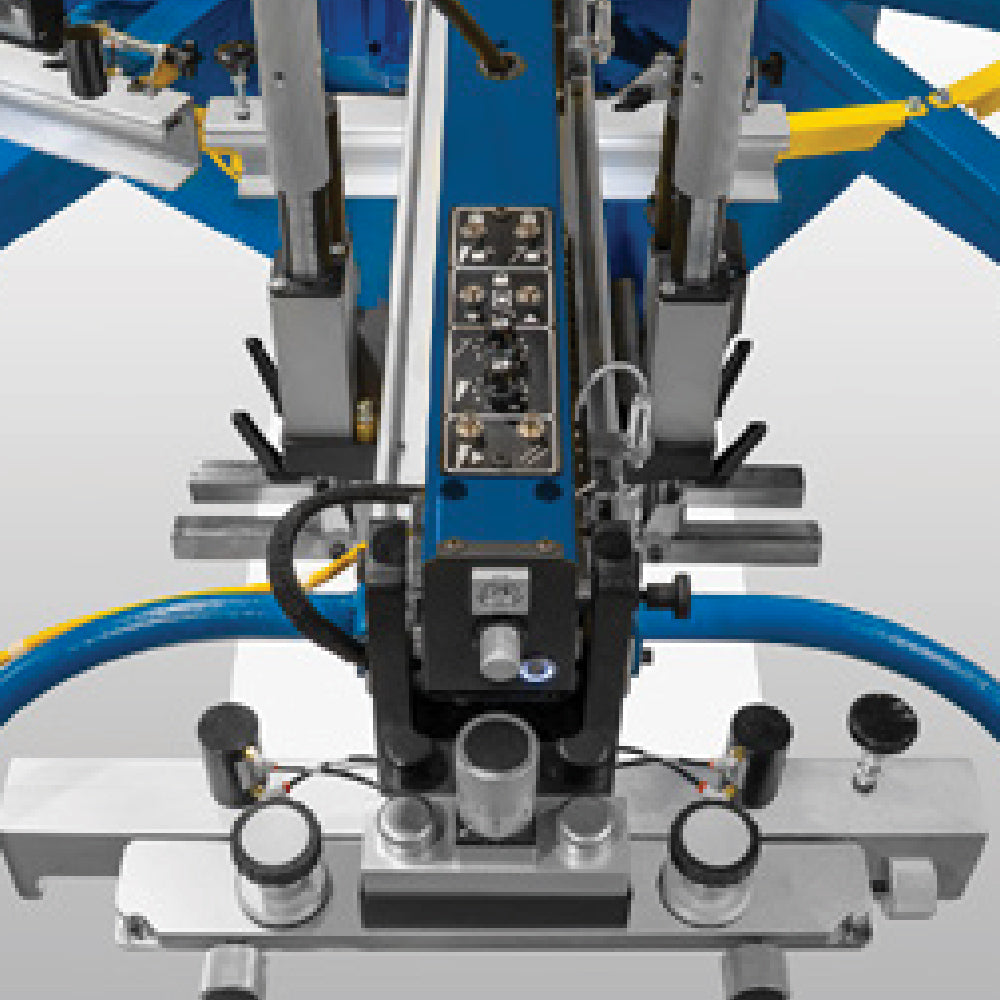

  • Easy to Adjust


    Each pallet arm features M&R’s classic toggle-style controls for quick, easy access during production. Standard features include front-flip screen holder locks, tool-free squeegee and floodbar adjustments, integrated airlocks, rear micro-registration, and added flash cure communication ports for hybrid printing workflows.

  • Easy to Adjust

Additional Information

Specification YELLOWJACKET 5050 16/14 YELLOWJACKET 5050 18/16 YELLOWJACKET 5050 20/18 YELLOWJACKET 5070 16/14 YELLOWJACKET 5070 18/16 YELLOWJACKET 5070 20/18
Air @ 6.9 bar (100 PSI) 396 L/min (14 cfm) 453 L/min (16 cfm) 510 L/min (18 cfm) 396 L/min (14 cfm) 453 L/min (16 cfm) 510 L/min (18 cfm)
Electrical Requirements 208/230 V, 1 ph, 81 A, 50/60 Hz, 18.7 kVA
208/230 V, 3 ph, 46 A, 50/60 Hz, 18.7 kVA
380/415 V, 3 ph, 26 A, 50 Hz, 18.7 kVA		 208/230 V, 1 ph, 102 A, 50/60 Hz, 22.3 kVA
208/230 V, 3 ph, 56 A, 50/60 Hz, 22.3 kVA
380/415 V, 3 ph, 31 A, 50 Hz, 22.3 kVA		 208/230 V, 3 ph, 64 A, 50/60 Hz, 26 kVA
380/415 V, 3 ph, 36 A, 50 Hz, 26 kVA		 208/230 V, 1 ph, 81 A, 50/60 Hz, 18.7 kVA
208/230 V, 3 ph, 46 A, 50/60 Hz, 18.7 kVA
380/415 V, 3 ph, 26 A, 50 Hz, 18.7 kVA		 208/230 V, 1 ph, 102 A, 50/60 Hz, 22.3 kVA
208/230 V, 3 ph, 56 A, 50/60 Hz, 22.3 kVA
380/415 V, 3 ph, 31 A, 50 Hz, 22.3 kVA		 208/230 V, 3 ph, 64 A, 50/60 Hz, 26 kVA
380/415 V, 3 ph, 36 A, 50 Hz, 26 kVA
Diameter 564 cm (18′ 6″) 610 cm (20′ 0″) 655 cm (21′ 6″) 604 cm (19′ 9″) 690 cm (22′ 7″) 690 cm (22′ 7″)
Maximum Frame Size 66 × 91 × 5 cm (26″ × 36″ × 2″) 66 × 91 × 5 cm (26″ × 36″ × 2″) 66 × 91 × 5 cm (26″ × 36″ × 2″) 66 × 109 × 5 cm (26″ × 43″ × 2″) 66 × 109 × 5 cm (26″ × 43″ × 2″) 66 × 109 × 5 cm (26″ × 43″ × 2″)
Maximum Frame Size (Alternating Printheads) 132 × 91 cm (52″ × 36″) 132 × 91 cm (52″ × 36″) 132 × 91 cm (52″ × 36″) 132 × 109 cm (52″ × 43″) 132 × 109 cm (52″ × 43″) 132 × 109 cm (52″ × 43″)
Maximum Image Area 51 × 51 cm (20″ × 20″) 51 × 51 cm (20″ × 20″) 51 × 51 cm (20″ × 20″) 51 × 70 cm (20″ × 28″) 51 × 70 cm (20″ × 28″) 51 × 70 cm (20″ × 28″)
Maximum Image Area (Alternating Printheads) 94 × 51 cm (37″ × 20″) 94 × 51 cm (37″ × 20″) 94 × 51 cm (37″ × 20″) 117 × 71 cm (46″ × 28″) 117 × 71 cm (46″ × 28″) 117 × 71 cm (46″ × 28″)
Shipping Weight 3950 kg (8700 lb) 4360 kg (9600 lb) 4810 kg (10600 lb) 3624 kg (7990 lb) 4037 kg (8900 lb) 4476 kg (9867 lb)
Standard Pallet Size 41 × 56 cm (16″ × 22″) 41 × 56 cm (16″ × 22″) 41 × 56 cm (16″ × 22″) 56 × 76 cm (22″ × 30″) 56 × 76 cm (22″ × 30″) 56 × 76 cm (22″ × 30″)
Stations / Colors 16 / 14 18 / 16 20 / 18 16 / 14 18 / 16 20 / 18

If incoming voltage differs from the voltage(s) listed, calculate amperage accordingly.
