Duplo

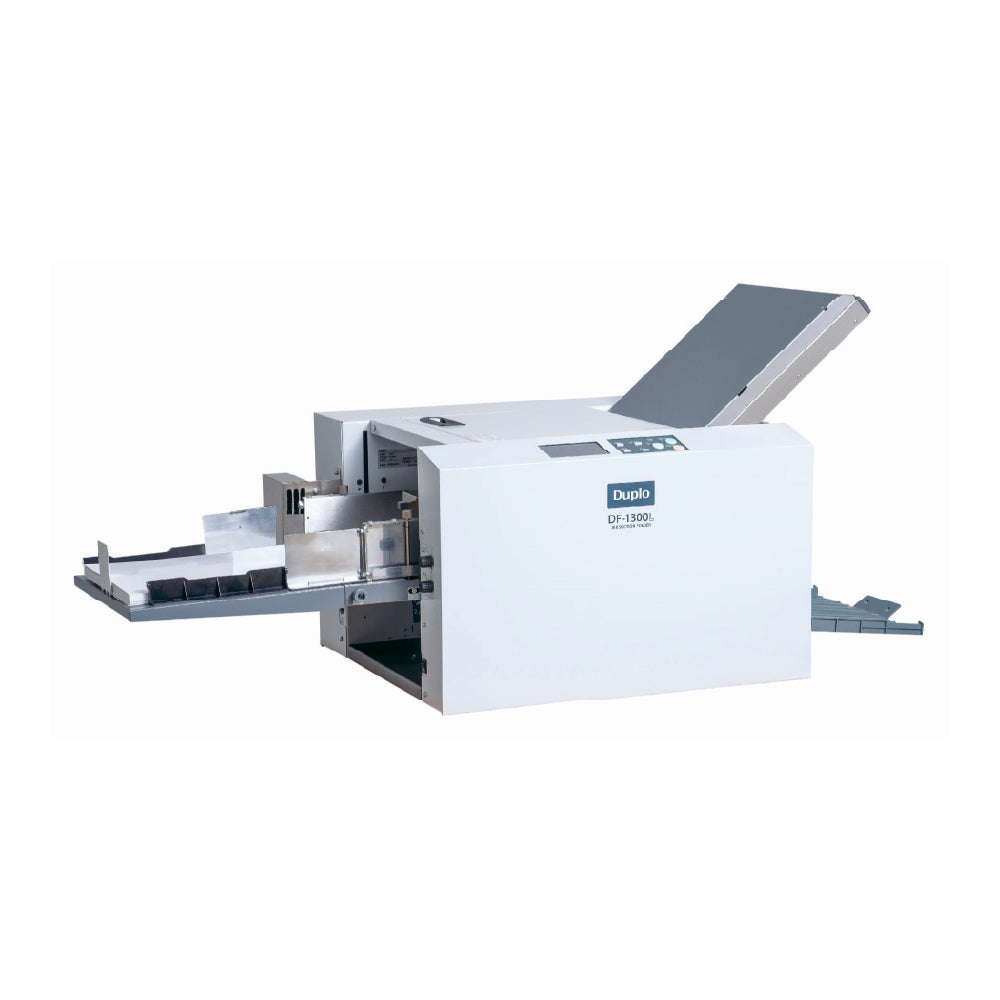

Duplo DF-1300L Air Folder

Duplo DF-1300L Air Folder - Default Title

SKU:

Financing Options

Quickly fold office documents printed off your digital press with the compact DF-1300L by its side. The DF-1300L features high speed folding up to 310 sheets per minute and can process sheets up to 25.5″ in length. The air suction feed system with side air makes it possible to feed coated sheets as well as bond, NCR, and offset. It can also perform cross folds by reprocessing single folded sheets and folding them in a second direction.

Features

  • Pre-programmed with 6 fold styles
  • Automatic paper size detection and fold plate setting
  • Optical and ultrasonic sensors for double feed detection
  • 30-job memory for most common jobs

Product Resources

View full details

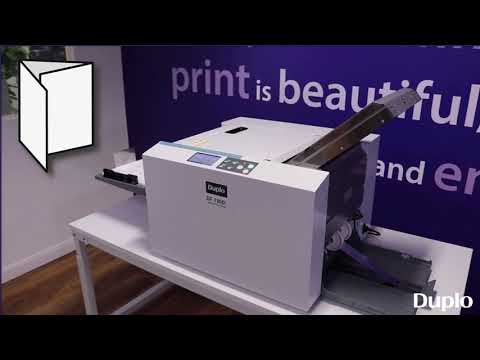

See It In Action



  • High Speed Air Suction Feeding

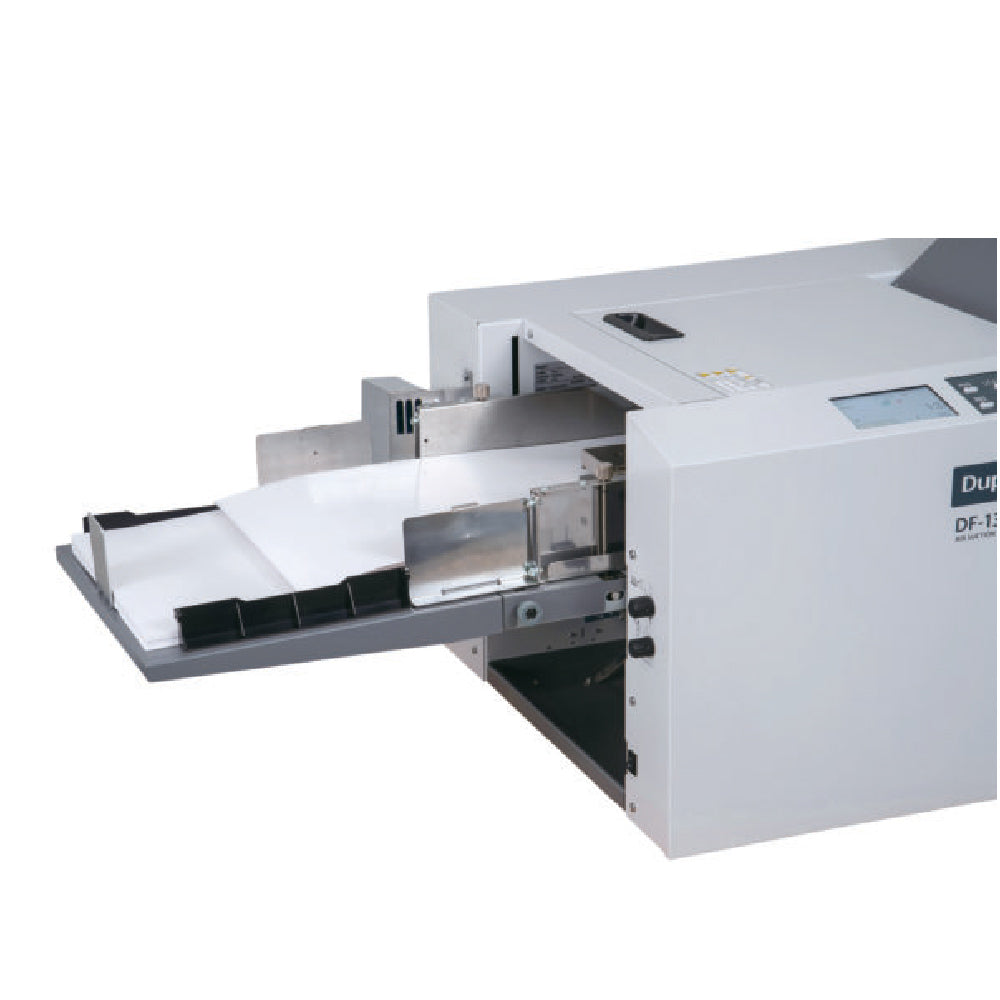

    HIGH-SPEED AIR SUCTION FEEDING

    Advanced air separation system ensures reliable feeding of coated and digitally printed stocks

  • Automated Fold Plate Setup
    AUTOMATED FOLD PLATE SETUP

    Program fold types quickly through the touchscreen interface for fast job changeovers

  • Handles Digital & Offset Prints
    HANDLES DIGITAL & OFFSET PRINTS

    Designed to process static-heavy, toner-based, and coated papers with ease

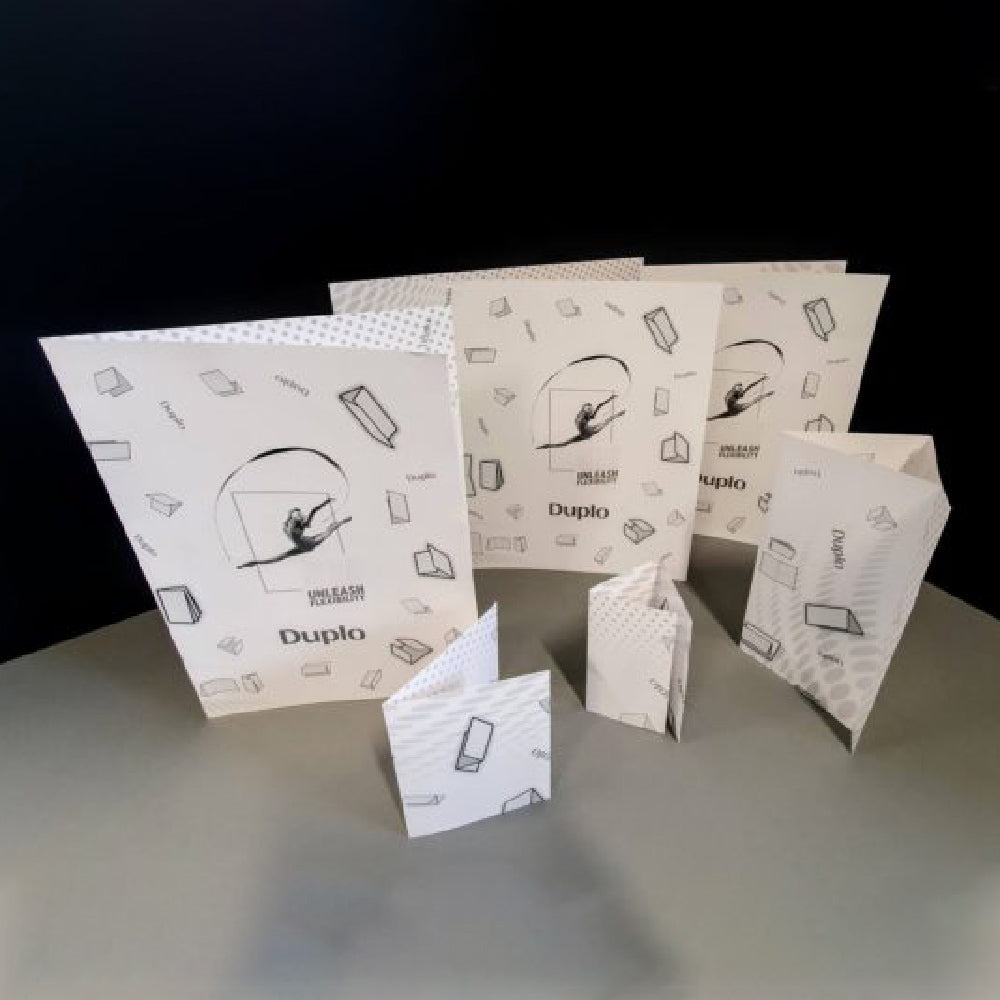

  • Multiple Standard Fold Types
    MULTIPLE STANDARD FOLD TYPES

    Supports common folds including letter, zig-zag, double parallel, gate, and more

  • COMPACT PRODUCTION DESIGN
    COMPACT PRODUCTION DESIGN

    Professional folding performance in a space-efficient footprint

  • Precision Folding




  • Precision Folding for Digital Workflows


    The DF-1300L is engineered specifically for modern digital print environments, handling static-heavy and coated stocks with dependable air suction feeding. It delivers accurate, professional folds while minimizing marking and misfeeds.



  • Automated Setup

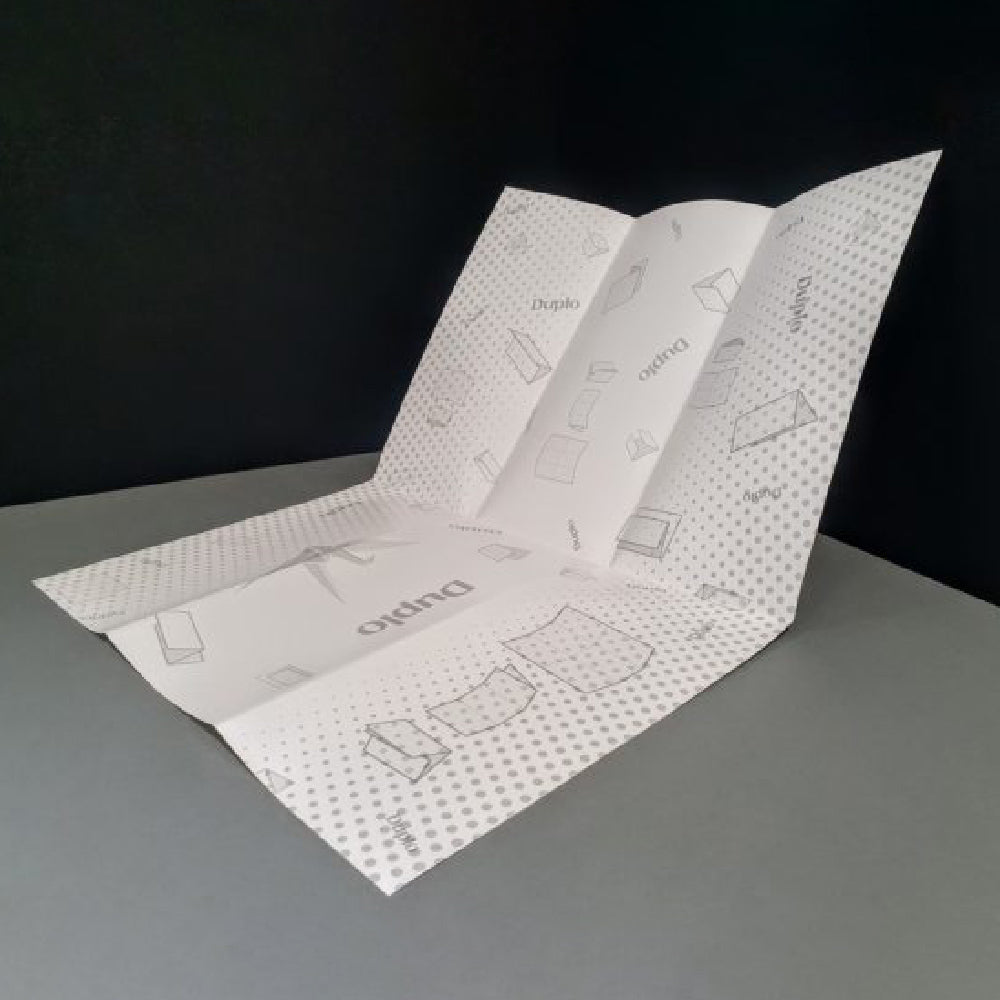

    Start jobs quickly using the color touchscreen, with six pre-programmed fold styles and automatic detection of standard paper sizes. Custom folds and larger formats can be digitally set and saved to memory, and the system can even perform cross folds by reprocessing sheets for a second fold direction.

  • Automated Setup

Features



  • Wide Paper Size Range:
    Accommodates various sheet sizes for brochures, mailers, and inserts.
  • Adjustable Air Volume Control:
    Fine-tune air settings for optimal sheet separation.
  • Belt Drive System:
    Smooth, consistent transport for accurate folding.
  • Batch Counting Function:
    Preset counts for organized production runs.
  • User-Friendly LCD Interface:
    Simplifies operation and job programming.
  • Heavy Stock Capability:
    Processes a broad range of paper weights for versatile applications.

Additional Information

Paper Size 4.73” x 7.2” – 12.2” x 25.5” (120 mm x 183 mm – 310 mm x 648 mm)
Paper Weight Uncoated: 52.3 – 157 gsm (14 – 40 lb)
Coated: 73.3 – 157 gsm (19 – 40 lb)
Up to 230 gsm with limitations (testing required)
Speed Up to 310 sheets per minute (Letter size, 81.4 gsm bond, single fold)
Feed Capacity 1.96” (625 sheets / 64 gsm)
Paper Quality Bond, NCR, offset, cover stock, and coated paper
Folding Modes Single, double, half accordion, letter, accordion, gate, custom
Counter Ascending, descending, and batch mode
Standard Features Air suction feed system, optical & ultrasonic double feed detection sensors, sound absorbers, low noise operation, wireless plate, five speed levels, test button, power save mode, automatic paper size detection, automatic fold plate setting, side air control
Feed Mechanism Air suction belt
Sound Level 77 dB
Custom Fold Memory 30 jobs
Power Requirements 100V – 240V, 50/60Hz, 1.9–0.8A, 190W
Dimensions (W x D x H) 53.3” x 23.2” x 24.2” (1354 mm x 589 mm x 615 mm)
Net Weight 157 lb / 71 kg
