Duplo DPC-400 Digital Die Cutter

Duplo DPC-400 Digital Die Cutter - Default Title

SKU:

Financing Options

Ideal for one-off samples and short run jobs, the Duplo DPC-400 Digital Die Cutter produces packaging, custom-shaped cards and labels on demand. It comes standard with four cutting tools and a scoring wheel to process paper, laminates, adhesive, and synthetic stocks. Set them to cut intricate shapes, kiss cut stickers, and score fold lines on packaging and folded pieces. Roll-fed option allows you to process roll-to-sheet applications.

Features

  • Easy job file preparation and set up
  • Automated registration and changeovers
  • Integrates with Fiery JobFlow to apply registration marks and QR code
  • Triple tooling head and DPC Controller software

Product Resources

View full details

See It In Action



  • No Dies Needed
    NO PHYSICAL DIES REQUIRED

    Fully digital cutting, creasing, and perforating without tooling costs

  • CCD registration
    INTEGRATED CCD REGISTRATION

    Camera-based mark detection ensures precise sheet alignment.

  • Compact Footprint
    COMPACT FOOTPRINT

    Designed for professional output in a space-efficient format.

  • Automatic Registration

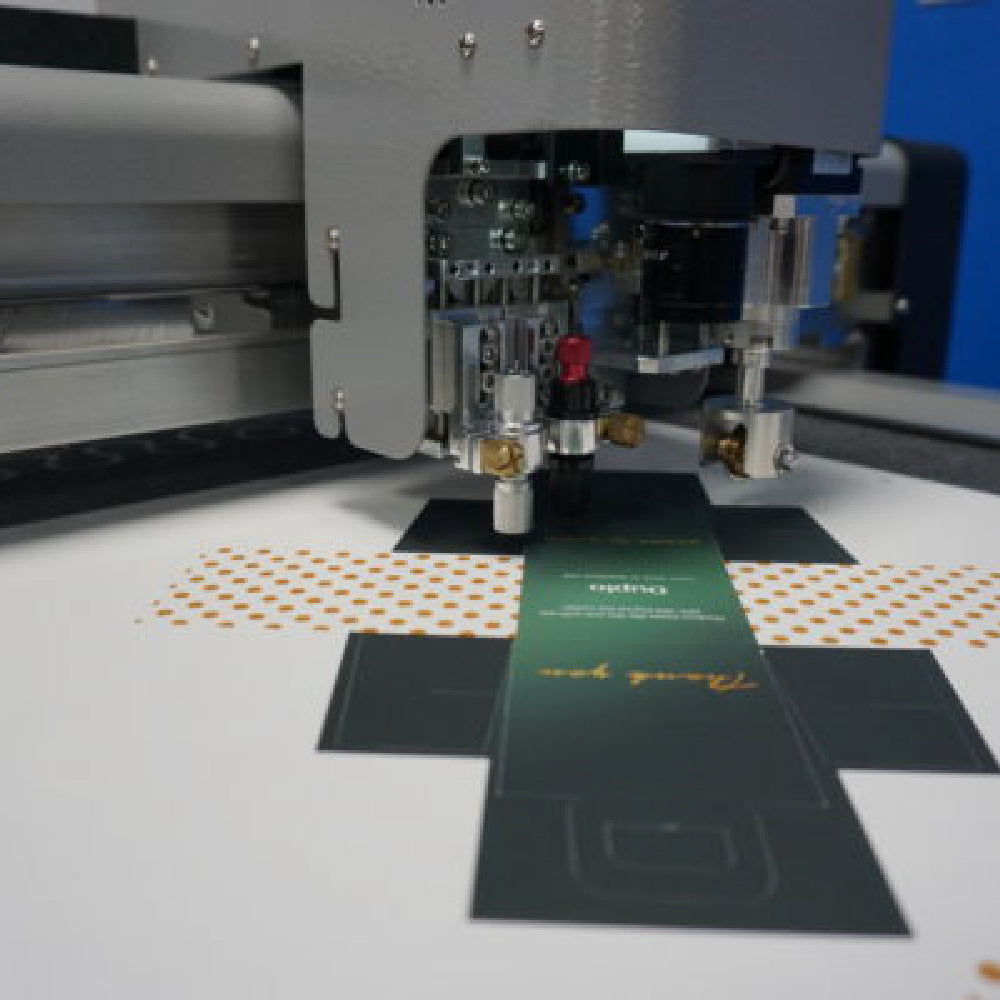

    MULTI-TOOL CUTTING HEAD

    Supports various tools for cutting, scoring, and perforating applications

  • Prototyping
    GREAT FOR PROTOTYPING

    Ideal for prototypes, custom cartons, and specialty printed pieces

  • Vinyl Sticker Sheets




  • Vinyl Sticker Sheets


    Produce 9.5″ × 12″ vinyl sticker sheets printed from an adhesive roll and finish them seamlessly on the DPC-400 Digital Die Cutter. With the optional roll-fed unit, you can convert roll media to sheet automatically, creating a streamlined workflow for high-value sticker and label applications.



  • Die Cut, Folded Business Cards


    Create uniquely shaped, professional folded business cards in a single streamlined workflow. The DPC-400 digitally die cuts custom shapes and adds precise scoring for clean, accurate folds — eliminating traditional dies while delivering standout, premium results.

  • Die Cut Business Cards

Features



  • User Friendly Touchscreen
    Operate and manage jobs easily through an intuitive control interface.
  • Supports Heavy Stocks
    Handles thicker substrates for packaging and specialty applications
  • Automated Sheet Feeding
    Reliable feeding system designed for steady, unattended production.
  • Quick Job Setup
    Quickly load and adjust files for minimal downtime between projects.
  • Multiple File Format Compatibility
    Accepts common design file types for streamlined workflow integration.
  • Versatile Substrate Handling
    Processes paper, PET plastics, corrugated, and foam board for expanded application opportunities.

Additional Information

AUTO FEED
Feeder Capacity Up to 3.9” (10 cm)
Sheet Separation Air powered, variable jet stream separation
Feeding System Vacuum feed with clamps mounted on gantry
Sheet Size Min. 8.5" x 11" / Max. 14" x 20"
Paper Weight 200 – 400 gsm
MANUAL FEED
Sheet Size Min. 8.5" x 11" / Max. 15" x 23"
Paper Weight 75 – 600 gsm
CUTTING CONTROL
Tools Cut through knife, kiss cut knife, scoring wheel
Cutting System Digital signal platform
Blade Tungsten steel
Productivity 30 – 45 seconds per 14" x 20" sheet (depending on design complexity)
Max. Cutting Speed Up to 1,000 mm/second
Cutting Thickness Up to 1.5 mm
Cutting Tolerance ±0.1 mm
SOFTWARE AND CONNECTION
Software (Platform) DPC Controller (Requires PC with Windows 10 or 7, i3 Processor or higher, 4GB RAM or more, 1 Ethernet port, 1 available PCIe 1X or 16X)
File Format PLT, DXF, XML, HPG
Network LAN
GENERAL
Standard Features CCD camera registration system, 5 tools (J201, J202, J206, J208 cutting knives and J380 scoring wheel), DPC Controller software (PC sold separately), air compressor
Power Requirements 220V 50/60Hz 20A, 4KW
Air Compressor Requirements 0.7 HP, 2.9 Gallon Tank, 101 PSI, 1.41 CFM, 110 VAC
Dimensions (L x W x H) Machine: 101.2” x 32.6” x 49.2” (2570.5 mm x 828 mm x 1249.7 mm)
Shipping: 86.6” x 39.8” x 56.3” (2199.6 mm x 1010.9 mm x 1430 mm)
Weight Net: 915 lb / 415 kg (Gross: 997 lb / 452 kg)
