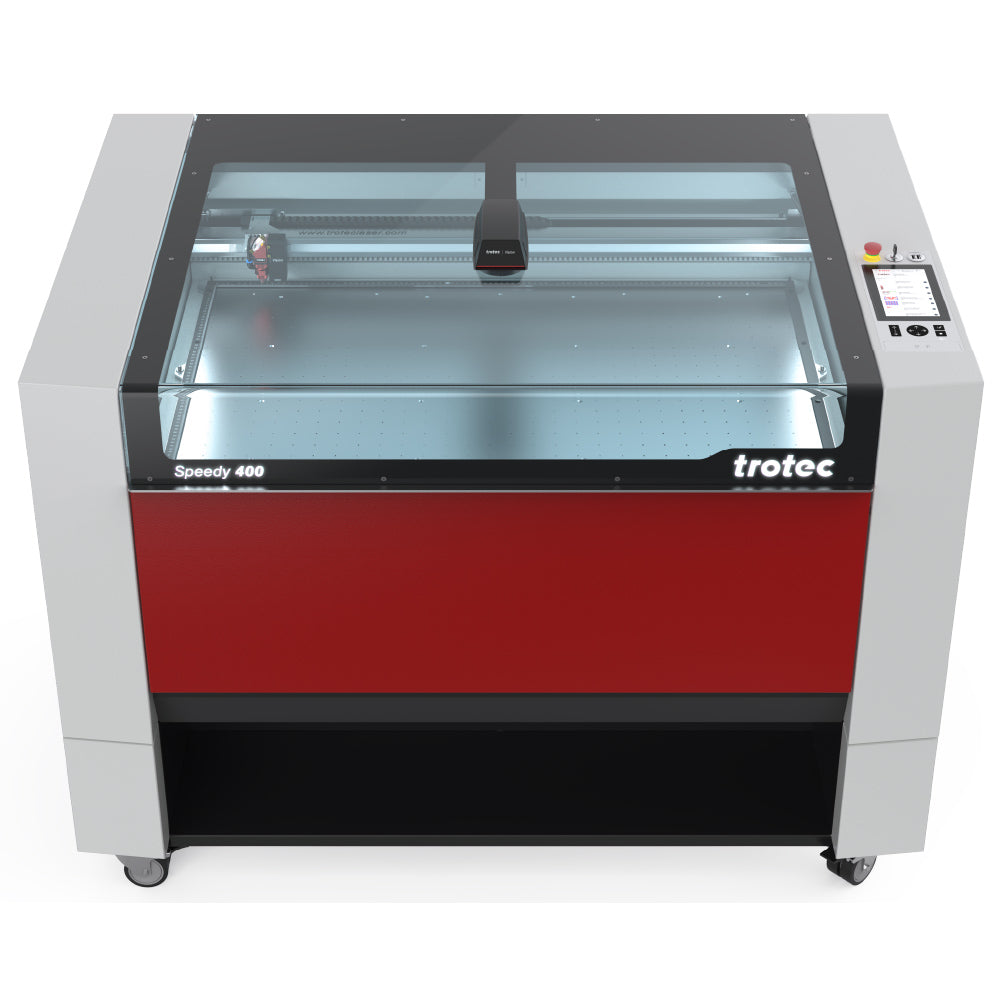

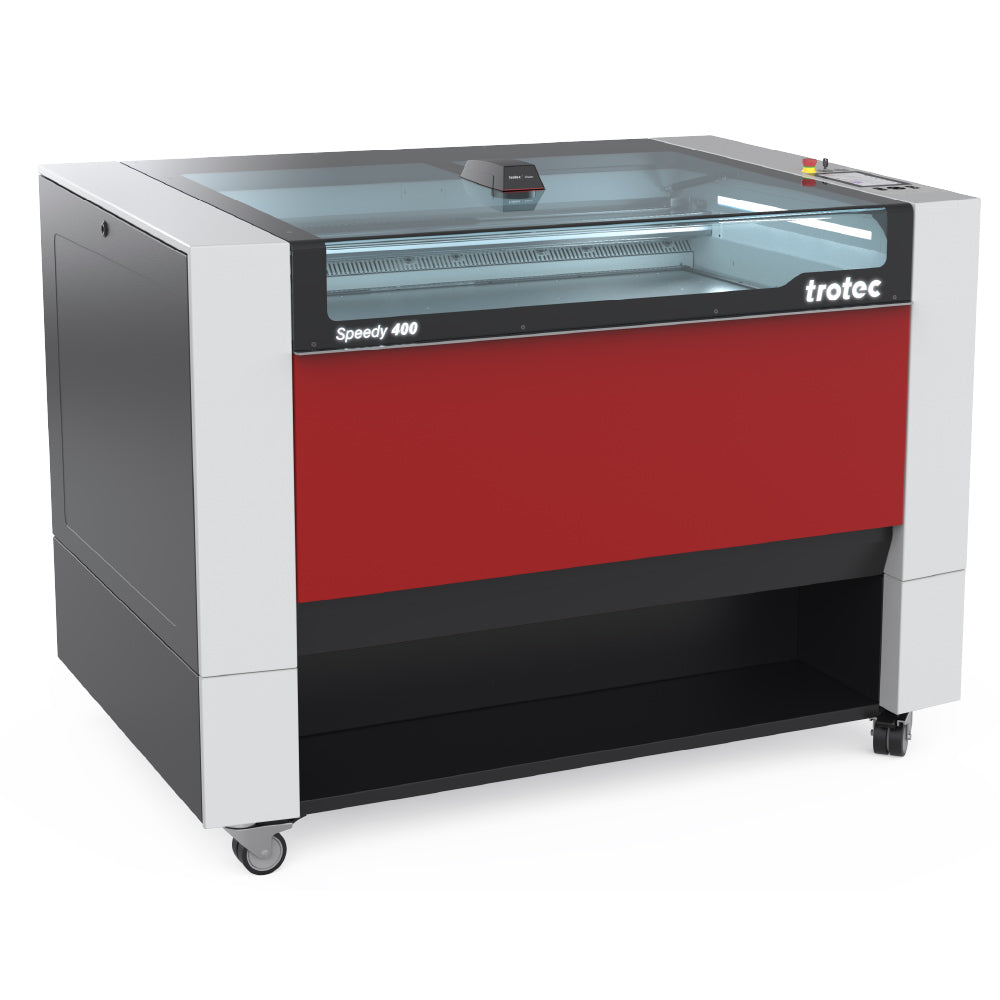

Trotec Speedy 400 Laser Cutting and Engraving Machine

Trotec Speedy 400 Laser Cutting and Engraving Machine - 40 × 24 in / 80W CO₂ + 30W Fiber

SKU:

Financing Options

The Trotec Speedy 400 is the flagship of the Speedy series, delivering maximum productivity, flexibility, and precision. Designed for professional environments, it combines the industry’s largest work area in its class with unmatched speed and acceleration, making it the ultimate solution for high-volume engraving and cutting.



Equipped with advanced technologies like OptiMotion™ for precise high-speed cutting, SonarTechnology™ for automatic, pinpoint focusing, and HDLR Technology™ for enhanced engraving quality, the Speedy 400 ensures flawless results on every job. Its intuitive Run on Ruby® touch panel provides a streamlined, user-friendly workflow—allowing operators to move from design to production faster than ever.



With its expansive work area, intelligent features, and cutting-edge laser technology, the Speedy 400 sets the standard for professional laser engraving and cutting, delivering the productivity and quality demanded by businesses worldwide.

Bed Size
Laser Power

Product Resources

View full details

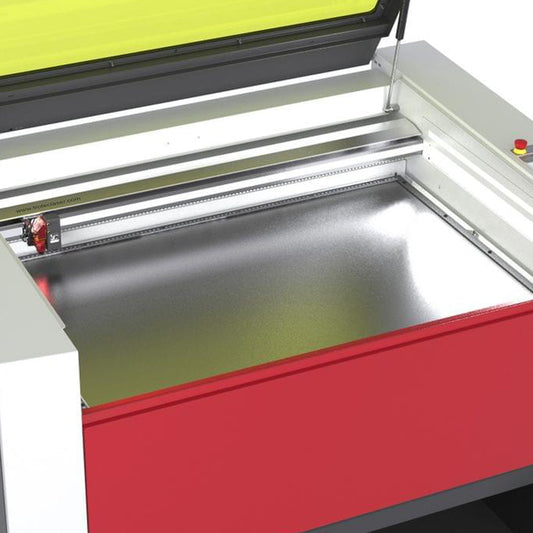

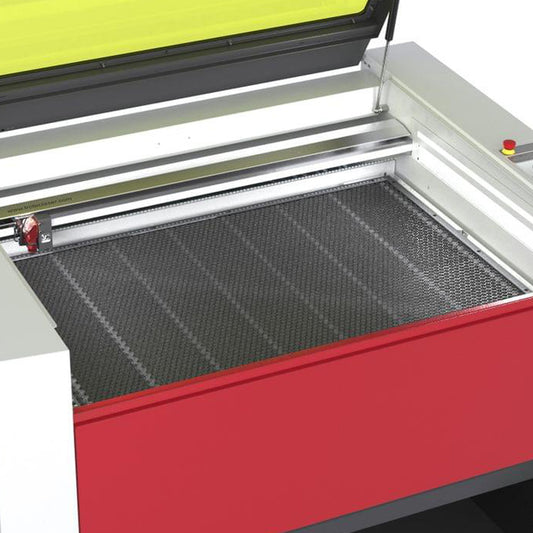

Often Purchased With

Maximum Productivity and Flexibility



  • Speedy 400 Work Area

  • Technical data

    Working area (W x D) 1016 x 610 mm
    Laser power CO 2 80W, 120W
    Laser power fiber 30W, 50W
    Max. engraving speed 4,3 m/s
    Operating mode Optimized modes including Raster, Vector, and Combined





Specification Speedy 400 Speedy 360 Speedy 300 Speedy 100 Speedy 50 SP500
Working area (W x D) 1016 × 610 mm (40 × 24 in) 813 × 508 mm (32 × 20 in) 726 × 432 mm (29 × 17 in) 610 × 305 mm (24 × 12 in) 457 × 305 mm (18 × 12 in) 1245 × 710 mm (49 × 28 in)

  • Rotary Attachment
    ROTARY ENGRAVING

    Rotary attachment for engraving on cylindrical objects

  • Pass-Through
    PASS-THROUGH

    Effortlessly engrave or cut long materials

  • Lens protection
    AIR ASSIST

    Integrated pump protects the lens from dust

  • Temperature Control
    TEMPERATURE SENSOR

    Temperature sensor with warning alert for safe operation

  • lenses
    DIFFERENT FOCUS LENSES

    Choose from a variety of focus lenses

  • CE Certified
    CE CERTIFICATE

    Certified for safe operation



  • 8x Faster Cutting




  • 8x Faster Cutting


    The name of the Speedy series says it all. Fast cutting and engraving is what the Speedy series was built for. Glide effortlessly along curves with OptiMotion™. It adjusts cutting speed automatically, ensuring precise contour accuracy and high productivity, ideal for cutting thin materials like foils and vector marking



  • For Many Materials


    Our patented Flexx Technology™ combines CO2 and fiber lasers, offering endless possibilities for material processing such as wood, glass, plastic and more. Our Speedy 100 cross diode laser is a cost-effective all-rounder for processing metals and many other materials.

  • For Many Materials

  • Durability meets quality




  • Durability Meets Quality


    Achieve uniform engraving and create even complex details with superior power stability and a fine laser spot. Our patented CeramiCore® laser source ensures impressive durability.

Application Ideas



  • Wood
    Wood

  • Twill
    Twill Cutting

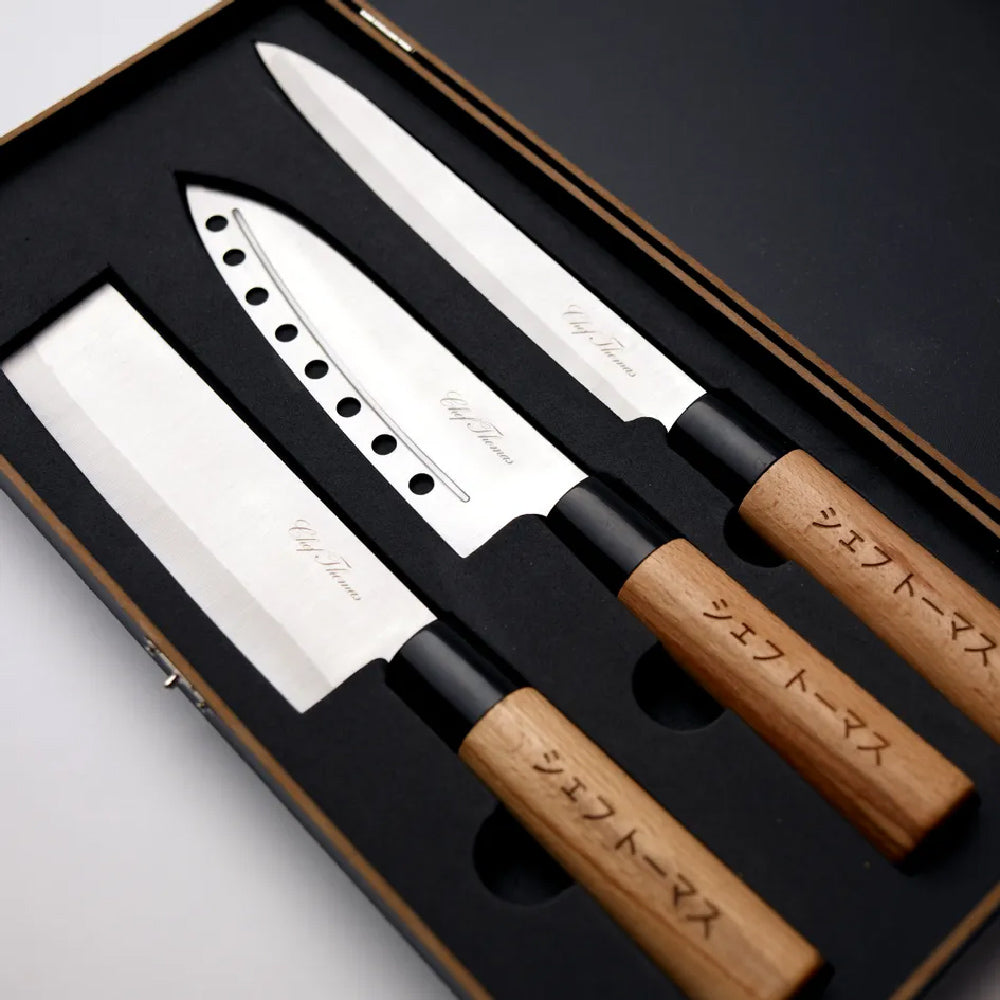

  • Metal
    Metal

  • Leather
    Leather

  • Glass
    Glass

  • MDF
    MDF Boards

  • Cardboard
    Cardboard Packages

  • Foam Inserts
    Foam Inserts

Additional Information

  • Expansive 40" × 24" (1016 × 610 mm) working area for large-scale applications

  • Industry-leading engraving speeds up to 4.32 m/s with 5g acceleration

  • OptiMotion™ technology for precise, high-speed cutting along curves and contours

  • SonarTechnology™ for automatic, pinpoint material focusing

  • HDLR Technology™ ensures enhanced engraving quality and fine detail reproduction

  • Run on Ruby® touch panel for intuitive, streamlined operation

  • InPack-Technology™ protects components from dust and debris for long-term reliability

  • Available in CO₂ or Flexx models (CO₂ + fiber laser) for maximum material versatility

Specification Speedy 400 Speedy 360 Speedy 300 Speedy 100 Speedy 50 SP500
Working area (W x D) 1016 × 610 mm (40 × 24 in) 813 × 508 mm (32 × 20 in) 726 × 432 mm (29 × 17 in) 610 × 305 mm (24 × 12 in) 457 × 305 mm (18 × 12 in) 1245 × 710 mm (49 × 28 in)
Max. height of workpiece 305 mm (12 in) 210 mm (8 in) 200 mm (7.8 in) 170 mm (6.7 in) 141 mm (5.5 in) 95 mm (3.7 in)
Loading area (W x D) 1096 × 698 mm (43 × 27 in) 890 × 600 mm (35 × 23 in) 795 × 440 mm (31 × 17 in) 690 × 305 mm (27 × 12 in) 510 × 380 mm (20 × 15 in) 1420 × 820 mm (56 × 32 in)
Overall dimensions (W x D x H) 1428 × 952 × 1073 mm (56 × 39 × 42 in) 1221 × 790–830 × 1066 mm (48 × 31–33 × 42 in) 1130 × 943 × 1054 mm (45 × 37 × 42 in) 1018 × 784 × 467 mm (40 × 31 × 18 in) 726 × 672 × 447 mm (29 × 18 × 27 in) 1920 × 1240 × 780–1140 mm (75 × 48 × 31–45 in)
Max. processing speed 4.32 m/s (170 ips) 3.55 m/s (140 ips) 3.55 m/s (140 ips) 2.8 m/s (110 ips) 1.5 m/s (60 ips) 2.54 m/s (100 ips)
Max. acceleration 50 m/s² (1969 ips²) 50 m/s² (1969 ips²) 50 m/s² (1969 ips²) 40 m/s² (1575 ips²) 35 m/s² (1378 ips²) 19 m/s² (748 ips²)
Technology motion system Brushless DC servo motors Brushless DC servo motors Brushless DC servo motors Brushless DC servo motors Brushless DC servo motors (X axis) Brushless DC servo motors
Laser power CO₂ 80 – 120 W 80 – 120 W 50 – 120 W 30 – 80 W 30 W 120 – 200 W
Laser power fiber 30 W 30 W 30 W n.a. n.a. n.a.
Laser power diode – – – 40 W – –
Laser class 2 2 2 2 2 2
Weight Approx. 335–350 kg (739–772 lbs) Approx. 270–285 kg (595–628 lbs) Approx. 215 kg (474 lbs) Approx. 95 kg (209 lbs) Approx. 53 kg (117 lbs) Approx. 500 kg (1102 lbs)
Power consumption 1~230V / 50/60Hz / 10.2 A
1~115V / 50/60Hz / 15.3 A		 1~230V / 50/60Hz / 9.6 A
1~115V / 50/60Hz / 14.2 A		 1~AC 110–230V 50/60Hz, max. 1.4 kW
1~AC 230V 50/60Hz, max. 1.8 kW (100–120 W)		 1~AC 110–230V 50/60Hz, 1.3 kW (60 W) 1~AC 110–240V 50/60Hz, 800 W 208–230 V, 50/60 Hz, 16 A
380–400 V 3 Ph., 50/60 Hz, 3×16 A
380–400 V 3 Ph., 50/60 Hz, 3×20 A

  • All-in-one laser software that combines design, editing, and job preparation in one intuitive interface—no switching between programs required

  • Web-based, platform-independent architecture that runs on Windows, Mac, Linux, and even tablets—perfect for networked workflows

  • Seamless multi-user and multi-machine support—prepare jobs remotely, distribute across devices, and monitor progress without needing a dedicated PC

  • Cloud-integrated material database with selectable material and effect presets (e.g., deep engraving, kiss cut) to ensure consistent results

  • Over 25 powerful automation enhancements in recent updates, including vector editing, AI-powered background removal, barcode generation, kerf correction, and smart camera positioning

  • Built-in user and group management tools simplify admin control—assign roles, permissions, and material access with ease

  • REST API (beta) support for workflow automation and integration with external systems, with secure access via personal tokens

  • Web app interface with full Ruby® functionality, allowing operation with a browser—no internet required for local use, and data remains stored securely on your system
