COPPERHEAD ICON Automatic Screen Printing Press

COPPERHEAD ICON Automatic Screen Printing Press - Default Title

SKU:

Financing Options

M&R Global’s Copperhead Icon automatic oval screen printing press combines high volume throughput, and durable construction with the latest features in oval press design. The Icon comes standard with electronic printheads, pneumatic frame locks, independent controls for print & flood speeds, and the full suite of automatic programming that work in either clockwise or counter-clockwise printing configurations.



Icon comes in a standard Print/Flash/Cool (PFC) configuration that is one of the most popular choices preferred by printers around the world. The Copperhead Icon is modifiable up to 62 station configurations to accommodate different printing and flashing needs and the indexing system includes an auto-tensioning feature on the chain to minimize wear.



Each Icon printhead utilizes the patented squeegee pressure equalizer system which maintains a uniform squeegee pressure across the entire print area to minimize printing pressure, maintain image detail, and avoid ink deposit variation. All standard Icon pallets are solid, lightweight aluminum with rubber coating to better manage heat during flashing.



The Copperhead Icon oval is assembled with the highest quality, globally sourced components and manufactured for consistency and durability. With all of the features of Copperhead series presses, and the flexible yet powerful oval press format, the Icon oval has the right combination for your high-volume printing needs.

Product Resources

View full details

Features And Highlights



  • Squeegee Pressure Equalizer System

    Revolutionary printhead technology with auto balancing system

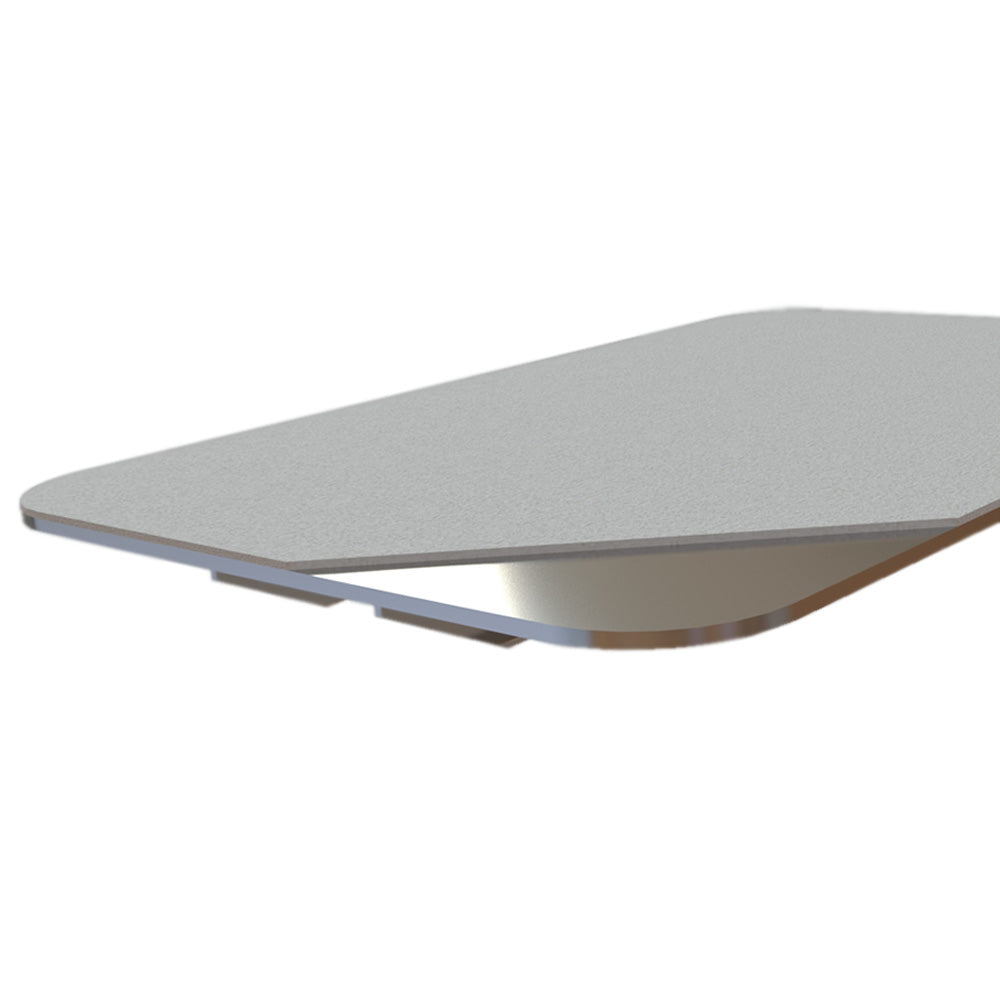

  • Solid Aluminum Pallet

    Insulated special rubber coating to minimize heat loss for better print quality

  • Design & Construction

    Heavy-duty welded steel structure

  • Quality Inside And Out

    With easy retrogression feature, multiple layers of ink deposited for high definition

  • Precision Matters

    Innovative indexing mechanism with an accuracy of +/-5 microns

  • Print Stack Mode

    Stacks layers of ink for HD & specialty printing



Additional Information

CAROUSEL/INDEXER SYSTEM
  • Clockwise or counterclockwise rotation

CONTROL CENTER

  • Icon-based digital touchsreeen control panel

  • Multiple (1-9) print stroke capability

  • Provides control of multi-print functionality

  • Real-time production data

  • Optional foot pedal allows operator to skip printing on a particular pallet

  • Maintenance reminder mode alerts operators when scheduled maintenance is due with pictures & respective procedures

  • Idle Mode to pre heat pallets

  • Independent print-start/print-finish setting automatically activates and stops printheads at the beginning and end of screen printing runs

  • Onboard self-diagnostics

  • Production speed monitor ensures more accurate job cost estimates

  • Built-in flash connector controlled by touch screen display

  • Print stack mode for HD and specialty printing available


DESIGN & CONSTRUCTION

  • Test print setting turns individual printheads on/off during test print cycle

  • Printheads and pallet arms provide the stability necessary for exceptional screen print quality

  • Built of heavy-duty steel and premium components


INDEX SYSTEM

  • Servo drives combine higher screen printing press speeds with exceptional smoothness, consistency and longevity


LASER LOCATOR SYSTEM
  • Assists operators in the precise positioning of garments and cut pieces

OFF-CONTACT
  • Tool-free four-corner off-contact settings allow fast and accurate screen leveling

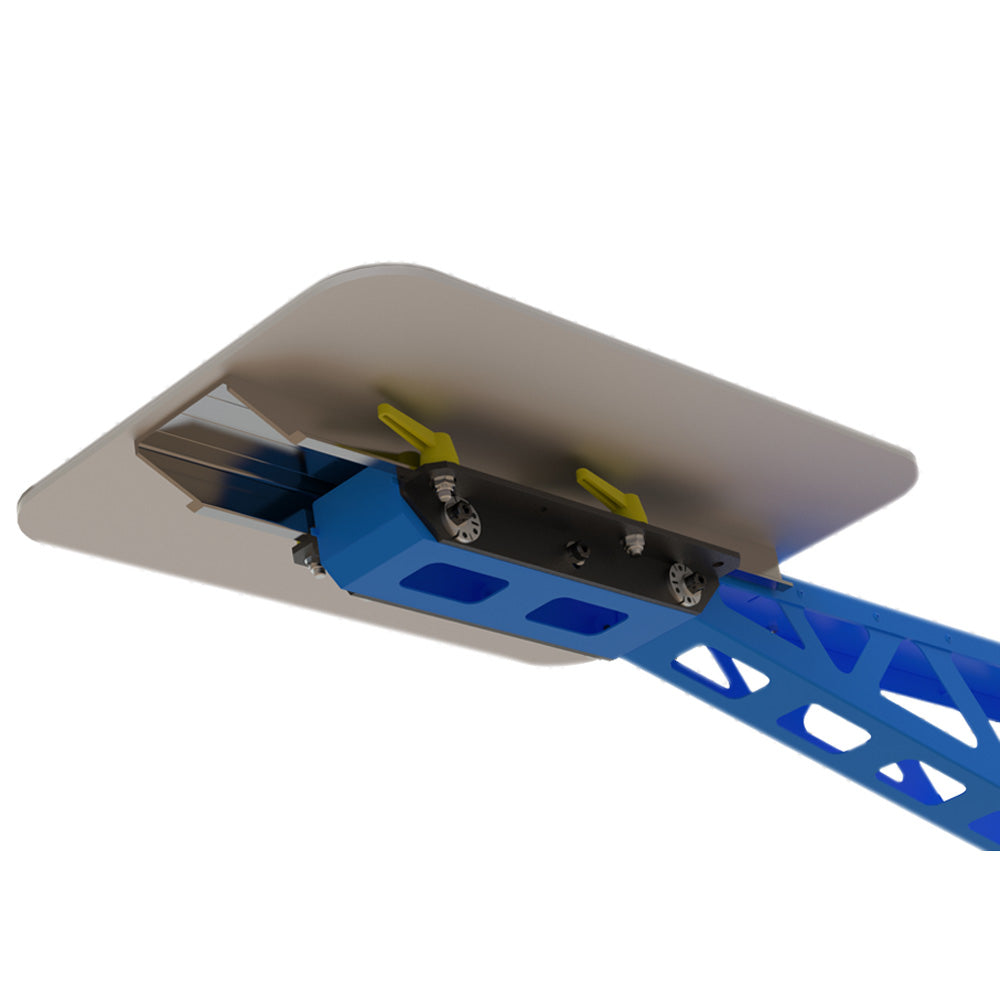

PALLET SYSTEM
  • Tool free quick release pallet locks

PALLETS
  • Lightweight aluminum, rubber-coated screen printing pallets

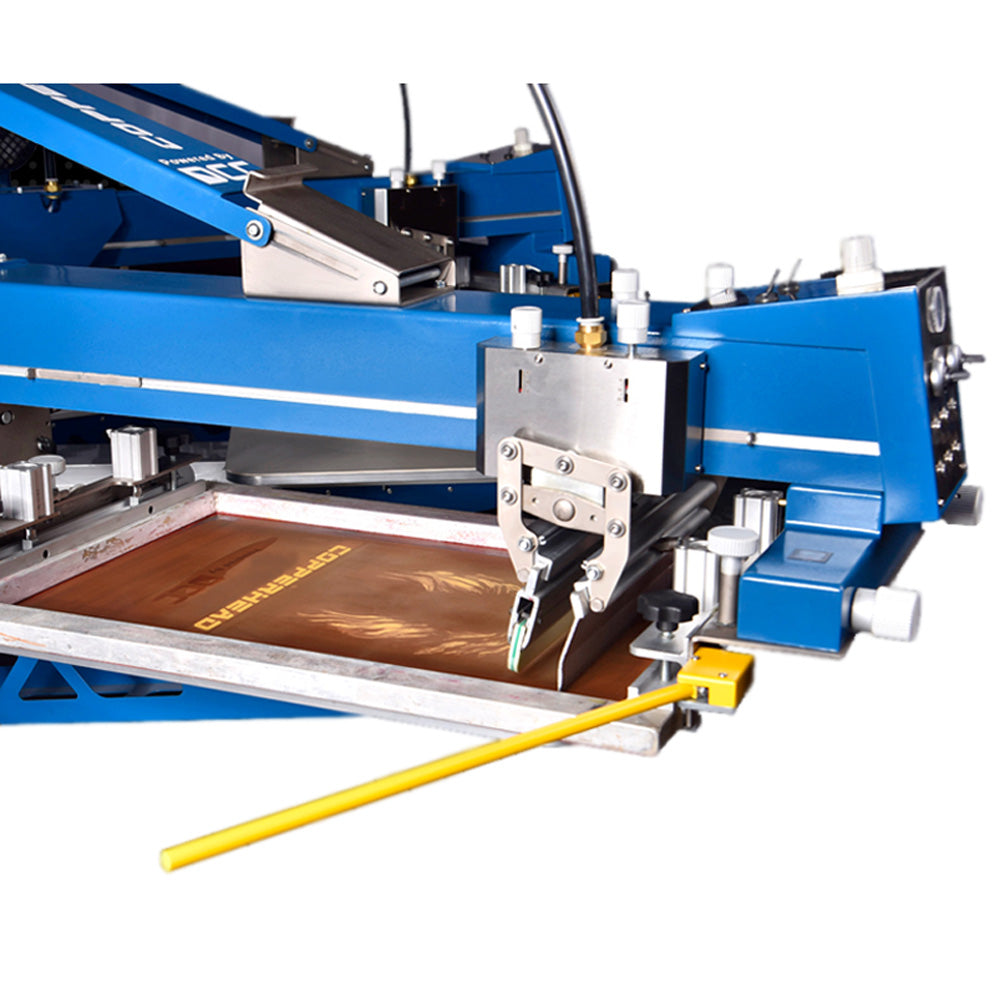

PRINTHEADS

  • Low maintenance electric drive motors provide exceptionally smooth print strokes

  • Independent print/flood speed controls on each printhead simplify press setup

  • Squeegee print stroke can be set front-to-back or back-to-front

  • Independent print controls on each printhead

  • Multi-print option with or without head lifting


REGISTRATION

  • Rear micro-registration

  • Enhanced front micro-registration adjustments with visual guides

  • 4 point registration system provide consistent accurate set ups


REVOLVER

  • Automatically operates individual printheads in programmed sequence and allows flashing without losing a screen printing position

  • Touchscreen display with simplified programming provides easy setup of the Revolver Sequencing Program


SCREEN CLAMPS & HOLDERS

  • Adjustable rear screen holders accommodate a wide variety of screen sizes

  • Pneumatic clamps hold frames tight and allow for rapid screen loading. Manual safety knobs save registration in the event of pneumatic air loss

  • Clamping system holds roller frames without special adapters



SQUEEGEE HOLDER

  • Squeegee holder can be quickly installed with a locking pin

  • Helps prevent thinner water-based and discharge inks from flowing into the image area


SQUEEGEE/FLOODBAR

  • Angle and calibrated pressure adjustments are independently set

  • Independent squeegee & floodbar speed adjustments

  • Visual reference marks every 5 degrees simplify squeegee/floodbar angle adjustments

  • Front or rear print carriage stop position allows operator to leave screens clear or flooded (great for water-based inks)

  • Squeegee pressure regulator on each printhead offers exceptional control of print pressure


STROKE LENGTH ADJUSTMENT

  • Tool-free stroke length adjustment maximizes screen printing speed


WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Access to M&R’s Training Center
  • Two-year limited warranty
SPECIFICATIONS ICON 5671 20/6 ICON 5671 26/8 ICON 5671 32/10 ICON 5671 38/12 ICON 5671 44/14 ICON 5671 50/16 ICON 5671 56/18 ICON 5671 62/20
Air @ 7 Bar (102 psi) 1100 l/min (39 cfm) 1430 l/min (51 cfm) 1760 l/min (62 cfm) 2090 l/min (74 cfm) 2420 l/min (86 cfm) 2750 l/min (97 cfm) 3080 l/min (109 cfm) 3410 l/min (120 cfm)
Electrical Requirements1 208-230 V, 3 ph, 13 A, 50/60 Hz, 4kW (UL)
380-415 V, 3 ph, 11.5 A, 50 Hz, 4kW (CE)		 208-230 V, 3 ph, 15 A, 50/60 Hz, 4.75kW (UL)
380-415 V, 3 ph, 11.5 A, 50 Hz, 4.75kW (CE)		 208-230 V, 3 ph, 17.5 A, 50/60 Hz, 5.5kW (UL)
380-415 V, 3 ph, 12.5 A, 50 Hz, 5.5kW (CE)		 208-230 V, 3 ph, 20 A, 50/60 Hz, 6.25kW (UL)
380-415 V, 3 ph, 16.5 A, 50 Hz, 6.25kW (CE)		 208-230 V, 3 ph, 22 A, 50/60 Hz, 7kW (UL)
380-415 V, 3 ph, 16.5 A, 50 Hz, 7kW (CE)		 208-230 V, 3 ph, 24.5 A, 50/60 Hz, 7.75kW (UL)
380-415 V, 3 ph, 16.5 A, 50 Hz, 7.75kW (CE)		 208-230 V, 3 ph, 27 A, 50/60 Hz, 8.5kW (UL)
380-415 V, 3 ph, 21 A, 50 Hz, 8.5kW (CE)		 208-230 V, 3 ph, 29.5 A, 50/60 Hz, 9.25kW (UL)
380-415 V, 3 ph, 21 A, 50 Hz, 9.25kW (CE)
Maximum Built-in Flash
Cure Unit Plugs		 6 8 10 12 14 16 18 20
Standard Image Size 56 x 71 cm (22" x 28") 56 x 71 cm (22" x 28") 56 x 71 cm (22" x 28") 56 x 71 cm (22" x 28") 56 x 71 cm (22" x 28") 56 x 71 cm (22" x 28") 56 x 71 cm (22" x 28") 56 x 71 cm (22" x 28")
Standard Pallet Size 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35")
Standard Frame Size (OD) 71 x 109 cm (28" x 43") 71 x 109 cm (28" x 43") 71 x 109 cm (28" x 43") 71 x 109 cm (28" x 43") 71 x 109 cm (28" x 43") 71 x 109 cm (28" x 43") 56 x 71 cm (22" x 28") 71 x 109 cm (28" x 43")
Overall Size (L x W x H) 864 x 358 x 209 cm
(340" x 141" x 82.3")		 1087 x 358 x 209 cm (428" x 141" x 82") 1311 x 358 x 209 cm
(516" x 141" x 82.3")		 1535 x 358 x 209 cm (604" x 141" x 82") 1758 x 358 x 209 cm
(692.3" x 141" x 82.3")		 1982 x 358 x 209 cm (780" x 141" x 82") 2206 x 358 x 209 cm
(868.5" x 141" x 82.3")		 2431 x 358 x 209 cm (957" x 141" x 82")
Stations/Colors 20/6 26/8 32/10 38/12 44/14 50/16 56/18 62/20
1Use uninterruptible power supply (UPS) to safeguard machine from voltage fluctuation out of main supply. If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly. Contact M&R Global/ your nearest dealer for total amperage in case of using built-in flash sockets.
