Trotec Vision Design & Position (Integrated Camera System)
Trotec Vision Design & Position (Integrated Camera System) - Default Title
SKU:

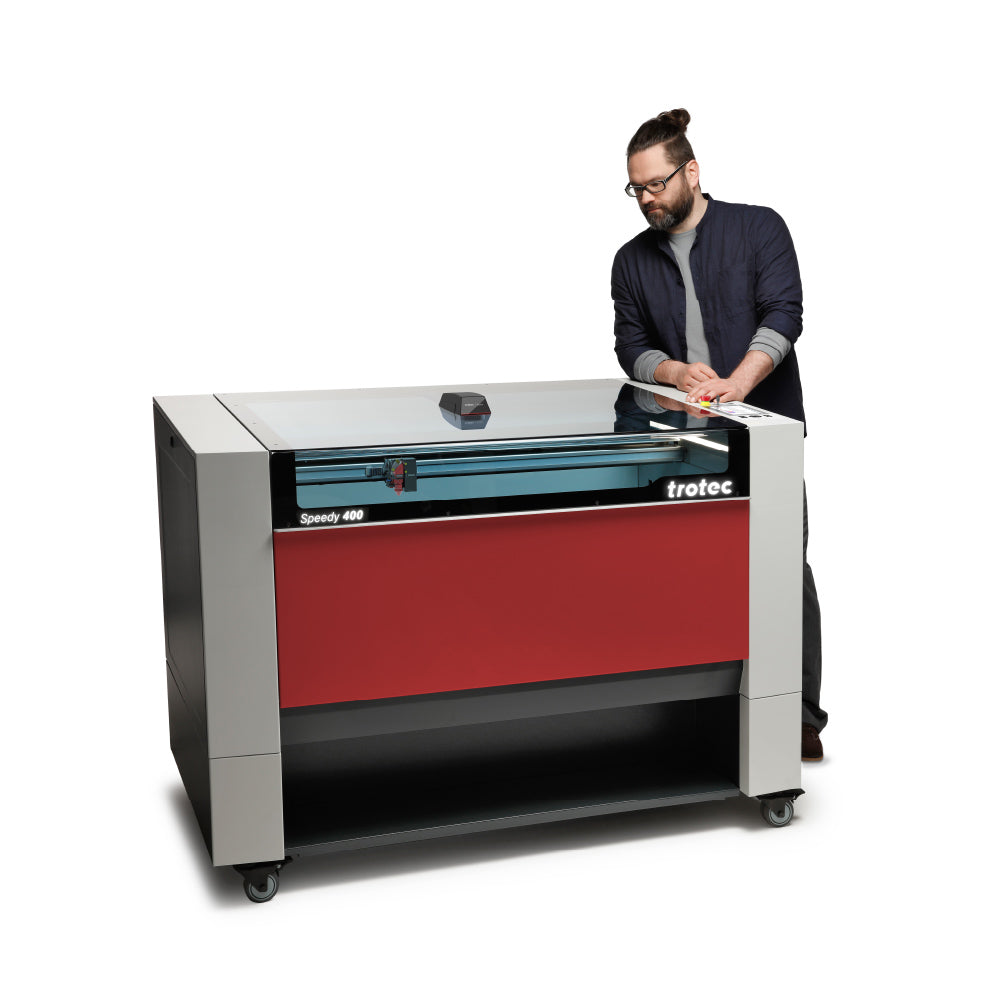

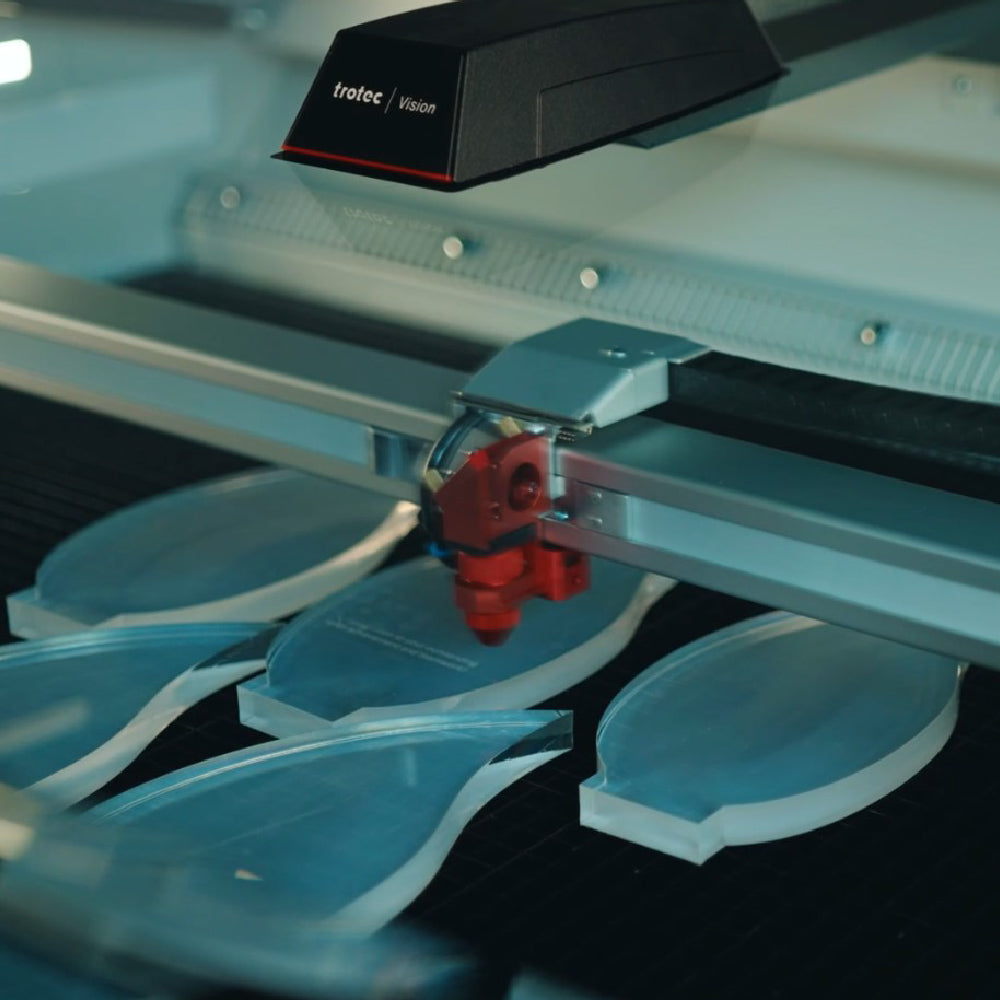

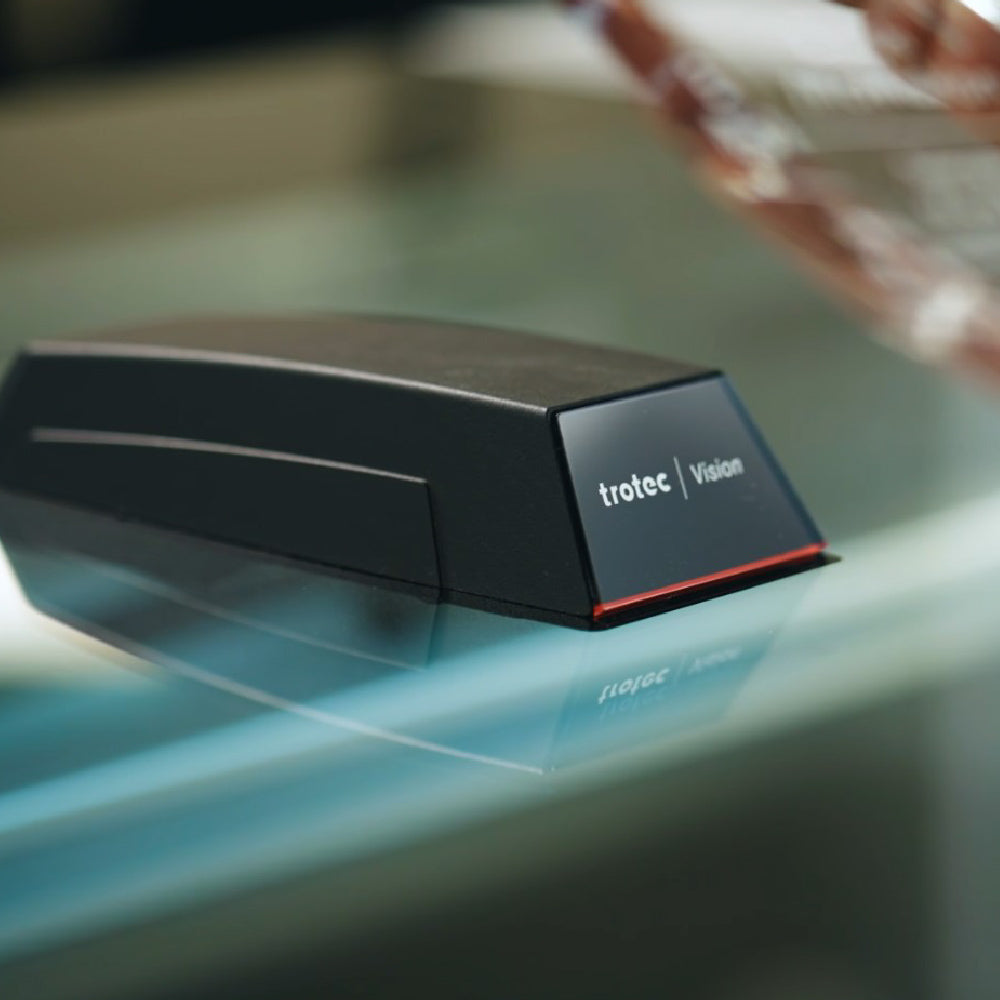

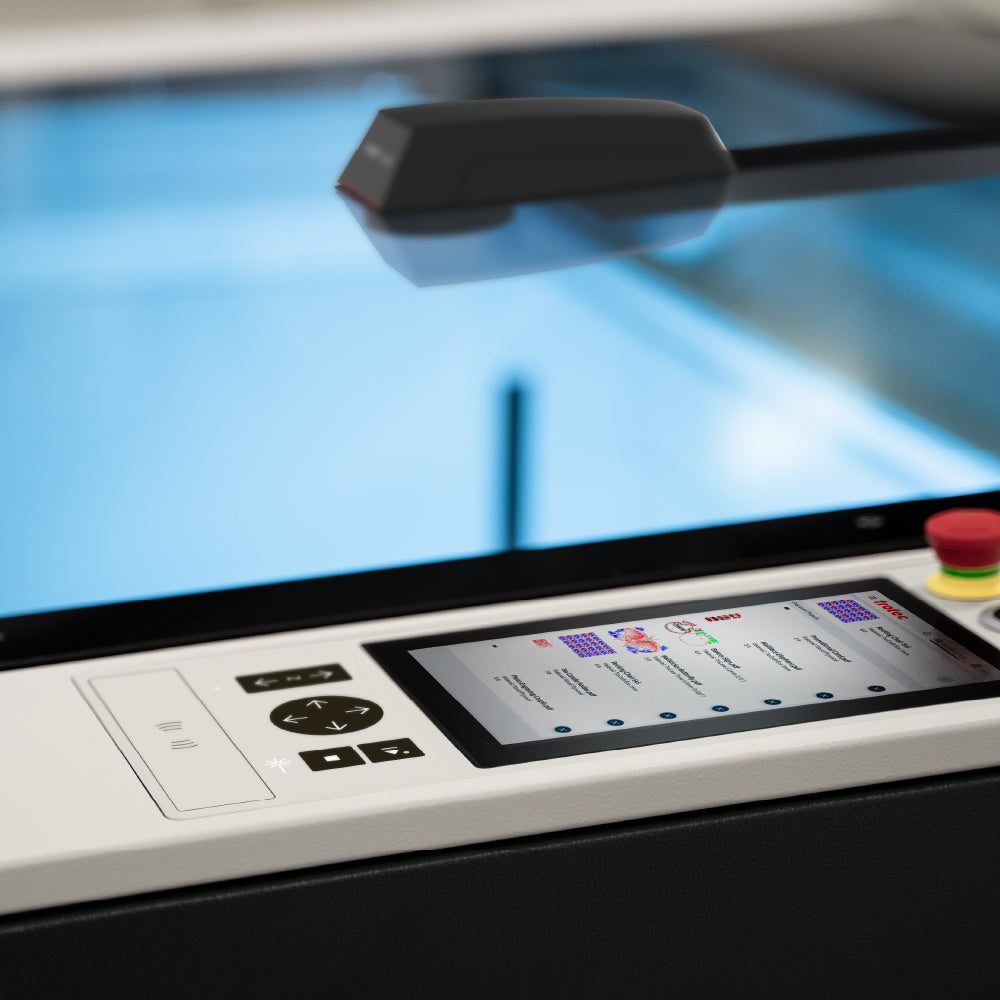

The Trotec Vision Design & Position system revolutionizes how you work with your laser machine by integrating a high-resolution camera directly into the laser lid. Delivering a sharp live color image of the entire work surface into Ruby® laser software, it enables true “What You See Is What You Get” (WYSIWYG) operation.
With Vision Design & Position, you can design graphics, add text, or align laser jobs directly on the workpiece in real time—without manual measuring, laser pointers, or complex setups. The system streamlines the entire workflow, maximizes material usage, and makes laser production faster, easier, and more profitable. Fully integrated with Ruby®, it’s the ideal tool for both first-time users and experienced professionals looking to boost efficiency and precision.
Often Purchased With
Additional Information
-
Camera-assisted design and positioning directly on the workpiece
-
High-resolution (up to 12 MP) live color image of the entire work area
-
True WYSIWYG: see the laser job exactly as it will appear on the material
-
Virtual job positioning in Ruby®: adjust size, rotation, and placement instantly
-

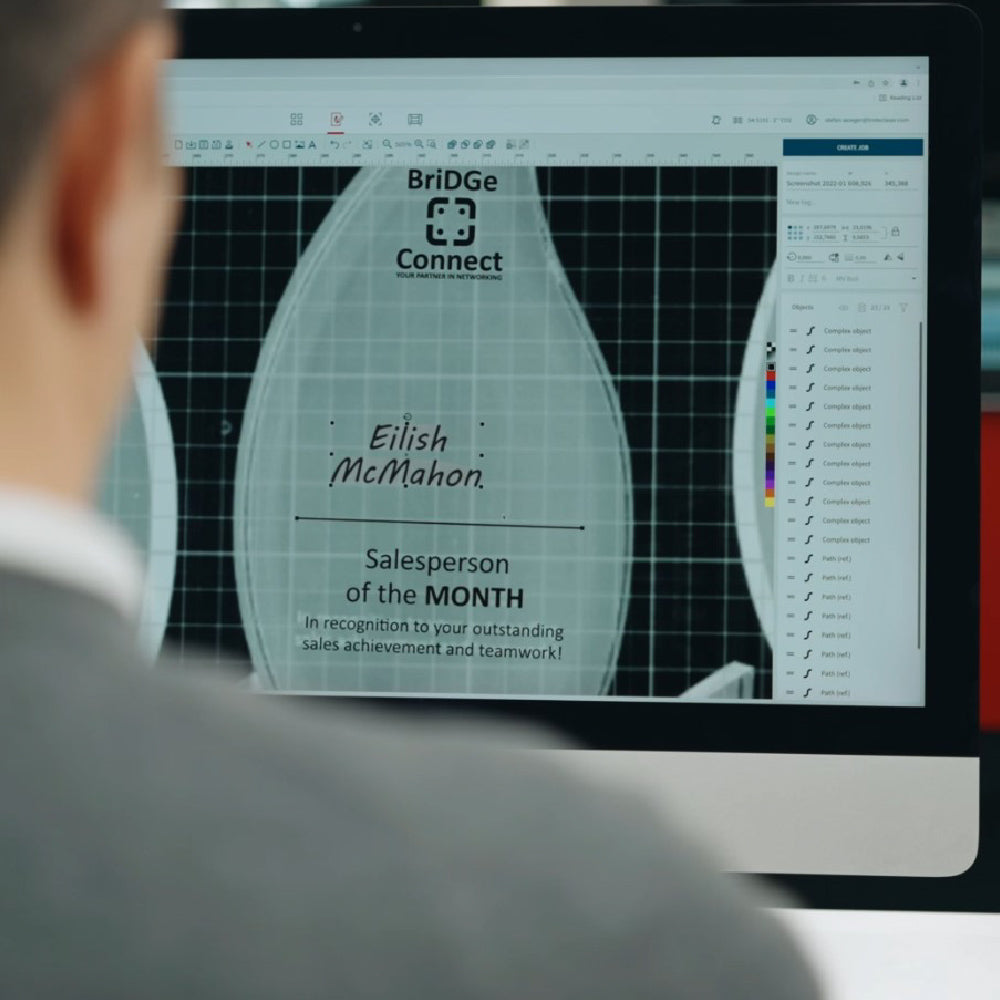

Virtual graphic design in Ruby®: create or edit layouts directly on the workpiece
-
Eliminates manual alignment, measuring, and pointer-based positioning
-
Maximizes residual material usage for cost efficiency
-
Fully integrated with Ruby® laser software for a faster, simpler workflow
| Specification | Details |
|---|---|
| Camera Resolution | Up to 12 megapixels |
| Integration | Fully integrated with Ruby® laser software |
| Display | Live full-color image of the entire work surface |
| Positioning Features | Size, rotation, and placement adjustment in Ruby® |
| Design Features | Create or edit graphics directly on the workpiece in Ruby® |
| Workflow Benefits | Eliminates manual measuring, pointer use, and complex setup steps |
| Key Advantage | WYSIWYG precision engraving and cutting with reduced setup time |
