Trotec
Trotec Rotary Engraving Attachment
Trotec Rotary Engraving Attachment - Default Title
SKU:

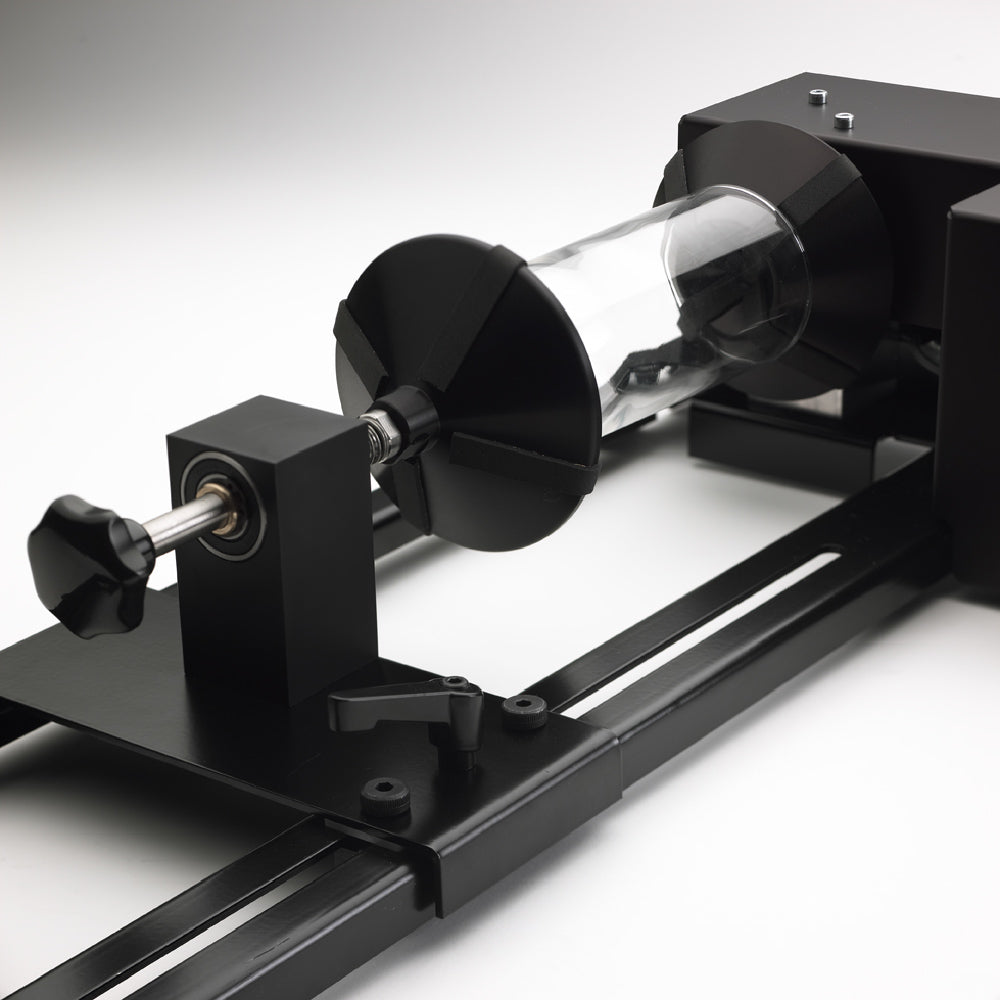

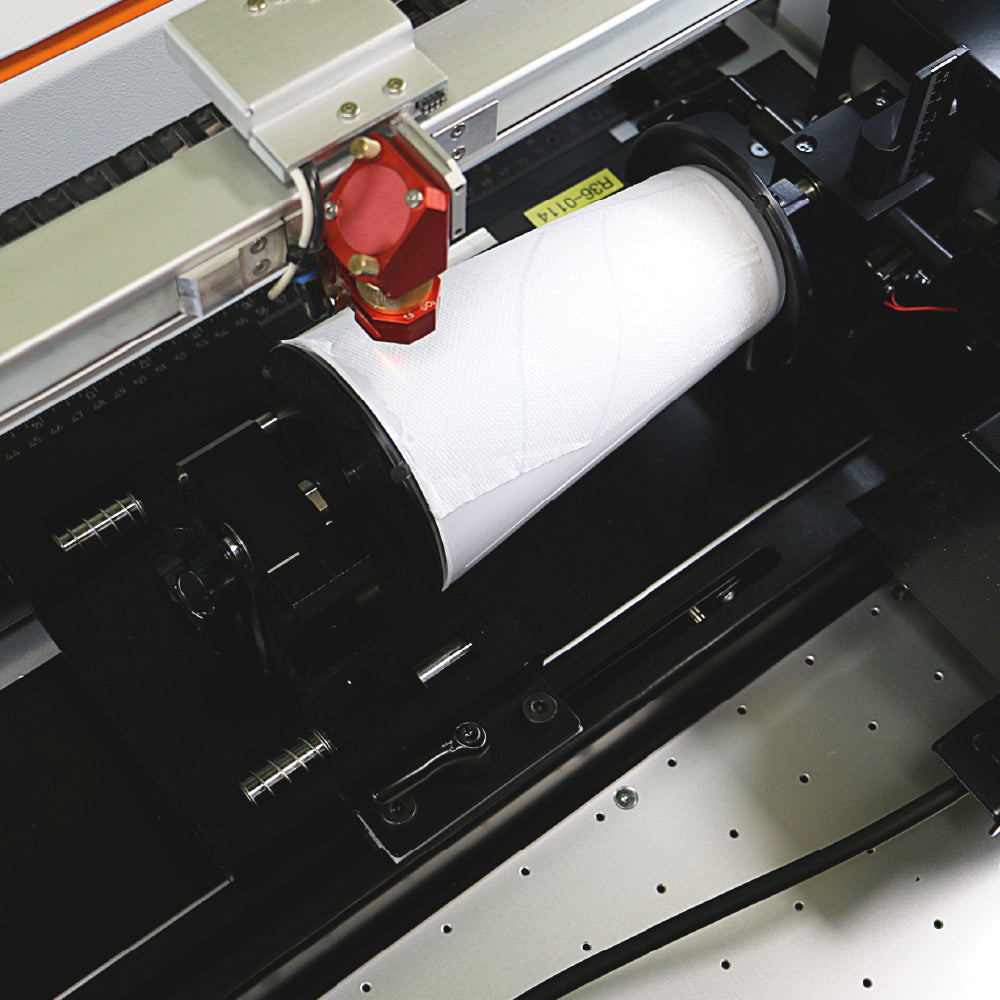

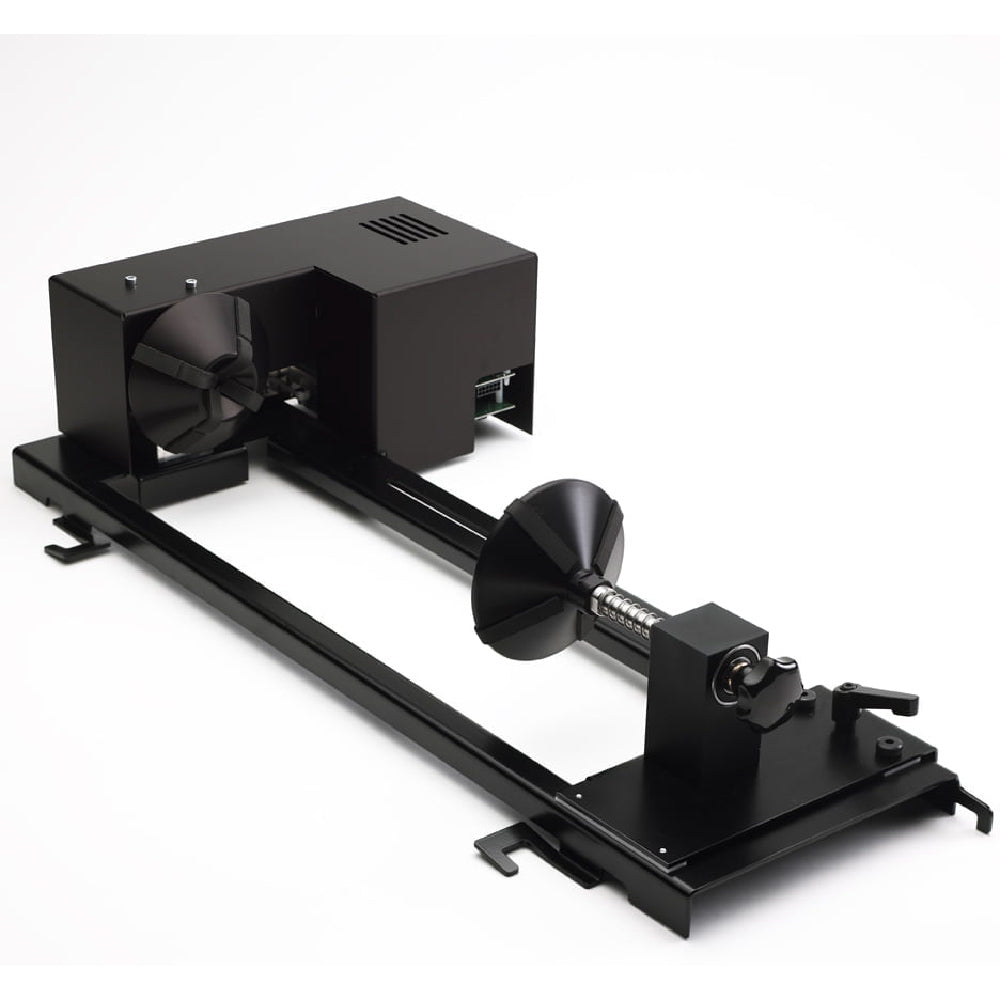

The Trotec Rotary Engraving Attachment expands your laser’s capabilities by enabling precision engraving on cylindrical, conical, and round objects. Designed for seamless integration with Trotec laser systems, it rotates the object while the laser head remains stationary, ensuring sharp, consistent results on curved surfaces.
Perfect for personalization and custom branding, the rotary attachment makes it easy to engrave glasses, bottles, mugs, pens, and more. Whether for promotional products, gifts, or industrial applications, this accessory delivers professional-quality engravings with accuracy and efficiency.
Often Purchased With
Additional Information
Rotary attachments are available for the following Trotec laser systems:
| Speedy 50 | Speedy 100 | Speedy 300 | Speedy 360 | Speedy 400 | SP500 | R400 | |
|---|---|---|---|---|---|---|---|
| Rotary attachment, tiltable | ⎯ | ⎯ | ⚫ | ⚫ | ⚫ | ⚫ | ⎯ |
| Rotary attachment with cone | ⚫ | ⚫ | ⚫ | ⚫ | ⚫ | ⚫ | ⚫ |
| Rotary attachment with rollers | ⎯ | ⎯ | ⚫ | ⚫ | ⚫ | ⚫ | ⎯ |
| Combined rotary attachment (cone and rollers can be exchanged) |
⎯ | ⎯ | ⚫ | ⚫ | ⚫ | ⚫ | ⎯ |
| Maximum workpiece length | 285 mm | 350 mm | 485 mm (cone) 680 mm (roller) |
550mm (cone) 745mm (roller) |
760mm (cone) 960mm (roller) |
840mm (cone) 1040mm (roller) |
485 mm |
| Maximum workpiece diameter* | 139 mm | 118 mm | 184mm (cone) 94mm (roller) |
207mm (cone) 96mm (roller) |
270mm (cone) 180mm (roller) |
250mm (cone) 150mm (roller) |
160 mm |
| Maximum weight | 3 kg | 3 kg | 3kg (cone) 10kg (roller) |
3kg (cone) 10kg (roller) |
3kg (cone) 10kg (roller) |
3kg (cone) 10kg (roller) |
3 kg |
-
Enables engraving on cylindrical, conical, and round objects
-
Ideal for items such as glasses, bottles, mugs, and pens
-
Rotates the object while the laser head stays stationary for precision
-
Ensures consistent, high-quality results on curved surfaces
-
Expands your Trotec laser system’s engraving capabilities
-
Suitable for personalization, promotional products, and industrial use
| Specification | Details |
|---|---|
| Engraving Capability | Cylindrical, conical, and round objects |
| Compatible Items | Glasses, bottles, mugs, pens, and similar objects |
| Operation | Rotates the object while laser head remains stationary |
| Engraving Quality | Consistent, precise results on curved surfaces |
| Application | Personalization, promotional products, industrial marking |
| Compatibility | Trotec laser systems |
