Toyoda Falcon Hydra 6 Fully Automated 6 Station Heat Press
Toyoda Falcon Hydra 6 Fully Automated 6 Station Heat Press - Default Title
SKU:

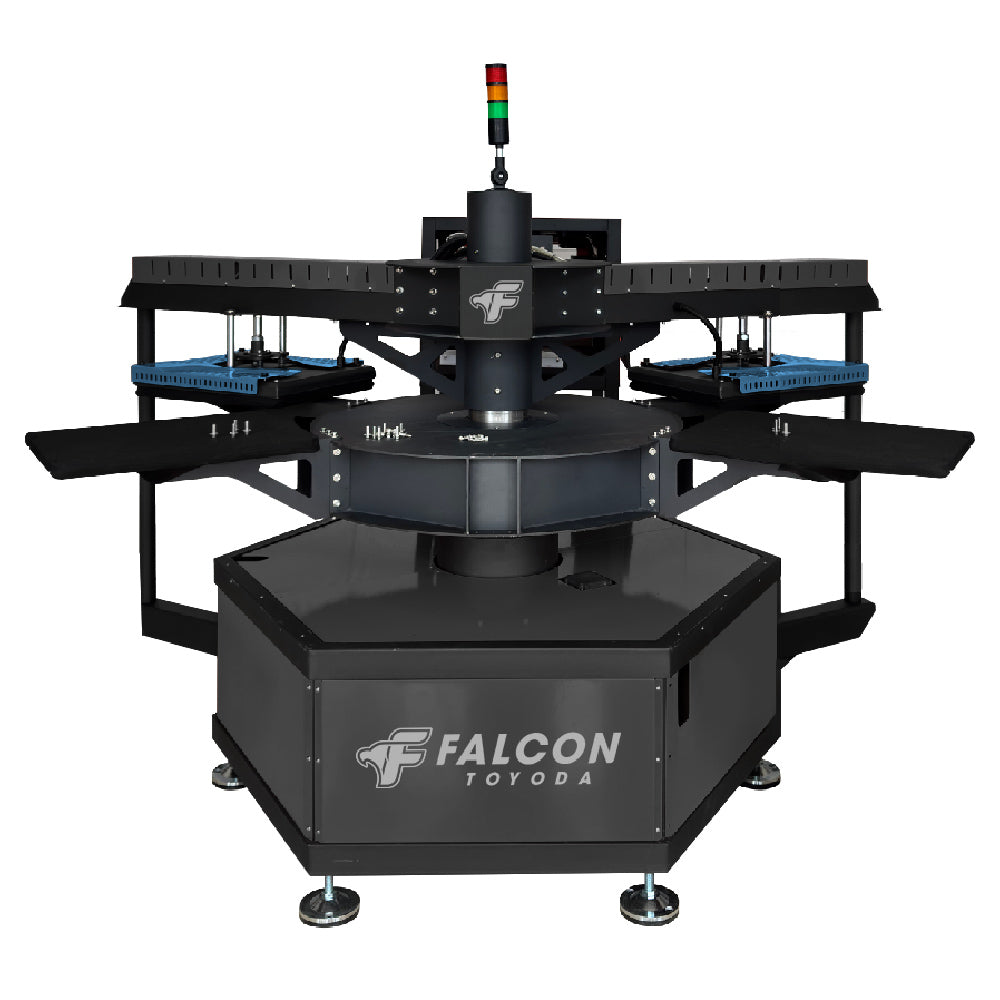

The Toyoda Falcon Hydra 6 is a fully automated 6-station DTF heat press engineered for maximum output with minimum labor. It features automatic transfer feeding, precision heat pressing, auto peeling, and garment unloading—delivering an all-in-one solution for high-volume DTF production. Whether you're scaling your print shop or eliminating bottlenecks, the Hydra 6 operates like a 6-headed beast—each head performing in unison to ensure flawless speed, power, and consistency.
Product Resources
-
Fully Automatic - Minimizes manual labour
-
High-Speed Output - Up to 300-450 pcs per hour
-
Durable and Reliable - Industrial components
-
Auto Alignment - Print with precision
-
Temperature Control - Keeps temperature stable
-
User Friendly Interface - Intuitive touchscreen
-
-

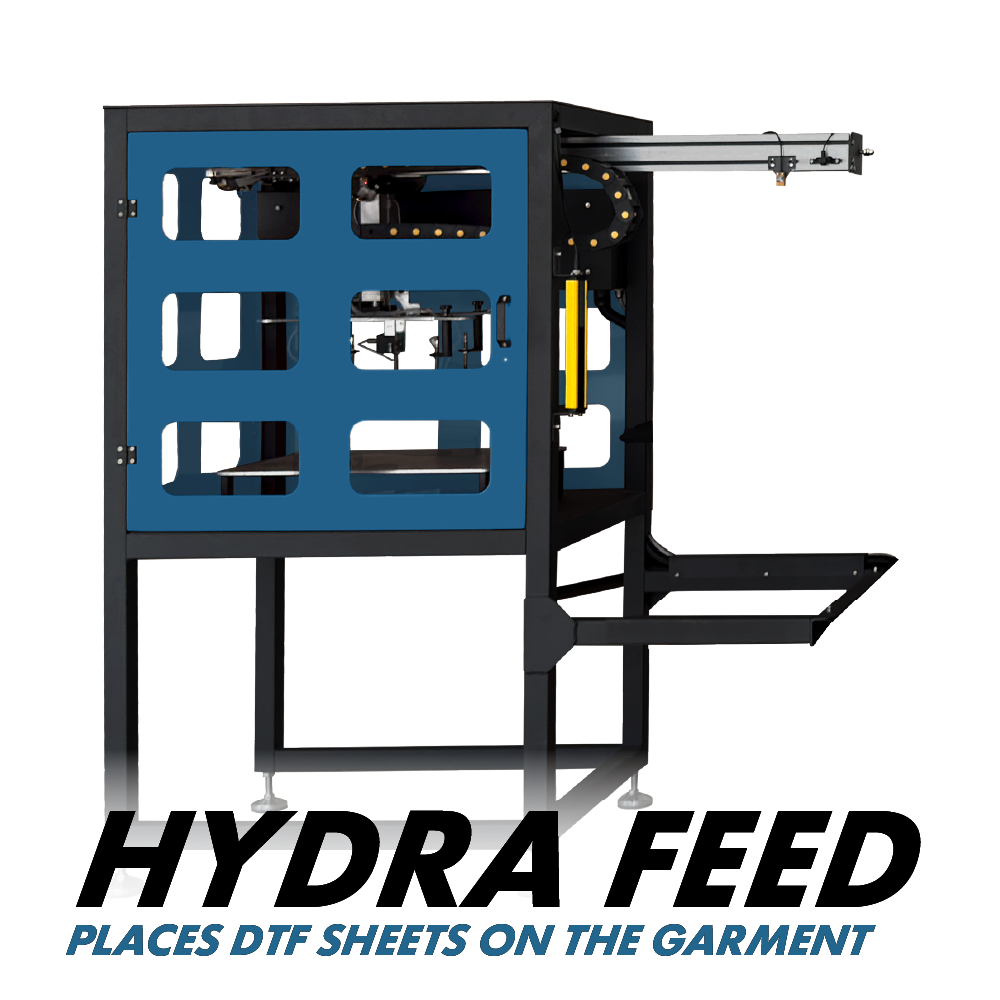

An advanced accessory designed for automated transfer placement,
Hydra Feed
the Hydra Feed perfectly complements the Hydra 6. Once configured,
it positions the thermal or DTF transfer precisely on the
garment — eliminating the need for manual alignment and ensuring
consistent accuracy.
-

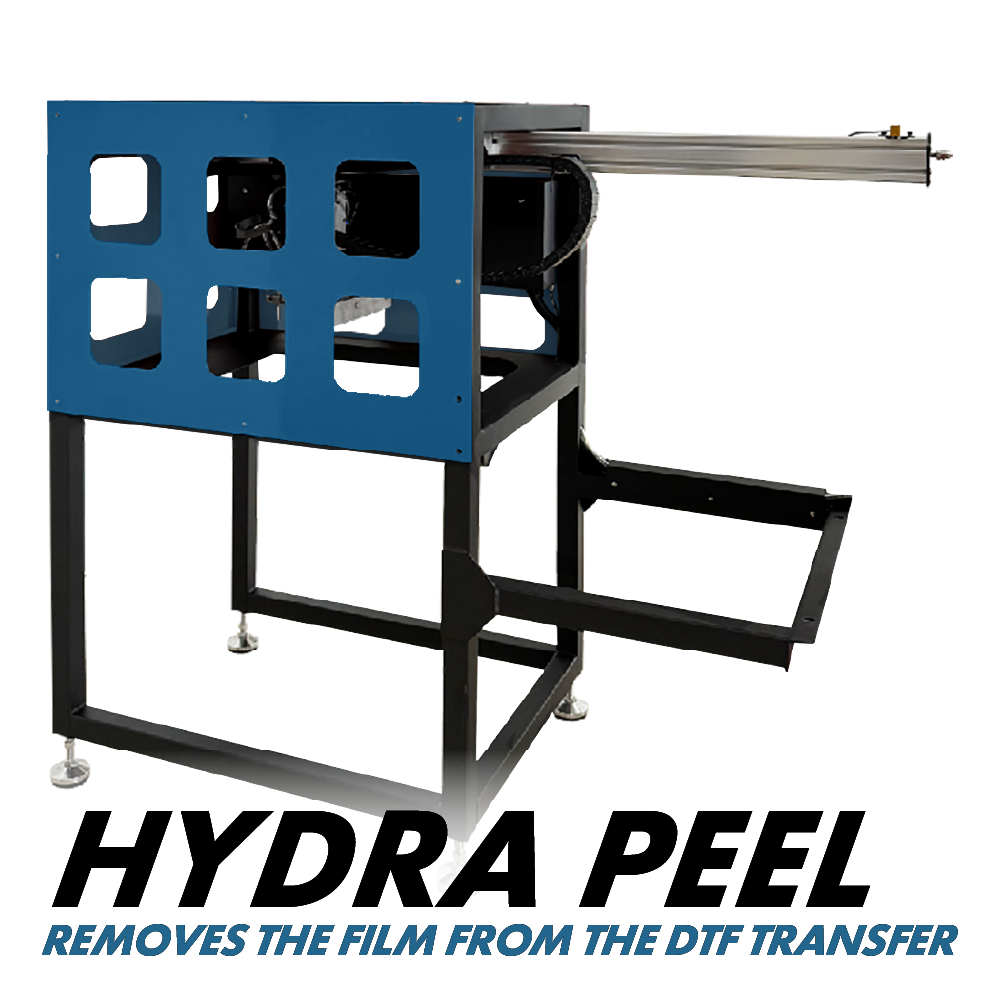

Engineered for efficiency, Hydra Peel automates the removal of
Hydra Peel
protective films from thermal or DTF transfers. It features adjustable
speed and stroke length, making it adaptable to a wide variety of
transfer sheet types and sizes, while significantly reducing manual
labor. -
-
-

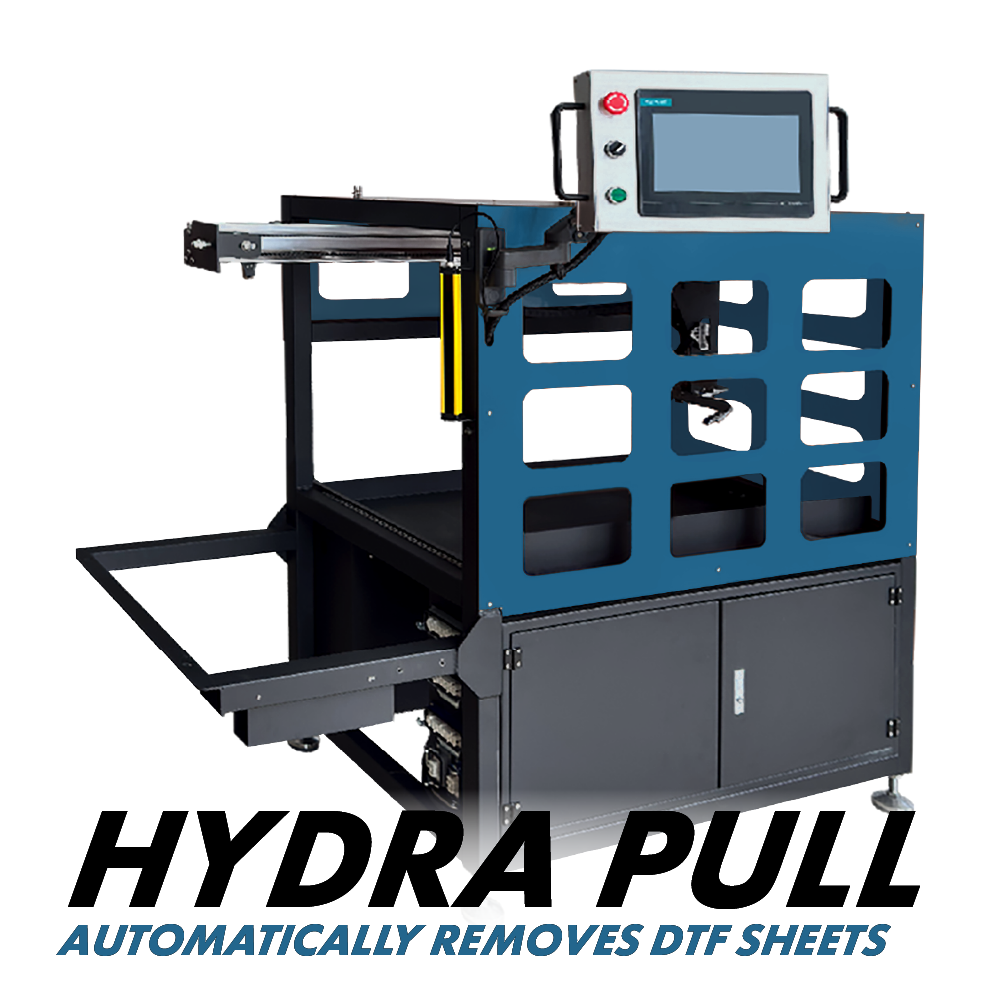

Hydra Pull enables the automatic removal and stacking of finished
Hydra Pull
garments. Once connected to the Hydra 6, it uses precision grippers
to remove items from the pallet and stack them onto a motorized,
height-adjustable platform.
Precise & High Quality Temperature Controller With Even Pressure
-
By customizing professional heat press ASIC chips, Toyoda Falcon heat presses control temperature accurately and provide stable temperature during intense work.
-
Precise temperature distribution with our high-quality thick heat plate ensures an exact temperature distribution over the entire heating surface.
Additional Information
-

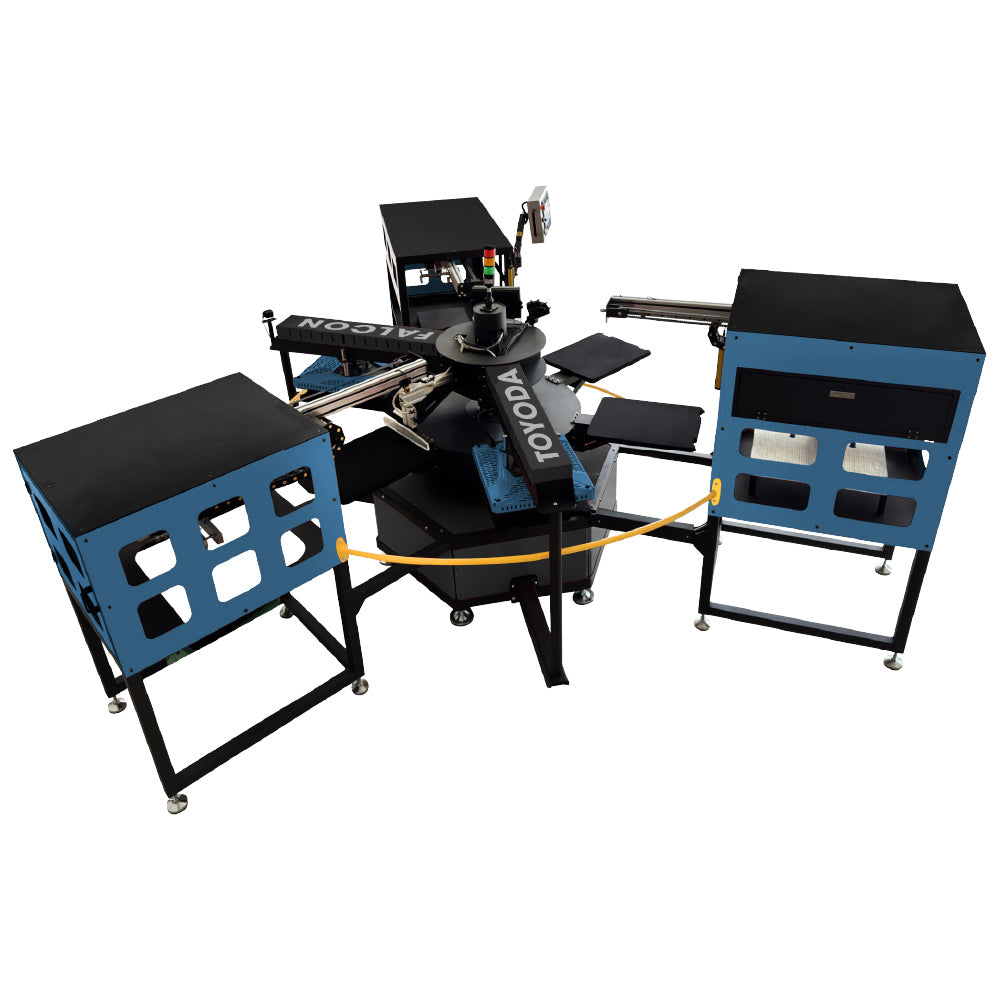

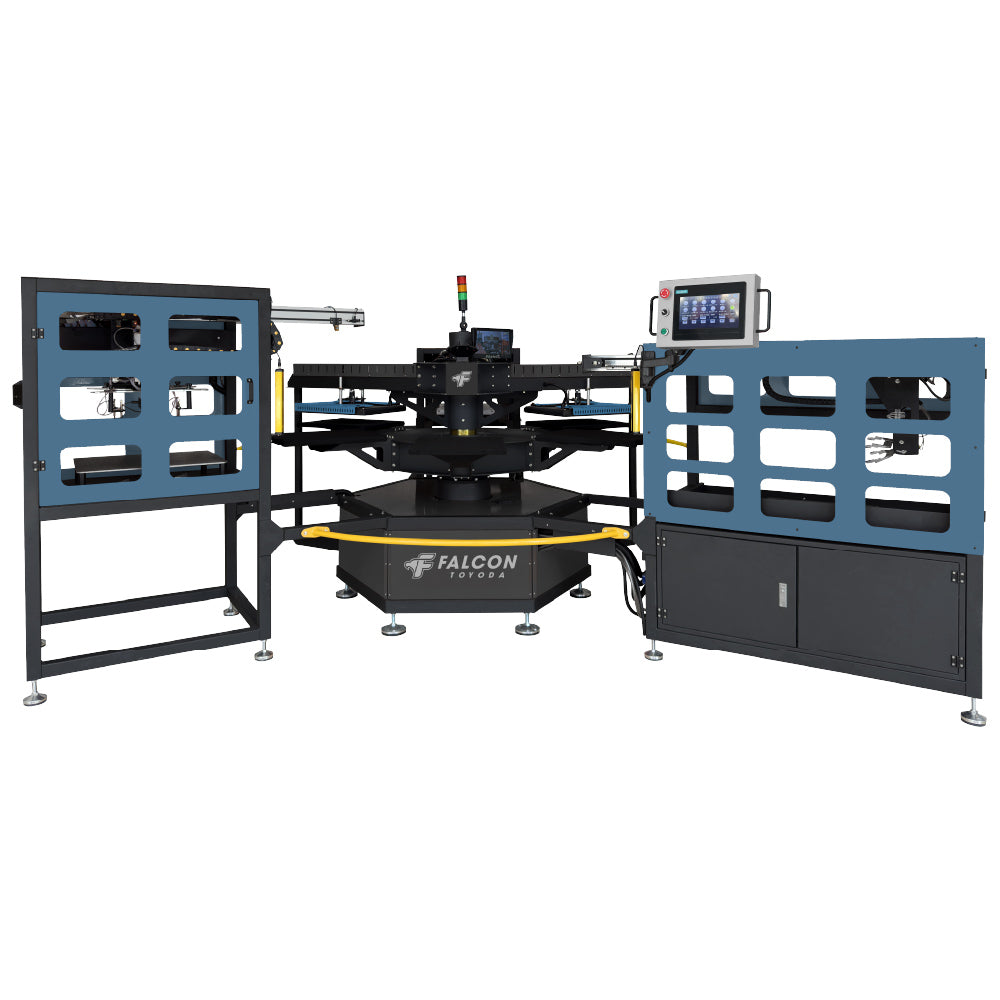

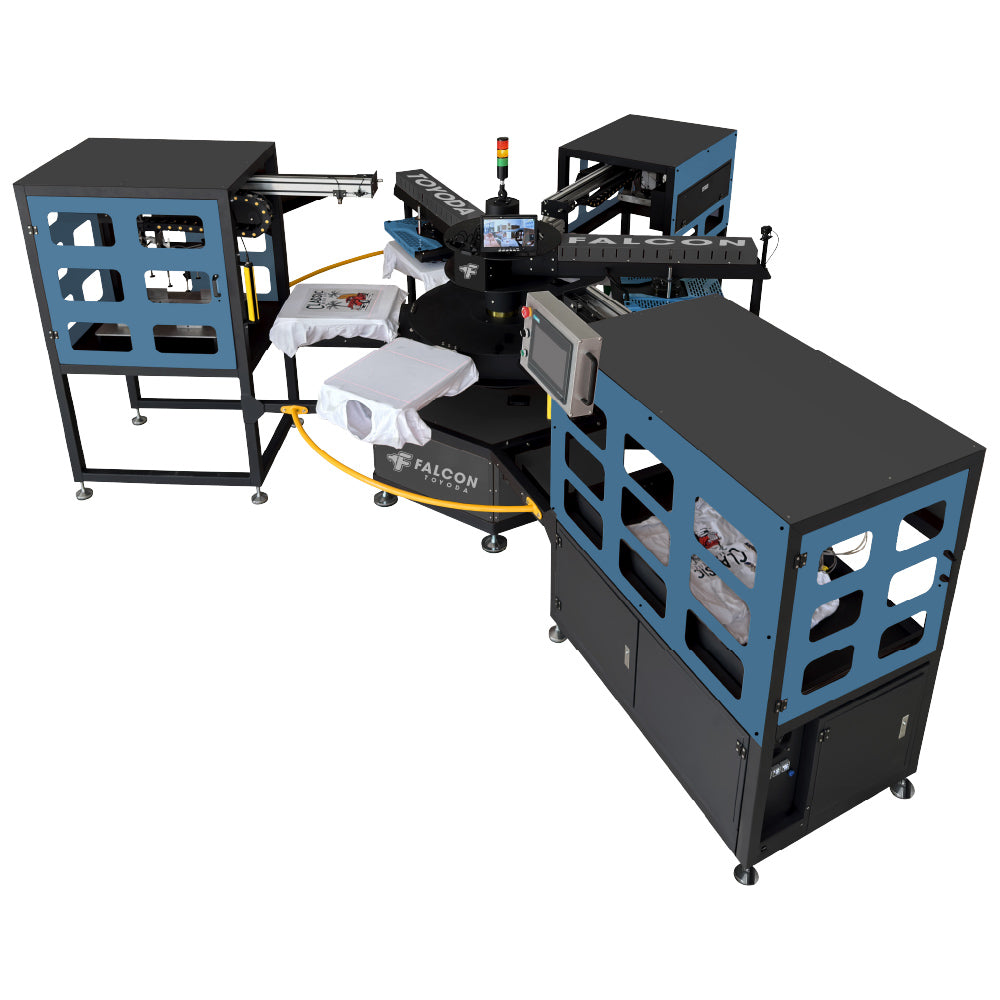

Fully automated 6-station DTF heat press with auto feed, auto peel, auto pull, and auto unload for maximum efficiency
-
High-volume production capacity, delivering 300–450 finished items per hour
-
Automatic garment loading and transfer placement with Hydra Feed for precise, hands-free alignment
-
Adjustable auto peel system removes protective films with customizable speed and stroke for different transfer types
-
Hydra Pull system automatically removes and stacks garments on a motorized, height-adjustable platform
-
Reinforce press function applies a secondary press for consistent, high-quality transfers
-
Integrated HD monitor for real-time process visibility and precise adjustments
-
Intuitive touchscreen control panel with multi-language support and precise temperature control up to 450°F (232°C)
| Specification | Details |
|---|---|
| Model Number | TF-HYDRA6 |
| Max Pressing Area | 16” x 20” |
| Air Consumption | 82.50 ft³/h (38.50 l/min) |
| Electric Consumption | 3 × 220V / 32A |
| Recommended Circuit Breaker | Greater than 63A |
| Plug Type | Connect the power cord to a circuit breaker |
| Number of Platens | 6 |
| Number of Press | 2 |
| Applicable Thickness | 1.5” |
| Machine Diameter | 190.55” |
| Max Temp | 450°F (232°C) |
| Total Weight | 2745 lbs |
| Component | Dimensions (L × W × H) | Shipping Dimensions (L × W × H) | Weight | Shipping Weight |
|---|---|---|---|---|
| Hydra 6 Main Unit | 87” × 67” × 58” | 93” × 72.8” × 68” | 1425 lbs | 1513 lbs |
| Hydra Feed | 59” × 30.5” × 61” | 64.5” × 36” × 70” | 327 lbs | 397 lbs |
| Hydra Peel | 64” × 29.5” × 52.8” | 70” × 35” × 62” | 250 lbs | 337 lbs |
| Hydra Pull | 71” × 44.5” × 51.5” | 76.5” × 50” × 61” | 416 lbs | 505 lbs |
- 1 year including all parts
- All heat presses must be delivered to an RB Digital location for repairs or customer can work remotely with a technician
- It's recommended to keep crates and packaging to ship back if needed
