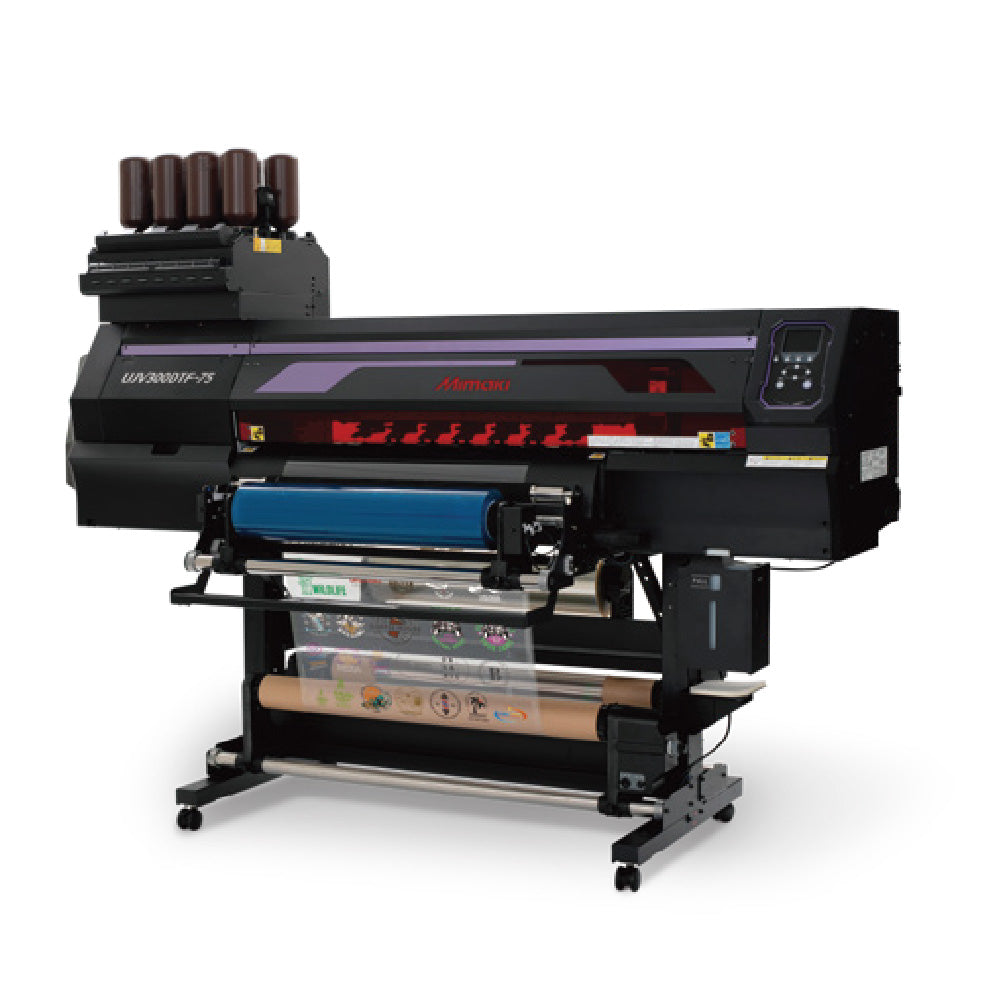

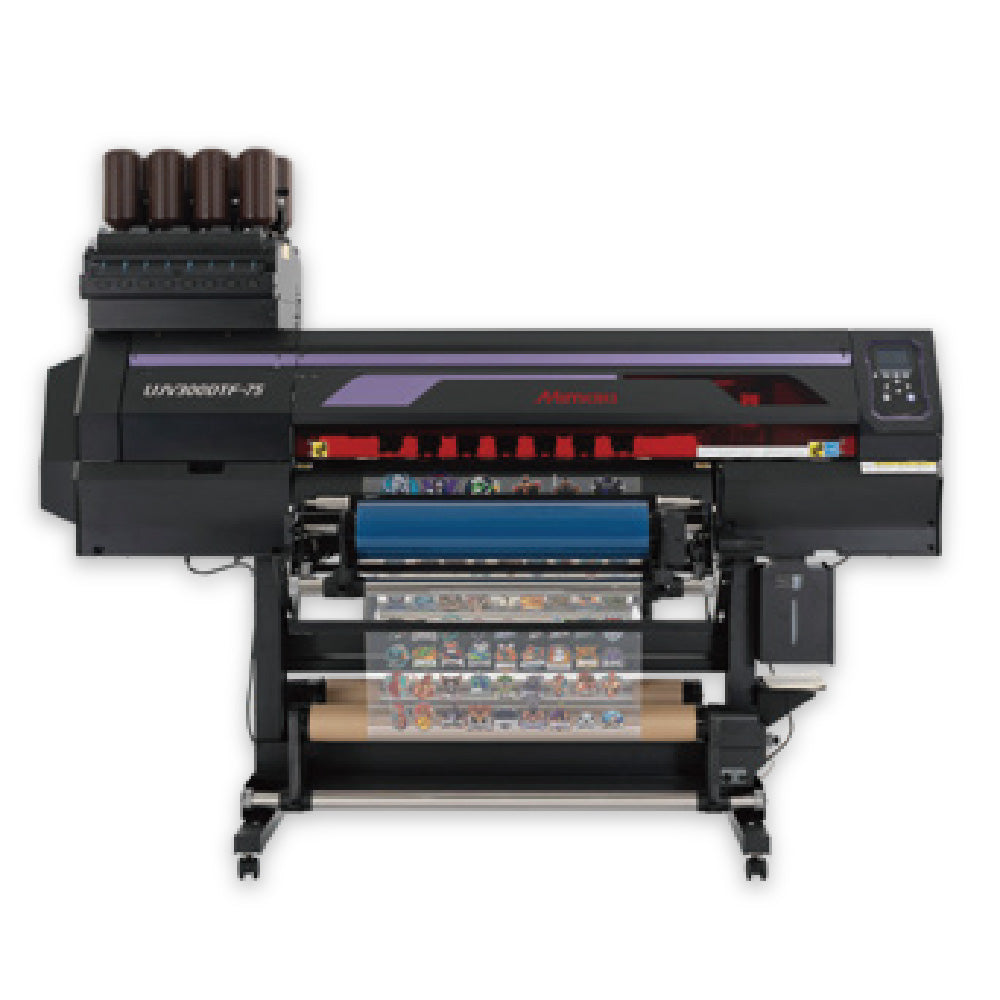

Mimaki UJV300DTF-75 UV DTF Printer

Mimaki UJV300DTF-75 UV DTF Printer - Default Title

SKU:

Financing Options

New All-in_One UV-DTF Solution



Unlock next-level customization with the Mimaki UJV300DTF-75, a purpose-built, all-in-one UV-DTF printer designed for unmatched versatility, performance, and ease of use. This compact, industrial-grade printer enables vibrant, durable prints on curved, textured, and irregular surfaces—perfect for personalizing virtually any object.



With automated inline lamination, one-touch media loading, and next-gen UV-curable inks, the UJV300DTF-75 streamlines production with no weeding required. Whether you're producing branded merchandise or intricate custom items, this printer offers stability, high resolution, and exceptional media handling—all in a space-saving footprint.



Engineered for commercial efficiency and precision, it’s ideal for businesses seeking to expand into premium UV-DTF printing with minimal setup and maximum output.

Product Resources

View full details

  • UJV300DTF-75 UV DTF icon 1

    Nozzle Check Unit

  • UJV300DTF-75 UV DTF icon 3

    Nozzle Recovery System

  • UJV300DTF-75 UV DTF icon 5

    Mimaki Circulation Technology

  • UJV300DTF-75 UV DTF icon 4

    Mimaki Advanced Pass System

  • UJV300DTF-75 UV DTF icon 2

    Waveform Control

  •   Steps 1


  • Steps 2

  •   Steps 3



Features and Highlights



  • Prints on Irregular Surfaces – Adheres to curved, uneven, or non-traditional items with ease.

  • All-in-One Workflow – Features inline lamination and no weeding, boosting speed and simplicity.

  • Vibrant UV-Curable Inks – Delivers flexible or hard finishes with CMYK + White and Clear options.

  • Compact & Efficient – Fits comfortably in production environments with powerful performance.



Applications



  • Plastic
    Plastic

  • Wood
    Wood

  • Ceramic
    Ceramic

  • Glass
    Glass

  • Metal
    Metal

  • Leather
    Leather

Additional Information

Attribute Details
Printhead Two on-demand piezo heads
Max Print Resolution Up to 1,200 dpi
Max Print Width 25.2 in (640 mm)
Max Media Width 25.6 in (650 mm)
Max Media Diameter 9.84 in (250 mm) or less
Max Media Weight 99 lbs (45 kg) or less
Ink Configuration 4C + 4SP (CMYK + White, White, Clear, Clear)
Ink Types ELS-170 UV-curable flexible ink (CMYK), ELH-100 UV-curable hard ink (White/Clear)
Inline Features Automated lamination, one-touch media loading, no weeding
Interface Ethernet 1000BASE-T / USB 2.0 Hi-Speed
Power Supply AC 100–120V / 200–240V ±10%, 50/60Hz
Power Consumption Max 1,440W (100V) / Max 1,920W (200V)
Operating Temperature 68–86°F (20–30°C)
Operating Humidity 35–65% RH (non-condensing)
Dimensions (W × D × H) 82 × 37 × 58 in (2,090 × 930 × 1,475 mm)
Weight 367 lbs (180 kg)
Certifications VCCI Class A, FCC Class A, CE Marking, RoHS, ENERGY STAR, RCM, KC, ETL

The Mimaki UJV300DTF-75 is a powerful all-in-one UV DTF printer that combines both printing and laminating into a seamless process. Ideal for producing durable, high-resolution crystal stickers, this machine works with two types of film—A Film and B Film—to create vibrant, easy-to-transfer designs suitable for a wide variety of hard surfaces.



Here’s how it works: The printer starts by printing CMYK+White directly onto A Film, the adhesive layer. A clear varnish coating is then applied over the ink for added durability and finish. Next, B Film—the laminate transfer film—is automatically applied with heat assistance. This serves as a "mask" layer that lifts the printed design from the A Film and allows for effortless application onto your desired surface.





Crystal Stickers That Stick Anywhere (Except Fabric)

UV DTF “crystal stickers” produced by the Mimaki UJV300DTF-75 are unlike traditional decals. Built for performance and versatility, they are:

  • Extremely durable and long-lasting

  • Vivid in colour with a glossy, high-end finish

  • Waterproof, scratch-resistant, and UV stable


They adhere effortlessly to nearly any hard substrate, including:

  • Glass

  • Wood

  • Leather

  • Plastic

  • Ceramic

  • Metal

  • Acrylic

  • PVC, ABS, EVA

  • Crystal

  • MDF board

  • Stone

  • Canvas
    ...and much more.

Note: UV DTF film is not intended for fabric surfaces.
