Duplo

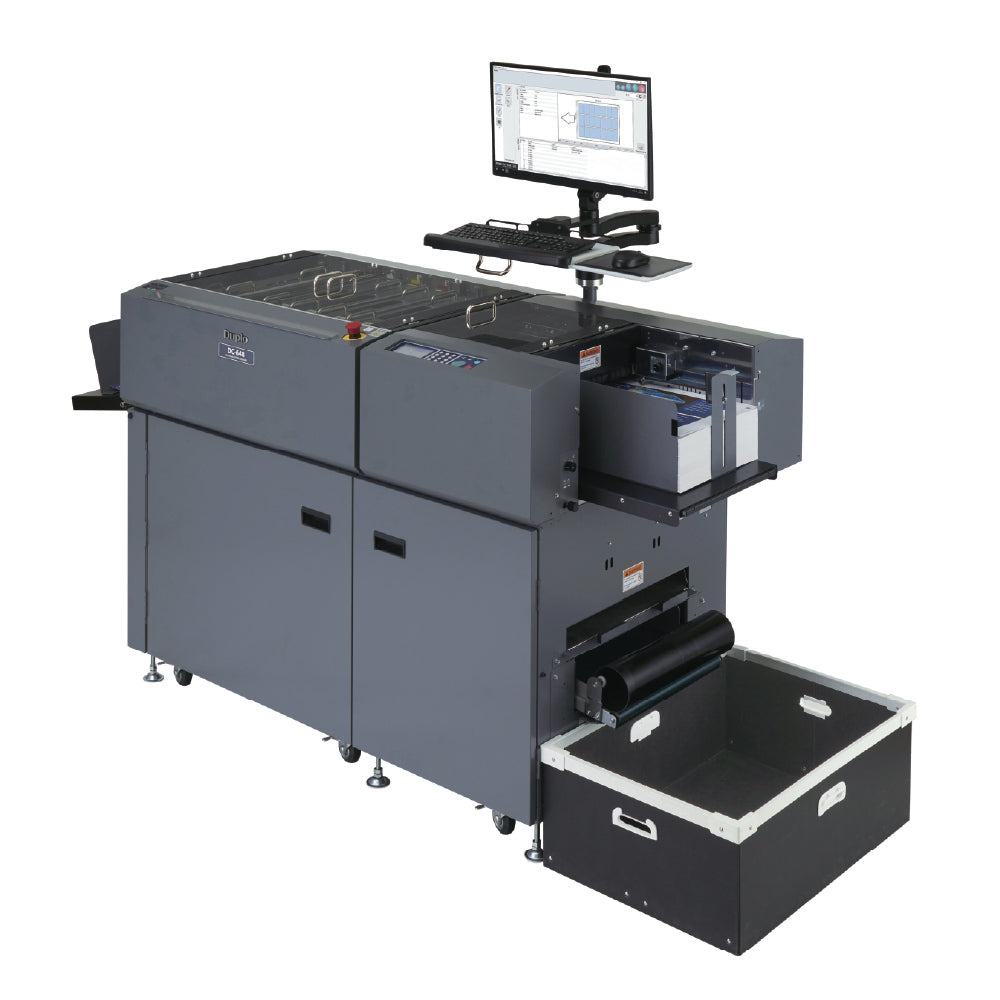

Duplo DC-648 Slitter/Cutter/Creaser

Duplo DC-648 Slitter/Cutter/Creaser - Default Title

SKU:

Financing Options

The DC-648 Slitter/Cutter/Creaser is the ultimate mid-range solution for digitally-printed applications. This fully automated system seamlessly slits, cuts, creases, and perforates in a single pass, allowing your business to deliver professionally finished products at speeds of up to 40 sheets per minute. Say goodbye to costly setup times and manual intervention—this powerful machine streamlines your production, enabling quick turnarounds and reduced labor costs.

Designed for flexibility and efficiency, the DC-648 handles a broad range of applications, from 24-up business cards to invitations, tickets, and more. Whether you need full-bleed trimming or perforations, this versatile machine delivers high-quality results every time.


Features

  • Automated job set up and changeovers to minimize downtime
  • Advanced camera sensor technology to rapidly scan barcodes, registration marks, and shrinkage marks
  • Fiery Impose integration to streamline job preparation
  • Perforating, up crease, and in-line folding options for additional versatility

Product Resources

View full details

See It In Action



  • All-In_One Finishing
    ALL-IN-ONE FINISHING

    Slit, cut, and crease in a single pass for faster turnaround

  • Automated Setup
    AUTOMATED SETUP

    Barcode scanning loads jobs instantly with minimal operator input.

  • Precision Registration
    PRECISION REGISTRATION

    CCD camera system ensures accurate alignment on every sheet

  • High Productivity Output
    HIGH PRODUCTIVITY OUTPUT

    Production-ready speeds for business cards, postcards, and more

  • Touchscreen Operation
    TOUCHSCREEN OPERATION

    Intuitive control panel with programmable job memory

  • Enhanced Productivity with Smart Features




  • Enhanced Productivity with Smart Features

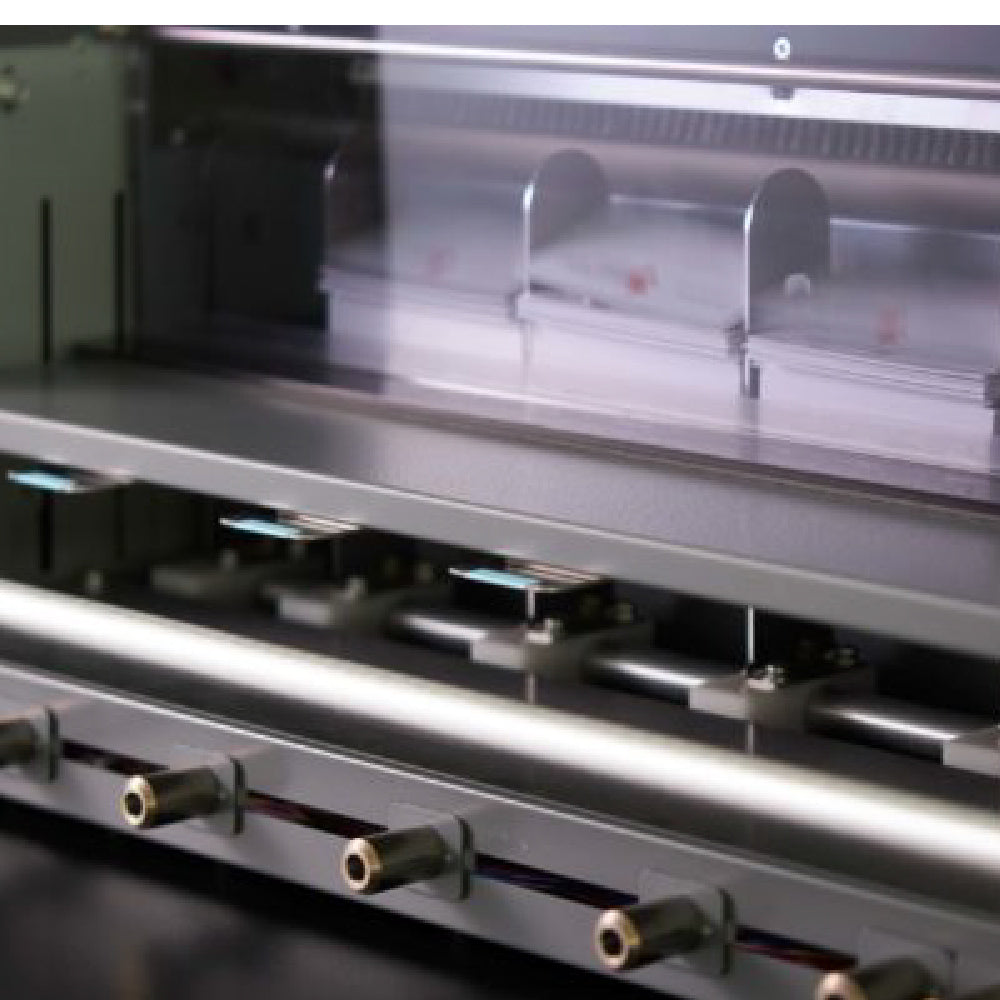

    The DC-648 features a camera sensor that scans barcodes and registration marks quickly and accurately. This sensor automatically adjusts for any image shifts, compensating for both shrinkage and skew marks without interrupting the workflow. These advanced capabilities result in superior finishing precision, ensuring every job meets high-quality standards.



  • Expand Your Duplo DC-648 with Perforation Modules


    Further enhance the DC-648’s versatility with optional rotary perforation and cross perforation modules, perfect for producing perforated tickets, coupons, and reply cards. Additionally, the Up Crease Module allows simultaneous up and down creasing in a single pass, further expanding the machine’s capabilities.

  • Expand Your Duplo DC-648 with Perforation Modules

Features

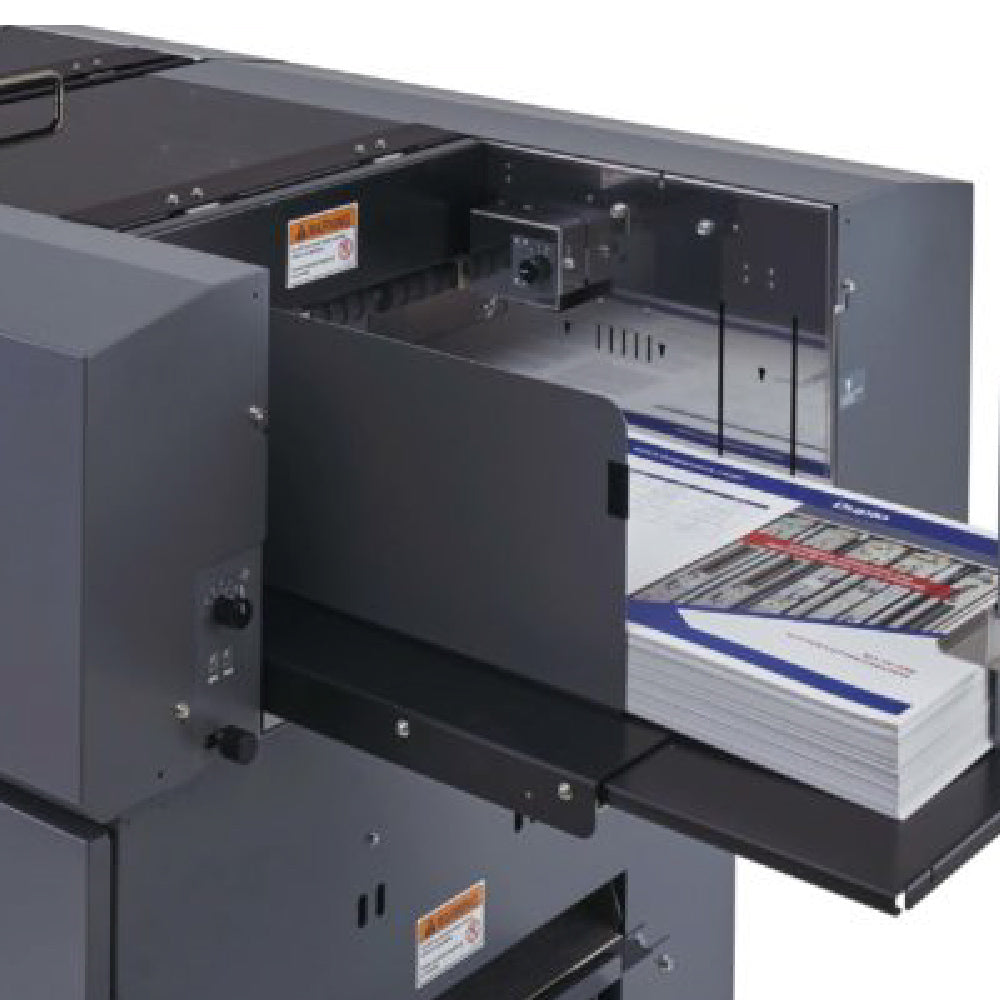

  • Deep Pile Suction Feeder:
    High-capacity feeder supports continuous production with minimal reloads.
  • Handles Heavy Stocks:
    Processes a wide range of paper weights for premium applications.

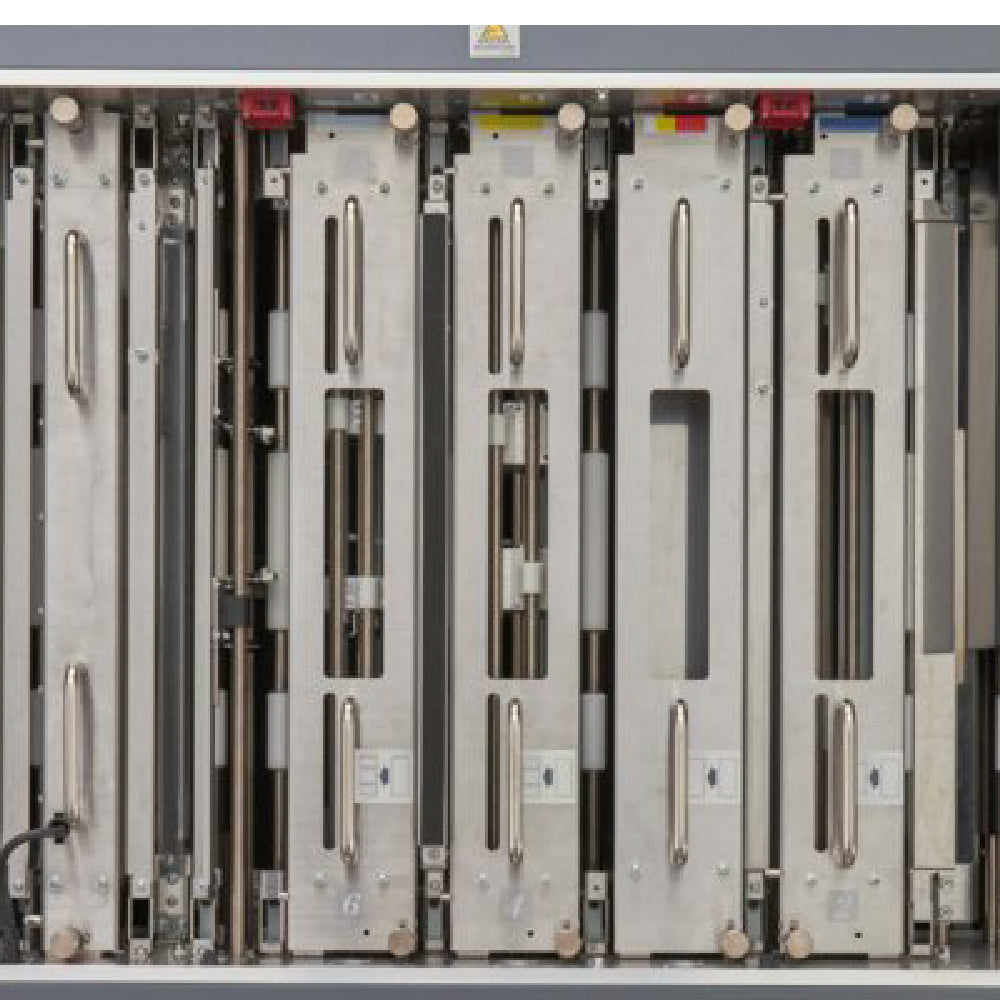

  • Modular Tool Configuration:
    Configure slitting, cutting, and creasing tools to match your job requirements.
  • Integrated Job Memory:
    Save and recall frequently used layouts for faster repeat orders.
  • Optional Perforation Capability:
    Add perforating functionality for tickets, coupons, and specialty pieces.
  • PC Controller Software:
    Manage and adjust jobs through Duplo’s user-friendly PC-based interface.

Additional Information

Speed Up to 40 sheets per minute (8.5” x 11”, 2 cuts, 1 crease, camera setting off)
Input Paper Size 8.26” x 8.26” to 14.56” x 39.37” (210 mm x 210 mm to 370 mm x 1,000 mm)
Maximum length with standard feed and exit tray: 27.95"
Minimum Finished Size 1.89” x 1.97” (48 mm x 50 mm)
Tolerance ±0.2 mm
Sheets heavier than 350 gsm: ±0.3 mm (±0.4 mm for business cards)
Documents longer than 26": Slitting ±0.6 mm / Cutting & Creasing ±1.4 mm
*Creasing tolerance may vary depending on number and depth of creases
Feeder Capacity 4.72” (120 mm)
Paper Weight 110 – 400 gsm
Slits Up to 8 per sheet (6 standard slitter tools: 2 margin slitters + 4 center slitters)
Optional slitter module with 2 additional slitters available
Cuts Up to 30 per sheet
Creases Up to 20 per sheet (interchangeable 1.2 mm and 1.4 mm widths)
Memory 250 jobs stored via control panel
Standard Features Air knife, card stacker, fan registration, automatic gutter slit deflectors, crease depth adjustment, ultrasonic double feed detection sensor, feed skew adjustment, batch separation, waste box, emergency stop switch, on-the-fly rejection, camera sensor, PC Controller software, PC pole mount, LCD control panel
Options • PC and PC Arm, 48" long conveyor stacker, elevating card stacker
• RTM-09 Rotary Tool Module (perforation, micro-perforation, scoring, slit-scoring tools – up to 3 modules)
• CPM-09 Cross Perforation Module
• OPK-03 PCB kit (required for optional modules)
• CRM-14 Up Crease Module (requires OPK-03 and OMK-15 kits)
• DC In-Line Folder with DC-F100 Folder and Stacker (requires DCK-85 Connection Kit)
Power Requirements 115V: 5.5A, 60Hz
Dimensions (W x D x H) 95” x 35” x 44” (2,430 mm x 885 mm x 1,120 mm)
Net Weight 758 lb (344 kg)
