Vastex

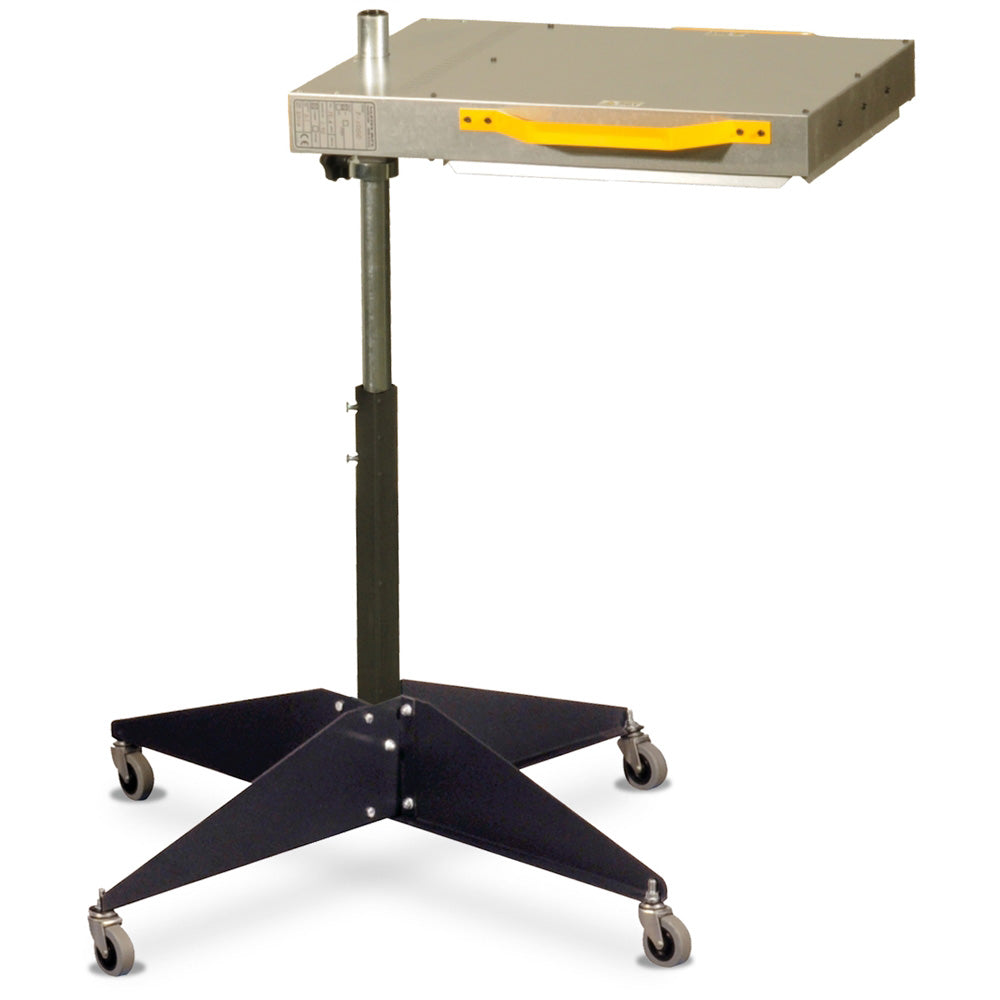

F-1000 Entry-Level Flash Dryer (Flash Cure Unit)
F-1000 Entry-Level Flash Dryer (Flash Cure Unit) - 18" x 18" / 120V
SKU:
Regular price
$1,610.00 CAD
Regular price
Sale price
$1,610.00 CAD
Unit price
per
The cost of shipping will be determined after you complete your purchase.
Entry Level Flash Cure Units
The Vastex F-Series flash dryers are perfect for the starting screen printer. Their high wattage and close coil density heaters offer greater heater surface consistency than comparable flash dryers on the market. F-Series flash dryers also feature built-in heat shields that allow them to be set closer to your garment, which increases efficiency and productivity.
• Special Order
This product is typically ready for pickup or shipping within one week, subject to lead times provided by manufacturers.
The F-1000 Entry-Level Flash Dryer (Flash Cure Unit) is a made-to-order product that is only assembled and prepared for shipment after you place your order. Please note that freight costs are not included in the purchase price. After your purchase, we will contact you to confirm shipping details, provide a shipping quote, and give you the lead times from the manufacturer. Upon payment of the shipping invoice, we will arrange delivery as per your preferences. For additional information, connect with a RB Digital sales specialist today.
Product Resources
Features And Highlights
- 15 Year Heater Warranty
- 1,950 Watt/120V or 2,600 Watt/240V, IR Heater
- Heat control with power lights
- Heavy duty side handles and locking wheels
- Head leveler to adjust the heater parallel
to the pallet - Heat shields for even heater temperature
- International power cords available
Add On Options
To add additional options, our service team will contact you after purchase to assist in fully customizing your flash cure unit.
• Rotary Table
• International power cords available
Additional Information
|
|
F-100 |
F-1000 |
REDFLASH |
AIR-FLASH |
||
| Models | F-100 | F-1000 | RD-18-240 | RD-1824-240 | RAD-18 | RAD-1824 |
| Heater Warranty | 15 Year | 15 Year | 15 Year | 15 Year | 15 Year | 15 Year |
| Bumper to Bumper Warranty | 3 Year | 3 Year | 3 Year | 3 Year | 3 Year | 3 Year |
| Heater Size | 16” x 16” (41 x 41 cm) | 18" x 18" (46 x 46 cm) | 18" x 18" (46 x 46 cm) | 18" x 24" (46 x 61 cm) | 18" x 18" (46 x 46 cm) | 18" x 24" (46 x 61 cm) |
| Controls | On/Off Switch | Bi-Metal control w/ adjustment knob | Digital percentage timer | Digital percentage timer | Digital percentage timer | Digital percentage timer |
| Unit Warm Up Time | 15 min. (120V) or 10 min. (240V) | 20 min. (120V) or 10 min (240V) | 6 min. | 12 min. | 6–10 min | 6–10 min |
| Heater Wattage | 1625 Watt Heater | 1950 (120V) or 2600 | 2600 or 3500 Watt Heater | 3500 Watt Heater | 3500 Watt Heater | 4300 Watt Heater |
| Electrical Specs* / included plug (Some models require a dedicated line. 50/60 HZ for all units.) | 120V/13A/1625W NEMA 5-15P 240V/6.5A/1625W NEMA 6-15-P |
120V/15.6/1950W NEMA 5-20P 240V/11/2600W NEMA 6-15-P |
240V/11A/2600W NEMA 6-15P 240V/16A/3500W NEMA 6-20P |
240V/16A/3500W/ NEMA 6-20P Plug | 240V/16A/3500W NEMA 6-20P | 240V/22A/4300W/ NEMA 6-30LP (plug optional) |
| Electrical Specs - AutoFlash / included plug |
110-125V/1A/NEMA 5-15P |
|||||
Shipping Weights and Dimensions
| Weight** | Dimensions** | |
| F-100 (Head and Stand) | 39 lbs (18 kg) | 23” x 28” x 9” (58 x 71 x 22.9 cm) |
| F-1000 (Head and Stand) | 42 lbs (19 kg) | 23” x 28” x 9” (58 x 71 x 22.9 cm) |
| RD-18-240 (Head Only) | 35 lbs (16 kg) | 26" x 29" x 7" (66 x 74 x 18 cm) |
| RD-1824-240 (Head Only) | 43 lbs (19.5 kg) | 26" x 35" x 8" (66 x 90 x 20 cm) |
| RAD-18-HO (Head Only) | 64 lbs (29 kg) | 29” x 26” x 15” (74 x 66 x 38 cm) |
| RAD-1824 (Head Only) | 74 lbs (35.5 kg) | 35” x 29” x 15” (89 x 74 x 38 cm) |
| AF-120/AF-240 AutoFlash kit |
51 lbs (25 kg) | 31" x 22" x 14" (79 x 56 x 36 cm) |
| SH-STAND-WS Standard Stand for Manual Flash |
22 lbs (10 kg) | 37" x 7" x 3" (94 x 18 x 8 cm) |
| SHHD-STAND-M Heavy Duty Stand for Manual Flash |
42 lbs (19kg) | 30” x 14” x 7” (76 x 35.5 x 18 cm) |
| SH-LEGS-AF Standard Stand for AutoFlash |
15 lbs (7 kg) | 37" x 7" x 3" (94 x 18 x 8 cm) |
| SHHD-STAND Heavy Duty Stand for AutoFlash |
39 lbs (18 kg) | 30” x 15” x 11” (76 x 38 x 28 cm) |
- The F-1000 120V flash cure unit uses a NEMA 5-20P plug. Please refer to the image below for reference.
- The F-1000 240V flash cure unit uses a NEMA 6-15P plug. Please refer to the image below for reference.
