Duplo

Duplo UD M300 Rotary Die Cutter

Duplo UD M300 Rotary Die Cutter - Default Title

SKU:

Financing Options

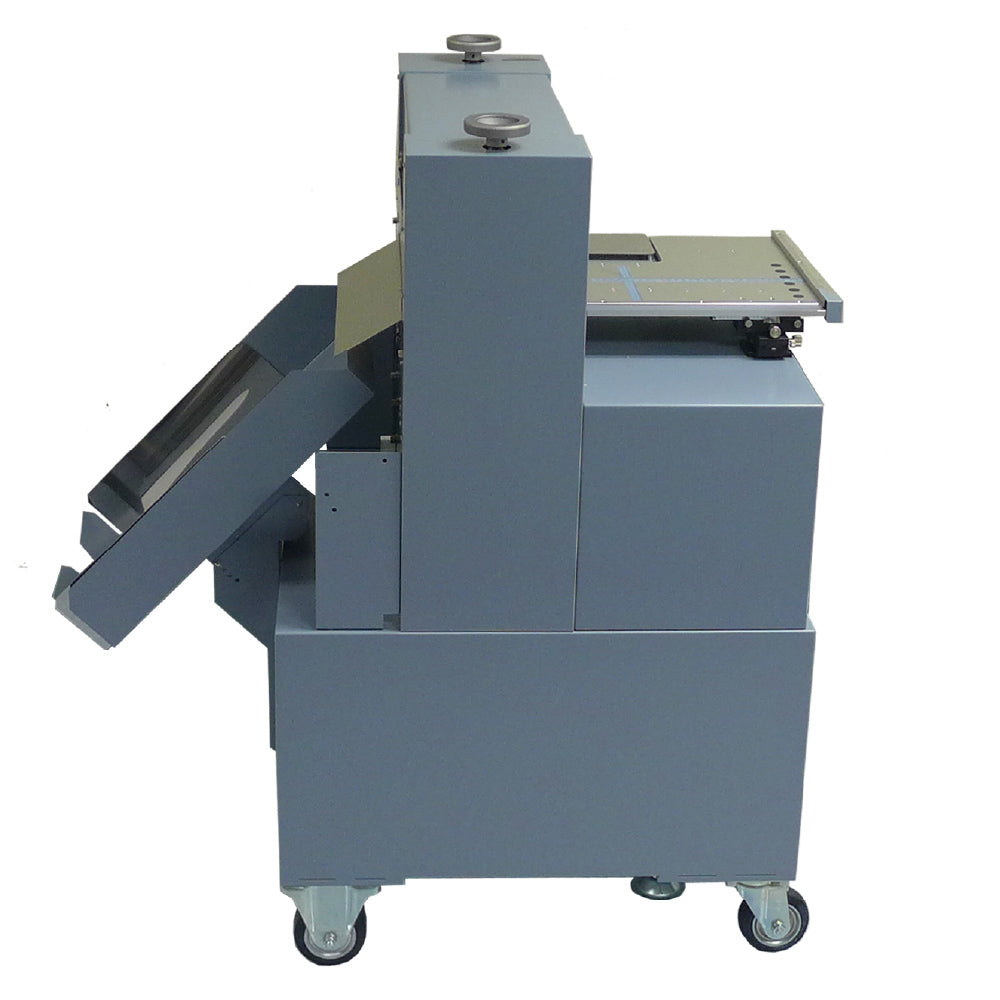

The compact UD-M300 Rotary Die Cutter offers a hand-feed solution for producing cards, tags, and other print products in quantities as low as one. It utilizes the same magnetic cylinder and interchangeable flexible dies as the UD-310 model to process paper, laminates, adhesives, and synthetic stocks. The UD-M300 comes standard with a receiving tray but a separation station with the long conveyor stacker can be added as an option to automatically remove the skeleton from each finished piece.

Features

  • Easy die set up and changeover

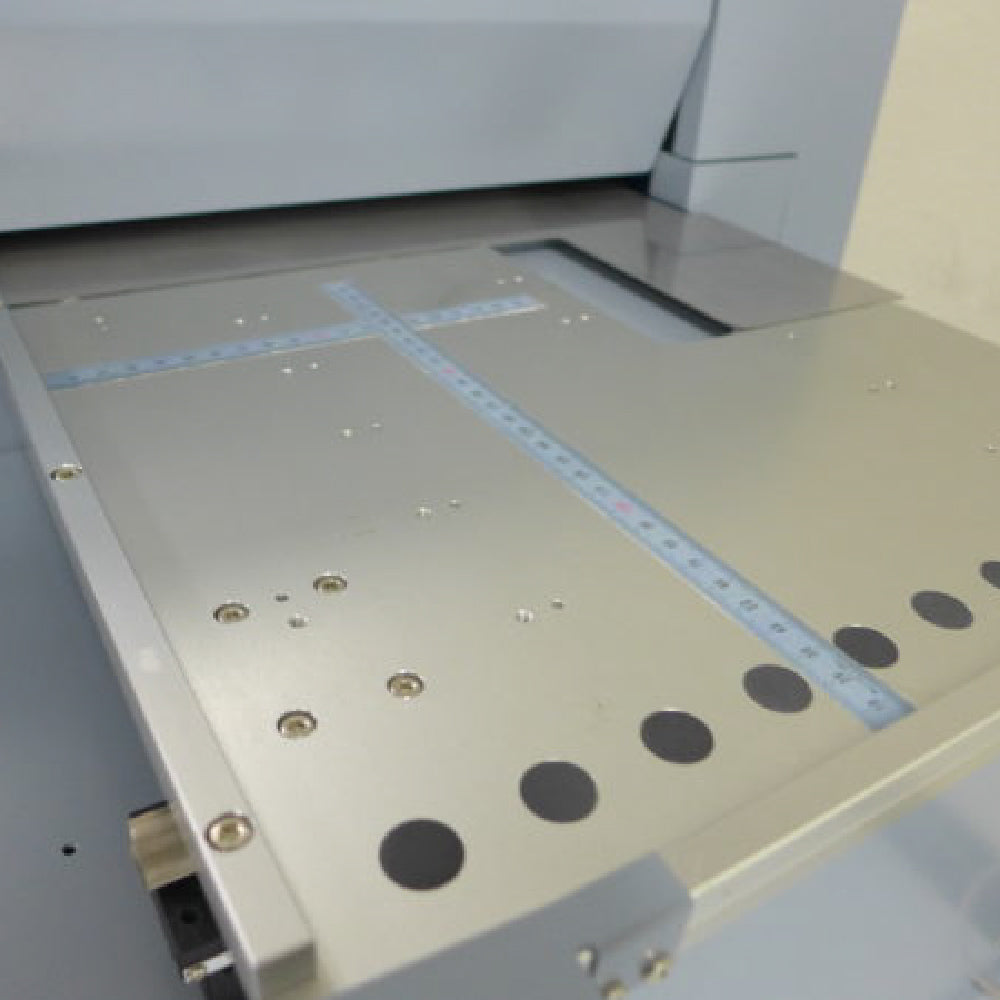

  • Manual feed tray and foot pedal operation

Product Resources

Afficher tous les détails

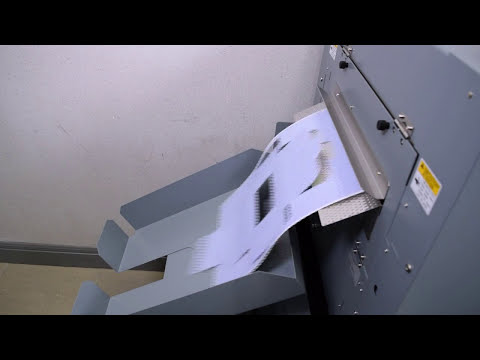

See It In Action



  • Rotary Die Technology

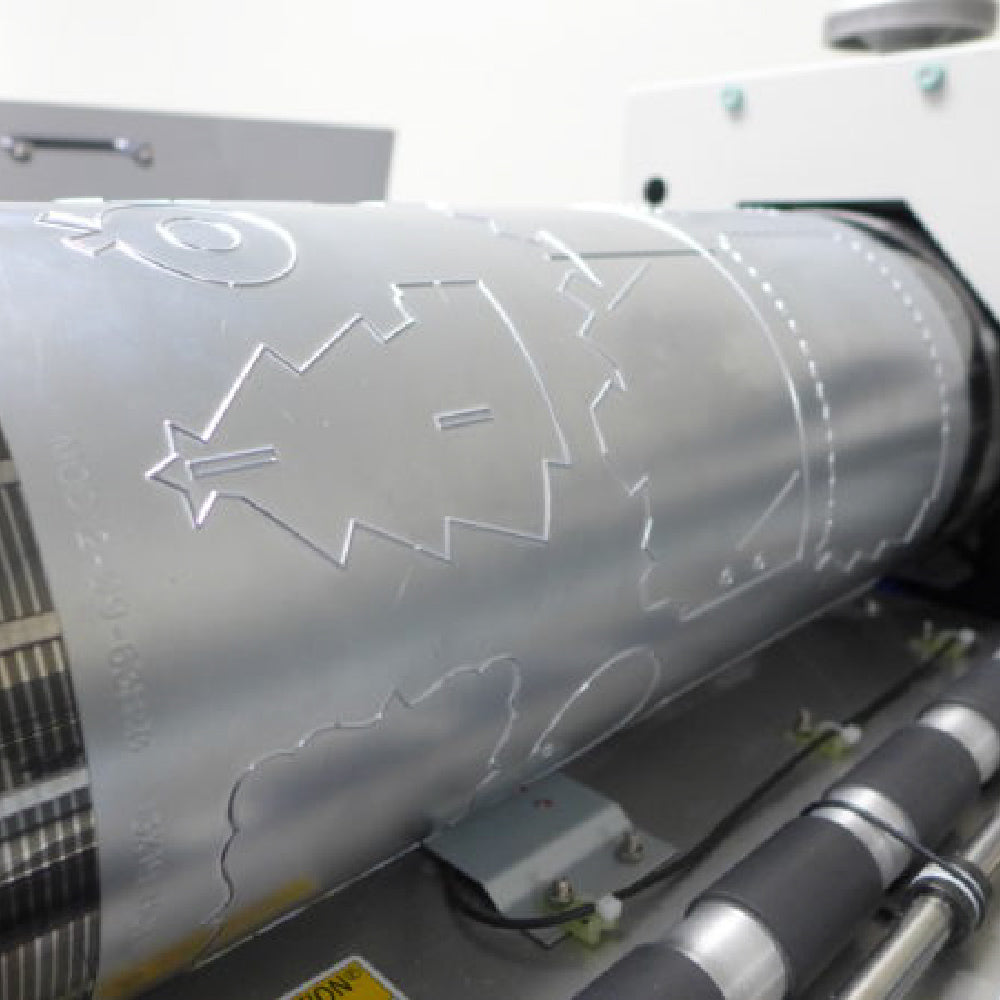

    MAGNETIC ROTARY DIE TECHNOLOGY

    Uses flexible magnetic dies for fast, repeatable die cutting

  • Precision Registration System
    PRECISION REGISTRATION SYSTEM

    Optical sensor ensures accurate alignment for clean cuts

  • Roll-to-Sheet Processing
    ROLL-TO-SHEET PROCESSING

    Feeds roll media and converts it into precisely cut sheets

  • High-Speed Operation
    HIGH-SPEED OPERATION

    Designed for efficient label and packaging production

  • Compact Inline Design
    COMPACT INLINE DESIGN

    Fits easily into digital print finishing environments

  • Precision Rotary Die Cutting Made Simple




  • Precision Rotary Die Cutting Made Simple


    The UD-M300 delivers accurate, repeatable die cutting using flexible magnetic dies, making it ideal for labels, packaging components, and specialty print applications. Its rotary system ensures smooth operation and consistent results across every sheet.



  • Designed for Digital Finishing Workflows


    Built to complement digital print production, the UD-M300 efficiently processes laminated, adhesive, and synthetic stocks. With fast setup and dependable feeding, it helps print providers expand into high-value die-cut applications with confidence.

  • Designed for Digital Finishing Workflows

Features



  • Adjustable Cutting Pressure:
    Fine-tune depth control to match various stock thicknesses.
  • Three-Speed Operation:
    Select optimal speed settings for different job requirements.
  • Top Belt Air Suction Feeder:
    Ensures stable, reliable sheet feeding.
  • Wide Paper Size Range:
    Accommodates a variety of sheet sizes for versatile applications.
  • Heavy Stock Capability:
    Supports substrates up to 400 gsm.
  • Production-Ready Build:
    Durable construction designed for commercial print environments.

Additional Information

System Type Rotary Magnetic Cylinder Die Cutter
Paper Size (W x L) Minimum: 8.267” x 11.693” (219 x 297 mm)
Maximum: 14.33” x 20.275” (364 x 515 mm)
Paper Thickness Minimum: 106 gsm
Maximum: 400 gsm
With Separator (optional): Minimum 200 gsm
Feed System Hand feed with in-tray start switch and foot pedal
Substrates Normal paper, coated paper, adhesive label stock
Power AC 110–115V, 50/60 Hz, 5 Amps
Dimensions (L x W x H) 40” x 27.17” x 46.85” (1,016 x 690 x 1,190 mm)
With conveyor: 84” x 27.17” x 46.85” (2,134 x 690 x 1,190 mm)
