Used Machine

Vastex

Dri-Vault Heavy Duty Screen Drying Cabinets (Used Machine)

Dri-Vault Heavy Duty Screen Drying Cabinets (Used Machine) - Default Title

SKU:

$3,800.00 CAD
$4,406.25 CAD $3,800.00 CAD
Vente Épuisé
The cost of shipping will be determined after you complete your purchase.

Located at the Montreal office. Shipping is additional.

Showroom machine. 60 day warranty.

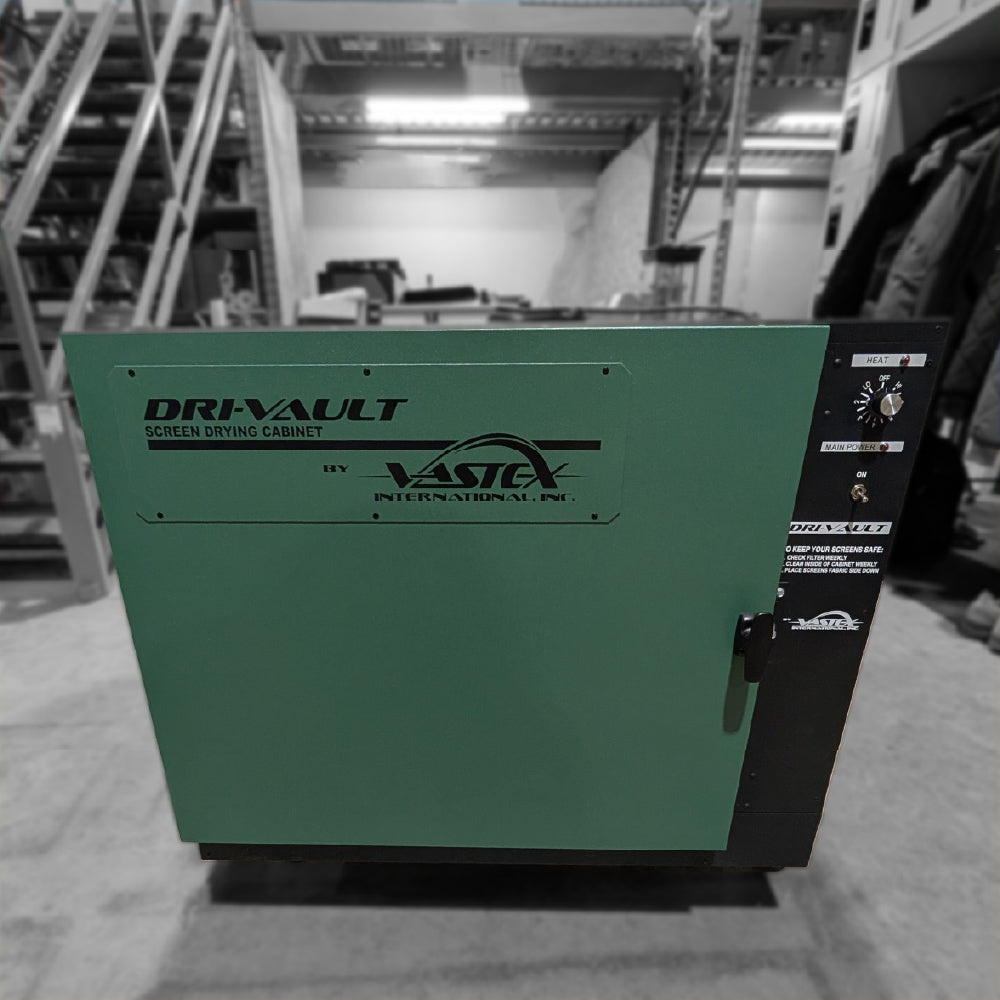

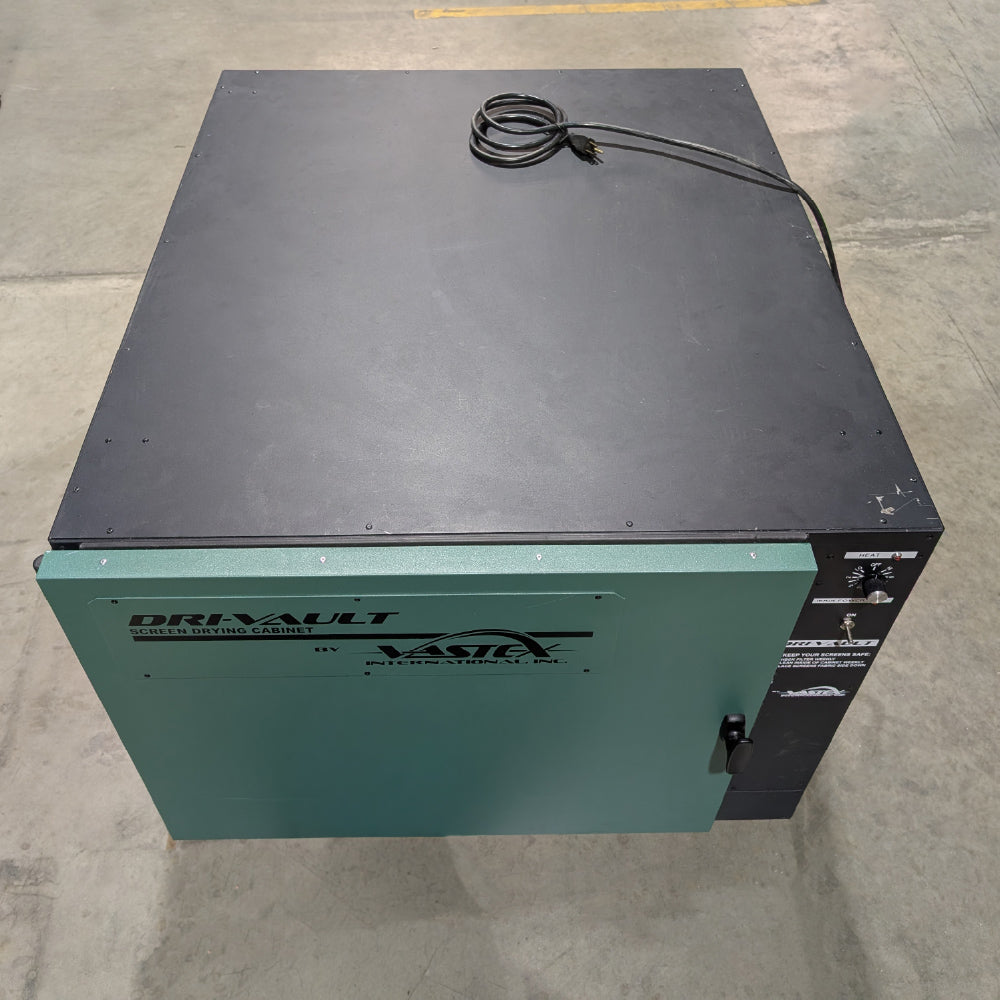

Dry your screens securely in the Dri-Vault by Vastex. Variable heat and powered air flow can have your screens ready for exposure, in as little as 20 minutes! The Dri-Vault's light tight design prevents screen exposure, and angled shelves prevent emulsion from sticking to the shelf. Its easily replaceable filter keeps dust and other contaminants away from your screens. It also serves as the perfect base for an E-1000 or E-2000 Exposure Unit.



    • Special Order
    disabled
    This product is typically ready for pickup or shipping within one week. In some cases, lead times may extend up to four weeks based on manufacturer availability.
    The Dri-Vault Heavy Duty Screen Drying Cabinets (Used Machine) is a made-to-order product that is only assembled and prepared for shipment after you place your order. Please note that freight costs are not included in the purchase price. After your purchase, we will contact you to confirm shipping details, provide a shipping quote, and give you the lead times from the manufacturer. Upon payment of the shipping invoice, we will arrange delivery as per your preferences. For additional information, connect with a RB Digital sales specialist today.

    Product Resources

    Afficher tous les détails

    Often Purchased With

    Features And Highlights



    • RELIABLE

      3 Year Warranty

    • HEAVY DUTY

      Industrial stainless steel finned heater(s)

    • CAPACITY

      Holds ten (10) or twenty four (24) 25" x 36" (63.6 x 91.4 cm) screens of any type

    • CONSISTENT

      Pressurized cabin with positive air flow keeps out contaminants even if an air leak occurs

    • EFFECTIVE

      Screens sit horizontal on removable shelves (angled to provide edge contact only)

    • FAST

      Dries emulsion as quickly as 20 minutes**

    • SECURE

      One (1) sealed latching door 10 screen or two (2) individually sealed latching doors on the 24 screen unit

    • CONTROL

      10 screen cabinet has Hi-Low heat adjustment OR the 24 screen cabinet has breaker on/off switch, pilot light, digital temperature control, both have ability to run air only or variable heat.

    • POWERFUL

      One (1) 200 CFM (5.7 CMM) air flow blower or two (2) 290 CFM (14.2 CMM) air flow blowers

    • EFFICIENT

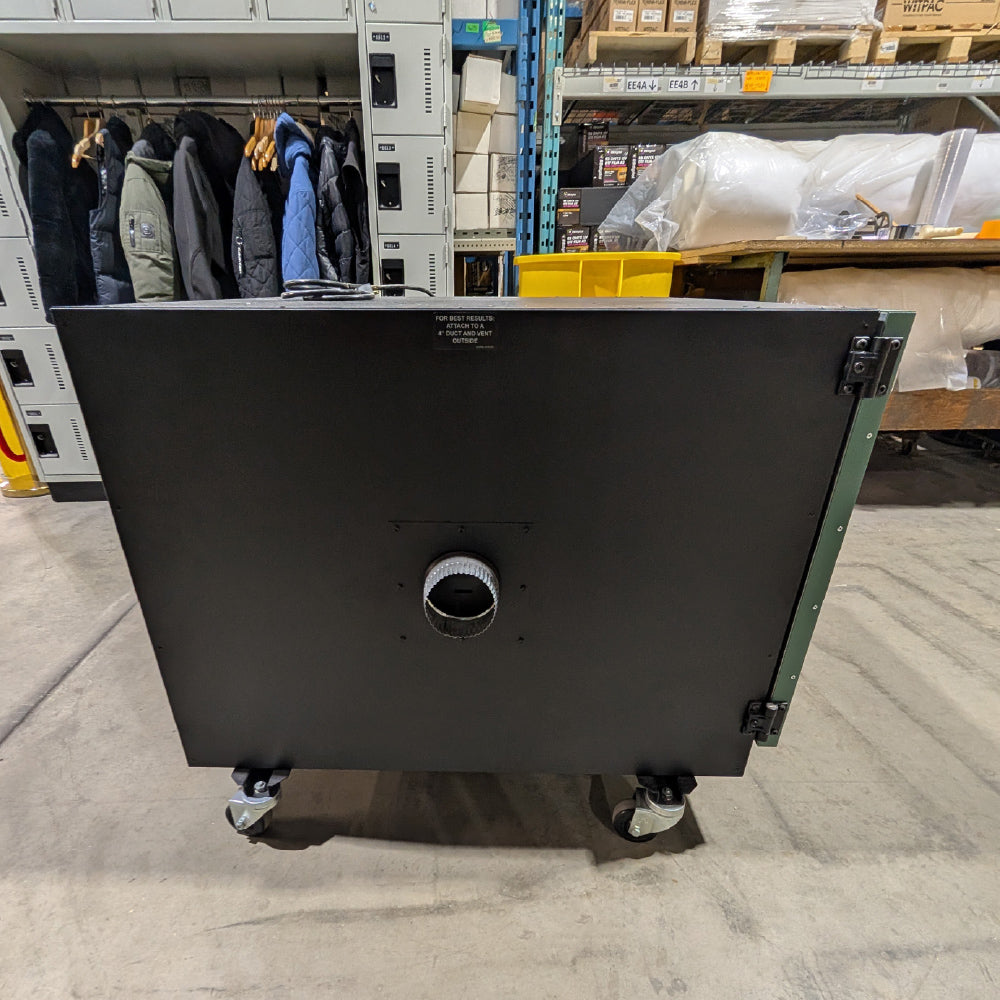

      4" (10 cm) exhaust duct for contaminated air removal

    • PRECISE

      Light tight heavy duty double wall

    • EASY

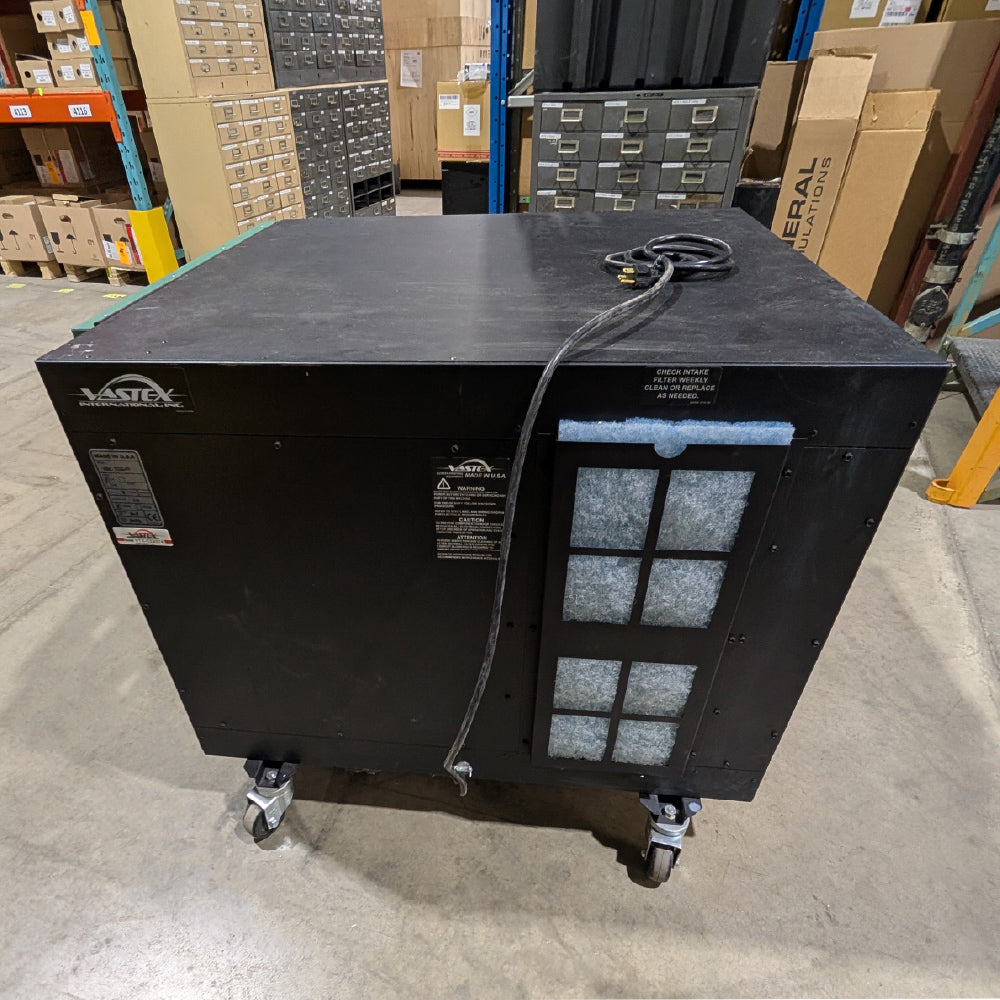

      Simple to clean or replace filtered air intake



    Additional Information

    Drying Cabinets Specifications




    Dri-Cab

    Dri-Vault - Drying Cabinets
      VDC-2331 VDC-253610 VDC-253624 VDC-513610
    Defect Warranty 5 Year 5 Year 5 Year 5 Year
    Maximum # of Screens 10 @ maximum size 10 @ maximum size 24 @ maximum size (10) @ 51” x 36” / (20) @ 25” x 36”
    Maximum Screen Size 23” x 31” x 1.625” (58.4 x 78.7 x 4.12 cm) 25" x 36" x 1.625" (63.5 x 91.4 x 4.12 cm) 25" x 36" x 1.625" (63.5 x 91.4 x 5.7 cm) (10 screens) @ 51” x 36” (20 screens) @ 25” x 36”
    Smallest Screen Width 16" (46 cm) 18" (46 cm) 18" (46 cm) No minimum due to adjustable center tree
    Blower (Free Air) 113 CFM (3.2 CMM) 177 CFM (5 cmm)120v or 290 CFM (8.2cmm) 240volt 580 CFM (16.4 CMM) 290 CFM (8.2 CMM)
    Overall Depth x Width x Height 36” x 26” x 32” (91 x 66 x 81 cm) 39.5" x 34.75" x 32" 39.5" x 34.75" x 81" 39.5” x 62.5” x 32.3”
    Heater Wattage N/A 1,000 Watts 120 Volts or 2,000 Watts 240 Volts 3,100 Watts 240 Volts 1,550 Watts @ 240 Volts
    Power & Plug Spec International Available 120V / 1A / 1 Ph. / 60 HZ / NEMA 5-15P plug
    or
    240V / 1A / 1 Ph. / 50/60 HZ / NEMA 6-15P plug    		 120V / 10A / 1 Ph. / 60 HZ / NEMA 5-15P plug
    or
    240V / 6A / 1 Ph. / 50/60 HZ / NEMA 6-15P plug    		 240V / 16A / 1 Ph. / 50/60 HZ / NEMA 6-20P plug 240V / 6A / 1 Ph. / 50/60 HZ / NEMA 6-15P plug
    Shipping Weight (Assembled)* 212 lbs (55.3 kg) 367 lbs (166.5 kg) 670 lbs (303 kg) 573 lbs (277 kg)
    Shipping Dimensions (Assembled)* 43" x 35" x 40" (110 x 89 x 102 cm) 43" x 43" x 48" (109 x 109 x 122 cm) 43" x 43" x 84" (109 x 109 x 213 cm) 69” x 48” x 48” (175.3 x 122 x 122 cm)
    Shipping Weight (Unassembled)* Box # 1 - 121 lbs (55 kg)
    Box # 2 - 15 lbs (6.8 kg)    		 N/A N/A N/A
    Shipping Dimensions (Unassembled)* Box # 1 - 43” x 29” x 9” (110 x 74 x 23 cm)
    Box # 2 - 34” x 29” x 8” (87 x 74 x 21 cm)    		 N/A N/A N/A





    LED Exposing Units Specifications


      E20-2024 E200-2128 E200-2331 E2-2536 E2-5236
    Overall Warranty 1 Year 3 Year 3 Year 3 Year 3 Year
    Light Bar Warranty 5 Year 5 Year 5 Year 5 Year 5 Year
    Maximum Screen Size 20" x 24" (51 x 61 cm) 21" x 28" (53 x 71 cm) 23" x 31" (58 x 78 cm) 25" x 36" (63 x 91 cm) 52" x 36" (132 x 91 cm) or (2) 25” x 36” (63 x 91 cm)
    Image Area 12" x 15" (31 x 38 cm) 15" x 18" (38 x 45 cm) 16" x 33" (58 x 83 cm) E2 - 24" x 36" (61 x 91 cm) E2 - 46" x 36" (116 x 91 cm)
    Controls Pressure Pad Lid with Vacuum Lid with Vacuum Lid with Ring Blower Lid with Ring Blower
    UV Source Qty. (2) 15” (38 cm) VLB-15 LED light bars Qty. (3) 15” (38 cm) VLB-15 LED light bars Qty. (3) 30” (76 cm) VLB-30 LED light bars Optional 4th bar available Qty. (6) 30” (76 cm) VLB-HO-30 LED light bars Qty. (12) 30” (76 cm) VLB-HO-30 LED light bars
    Screen Vacuum/Compression Source Pressure Pad 1/16 HP Pump 24 hg Max 1/16 HP Pump 24 hg Max 1/2 HP Ring Blower 60 CFM 1/2 HP Ring Blower 60 CFM
    Power & Plug Spec International Available 120V 1A NEMA 5-15P plug

    240V .5A NEMA 6-15P plug    		 120V 3.5A NEMA 5-15P plug

    240V 2A NEMA 6-15P plug    		 120V / 60 HZ / 3.5A NEMA 5-15P

    240V / 50/60 HZ / 2A NEMA 6-15P    		 120V / 60 HZ / 8A NEMA 5-15P

    240V / 50/60 HZ / 2A NEMA 6-15P    		 120V / 60 HZ / 14A NEMA 5-20P

    240V / 50/60 HZ / 7A NEMA 6-15P
    Overall Depth x Width x Height With Pressure Pad 26.1" x 21.5" x 8.4" (67 x 55 x 22 cm)

    Without Pressure Pad 26.1" x 21.5" x 6.6" (67 x 55 x 17 cm)    		 Lid Closed 35.75" x 34.75" x 14" (83 x 88 x 36 cm)

    Lid Open 35.75" x 34.75" x 28" (83 x 88 x 71 cm)    		 Lid Closed 41.6 x 36.2 x 17" (105.7 x 92 x 44 cm)

    Lid Open 41.6 x 36.2 x 32" (105.7 x 92 x 82 cm)    		 Lid Closed 38.3” x 49.3” x 44.5” (97.3 x 125.3 x 113.1 cm)

    Lid Open 38.3” x 49.3” x 73.7” (97.3 x 125.3 x 187.3 cm)    		 Lid Closed 67” x 53.6” x 44.5” (170.2 x 136.2 x 113.1 cm)

    Lid Open 67” x 53.6” x 69” (170.2 x 136.2 x 187.3 cm)
    Overall Weight - Uncrated 30 lbs (13.6 kg) w/o glass
    45 lbs (20.4 kg) w/ glass    		 100 lbs (45.4 kg) 180 lbs (81.6 kg) 230 lbs (104.4 kg) 346 lbs (157 kg)
    Shipping Weight* 33 lbs (15 kg) Glass not included (call for shipping details) 223 lbs (101 kg) w/ Utility Cart (UC-1000) 483 lbs (219 kg) 386 lbs (175 kg) w/ drying cabinet VDC-253610 570 lbs (259 kg) 430 lbs (195 kg) w/ drying cabinet VDC-253610 579 lbs (263 kg) 699 lbs (318 kg) w/ drying cabinet VDC-523610 895 lbs (406 kg)
    Shipping Dimensions* 31" x 25" x 13" (79 x 64 x 33 cm) Glass not included (call for shipping details) 43" x 43" x 17" (109 x 109 x 43 cm) w/ Utility Cart (UC-1000) 43" x 43" x 35" (109 x 109 x 89 cm) 48" x 45" x 20" (122 x114.3 x 51 cm) w/ drying cabinet VDC-253610 49” x 45” x 38” (124 x 114 x 97 cm) 49" x 45" x 49" (125 x 114 x 125 cm) w/ drying cabinet VDC-253610 49” x 45” x 49” (125 x 114 x 125 cm) 74" x 59" x 49" (188 x 149.9 x 125 cm) w/ drying cabinet VDC-253610 74" x 59" x 49" (188 x 149.9 x 125 cm)
    • The VDC-253610 120V screen drying cabinet uses a NEMA 5-15P plug. Please refer to the image below for reference.


    Plug Reference 120V





    • The VDC-253610 240V screen drying cabinet uses a NEMA 6-15P plug. Please refer to the image below for reference.


    Plug Reference 240V





    • The VDC-253624 240V screen drying cabinet uses a NEMA 6-20P plug. Please refer to the image below for reference.


    Plug Reference 240V
