Presse de sérigraphie automatique COPPERHEAD INTEL

Presse de sérigraphie automatique COPPERHEAD INTEL - Default Title

SKU:

Financing Options

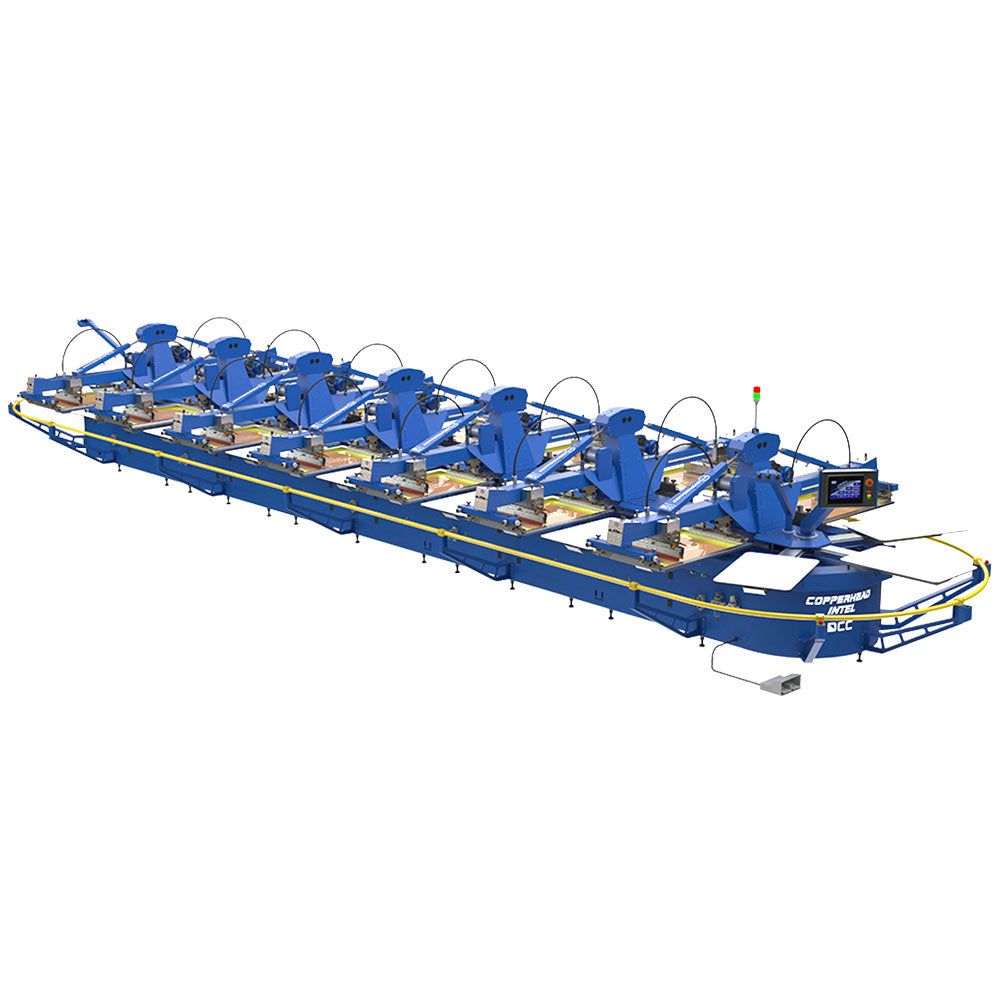

La presse sérigraphique ovale automatique Copperhead Intel de M&R Global allie un rendement élevé et une construction durable aux fonctionnalités les plus récentes en matière de conception de presses ovales. L'Intel est équipée en standard de têtes d'impression électroniques, de verrouillages de cadre pneumatiques, de commandes indépendantes pour les vitesses d'impression et de recouvrement, ainsi que de la gamme complète de programmation automatique fonctionnant dans des configurations d'impression dans le sens des aiguilles d'une montre ou inverse.



L'Intel est livrée dans une configuration standard Imprimer/Sécher/Imprimer (PFP), l'un des choix les plus populaires plébiscités par les imprimeurs du monde entier. La Copperhead Intel est modulable jusqu'à des configurations de 64 stations pour répondre aux différents besoins d'impression et de séchage, et le système d'indexation comprend une fonction de tension automatique de la chaîne pour minimiser l'usure.



Chaque tête d'impression Intel utilise le système breveté d'égalisation de pression de la racle, qui maintient une pression uniforme sur toute la surface d'impression afin de minimiser la pression d'impression, de préserver les détails de l'image et d'éviter les variations de dépôt d'encre. Toutes les palettes standard Intel sont en aluminium massif et léger, recouvertes de caoutchouc pour mieux gérer la chaleur lors du séchage.



La presse ovale Copperhead Intel est assemblée avec des composants de la plus haute qualité provenant du monde entier et fabriquée pour assurer constance et durabilité. Avec toutes les caractéristiques des presses de la série Copperhead et le format flexible et puissant de la presse ovale, l'Intel oval offre la combinaison idéale pour vos besoins d'impression à haut volume.

Product Resources

Afficher tous les détails

Features And Highlights



  • Squeegee Pressure Equalizer System

    Revolutionary printhead technology with auto balancing system

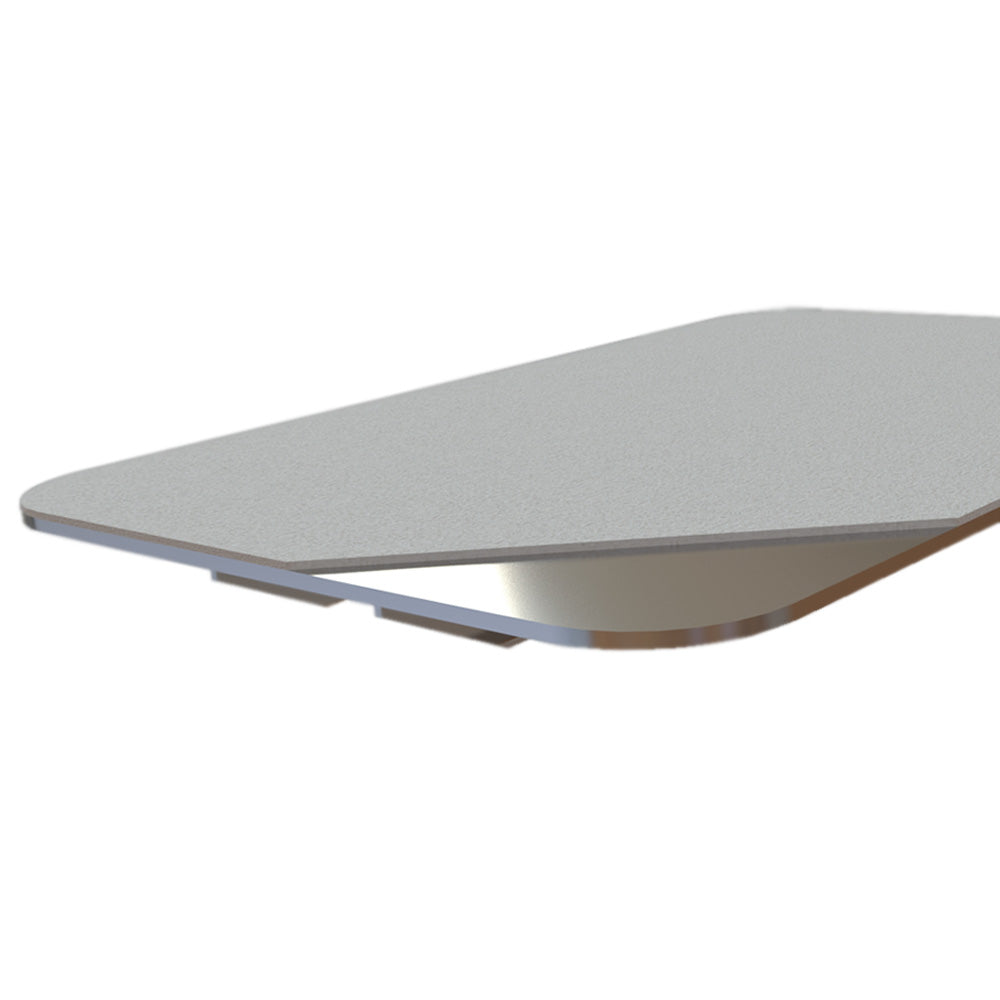

  • Solid Aluminum Pallet

    Insulated special rubber coating to minimize heat loss for better print quality

  • Design & Construction

    Heavy-duty welded steel structure

  • Quality Inside And Out

    With easy retrogression feature, multiple layers of ink deposited for high definition

  • Precision Matters

    Innovative indexing mechanism with an accuracy of +/-5 microns

  • Print Stack Mode

    Stacks layers of ink for HD & specialty printing



Cutter

Additional Information

CAROUSEL/INDEXER SYSTEM
  • Clockwise or counterclockwise rotation

CONTROL CENTER

  • Icon-based digital touchsreeen control panel

  • Multiple (1-9) print stroke capability

  • Provides control of multi-print functionality

  • Real-time production data

  • Optional foot pedal allows operator to skip printing on a particular pallet

  • Maintenance reminder mode alerts operators when scheduled maintenance is due with pictures & respective procedures

  • Idle Mode to pre heat pallets

  • Independent print-start/print-finish setting automatically activates and stops printheads at the beginning and end of screen printing runs

  • Onboard self-diagnostics

  • Production speed monitor ensures more accurate job cost estimates

  • Built-in flash connector controlled by touch screen display

  • Print stack mode for HD and specialty printing available


DESIGN & CONSTRUCTION

  • Test print setting turns individual printheads on/off during test print cycle

  • Printheads and pallet arms provide the stability necessary for exceptional screen print quality

  • Built of heavy-duty steel and premium components


INDEX SYSTEM

  • Servo drives combine higher screen printing press speeds with exceptional smoothness, consistency and longevity


LASER LOCATOR SYSTEM
  • Assists operators in the precise positioning of garments and cut pieces

OFF-CONTACT
  • Tool-free four-corner off-contact settings allow fast and accurate screen leveling

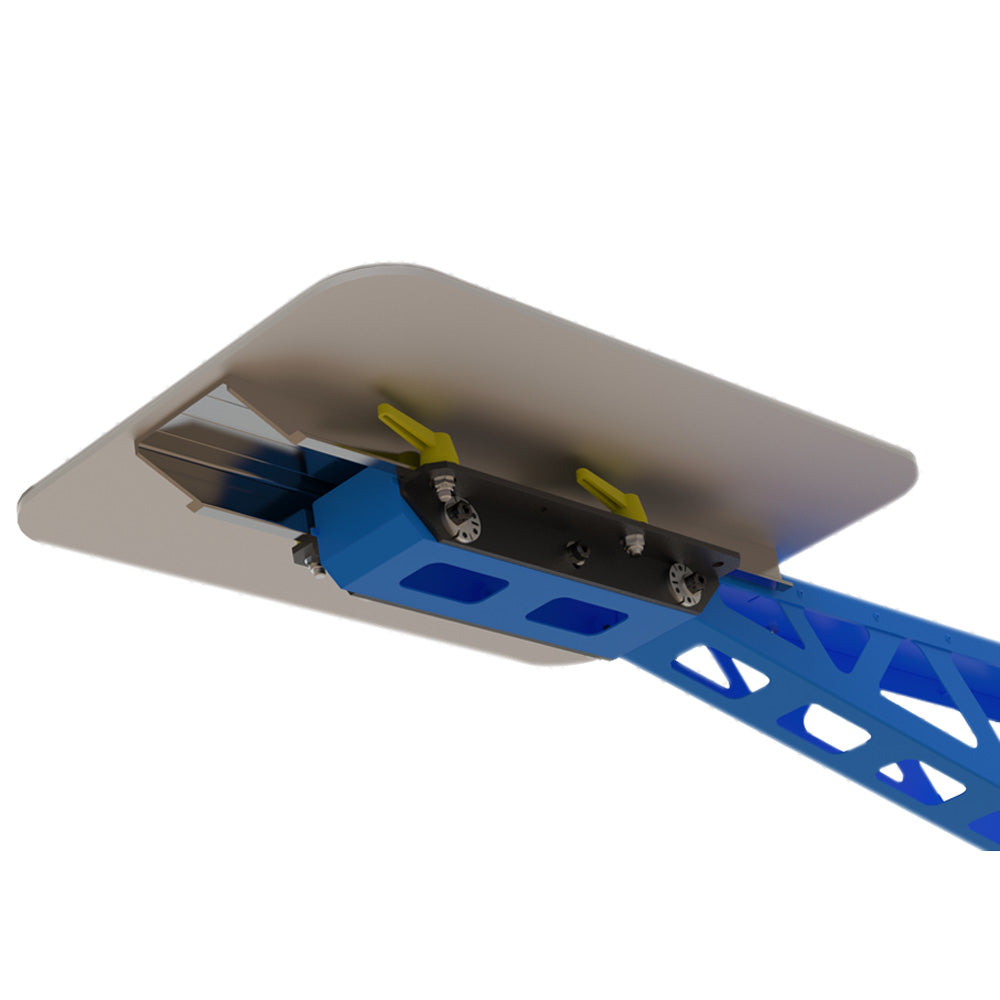

PALLET SYSTEM
  • Tool free quick release pallet locks

PALLETS
  • Lightweight aluminum, rubber-coated screen printing pallets

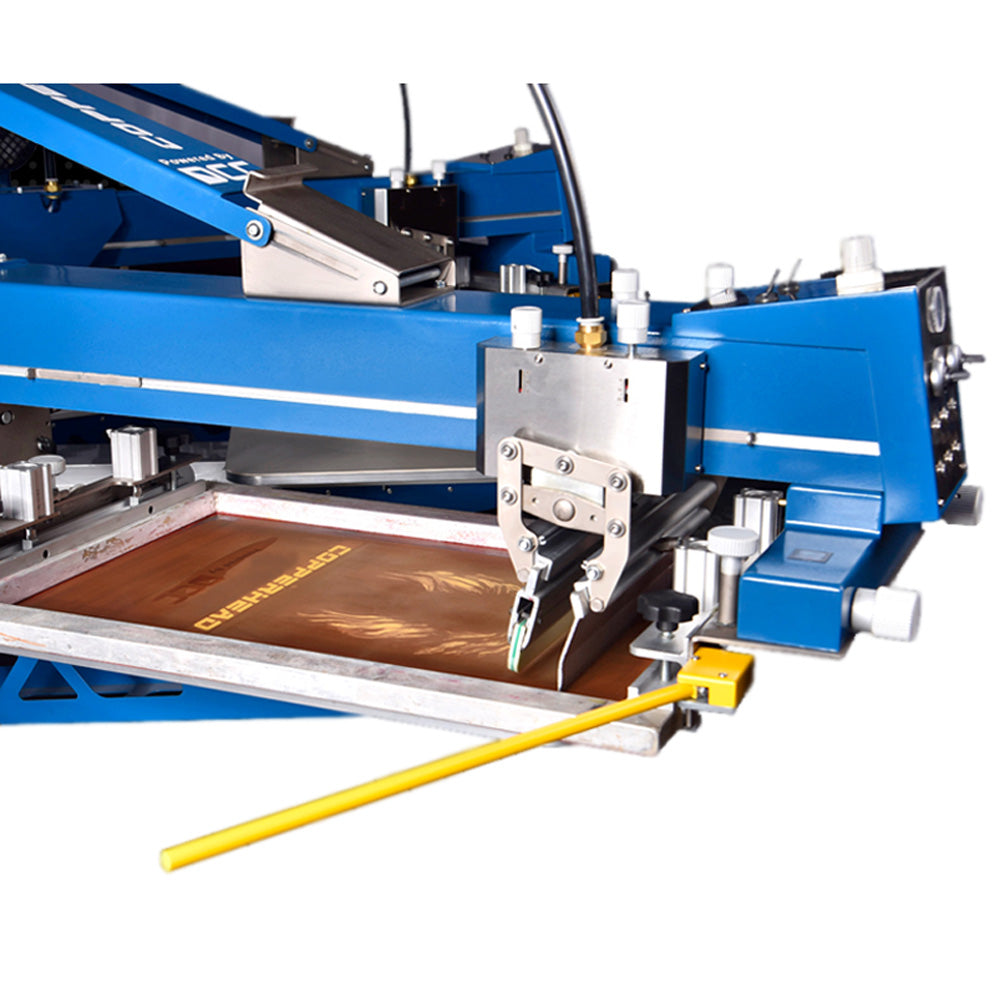

PRINTHEADS

  • Low maintenance electric drive motors provide exceptionally smooth print strokes

  • Independent print/flood speed controls on each printhead simplify press setup

  • Squeegee print stroke can be set front-to-back or back-to-front

  • Independent print controls on each printhead

  • Multi-print option with or without head lifting


REGISTRATION

  • Rear micro-registration

  • Enhanced front micro-registration adjustments with visual guides

  • 4 point registration system provide consistent accurate set ups


REVOLVER

  • Automatically operates individual printheads in programmed sequence and allows flashing without losing a screen printing position

  • Touchscreen display with simplified programming provides easy setup of the Revolver Sequencing Program


SCREEN CLAMPS & HOLDERS

  • Adjustable rear screen holders accommodate a wide variety of screen sizes

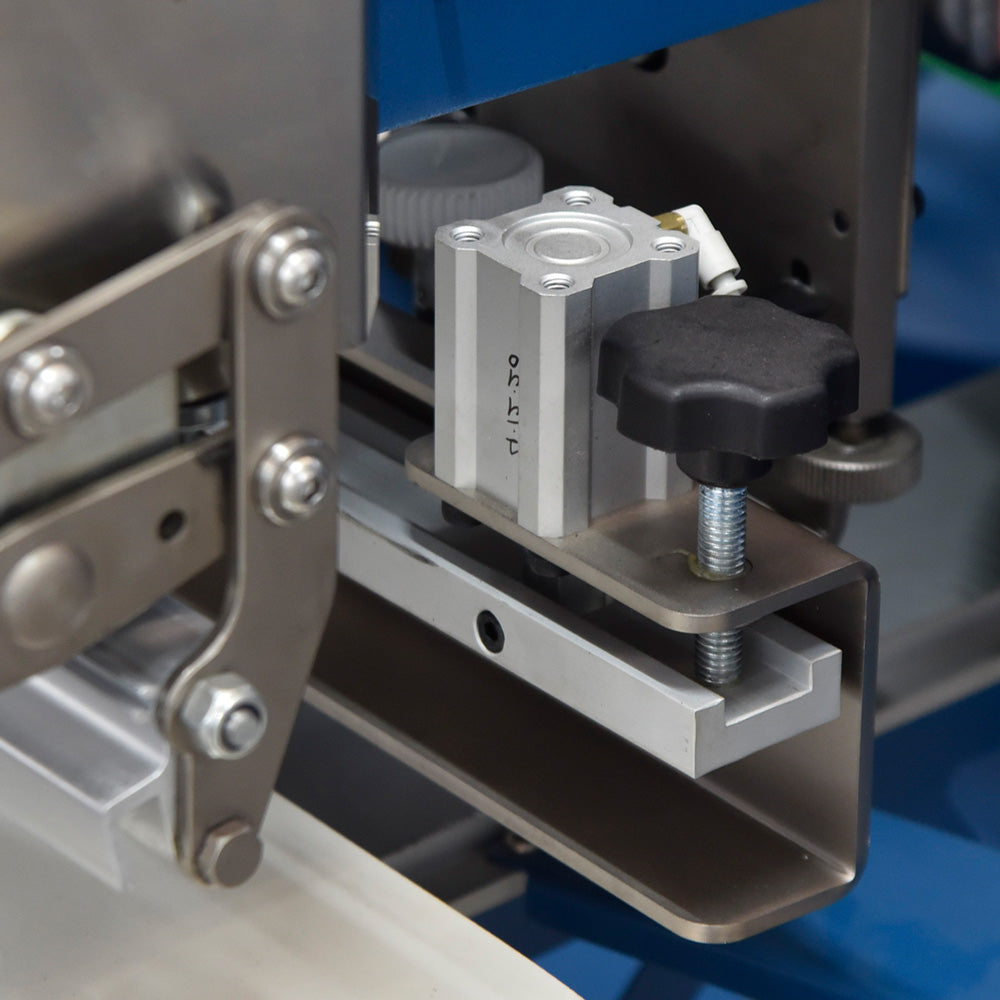

  • Pneumatic clamps hold frames tight and allow for rapid screen loading. Manual safety knobs save registration in the event of pneumatic air loss

  • Clamping system holds roller frames without special adapters



SQUEEGEE HOLDER

  • Squeegee holder can be quickly installed with a locking pin

  • Helps prevent thinner water-based and discharge inks from flowing into the image area


SQUEEGEE/FLOODBAR

  • Angle and calibrated pressure adjustments are independently set

  • Independent squeegee & floodbar speed adjustments

  • Visual reference marks every 5 degrees simplify squeegee/floodbar angle adjustments

  • Front or rear print carriage stop position allows operator to leave screens clear or flooded (great for water-based inks)

  • Squeegee pressure regulator on each printhead offers exceptional control of print pressure


STROKE LENGTH ADJUSTMENT

  • Tool-free stroke length adjustment maximizes screen printing speed


WARRANTY, SERVICE AND SUPPORT
  • 24-hour hotline is staffed 365 days a year
  • Access to M&R’s Training Center
  • Two-year limited warranty
SPECIFICATIONS INTEL 5171
20/8		 INTEL 5171
28/12		 INTEL 5171
32/14		 INTEL 5171
40/18		 INTEL 5171
44/20		 INTEL 5171
52/24		 INTEL 5171
56/26		 INTEL 5171
64/30
Air @ 7 Bar (102 psi) 1430 l/min (51 cfm) 2090 l/min (74 cfm) 2420 l/min (86 cfm) 3080 l/min (109 cfm) 3410 l/min (120 cfm) 4070 l/min (144 cfm) 4400 l/min (155 cfm) 5060 l/min (179 cfm)
Electrical Requirements1 208-230 V, 3 ph, 15 A, 50/60 Hz, 4.75kW (UL)
380-415 V, 3 ph, 11.5 A, 50 Hz, 4.75kW (CE)		 208-230 V, 3 ph, 20 A, 50/60 Hz, 6.25kW (UL)
380-415 V, 3 ph, 16.5 A,50 Hz, 6.25kW (CE)		 208-230 V, 3 ph, 22 A, 50/60 Hz, 7kW (UL)
380-415 V, 3 ph, 16.5 A, 50 Hz, 7kW (CE)		 208-230 V, 3 ph, 27 A, 50/60 Hz, 8.5kW (UL)
380-415 V, 3 ph, 21 A, 50 Hz, 8.5kW (CE)		 208-230 V, 3 ph, 29.5 A, 50/60 Hz, 9.25kW (UL)
380-415 V, 3 ph, 21 A, 50 Hz, 9.25kW (CE)		 208-230 V, 3 ph, 34 A, 50/60 Hz, 10.75kW (UL)
380-415 V, 3 ph, 24.5 A, 50 Hz, 10.75kW (CE)		 208-230 V, 3 ph, 36.5 A, 50/60 Hz, 11.5kW (UL)
380-415 V, 3 ph, 24.5 A, 50 Hz, 11.5kW (CE)		 208-230 V, 3 ph, 41 A, 50/60 Hz, 13kW (UL)
380-415 V, 3 ph, 29 A, 50 Hz, 13kW (CE)
Maximum Built-in Flash
Cure Unit Plugs		 6 8 10 12 14 16 18 20
Standard Image Size 51 x 71 cm (20" x 28") 51 x 71 cm (20" x 28") 51 x 71 cm (20" x 28") 51 x 71 cm (20" x 28") 51 x 71 cm (20" x 28") 51 x 71 cm (20" x 28") 51 x 71 cm (20" x 28") 51 x 71 cm (20" x 28")
Standard Pallet Size 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35") 60 x 89 cm (23.5" x 35")
Standard Frame Size (OD) 66 x 109 cm (26" x 43") 66 x 109 cm (26" x 43") 66 x 109 cm (26" x 43") 66 x 109 cm (26" x 43") 66 x 109 cm (26" x 43") 66 x 109 cm (26" x 43") 66 x 109 cm (26" x 43") 66 x 109 cm (26" x 43")
Maximum Image Size
(Double Index)		 91 x 71 cm (36" x 28") 91 x 71 cm (36" x 30") 91 x 71 cm (36" x 30") 91 x 71 cm (36" x 30") 91 x 71 cm (36" x 30") 91 x 71 cm (36" x 30") 91 x 71 cm (36" x 30") 91 x 71 cm (36" x 30")
Double Index Pallet Size 97 x 89 cm (38” x 35”) 97 x 89 cm (38” x 35”)) 97 x 89 cm (38” x 35”) 97 x 89 cm (38” x 35”) 97 x 89 cm (38” x 35”) 97 x 89 cm (38” x 35”) 97 x 89 cm (38” x 35”) 97 x 89 cm (38” x 35”)
Double Index Frame Size 112 x 109 cm (44" x 43") 112 x 109 cm (44" x 43") 112 x 109 cm (44" x 43") 112 x 109 cm (44" x 43") 112 x 109 cm (44" x 43") 112 x 109 cm (44" x 43") 112 x 109 cm (44" x 43") 112 x 109 cm (44" x 43")
Overall Size (L x W x H) 864 x 358 x 209 cm
(340" x 141" x 82.3")		 1162 x 358 x 209 cm
(457.3" x 141" x 82.3")		 1311 x 358 x 209 cm
(516" x 141" x 82.3")		 1609 x 358 x 209 cm
(633.5" x 141" x 82.3")		 1758 x 358 x 209 cm
(692.3" x 141" x 82.3")		 2057 x 358 x 209 cm
(809.8" x 141" x 82.3")		 2206 x 358 x 209 cm
(868.5" x 141" x 82.3")		 2504 x 358 x 209 cm
(986" x 141" x 82.3")
Stations/Colors 20/8 28/12 32/14 40/18 44/20 52/24 56/26 64/30
1Use uninterruptible power supply (UPS) to safeguard machine from voltage fluctuation out of main supply. If incoming voltage differs from the voltage(s) listed in the brochure, calculate amperage accordingly. Contact M&R Global/ your nearest dealer for total amperage in case of using built-in flash sockets.
