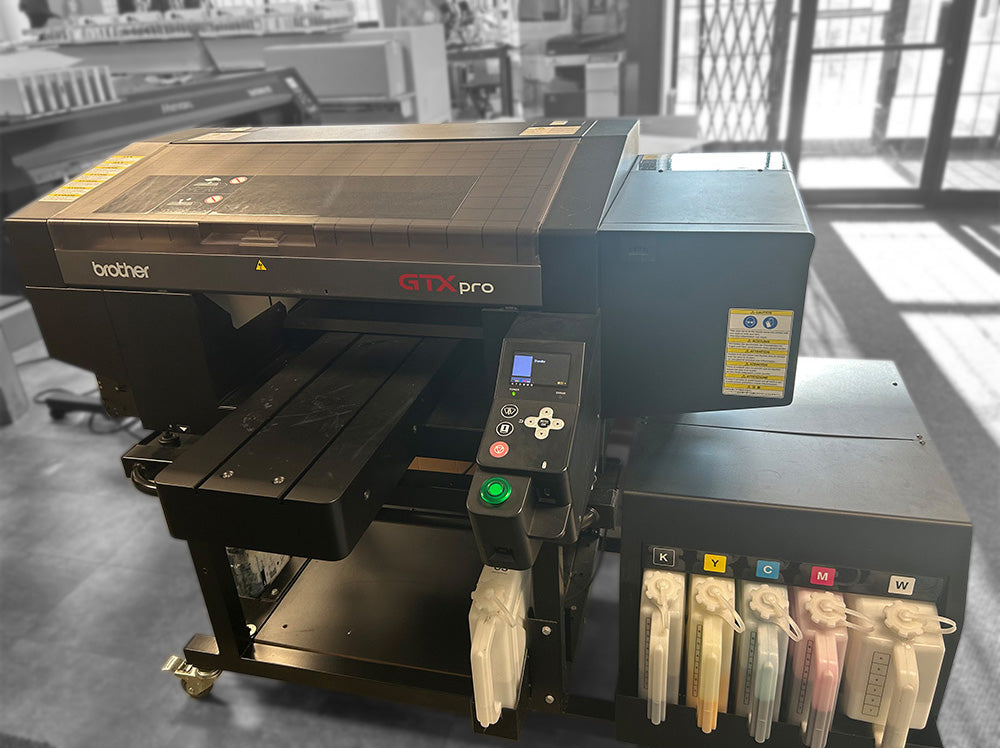

Brother GTX Pro B

Print with Speed

• High-speed print mode generates and increase in print speed of up to 20% compared to standard print mode.
• Print up to 42 dark garments per hour (11" x 11" design at 1200 x 1200 dpi in CMYK+White in high-speed print mode)
• Print up to 57 light garments per hour (11" x 11" design at 1200 x 1200 dpi in standard CMYK only mode)

Print with Efficiency

• Bulk ink tanks are available in 1.8L and 18L sizes.

Print on your Schedule

• The intelligent ink system keeps large volumes of ink in a constant state of readiness.

Print with Fewer Problems

• An enhanced maintenance station reduces the overtime required for maintenance while the smart automated maintenance system minimizes clogged nozzles.

Print with Precision

• High and low platen sensors ensure optimal printing clarity.

Print in Queue

• The print reservation system enables the operator to send new files to print during printer operation for improved efficiency.

Print toward the Future

• The Brother GTXpro B gives you the flexibility to scale up in short order to meet the demands of your growing business, but not before you have the volume to justify it.

Print with a Partner

• Brother stands behind our products with a two-year limited warranty as well as a one-year bumper-to-bumper warranty. And we stand behind you with expert assistance and advice available when you need it. See limited warranty for details by contacting your Brother Sales Representative or visiting https://brotherdtg.com/warranty.

Printing Method

• Direct inkjet garment printer

Machine Size

• 70”(W) x 51”(D) x 48”(H) (1780mm x 1300mm x 1210mm) With recommended stand

Machine Weight

• Approx. 364 lbs. (165kg) including platen (not including stand)

Included Platen Size

• 14” x 16” (35,6cm x 40,6cm)

Ink Delivery

• Advanced Ink System

Ink Type

• Water-based pigment ink

Number of Print Heads

• 2 Print heads: 1 for White Inks, 1 for CMYK Inks

Print Resolution

• 1200 dpi x 1200 dpi

Print Mode

• Single or double for CMYK. Underbase and highlight for white.

Environment

• Standard Conditions
  Degrees (50°F - 95°F)
  Humidity (20 - 85%)
• Operating Conditions
  Degrees (64°F - 86°F)
  Humidity (35 - 85%)

Data output

• USB, File Output, LAN

Power supply

• AC 100V-240V, 50/60Hz ± 1Hz

Power consumption

• 0.8A(average) (Reference: 0.4A – during circulation)

Ink cure

• Heat press machine can be used at 356°F (180°C) and 35 seconds duration. For higher volume production, a conveyor oven is recommended to be used at 320° (160°) for three and a half minutes. Time and temperature may vary depending on which manufacturer's dryer is used.

Pre-treatment

• Before printing, apply pre-treatment using either a manual or automatic device and then dry garment using a heat-press, being sure to follow all manufacturer's instructions. Pre-treatment is necessary for white ink.

OS

• macOS® Big Sur to macOS® Ventura, Windows 8.1 (64-bit), Windows 10 (64-bit) and Windows 11 (64-bit)

Interface

• USB2.0, LAN(10BASE-T, 100BASE-TX, 1000BASE-T), USB Flash Memory(Under 32GB, FAT32 format)

Driver operating conditions

• 2GHz CPU (minimum recommendation)
• 4GB RAM

Display resolution

• XGA(1024x768) (minimum recommendation)

Recommended applications

• CorelDRAW^® 2018/2019 (Windows), Adobe^® Photoshop CS6/CC, Adobe^® Illustrator CS6/CC
