New

Brother

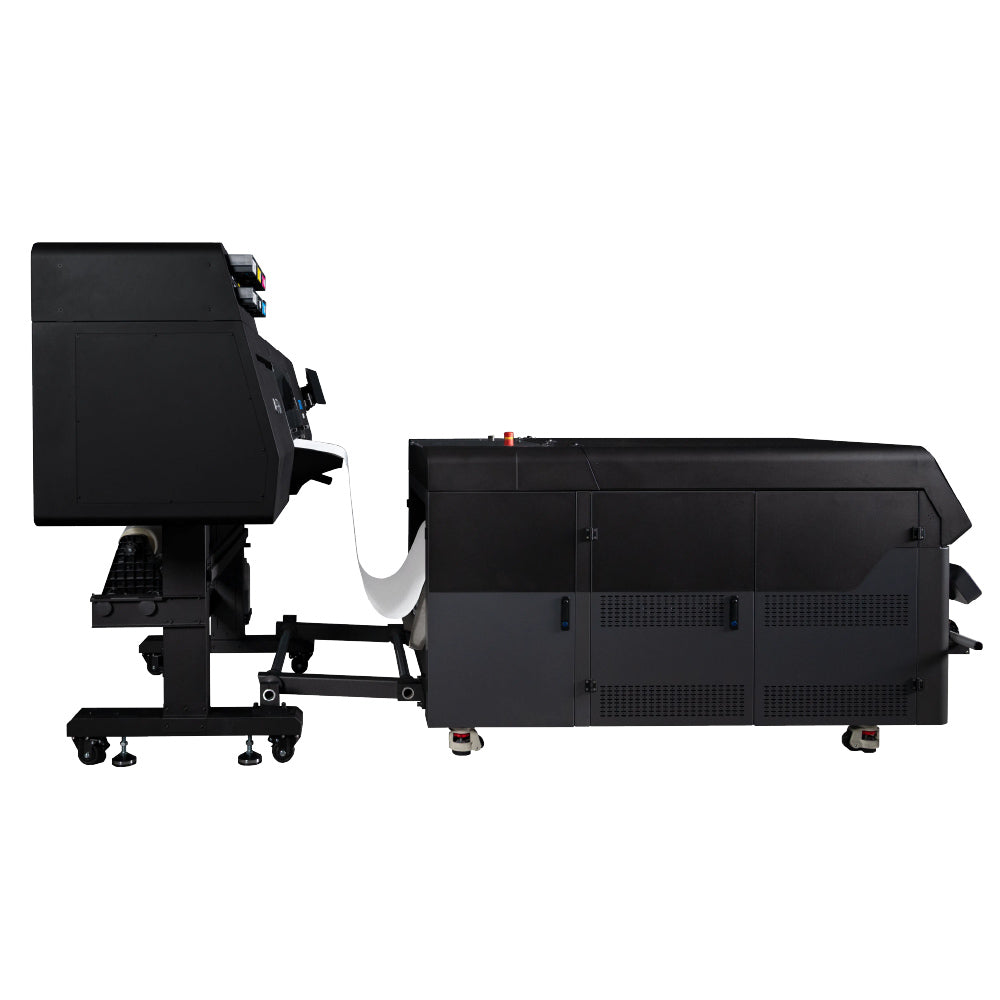

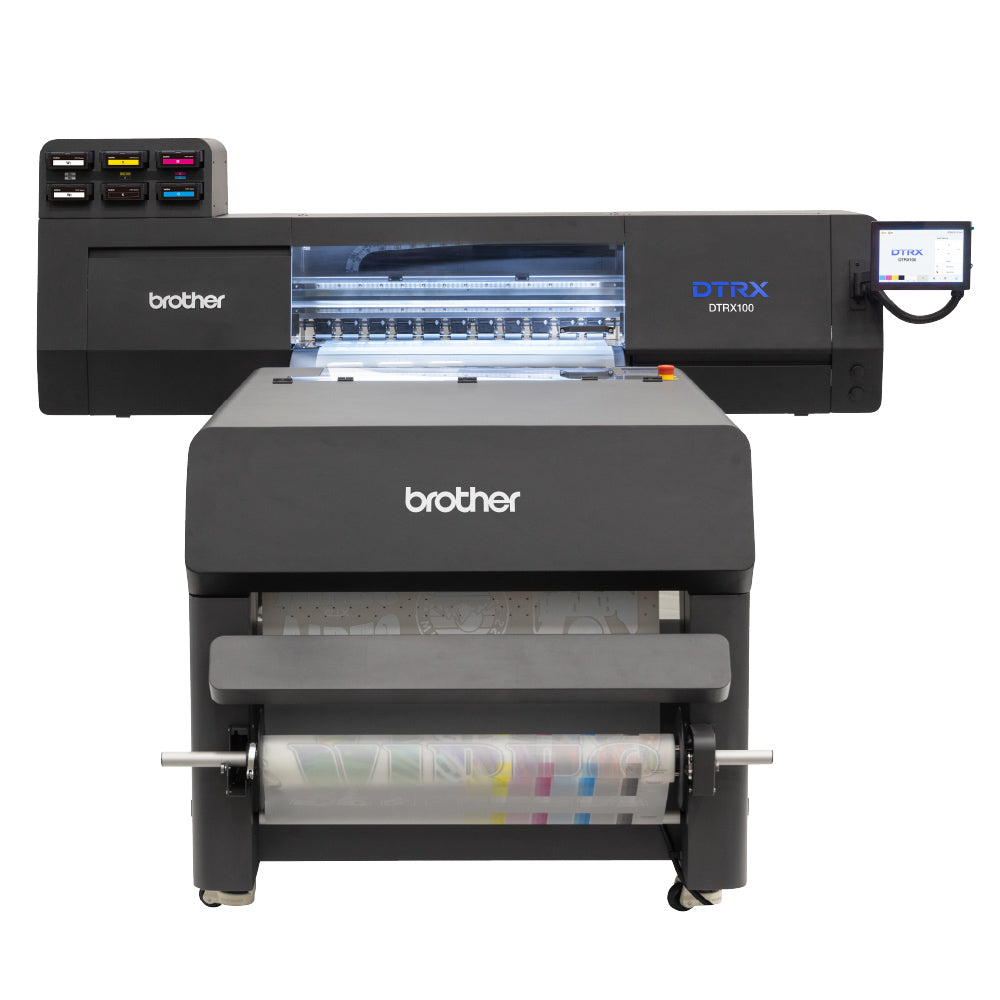

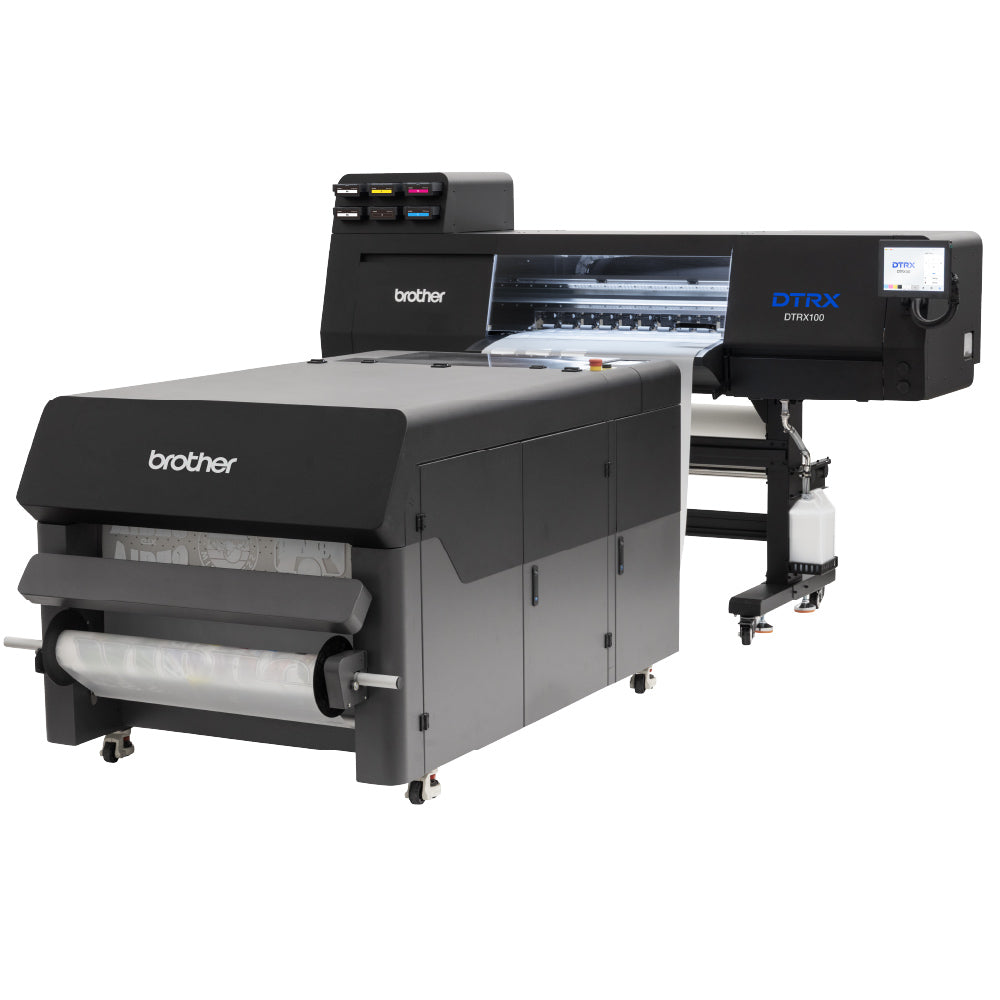

Brother DTRX100 - All In One DTF Printing System

Brother DTRX100 - All In One DTF Printing System - 32"

SKU:

Financing Options

Reliability Meets Performance.

Reliability meets performance in this fully integrated DTF system that’s ideal for high-volume shops. Built on Brother’s proven expertise, the 32” roll to roll printer and adhesive curing unit are designed to work together delivering unmatched print quality and high-volume performance.


DTRX System Includes:
• DTRX100 32" Roll to Roll Printer
• Integrated Adhesive Applicator and Curing Device
• Includes 32" wide DTF Film, adhesive powder, and ink



DTRX Highlights:
• All-in-One 32" DTF System – Includes roll-to-roll printer, adhesive applicator and curing unit, and starter supplies (film, powder, and ink).

• High-Resolution Output (600 x 1200 dpi) – Achieve sharp detail, smooth gradients, and a vast spectrum of color.

• High-Speed, One-Pass Printing – Advanced piezo technology and optimized ink flow deliver fast production without sacrificing quality.

• Specialized High-Performance Pouch Inks – Engineered for vibrant, durable prints with eco-safe certifications.

• Optimized White Ink Circulation – Designed for long print runs with reduced maintenance and operator involvement.

• Production-Ready Print Heads – Large dampers and internal fan system support extended, consistent output.

• Software Compatibility – Integrates seamlessly with leading RIP software and existing workflows.

• Brother-Engineered Reliability – Core components built on decades of textile printing expertise.

• At Your Side Service & Support – Backed by certified technicians and ongoing training resources.

Printable Width

Product Resources

Afficher tous les détails

Often Purchased With




  • DTRX Total Solution
    DTRX TOTAL SOLUTION INCLUDES:

    32" Roll to Roll Printer, Adhesive Applicator and Curing Device, 32" Film, Powder, and Ink

  • Adhesive Curing Unit
    ADHESIVE CURING UNIT

    Large adhesive powder reservoir with recirculation

  • Consistent Production
    FAST, SMOOTH, CONSISTENT PRODUCTION

    Designed for high-volume shops, DTRX integrates industrial print heads, white ink circulation, and robust maintenance

  • Flexible Wave Ink
    FLEXIBLE WAVE-LIKE INK FLOW

    Wave-like ink flow enables higher ink volume and fast print speeds

  • Industry Leading RIP
    INDUSTRY LEADING RIP

    Industry leading RIP software boosts your output

  • Shaker




  • Adhesive Curing Unit

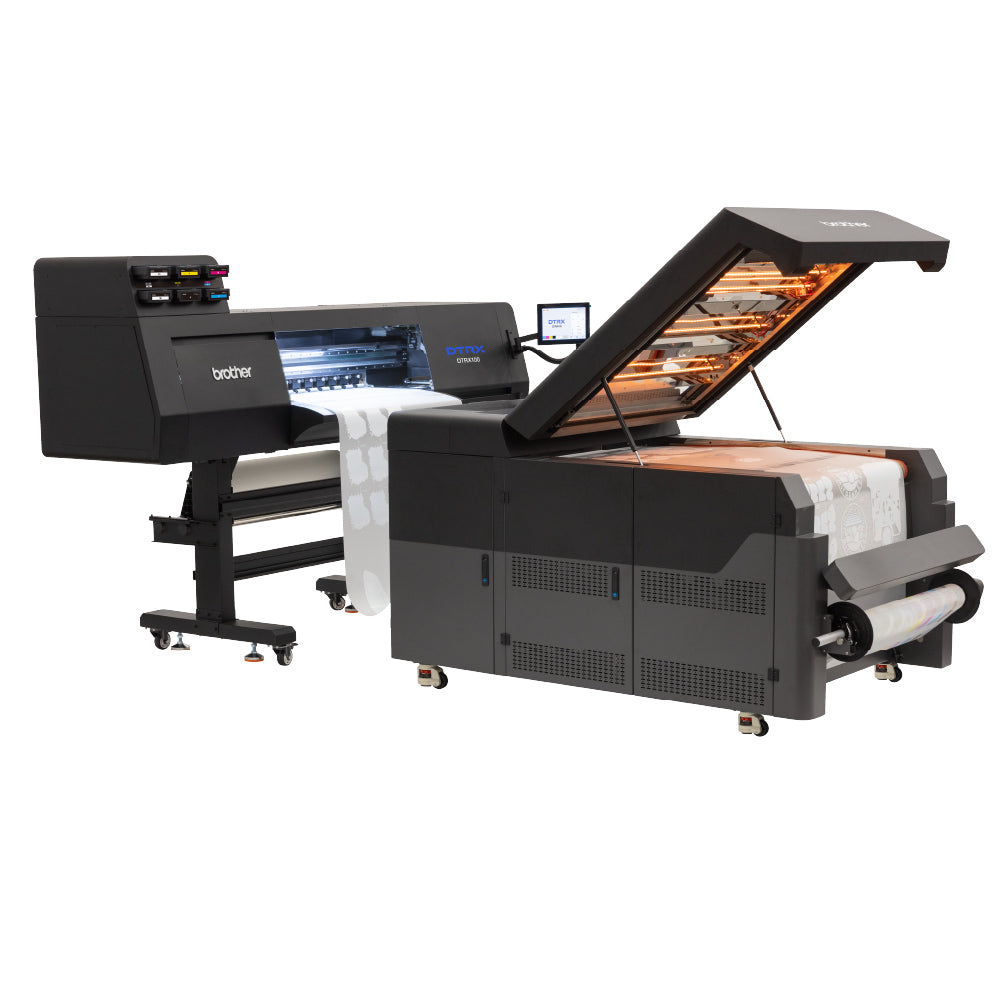

    Large recirculating powder reservoir, infrared curing for strong adhesion and vibrant colours, and an easy-to-use touchscreen with programmable settings.



  • Dependable Production. Brilliant Results


    Built for dependable production and brilliant results, this DTF system combines advanced piezo printhead technology with Brother’s proven expertise for reliable, high-speed performance.

  • Reliability

  • Software




  • More output. Same Workflow.


    DTRX is designed to integrate seamlessly with most existing production systems, offering compatibility with industry leading RIP software programs you already use. Boost your output without changing the way you work.

  • Dependable Production. Brilliant Results.

    Brother-built performance with advanced printheads and a reliable ink system for consistent, production-speed output.

  • All-In-One DTF Solution

    Print with confidence using a fully integrated DTF system built to Brother standards—delivering consistent quality, reliability, and efficiency.

  • Technology for High Performance

    Built for high-volume shops, the DTRX delivers consistent, reliable output with industrial printheads and optimized white ink circulation.

  • One Year Warranty

    Printheads - 1 Year Warranty,
    Adhesive Curing Unit - 1 Year Warranty

  • Consistent, Fast Output

    Fast printing with advanced piezo technology and extended runs supported by large dampers and internal cooling.

  • Brother Print Heads

    White ink circulation keeps operations running smoothly with minimal maintenance.



Additional Information

  • All-in-One 32" DTF System – Printer, powder shaker, dryer, and starter supplies included
  • High-Resolution Output (600 × 1200 dpi) – Sharp detail and smooth gradients
  • Fast One-Pass Printing – High-speed production without quality loss
  • Vibrant, Durable Inks – Eco-certified pigment inks for long-lasting prints
  • Optimized White Ink System – Reduced clogging and less maintenance
  • Consistent Production Performance – Built for long runs and reliable output
  • Industrial Piezo Printheads – Precision and stability at scale
  • Seamless Workflow Integration – Compatible with leading RIP software
  • Proven Brother Engineering – Trusted technology and build quality
  • Full Service & Support – Backed by certified technicians and training



Printing Method Direct inkjet film printer
Printing Applications Roll to roll
Machine Size Printer Only: 90.9" W x 33.5" D x 63.4" H (2310 x 850 x 1610 mm)
Dryer: 76.8" W x 44.1" D x 41.7" H (1950 x 1120 x 1060 mm)
Machine Weight Printer with stand: 575.9 lbs (261 kg)
Printer only: 478.2 lbs (217 kg)
Dryer only: 881.9 lbs (400 kg)
Ink Type 5-Color Water-Based Pigment Ink (CMYKW)
Ink Configuration CMYK + White
Ink Packaging 700ml pouches (CMYK + 2 White)
White Ink Management Ink circulation in print lines and manifold, with wet caps and wiper blades
Ink Certifications ECO PASSPORT® by Oeko-Tex
GOTS by ECOCERT GREENLIFE
CPSIA Compliant
Print Head Type Brother industrial piezo print heads
Number of Print Heads 4 Print Heads (CMYK x2 / White x2)
Print Resolution Up to 600 × 1200 dpi
Maximum Print Width 31.5" (800 mm)
Environment Working: 64.4°F–86.0°F | 20–80% humidity
Recommended: 68.0°F–82.0°F | 35–65% humidity
Control Panel 10" touchscreen
Connectivity Ethernet 1000BASE-T
Power Supply Printer: 200–240V / 7.5A, single phase
Dryer: 200–240V / 20A, single phase
Roll Specifications Max Width: 31.9" (810 mm)
Min Width: 23.6" (600 mm)
Core: 2" or 3"
Material: PET (DTF)
Max Thickness: 0.5 mm
Max Roll Diameter: 5.9" (150 mm)
Max Weight: 28.7 lbs (13 kg)
Software / OS Windows 11 (64-bit)
System Requirements CPU: 3GHz or faster
Display: 1920 × 1080 (1080p) or higher
  • Clean Stick R (50 pack)
  • Clean Stick T (50 pack)
  • 5kg of DTRX Optimized Powder Version 1
  • DTRX 700cc Cyan
  • DTRX 700cc Magenta
  • DTRX 700cc Yellow
  • DTRX 700cc Black
  • DTRX 700cc White
  • 4L Cleaning Solution
  • 80cm Empty Core
  • Nitto SPV-224PR Blue Tape
