Mimaki Entry DTF Bundle (Mimaki TxF150-75 DTF Printer & Mimaki TX-Y6018P Powder Applicator and Dryer)
Mimaki Entry DTF Bundle (Mimaki TxF150-75 DTF Printer & Mimaki TX-Y6018P Powder Applicator and Dryer) - Default Title
A safe and stable machine packed with Mimaki's technology

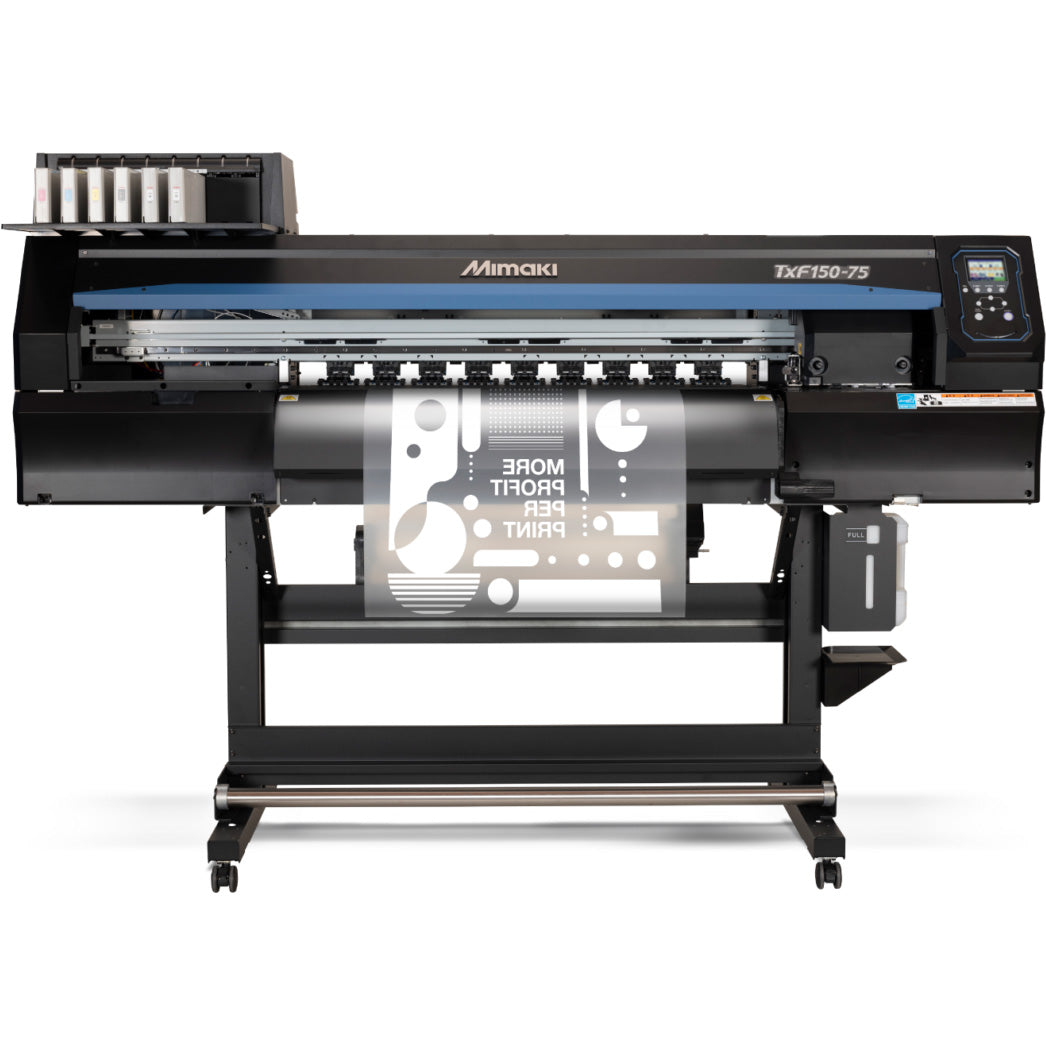

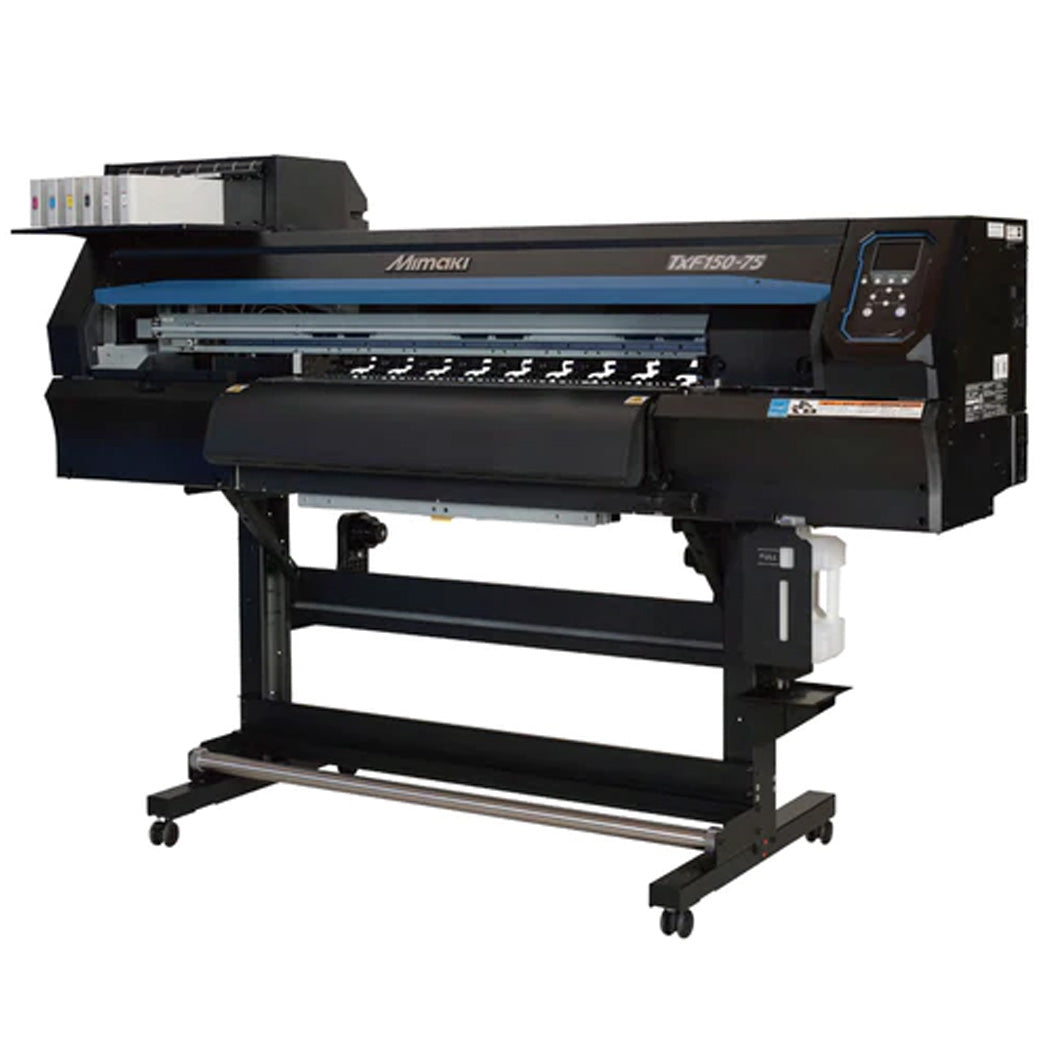

Introducing the long-awaited solution for those seeking a dependable DTF printer system - the remarkable Mimaki TxF150-75 DTF Printer! Your wait is over as this groundbreaking printer revolutionizes the industry. Experience unparalleled efficiency and cost savings with its innovative ink technology flowing seamlessly through the damper. Unlike its competitors, the Mimaki TxF150-75 boasts superior nozzle detection and ink consistency, establishing its dominance in the DTF market.
TxF150-75 is a Mimaki's first DTF (direct-to-film) printer with a maximum printing width of 31.5 inches for producing DTF print transfer sheets. "PHT50" heat transfer pigment ink for DTF, consisting of five colors (CMYK and white), has acquired the ECO PASSPORT certification which is essential for obtaining the international safety standard for textile products “OEKO-TEX®”.
The DTF printers have been plagued by ink ejection defects and white ink clogging. To overcome these issues, Mimaki has adopted a degassing ink design that uses aluminum packs as the printer's ink packaging form, as well as a white ink circulation function MCT (Mimaki Circulation Technology)*1. The new printer also features Mimaki's NCU (Nozzle Check Unit)*2 and NRS (Nozzle Recovery System)*3 technologies that support stable operation. They ensure continuous printing without stopping the operation to support customers' productions.
- Brochure & Specifications - Printer
- Operation Manual - Printer
- Brochure & Specifications - Tunnel Shaker
- Operation Manual - Tunnel Shaker
- Care And Maintenance
- Safety Precautions
Often Purchased With
Features And Highlights
- Mimaki Circulation Technology: White ink circulation function
- Nozzle Check Unit: Missing nozzle detection function
- Nozzle Recovery System: A function to substitute missing nozzles with other nozzles.
- Better ink consistency than other brands and models
- 31.5” Printing Width
Mimaki's Core Technologies for Stable Operation
Mimaki Circulation Technology Version 2 (MCT)
Circulation through out ink route including damper*, supports stable white ink ejection for reducing frequent nozzle cleaning and ink waste.
Nozzle Check Unit (NCU)
A sensor detects nozzle defect and nozzle cleaning performed automatically to reduce the material waste.
Nozzle Recovery System (NRS)
Supports continous production without waiting for service personnel, when nozzle defect is unrecovereble by nozzle cleaning.
- Reliable ink system design to reduce clogging and downtime
- Better ink consistency than other brands and models
- Groundbreaking ink technology circulating through the damper
- Nozzle detection
- 31.5” printing width - the first on the market
- Onsite certified Mimaki technician setup and training
- One-year complete warranty, including printheads
- Max Resolution: 1440 dpi
- Simple Operation
- Variable Dot
- 3 Way Heater
- Nozzle Drop-out Detection
- Nozzle Recovery Function
- Event Notification
|Print head||On-demand piezo head|
|Printing resolution||720dpi, 1,440dpi|
|Ink||Type/Color||Heat transfer pigment ink PHT50 (C, M, Y, K, W)|
|Capacity||600ml ink pack (500ml for white only)|
|Circulation function||Available only for white ink|
|Maximum print width||800mm (31.5 in)|
|Media||Maximum width||810mm (31.9 in)|
|Thickness||1.0mm or less|
|Roll weight||45 kg (99.2 lb) or less|
|Interface||Ethernet 1000 BASE-T / USB2.0 Hi-speed|
|Power specifications||Main unit: Single-phase AC100-120 / 200-240V±10%, 50/60Hz±1Hz x 1|
|Power consumption||100V system: 0.9kW or less, 200V system: 1.2kW or less|
|Certifications||VCCI class A, FCC class A, ETL IEC 62368-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star, RCM, KC|
|Dimensions (W×D×H)||1,965 x 700 x 1,392 mm (77.4 (W) x 27.6 (L) x 54.8 in (H))|
|Weight||126kg (277.8 lb)|
*Note: Printer does not come with USB to printer cable. Also purchase a kitchen scale for weighing ink set for eco case cartridge.
All-In-One PLC Control Touch Panel
Easy operation and automatic production.
Integrated Internal Smoke Purifier
Stronger smoke purifying capability, compact design, and more environmentally friendly.
Intelligent Powder Spray System
Process greatly reduces the amount of time the powder needs to be recycled, resulting in decreased labor and increased efficiency.
Two Sided Heater
Heating system uses lamps on top and bottom to regulate temperature gradually. Bottom heater slows down ink drying by gradually increasing temperature, while top heater accelerates powder melting by gradually decreasing temperature to ensure even powder application and curing each time.
Intelligent Heater Control
Saves 30% power by automatically turning off heater when reaches desired temperature and prevents film overheating if machine pauses or stops operation.
|Maximum film width||32” in.|
|Pre-heat Temperature||0-100oC (0-212oF)|
|Heater Temperature||0-150oC (0-302oF)|
|Exhaust||350 m3 / per hour (6 m3/min.)|
|Power specification||Single-phase (220V AC ± 5%, 50/60 Hz, 30Amps)|
|Power consumption||Working Mode: 5000W (Energy Saving: 2KW in 1 hour)|
|Environment||Temperature: 18-30℃ (65-86 ºF), Humidity: 30-70% RH|
|Machine size||76” x 45” x 45” in. (LxWxH)|
|Machine weight||750 lbs.|
