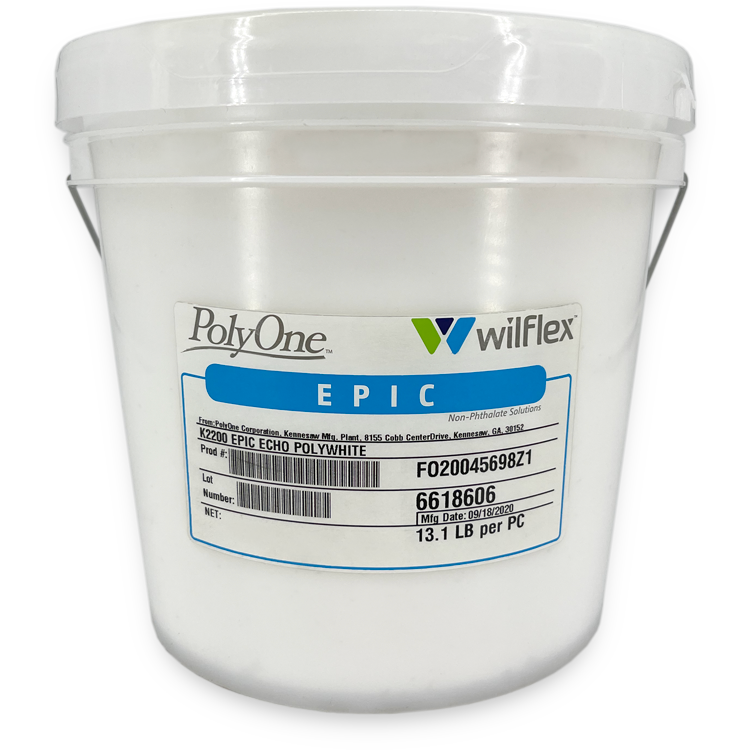

K2200 Epic Echo Polywhite
K2200 Epic Echo Polywhite - 1 Gallon
WILFLEX™ 2200 Echo Polywhite is a non-phthalate plastisol ink designed to print onto 100% polyester and polyester blended fabrics. Echo PolyWhite is specially formulated to provide good bleed resistance, opacity and coverage on polyester garments.
- Good opacity and coverage, bright white
- Excellent for vector graphics
- Good stretch
- Recommended for automatic presses
- Good bleed resistance
- 100% polyester, polyester blends
- Counts: 86-160 t/in (34-62 t/cm)
- Tension: 25-35 n/cm
- Durometer: 60/90/60, 70/90/70, 70
- Edge: Square, Sharp
- Stroke: Medium flood, Medium stroke
- *Do not use excess squeegee pressure
- Direct: 2 over 2
- Off Contact: 1/16” (.2cm)
- Emulsion Over Mesh: 15-20%
Flash & Cure Temperatures
- Flash: 220°F (105°C)
- Cure: 320°F (160°C)
- EQ: N/A
- MX: N/A
- PC: N/A
- *All percentages listed at % by weight.
- Extender: N/A
- Reducer: Epic Viscosity Buster-1% max
- *All percentages listed at % by weight
Shipping & Storage
- 65-90°F (18-32°C)
- Avoid direct sunlight.
- Use within one year of receipt
- Ink degradent or press wash
- Stir inks before printing
- Use consistent, high-tensioned screen mesh and sharp edged squeegees for best print results
- Use a printing technique to assure a good ink deposit to maximize bleed resistance and film strength properties
- For challenging fabrics a bleed blocking underbase such as EPIC ECHO Underbase Gray may be required
- Adjust flash cure temperature and dwell time so ink is just dry to touch. Depending on flash unit, Cure: 320°F (160°C) a 2 - 3 second flash is adequate.
- Suitable for use as an underbase flash white or as a hi-lite white
- Stir plastisols before printing.
- Do not dry clean, bleach or iron printed area.
- Perform fusion tests before production. Failure to cure ink properly can result in poor wash fastness, inferior adhesion and unacceptable durability. Gel and cure temperatures for ink should be measured using a Thermoprobe device placed directly in the wet ink film and verified on the substrate(s) and equipment to be used for production.
- It is the responsibility of the printer to determine that the correct ink has been selected for a specific substrate and the application processes meet the printer’s customer standards or specifications.
- Curing is the responsibility of each printer to confirm that the print is fully cured. PolyOne’s cure recommendations are not a guarantee or warranty, but merely suggested starting points for curing evaluations as explained above.
- When printing on garments that contain certain dyes, you must pre-test for the potential ghosting. Please refer to our website for more information on this issue.
- Wilflex products have been carefully designed to perform within a given viscosity range, and any dramatic change in viscosity is probable to result in a change in printing characteristics
- NON-CONTAMINATION OF EPIC INKS: Do not mix EPIC inks with inks, additives or extenders from other companies. All buckets, palette knives, stirring apparatus, squeegees, flood bars and screens must be cleaned properly and free of phthalates and pvc containing inks. Non-phthalate emulsions and pallet adhesives must be used. Failure to follow these precautions may cause phthalate contamination in violation of consumer protection laws and regulations.
- Any application not referred in this product information bulletin should be pre-tested or consultation sought with Wilflex Technical Services Department prior to printing.
