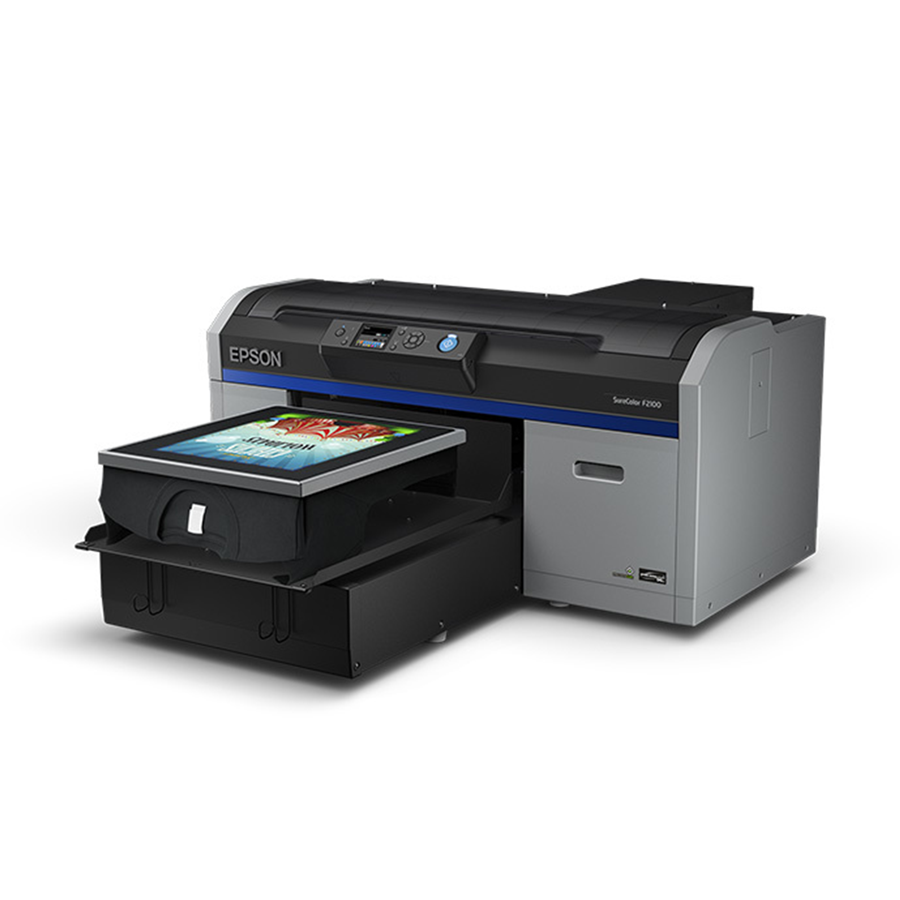

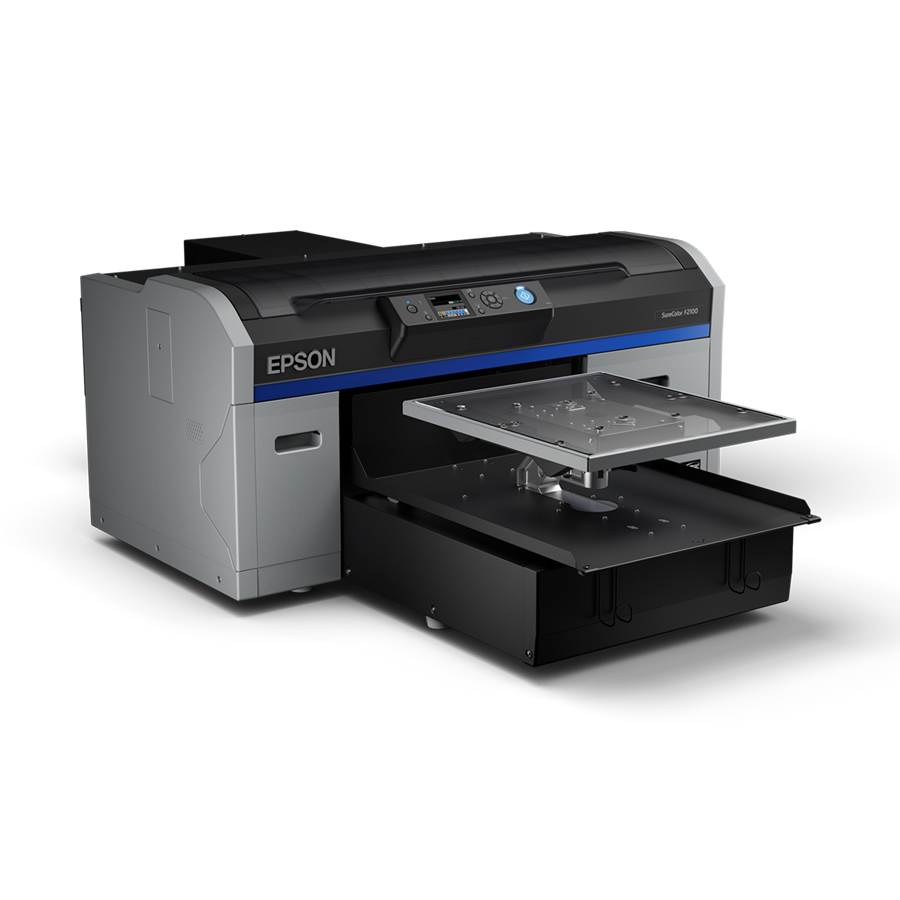

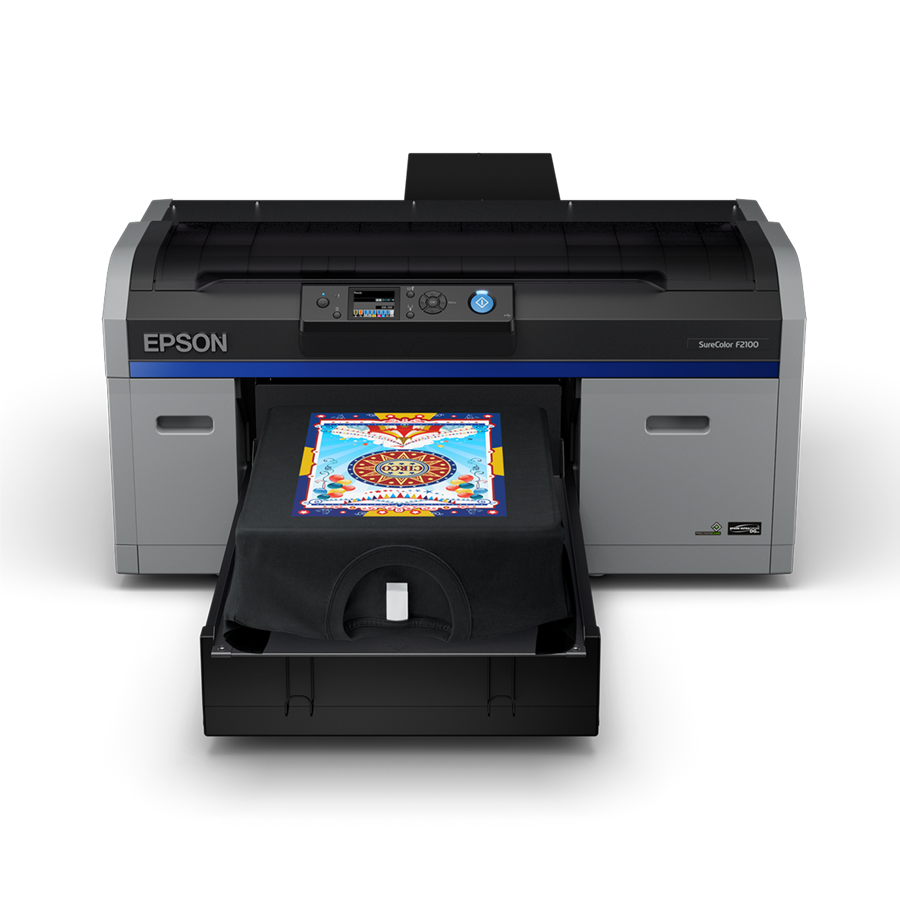

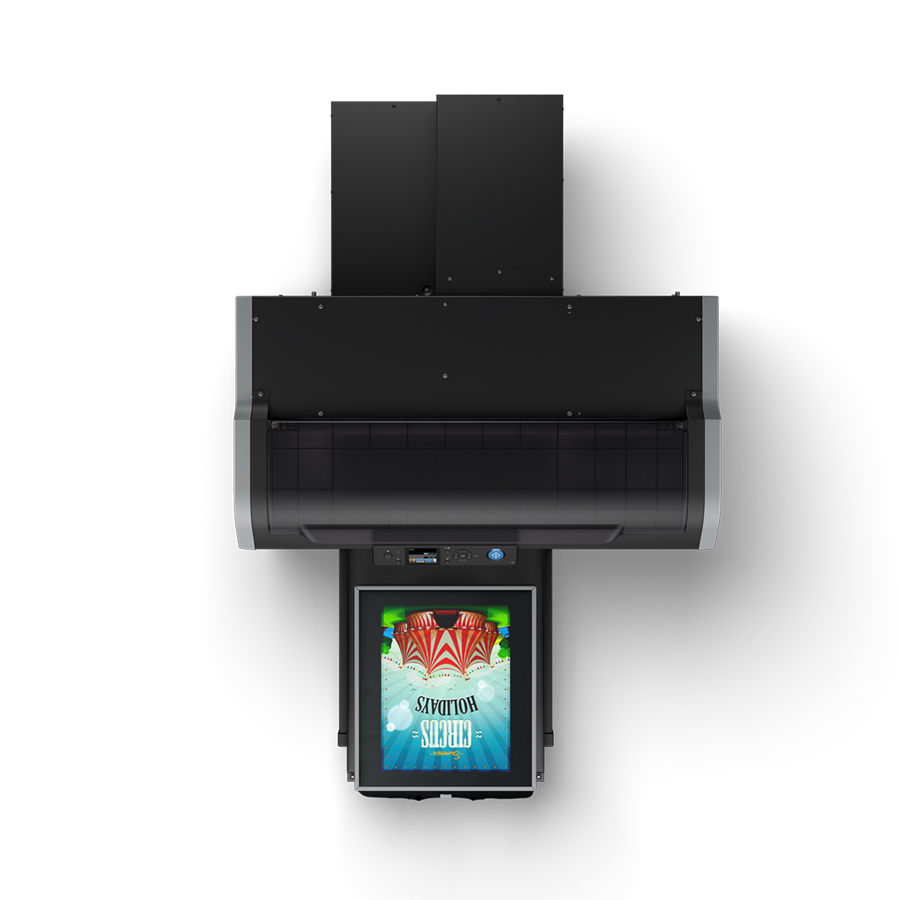

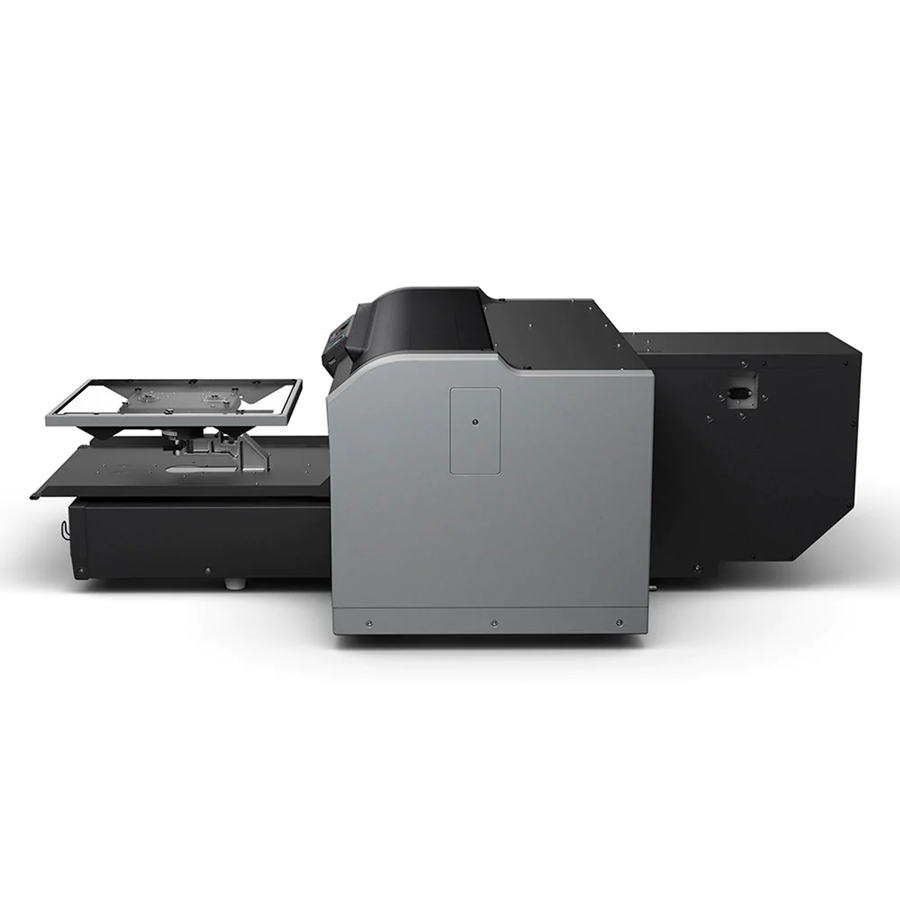

Epson SureColor F2100 Direct-to-Garment Printer

• High-quality direct-to-garment printing — Epson UltraChrome DG Inks are durable, vibrant and safe, with outstanding colour performance, plus equal pricing for colour and White inks
• Up to twice as fast — newly developed print modes, including Light Garment Mode, offer consistent print quality at up to twice the speed of our previous generation¹
• Highlight White Ink Mode — developed exclusively for the SureColor F2100, this unique feature offers simultaneous printing of White and colour inks on the color pass for greatly improved image quality, speed, and efficiency
• Fast loading for more productivity — the easy-to-use, all-new quick-load platen reduces traditional hoop platen load times
• Intuitive, easy-to-learn workflow — improved Epson Garment Creator Software, available for macOS^® and Windows^®, includes powerful tools for layout and text, colour management, ink control, cost estimation, plus hot folders
• Designed exclusively for direct-to-garment printing — an entirely purpose-built system featuring Epson’s PrecisionCore TFP printhead, Epson UltraChrome DG ink system and robust hardware
• Reduced maintenance time and operational cost — featuring a fabric wiper and an in-line cleaning cartridge, the integrated self-cleaning system allows the printer to perform daily maintenance to reduce downtime
• Backed by industry-leading support — includes a 1-year limited on-site warranty with U.S.-based phone support; an optional extended on-site service plan is available

Print

Printing Technology: PrecisionCore TFP 10-channel, drop-on- demand, inkjet printhead with ink-repelling coating technology

Maximum Print Resolution:
Up to 1440x720 dpi for Colour Ink
Up to 1440x1440 dpi for White Ink

Nozzle Configuration: 360 nozzles x 10; 6 ink cartridge bays; 1 cleaning cartridge bay

Ink

Ink Type:UltraChrome DG Ink; 5-colour

Ink Configuration:C, M, Y, K, WH, WH

Replacement Ink:
Magenta Cartridge (600 ml): T725300²
White Cartridge (600 ml): T725A00²
Black Cartridge (600 ml): T725100²
Cyan Cartridge (600 ml): T725200²
Yellow Cartridge (600 ml): T725400²

General

Operating Systems:
Windows 10 and 8.1, Windows Vista^®
macOS 10.13 – Mac^® OS X^® 10.6

Humidity: Operating: 20 – 80% (no condensation)

Operating Temperature: 50 ˚ to 95 ˚F (10 ˚ to 35 ˚C)

Sound Level: Less than 41 dB(A) according to ISO 7779

Dimensions: 39" x 59" x 20" (985 x 1,485 x 490 mm) (W x D x H)

Weight: 183 lb (83 kg)

Eco Features: RoHS compliant, Recyclable product³, Epson America, Inc. is a SmartWay^® Transport Partner⁴, Epson UltraChrome DG Ink is certified by ECO PASSPORT by OEKO-TEX^®, meaning it’s safe for adults, children and babies

Safety Approvals: UL (MET), FCC (Class A), CSA, CE, EMC

Country of Origin: China

Warranty: Standard 1-year, on-site, usually next-business-day service with toll-free phone support Monday through Friday

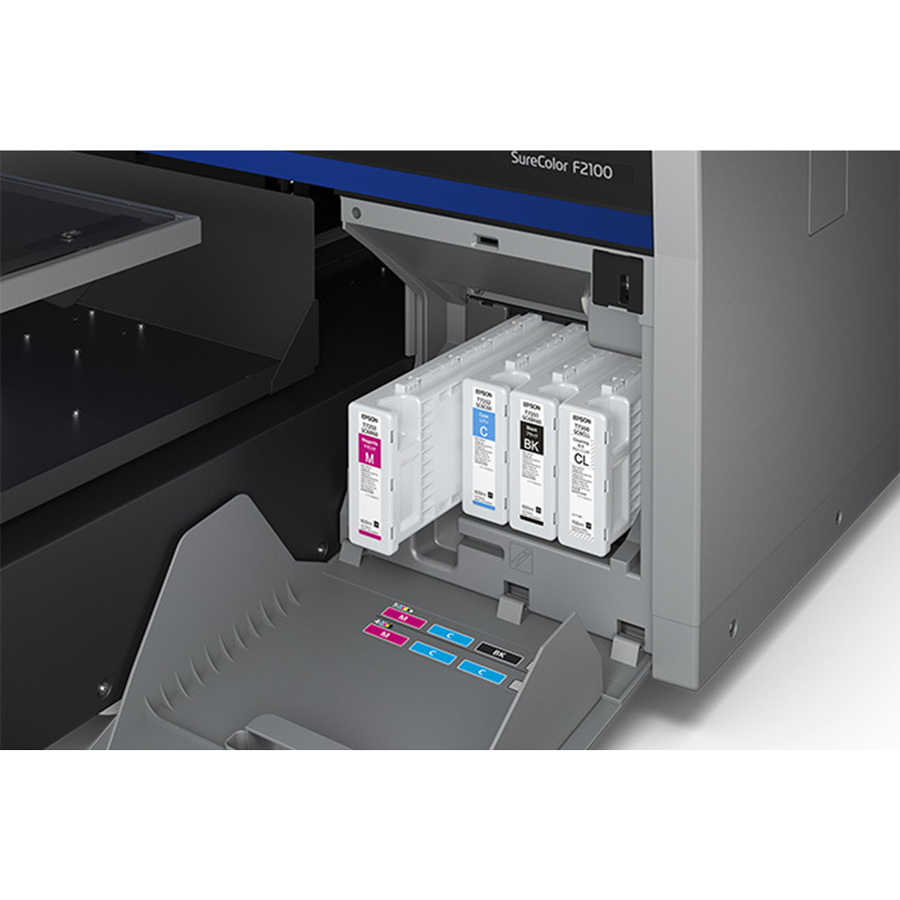

Epson Intelligent Ink Cartridges

In-box Cartridge Fill Volume: 250 mL each colour x 6 colors total; 700 mL cleaning cartridge²

Retail Cartridge Fill Volume: 600 mL each colour x 6 cartridges total; 700 mL cleaning cartridge²

Ink Cartridge Shelf Life: 2 years from printed production date or 6 months after opening²
Ink is optimized for 100% cotton to 50/50 polyester blends. Printer is designed for use with Epson ink cartridges only, not third-party ink systems*.


Garment Media Handling

Thickness: Garments up to 0.98” Thick

Media Type: 100% Cotton or cellulose fiber garment recommended

Maximum Print Area: Maximum Printing Area 16” x 20” (Optional Large Platen)

Supported File Formats:
JPG and BMP
Tiff and PNG recommended for support of transparency

Curing Recommendations

Heat Press Times:
Use more time for heavy coverage on large areas
Color Only: 45 sec/6 PSI
White & Color: 75 sec/6 PSI
White Only: 45 sec/6 PSI

Heat Press Temperature: Heat Press Temp: 338°F/170°C

Heat Conveyer Times:
White & Color: 4.5 to 5.0 min
White Only: 3.5 to 4.5 min

Heat Conveyer Temperature: Heat Conveyer Temp: 320°F/160°C

Power

Power Supply Voltage: AC 100-120 V

Rated Frequency: 50-60 Hz

Power Consumption:
Operating: Approx. 52 W or less
Standby Heaters On: 20 W
Sleep Mode: 10 W
Power Off: 0.5 W

• SureColor F2100 Printer
• Medium Platen (14” x 16”)
• Installation Ink Set (250 ml Cartridges)
  SCF2100WE:WH,WH,C,M,Y,K, + 700ML Cleaning Cartridge
• AC Power cable
• Tubing and Holder
• Printer Maintenance Kit
• User Guide Kit (Warranty and Start Here poster)

Standard 1-year limited warranty with toll-free phone support Monday through Friday
