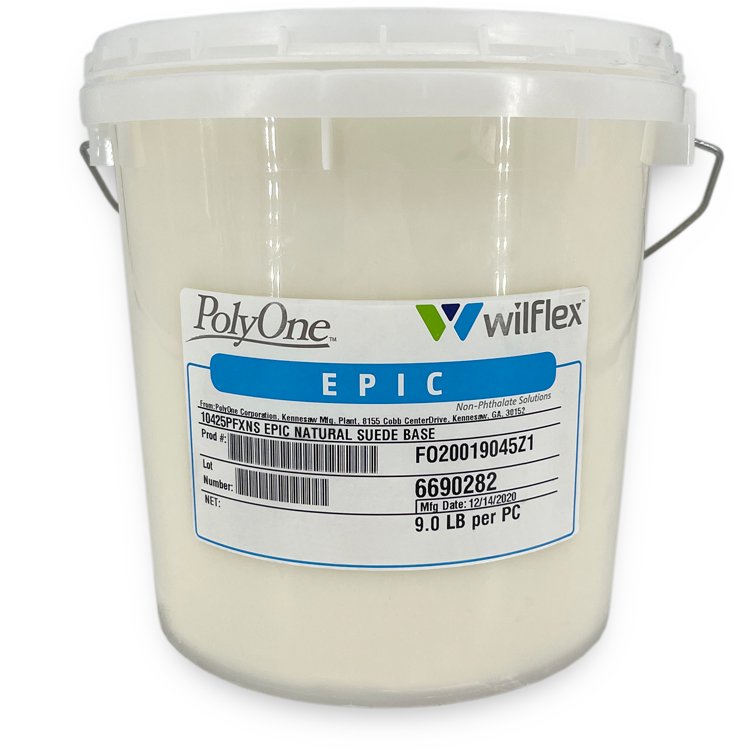

10425PFXNS Base en daim naturel épique

• Can be used straight out of the container.
• Creates a printed graphic that feels like suede.
• Can be used on light or dark grounds.
• Excellent durability.
• Excellent wash properties.
• Odorless.
• Easily printed with both manual and automatic presses.

Fabric Types

• 100% cotton, cotton blends, some synthetics

Mesh

• Counts: 86-230 t/in (34-91 t/cm)
• Tension: 25-35 n/cm

Squeegee

• Durometer: 60/90/60, 60-70
• Edge: Square, Sharp
• Stroke: Hard flood, Medium stroke
• *Do not use excess squeegee pressure

Non-Phthalate Stencil

• Direct: 2 over 2
• Off Contact: 1/16” (.2cm)
• Emulsion Over Mesh: 15-20% or 200-400 micron

Flash & Cure Temperatures

• Flash: 220°F (105°C)
• Cure: 320°F (160°C)

Pigment Loading

• EQ: 15% max
• MX: 25% max
• PC: 10% max
• *All percentages listed at % by weight

Epic Additives

• N/A
• *All percentages listed at % by weight

Shipping & Storage

• 65-90°F (18-32°C)
• Avoid direct sunlight.
• Use within one year of receipt

Clean Up

• Ink degradent or press wash

• Limit pigment loading to keep finished texture soft and fuzzy.
• Print through high density screens for raised surfaces.
• Use firm flood stroke and medium print stroke to maintain detail.
• Adjust cure temp and dwell time to achieve desired surface effect.
• Can be used alone or in combination with other Epic products to create various specialty effects

• Stir plastisols before printing.
• Do not dry clean, bleach or iron printed area.
• Perform fusion tests before production. Failure to cure ink properly can result in poor wash fastness, inferior adhesion and unacceptable durability. Gel and cure temperatures for ink should be measured using a Thermoprobe device placed directly in the wet ink film and verified on the substrate(s) and equipment to be used for production.
• It is the responsibility of the printer to determine that the correct ink has been selected for a specific substrate and the application processes meet the printer’s customer standards or specifications.
• Curing is the responsibility of each printer to confirm that the print is fully cured. PolyOne’s cure recommendations are not a guarantee or warranty, but merely suggested starting points for curing evaluations as explained above.
• When printing on garments that contain certain dyes, you must pre-test for the potential ghosting. Please refer to our website for more information on this issue.
• Wilflex products have been carefully designed to perform within a given viscosity range, and any dramatic change in viscosity is probable to result in a change in printing characteristics
• NON-CONTAMINATION OF EPIC INKS: Do not mix EPIC inks with inks, additives or extenders from other companies. All buckets, palette knives, stirring apparatus, squeegees, flood bars and screens must be cleaned properly and free of phthalates and pvc containing inks. Non-phthalate emulsions and pallet adhesives must be used. Failure to follow these precautions may cause phthalate contamination in violation of consumer protection laws and regulations.
• Any application not referred in this product information bulletin should be pre-tested or consultation sought with Wilflex Technical Services Department prior to printing.
