Toyoda

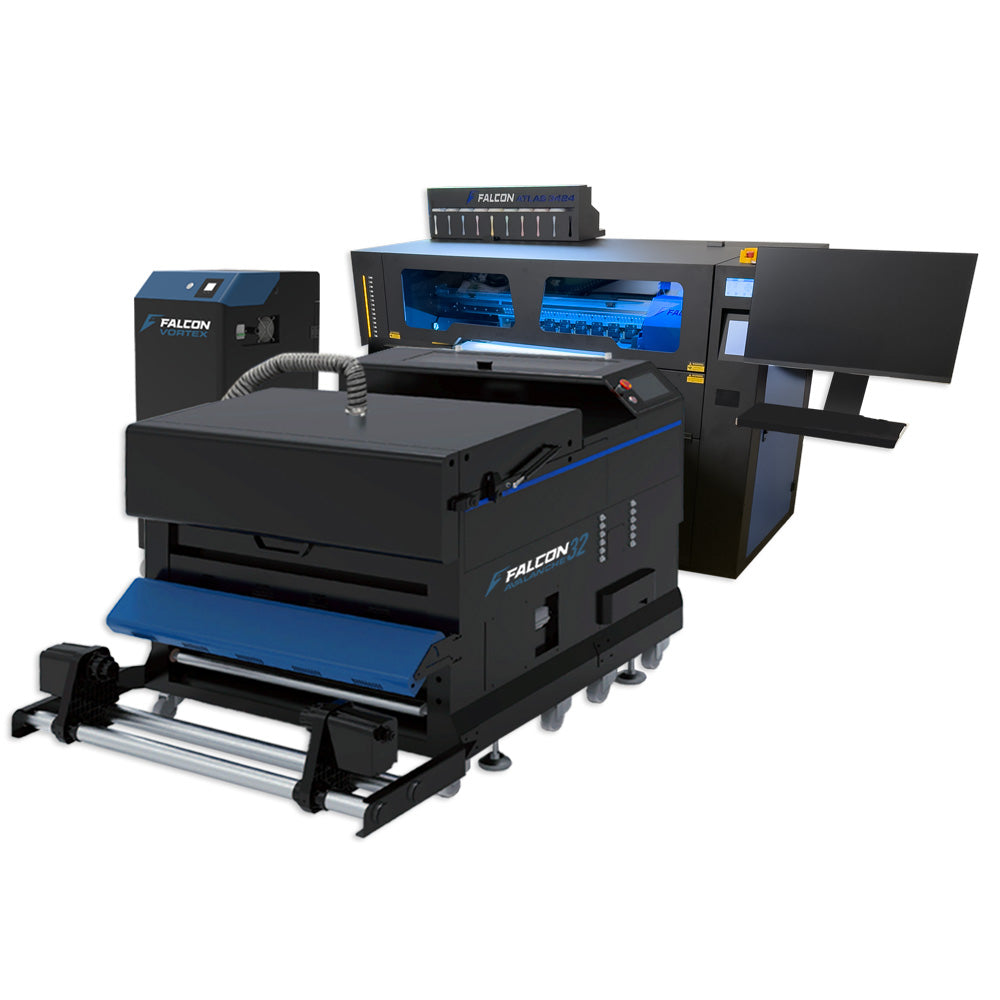

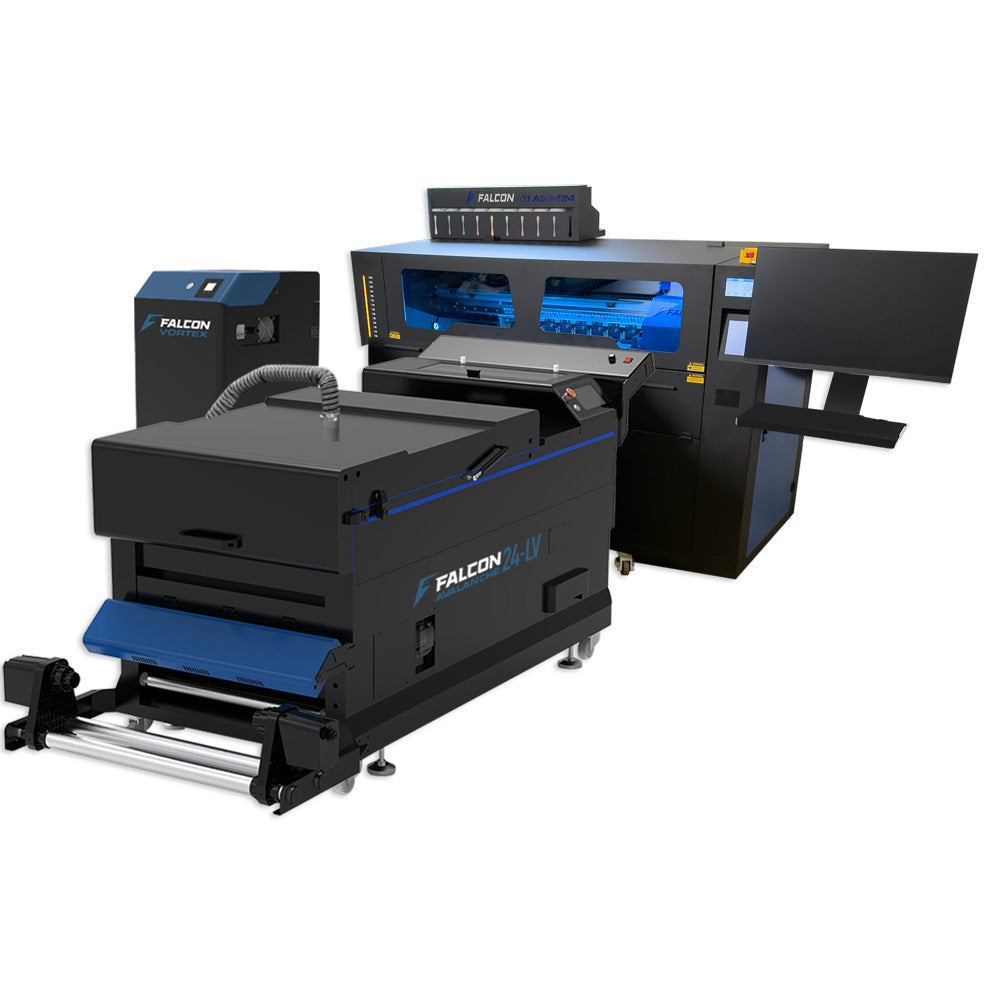

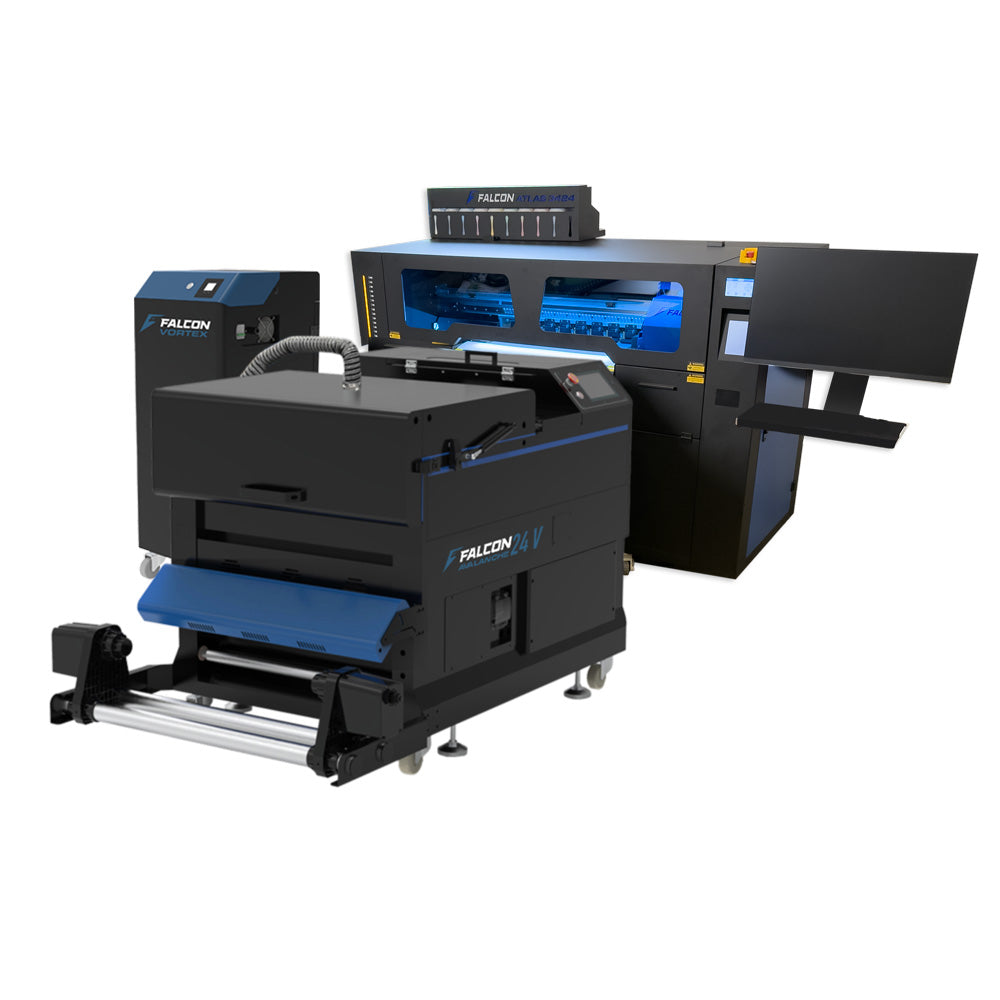

Falcon Atlas DTF Printing System

Falcon Atlas DTF Printing System - 3 Head / 24" Vacuum Powder Shaker (With Automatic Powder Recirculation) / Industrial Portable Fume Extractor

SKU:

Financing Options

The Falcon Atlas DTF Printing System is a high-performance industrial direct-to-film printer designed for apparel decorators, contract printers, and production facilities that demand speed, reliability, and exceptional print quality. Available in 3, 4, or 6 Epson i3200-A1 printhead configurations, the Atlas allows businesses to choose the production capacity that best fits their workflow while providing room to scale as demand grows.

Built with an industrial-grade frame, intelligent automation, and a large-capacity bulk ink system, the Falcon Atlas is engineered for continuous production with minimal downtime. Features including automatic printhead maintenance, precision media handling, anti-static technology, and an extended pinch roller system ensure consistent image quality throughout long production runs.

The system includes a dedicated monitor and adjustable monitor stand for convenient machine operation and workflow management. CPU/computer is not included, allowing customers to configure the workstation that best meets their production requirements.

Whether you're producing custom apparel, promotional products, uniforms, or contract transfers, the Falcon Atlas delivers dependable performance, vibrant colour reproduction, and the productivity today's print shops demand.

Printer Print Head Configuration
Shaker Options
Fume Extractor Options

Product Resources

Afficher tous les détails

Souvent acheté avec

  • Epson i3200 Printheads
    EPSON i3200 PRINTHEADS

    Scalable 3, 4 or 6 head configurations

  • Automatic Maintenance
    AUTOMATIC MAINTENANCE

    Reduces downtime with automated cleaning

  • 3L Bulk Ink System
    3L BULK INK SYSTEM

    Longer production with fewer refills

  • Precision Media Feeding
    PRECISION MEDIA FEEDING

    Smooth, accurate film transport

  • Extended Pinch Roll System
    EXTENDED PINCH ROLL SYSTEM

    Stable media tracking on long runs

  • Built for Industrial Production



  • Built for Industrial Production


    Available in 3, 4, or 6 Epson i3200-A1 printhead configurations, the Falcon Atlas allows you to select the production speed that matches your current workload while providing the flexibility to scale as your business grows. Its industrial frame, bulk ink delivery system, and automated maintenance features are engineered for dependable, high-volume printing day after day.



  • Precision Media Handling


    The Falcon Atlas combines an extended pinch roller system, tension-controlled media feeding, and an integrated anti-static system to deliver smooth, accurate film transport throughout every print job. These features help maintain precise registration, improve print consistency, and reduce production interruptions during long runs.

  • Precision Media Handling

  • Intelligent Automation



  • Intelligent Automation


    Automatic maintenance routines, configurable cleaning cycles, and intelligent media handling reduce manual intervention while helping maintain optimal print performance. Spend less time on maintenance and more time producing high-quality transfers.

Ink Configurations


Available in up to 8 colour printing + white


Colour Configuration

Print Speeds Based on Head Configuration


  • Three Print Head Speed

    Three Print Head Speed

  • Four Print Head Speed

    Four Print Head Speed

  • Six Print Head Speed

    Six Print Head Speed

Additional Information

Specification Details
Product Falcon Atlas DTF Printing System
Available Configurations 3, 4 or 6 Epson i3200-A1 Printheads
Printer Type Industrial Direct-to-Film (DTF) Printer
Print Width 24 in (600 mm)
Printheads Epson i3200-A1
Ink Configuration

3 Head: • CMYK, CMYK, W
                 • CMYK, RGBO, W


4 Head: • CMYK, CMYK, W, W
                 • CMYK, RGBO, W, W


6 Head: • CMYK, CMYK, CMYK, W, W, W
                 • CMYK, CMYK, RGBO, RGBO, W, W
Ink Supply 3L Bulk Ink System
Media PET DTF Film
Media Feed Tension-Controlled Roll Feed
Print Resolution Up to 2400 dpi
Connectivity Gigabit LAN
Power Requirements • 3/4 Head: 7.4A, 110V, 0.8KW
• 6 Head: 9A, 110V, 1KW
Operating Temperature 20°C–30°C
Operating Humidity 40–60% RH
Machine Weight 859 lbs (390 kg)

Falcon Avalanche DTF Shaker Comparison

Model Falcon Avalanche
24-S		 Falcon Avalanche
24-V		 Falcon Avalanche
24-LV		 Falcon Avalanche
32		 Falcon Avalanche
32-V
SKU TC-TOYODA-24S TC-TOYODA-24V TC-TOYODA-24LV TC-TOYODA-32 TC-TOYODA-32V
Belt Width 24" 24" 24" 32" 32"
Belt Length 14.25" 22" 43" 22" 28"
32" Doorway Compatible Yes No No Yes (Split Design) No
Powder Re-Circulation Manual Automatic Automatic Manual Automatic
Built-In Fume Extractor No No No No No
Rated Voltage 220V 220V 220V 220V 220V
Rated Current 30A 24A 33A 20A 22.7A
Power Consumption 2.3–3 kW 3–5.2 kW 3–7.2 kW 4 kW 5 kW
Machine Weight 231 lbs 507 lbs 507 lbs 491 lbs 530 lbs
Shipping Weight 335 lbs 529 lbs 661 lbs 577 lbs 617 lbs
Footprint (L × W × H) 44" × 39" × 39" 64" × 36" × 39" 94" × 36" × 36" 66.5" × 46.2" × 39" 71" × 55" × 44"
Shipping Size (L × W × H) 44" × 34" × 44" 56" × 44" × 44" 77" × 44" × 44" 56" × 53" × 43.8" 66.5" × 50.6" × 39"
  • Available in 3, 4, or 6 Epson i3200-A1 printhead configurations
  • Industrial 24" roll-to-roll DTF production
  • High-capacity 3L bulk ink delivery system
  • Automatic printhead cleaning and maintenance
  • Precision tension-controlled media feeding
  • Integrated anti-static system for improved print consistency
  • Extended pinch roller system for stable media tracking
  • Adjustable printhead platform for simplified servicing
  • Built for continuous, high-volume production

Le Falcon Atlas DTF Printing System vous convient-il ?

Entrez vos informations ci-dessous et un représentant commercial RB Digital vous contactera pour ajouter le Falcon Atlas DTF Printing System à votre entreprise de décoration de vêtements.
